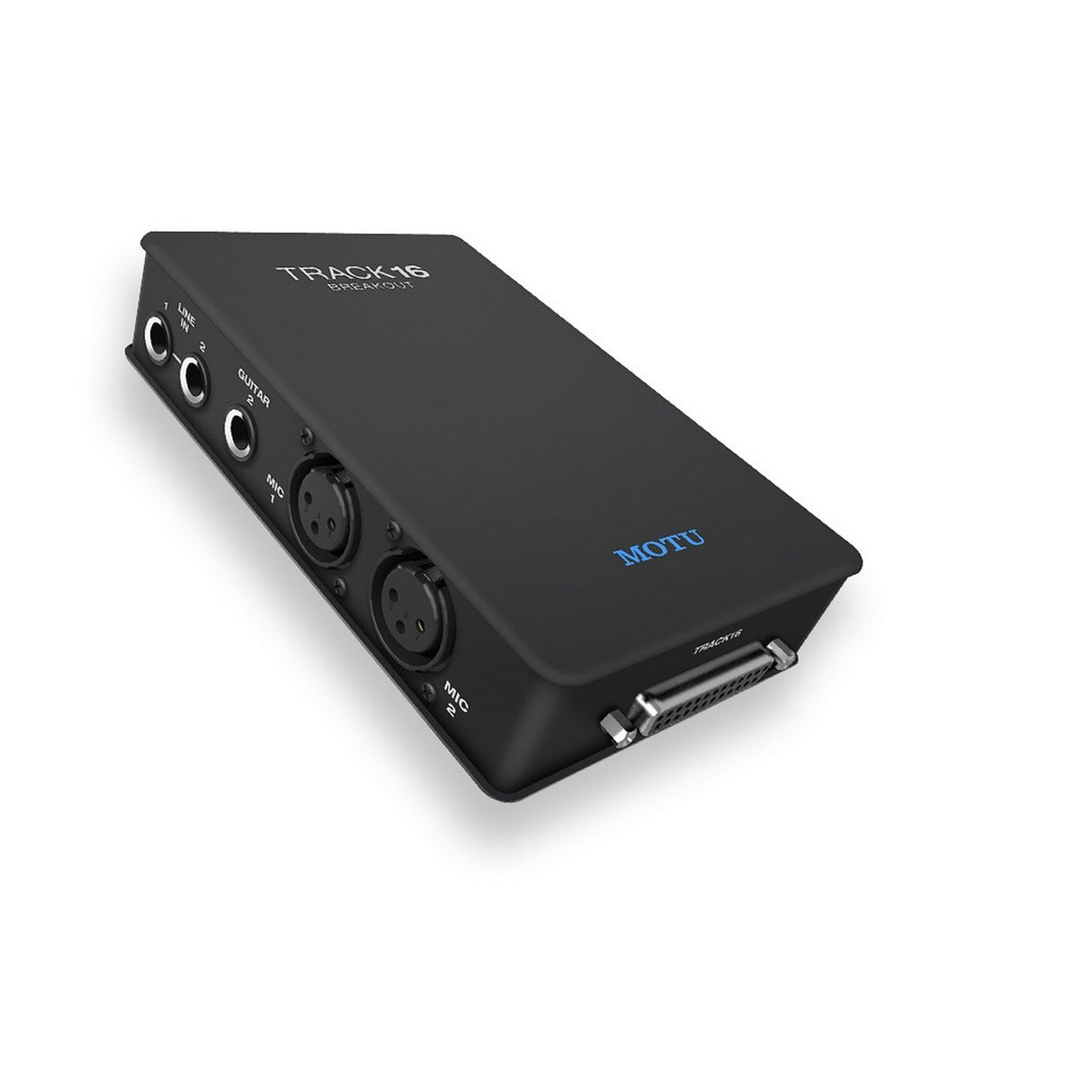

MOTU Track16 Breakout Box 16x14 Desktop Studio Interface

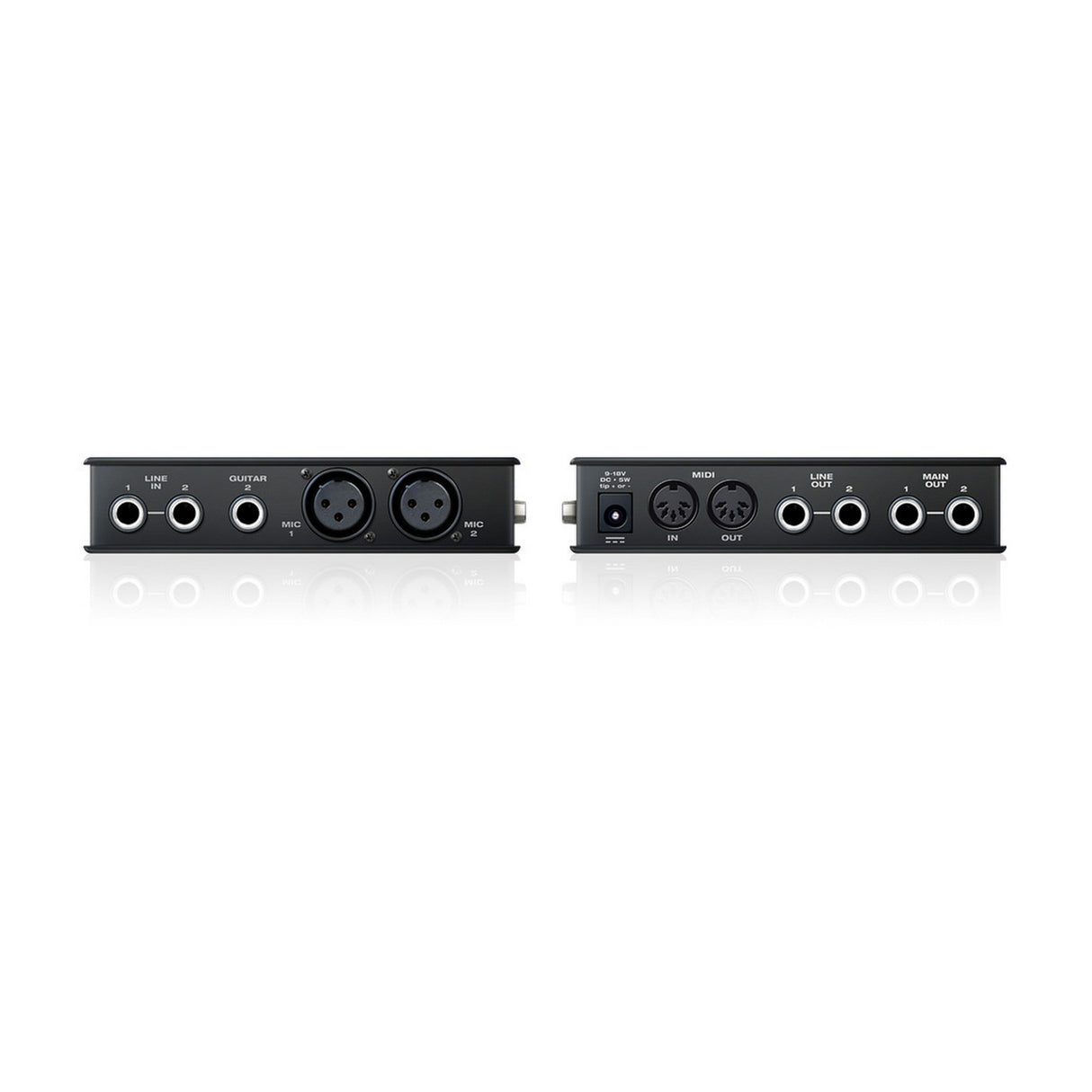

The Track16 Breakout provides the same connectors as the Track16's included cable. It connects to Track16 with a custom, shielded 40-inch DB25-to-DB25 cable (included with the Breakout box).
The 40-inch DB25-to-DB25 cable that comes with the Breakout box is a custom-designed, specially shielded cable that protects the balanced analog audio connects and fully prevents crosstalk among the many channels that it carries.
Key Features
- Track16 can draw power from its FireWire connection to the computer, so you can operate remotely on laptop battery power.
- Track16 can record and play all channels simultaneously, and high-speed USB 2.0 provides plenty of bandwidth, even at 192 kHz.
- Track16 provides time-tested drivers for Mac OS X and Windows (8, 7 and Vista) for cross-platform compatibility with virtually all audio software via WDM, ASIO, and Core Audio drivers.
- Track16's aluminum alloy chassis is lightweight, yet incredibly sturdy and durable, and designed to wIt'stand the rigors of the studio, stage, and tour bus.
Technicial Specifications
Converters
24-bit
Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs
2 x XLR mic inputs
2 x 1/4" TRS line inputs (balanced/unbalanced)
1 x 1/8" stereo "mini" line inputs (unbalanced)
2 x 1/4" hi-Z guitar inputs
Analog outputs
2 x 1/4" balanced TRS main out
2 x 1/4" unbalanced TRS line out
1 x 1/4" TRS stereo headphone
1 x 1/8" stereo headphone
Digital I/O
8-channel ADAT optical at 1x sample rates
4-channel SMUX optical at 2x sample rates
2-channel TOSlink (optical S/PDIF) up to 96 kHz
Computer I/O
1 x FireWire 400 (Type B connector)
1 x USB 2.0
Sync in/out
SMPTE time code (LTC)
Headphone output
1 x 1/4" TRS stereo phone
1 x 1/8" stereo phone
Phantom power
Individual +48V
Top panel
2 x 7-segment ladder LEDs main outs
2 x 7-segment LEDs mic in or line 3-4 in
2 x 7-segment LEDs guitar in or phones
2 x 7-segment LEDs line in 1-2 or line out
2 x LEDs 48V phantom power
2 x LEDs -20 dB pad
5 x backlIt'switches input select
3 x backlIt'switches output select
1 x backlIt'switch meters toggle
1 x backlIt'switch power
Power requirements
9-18V DC, 5W, tip + or -
FireWire bus power
DC power adapter included, required for stand-alone and USB 2.0 operation (except with FireWire bus power)
Mac System Requirements
PowerPC G4 CPU 1 GHz or faster (including any Mac with a PowerPC G5 or any Intel processor)
1 GB RAM; 2 GB or more recommended
Mac OS X version 10.8, 10.7, 10.6, or 10.5; v10.5.8 or later required
Available FireWire or high-speed USB 2.0 port
A large hard drive (preferably at least 250 GB)
Windows System Requirements
1 GHz Pentium-based PC compatible or faster equipped with at least one USB2 or FireWire port
1 GB RAM; 2 GB or more recommended
Windows 10, 8, 7 or Vista, 32- or 64-bit; Vista SP 2 or later required
Available FireWire or high-speed USB 2.0 port
A large hard drive (preferably at least 250 GB)
Included software
CueMix FX
MOTU SMPTE Console
AudioDesk (Mac only, optical CD drive required)
Operating Systems
Mac OS X version 10.8, 10.7, 10.6, or 10.5 (v10.5.8 or later is required)
Windows 10, 8, 7 or Vista (SP2 or later is required)
64-bit operation
Available for Mac OS X v10.8, 10.7, or 10.6
Available for 64-bit versions of Windows 10, 8, 7 or Vista
Requires a 64-bit CPU
