ADJ Hydro Beam CMY IP65 Beam Moving Head
The Hydro Beam CMY IP65 Beam Moving Head is a powerful and precise automated beam luminaire designed for demanding indoor and outdoor environments. Powered by an OSRAM Sirius HRI 310 W PRO discharge lamp and refined optics, it produces an ultra bright, razor sharp 2 degree beam that cuts through ambient light, haze and fog with ease. Its rugged IP65 rated construction protects against dust and water ingress, making it ideal for festivals, stadium tours, theme parks and large scale outdoor events.
Built for creative flexibility, the fixture features smooth CMY color mixing paired with a 14 position dichroic color wheel that includes CTO, CTB and UV filters. A static GOBO wheel loaded with 17 patterns, including four beam reducers, enables dynamic mid air effects, while two rotating prisms and an optional frost filter expand the visual toolbox even further. High quality glass optics, motorized focus with 16 bit precision and various strobe speeds allow designers to sculpt tight aerial beams or softer wash like looks with consistent output and definition.
Engineered for professional control workflows, the Hydro Beam CMY supports DMX512 and RDM, and includes integrated Aria X2 wireless DMX and fixture management plus NFC for streamlined setup and configuration. A color LCD display with four button menu, three phase high speed pan and tilt motors and lockable pan and tilt mechanisms support fast, precise operation on the road. With multi voltage operation, IP65 locking connectors, CE and FCC approvals and a robust housing, this fixture delivers reliable performance and huge creative potential for modern lighting systems.
Key Features
- IP65 rated outdoor beam fixture: Weather resistant design for indoor and outdoor use in demanding environments.
- Razor sharp 2 degree beam: OSRAM Sirius HRI 310 W PRO discharge lamp and precision optics deliver a tight, punchy beam.
- Flexible color system: CMY color mixing with a 14 position color wheel including CTO, CTB and UV filters.
- Extensive effects engine: 17 static gobos with beam reducers, two rotating prisms, frost filter and various strobe speeds.
- Advanced focus and movement: Motorized focus with 16 bit fine control plus three phase high speed pan and tilt motors.
- Integrated wireless control: On board Aria X2 wireless DMX and fixture management plus NFC for fast configuration.
- Professional connectivity: IP65 rated 5 pin DMX in and out and IP65 locking power in and out for secure touring setups.
- Tour ready construction: Robust housing with pan and tilt locks, fan cooling and IP65 rating for reliable road use.
Technical Specifications
- Light Source: OSRAM Sirius HRI 310 W PRO discharge lamp
- Lamp Life: 6,000 hour rated life
- Color Temperature: 7,850 K plus or minus 500 K
- CRI: 86 plus or minus 5
- Beam Angle: 2 degree fixed beam
- Color Mixing: CMY color mixing system
- Color Wheel: 14 dichroic colors plus white, includes CTO 3200 K, CTB 9000 K and UV, indexable for split colors, separate multi color effect
- Gobo Wheel: 17 static gobos plus open, 4 gobos are beam reducers, gobo shake effect
- Prisms: 2 rotating prisms, 16 facet circular and 6 facet linear, prisms overlay
- Frost: Frost filter to create wash effect
- Dimming: 0 to 100 percent smooth dimming
- Strobe: Various strobe speeds
- Focus: Motorized focus with 16 bit fine focus
- Control Protocols: DMX512, RDM, Aria X2, NFC
- Control Modes: DMX512 and manual on board controls
- DMX Channel Modes: 2 modes, 20 or 24 channels
- User Interface: Color LCD display with 4 button function menu
- Pan Range: 540 degrees with 16 bit fine pan
- Tilt Range: 270 degrees with 16 bit fine tilt
- Pan and Tilt Motors: 3 phase high speed pan and tilt motors
- Pan and Tilt Locks: Mechanical locks for transport and service
- DMX Connections: Seetronic IP65 rated 5 pin DMX in and out, data link maximum 32 fixtures

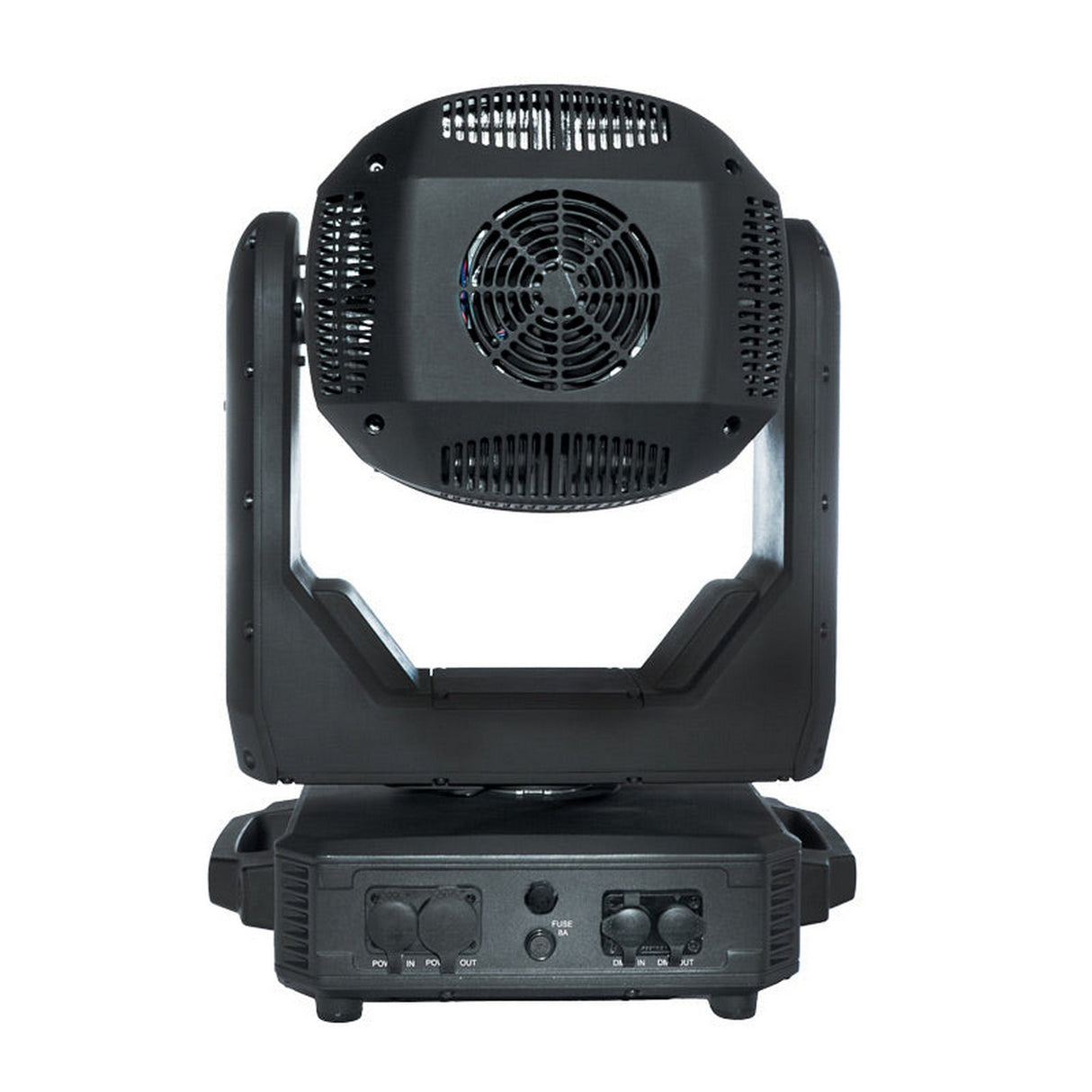

- Power Connections: IP65 locking power in and out for daisy chain power
- Power Input: Multi voltage 100 to 240 V, 50 or 60 Hz
- Max Power Consumption: 450 W at 120 V, 4300 W at 230 V
- Protection: Fuse protected, 6.5 A
- Dimensions: 15 in length x 11.2 in width x 23 in height, 381.6 x 284.5 x 568.5 mm
- Weight: 56 lb, 25.6 kg
- Ratings and Approvals: IP65, CE, cETLus pending, FCC
- Cooling: Fan cooled
