ADJ Protege Series LED Moving Head Spot Fixtures

The Protege Series LED Moving Head Spot Fixtures combine three performance tiers into one unified professional lighting family: XS, XM, and XL. Designed to support productions of any scale, these fixtures deliver a balance of output, effects, and precision. The compact XS is ideal for small venues and portable rigs, the mid-sized XM adds more punch for medium stages, and the flagship XL delivers the highest output and widest feature set for large-scale shows. All models offer fast movement, motorized zoom and focus, and a broad creative toolkit suitable for touring, installations, theaters, and live events.

Each model delivers a powerful LED engine tailored to its intended application. The XS uses a 250 W LED source producing up to 9,800 lumens; the XM upgrades to a 350 W engine with up to 16,000 lumens; and the XL features a robust 450 W LED system reaching up to 20,000 lumens of total output. These fixtures support multiple beam modes, CMY or color wheel systems (model dependent), dual GOBO wheels, frost, prisms, and animation effects, giving designers a complete range of tools for beam work, textured projections, wash looks, and atmospheric scenes.

The Protege family also supports modern lighting workflows with DMX, RDM, Art-Net, sACN, and built-in Aria X2 wireless control for flexible system integration. Smooth three-phase motors, 360 degree movement options, and model-specific optical enhancements ensure precise control and dynamic performance. Whether used individually or mixed within one rig, the Protege Series provides scalable solutions with consistent operation and professional reliability.

Key Features

• Three-tier fixture series: XS for compact portability, XM for mid-range power, and XL for high-output feature-rich performance.
• LED-powered moving head spots: High-output LED engines allow beam, spot, and wash versatility depending on mode and zoom settings.
• Extensive effects package: Dual GOBO wheels, prisms, frost filters, animation effects, and motorized zoom and focus.
• Flexible color control: CMY mixing, CTO correction, or dual color wheels depending on the model.
• Advanced motion capabilities: Fast movement with smooth three-phase motors and 360 degree pan or tilt options depending on model.
• Pro-level connectivity: Supports DMX, RDM, Art-Net, sACN, and integrated Aria X2 wireless control.
• Scalable performance: Designed to serve small venues, mid-sized productions, and large event stages with consistent workflow and interface design.

Variants and Technical Overview

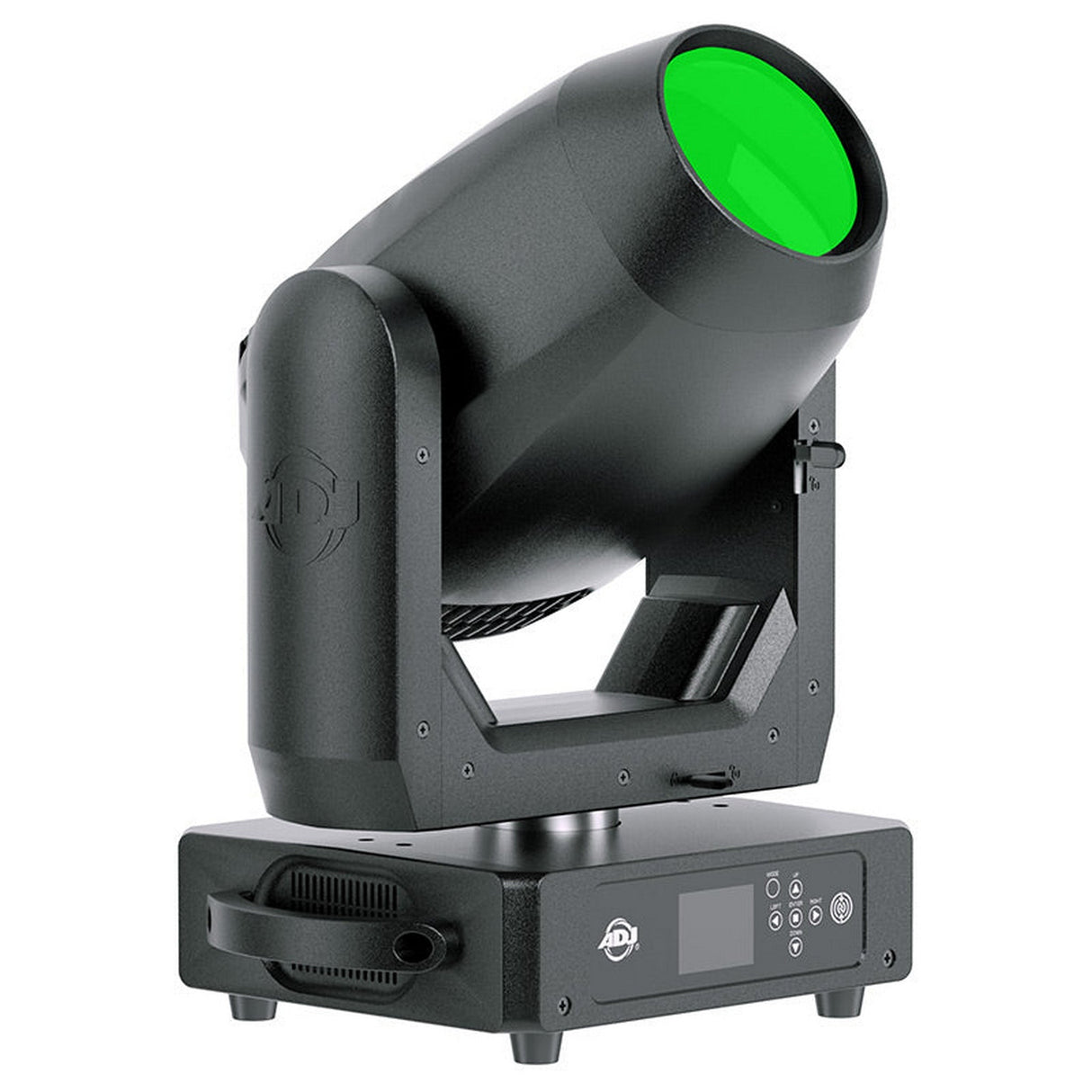

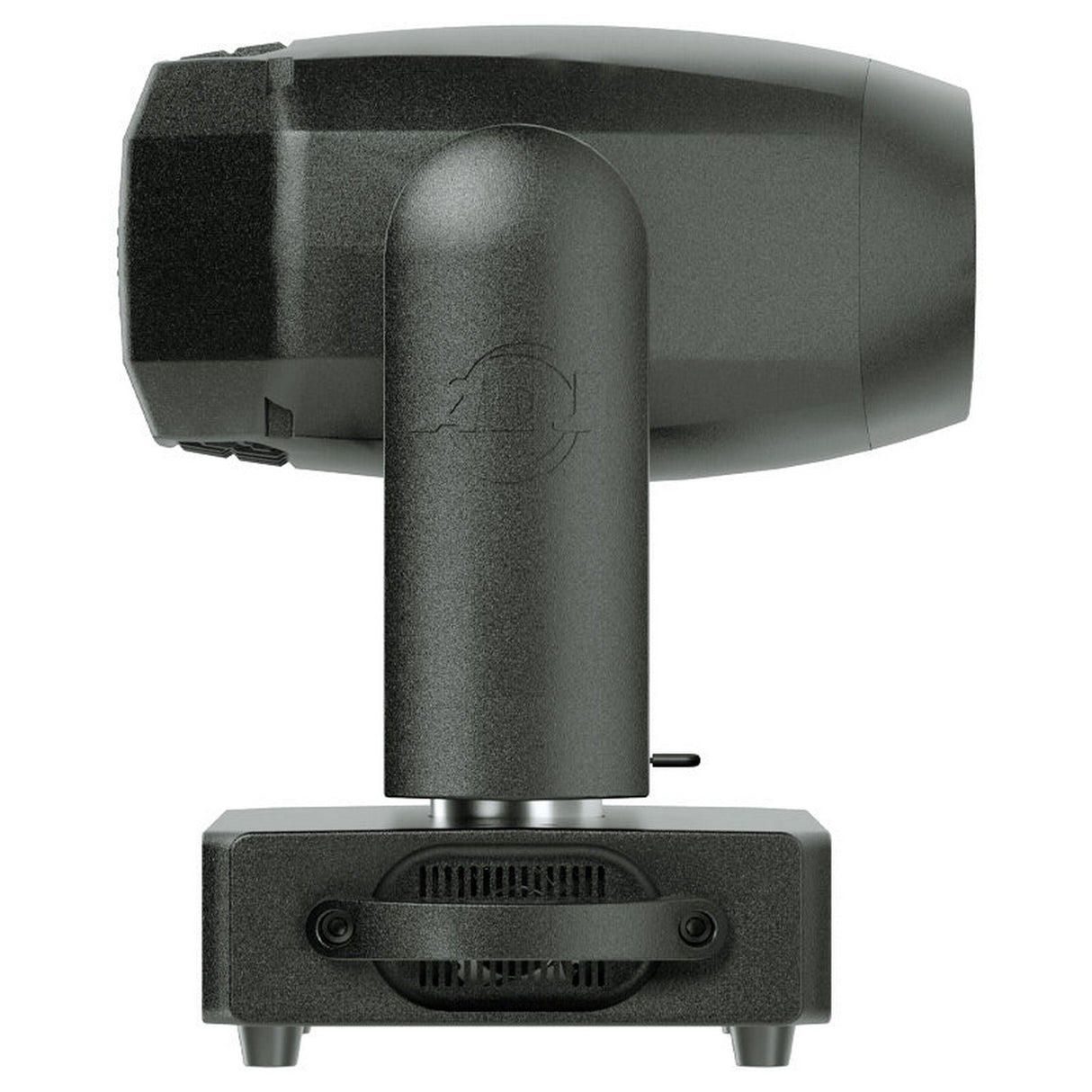

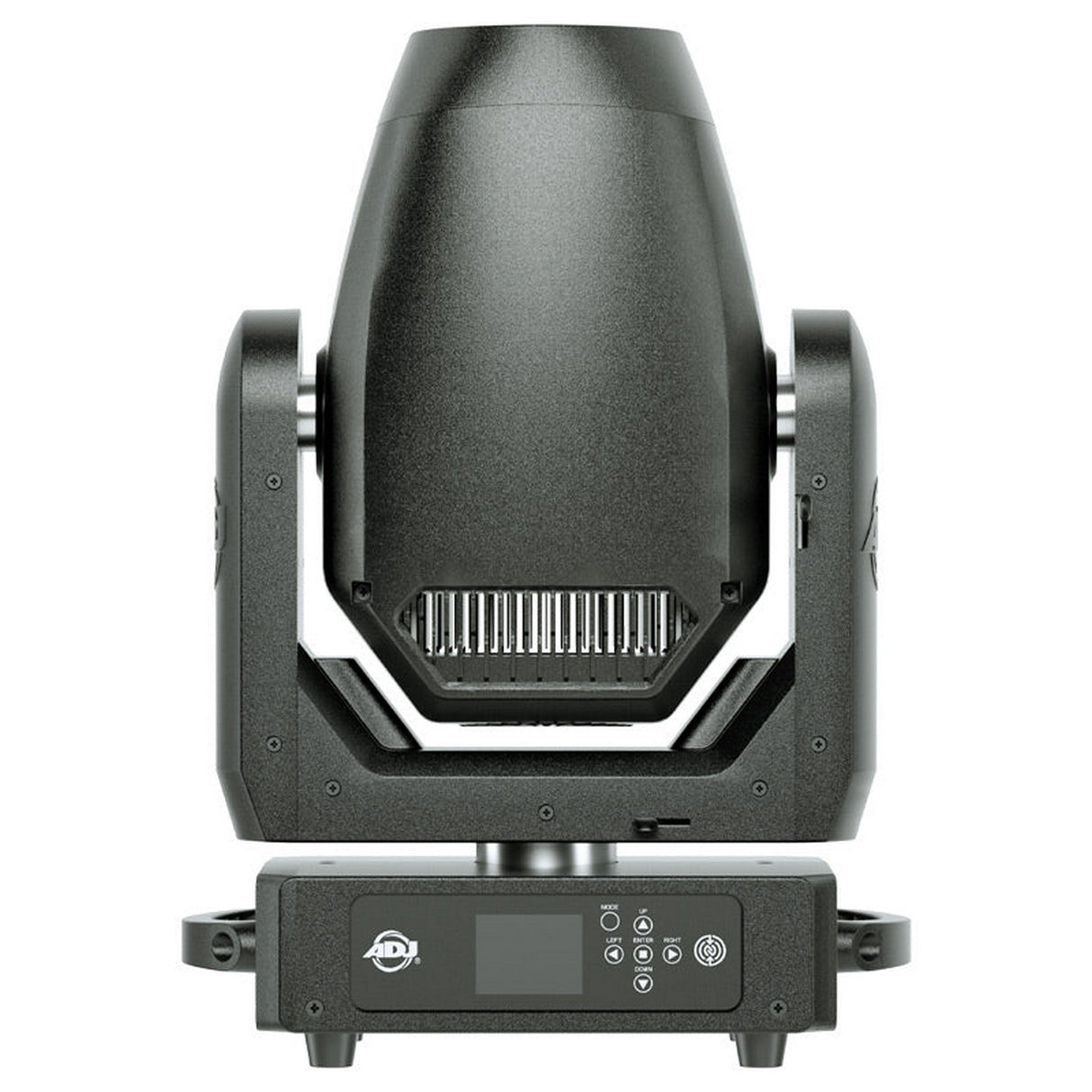

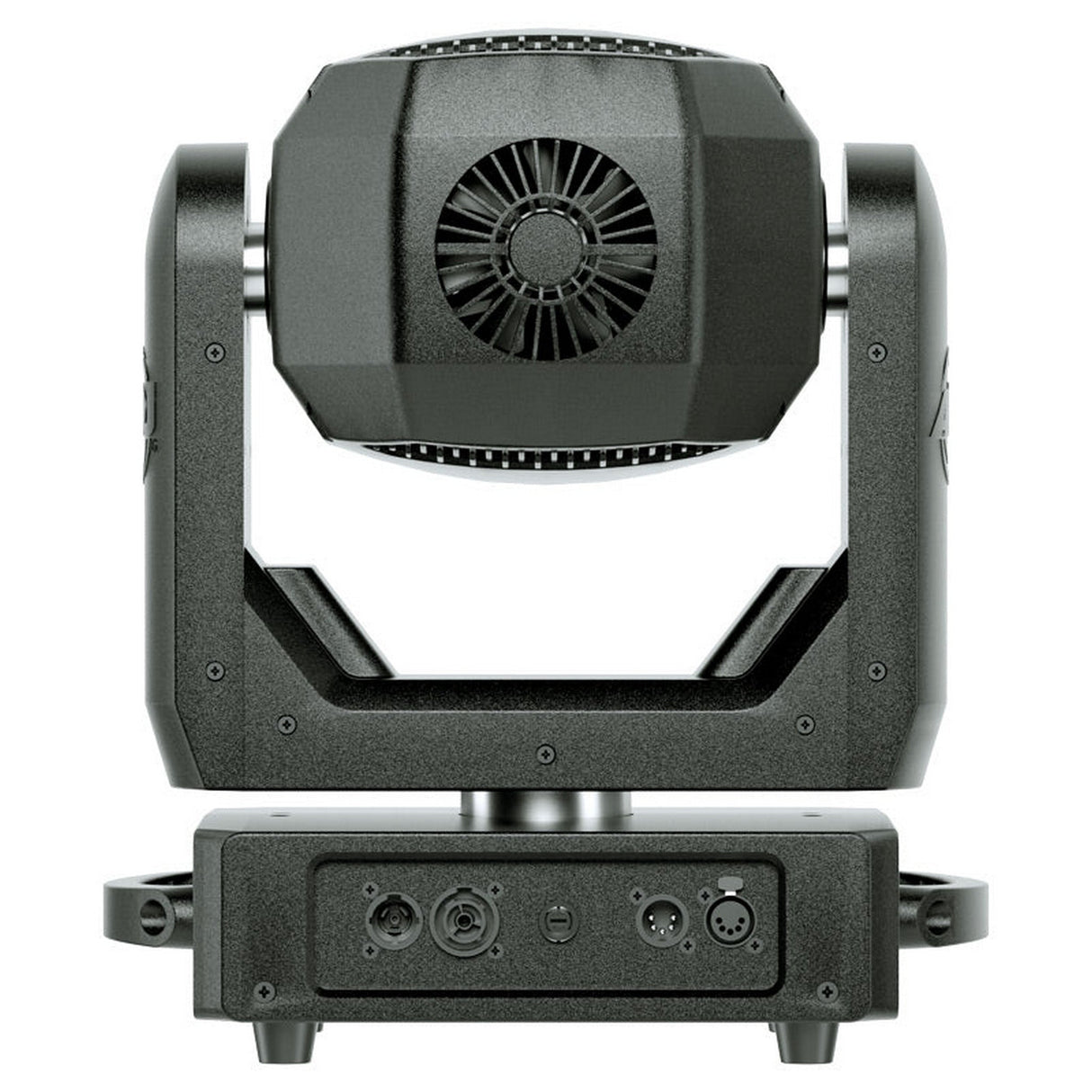

• Protege XS: 250W white LED engine, up to 9800 lumens, dual color wheels, dual GOBO wheels, dual prisms, frost, animation, motorized zoom approx. 4.8 to 38 degrees, DMX and Aria X2 wireless support.

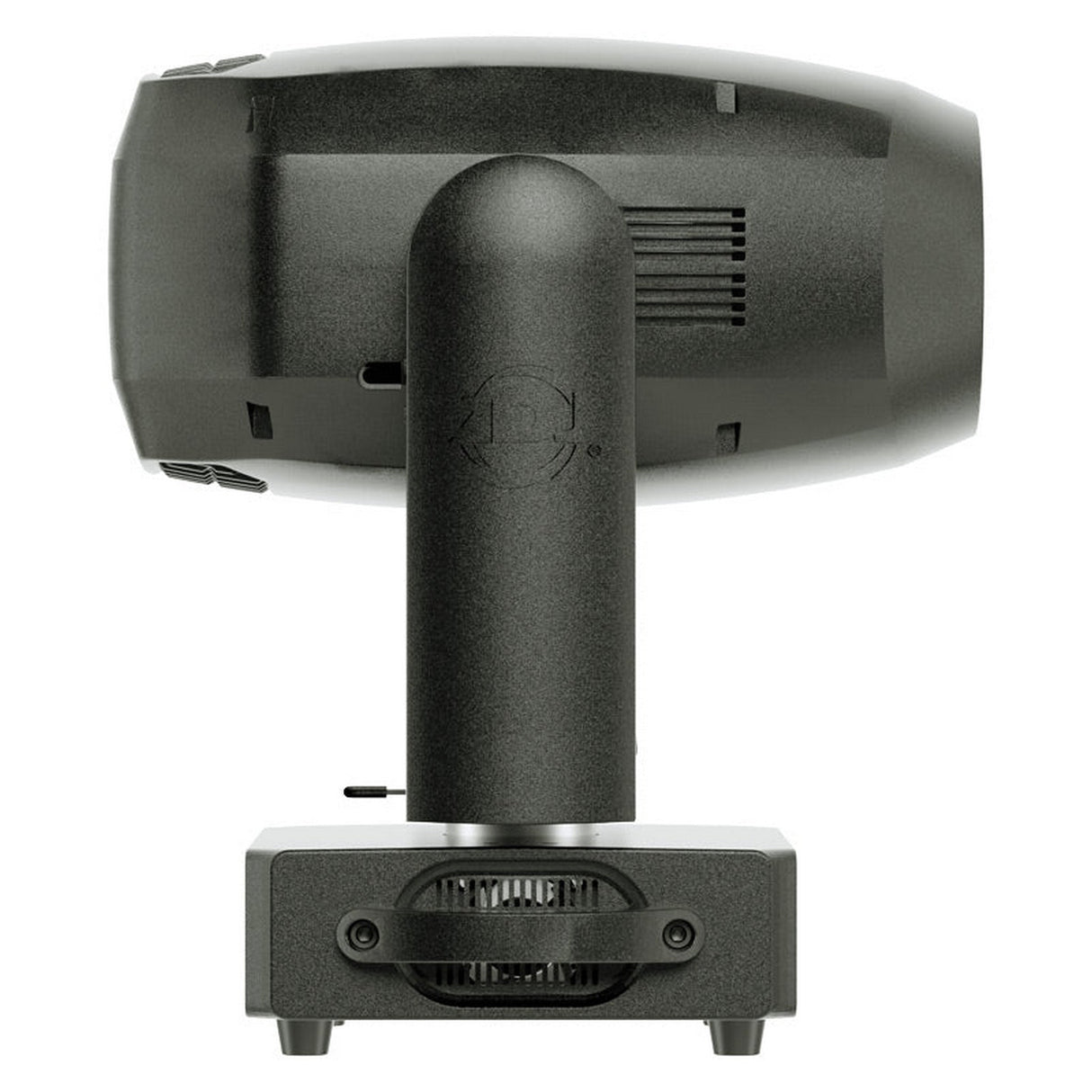

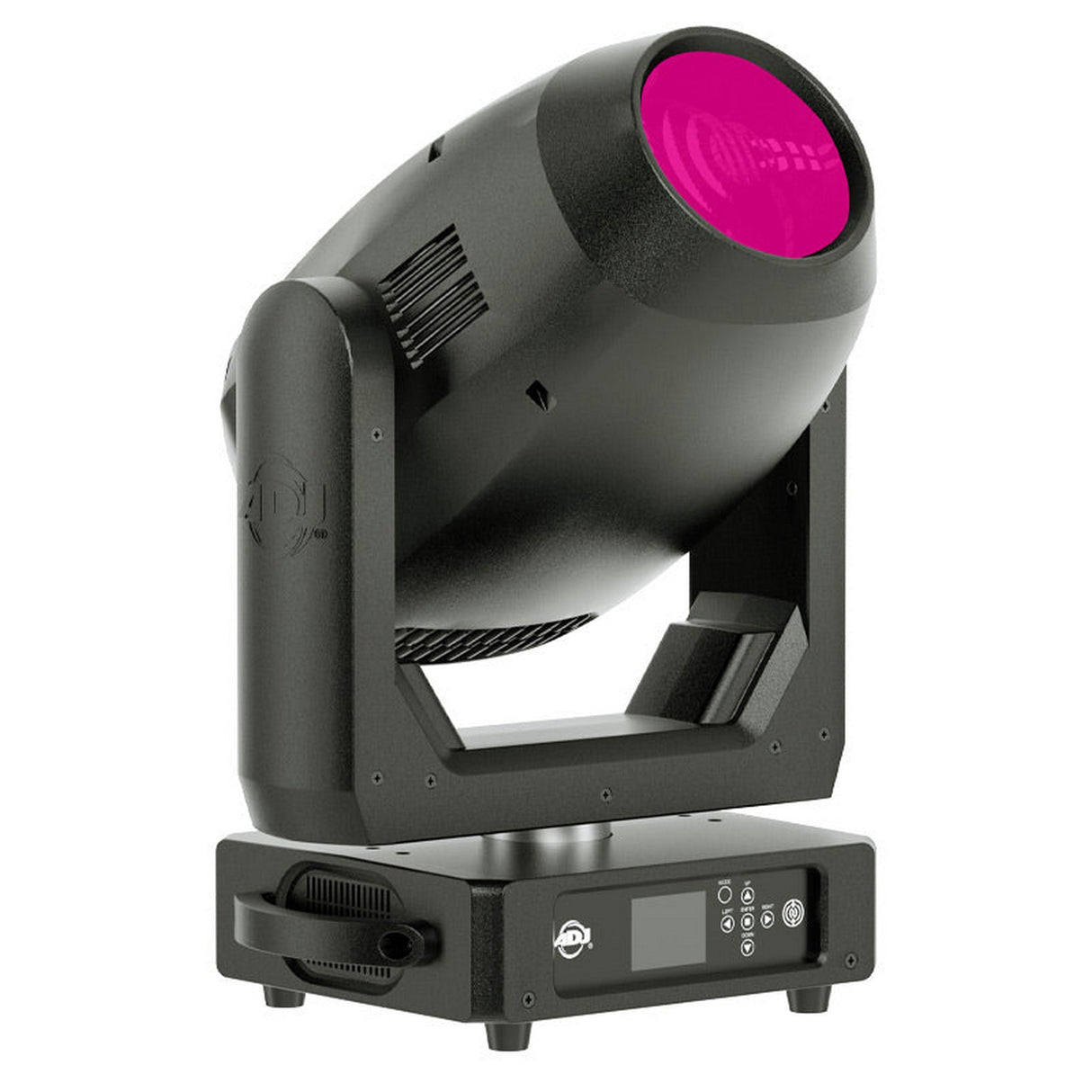

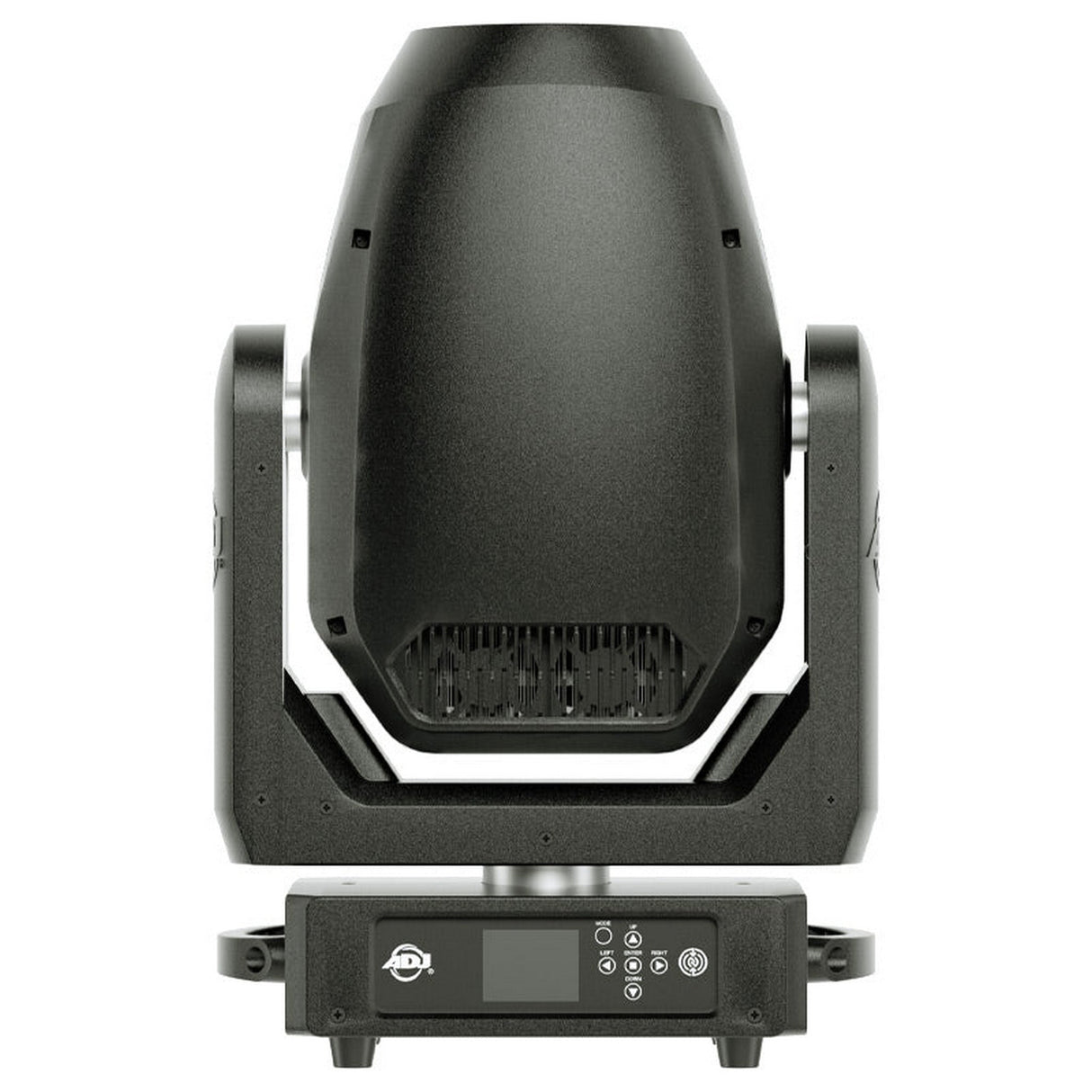

• Protege XM: 350W LED engine, up to 16000 lumens, CMY disc-based mixing with color wheels, dual rotating GOBO wheels, dual prisms, dual frost filters, animation, motorized zoom approx. 3.8 to 44 degrees, DMX, RDM, Art-Net, sACN, and wireless control support.

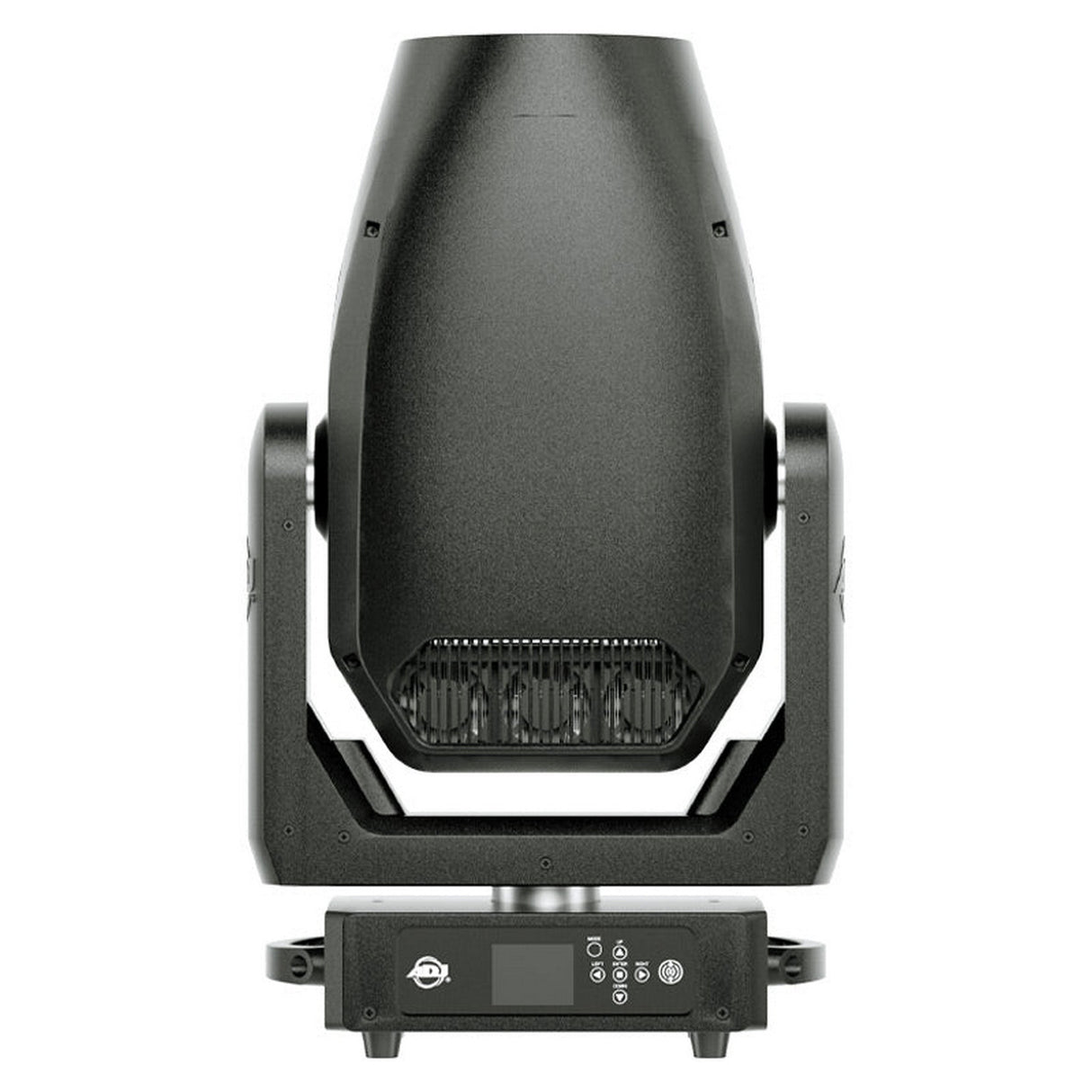

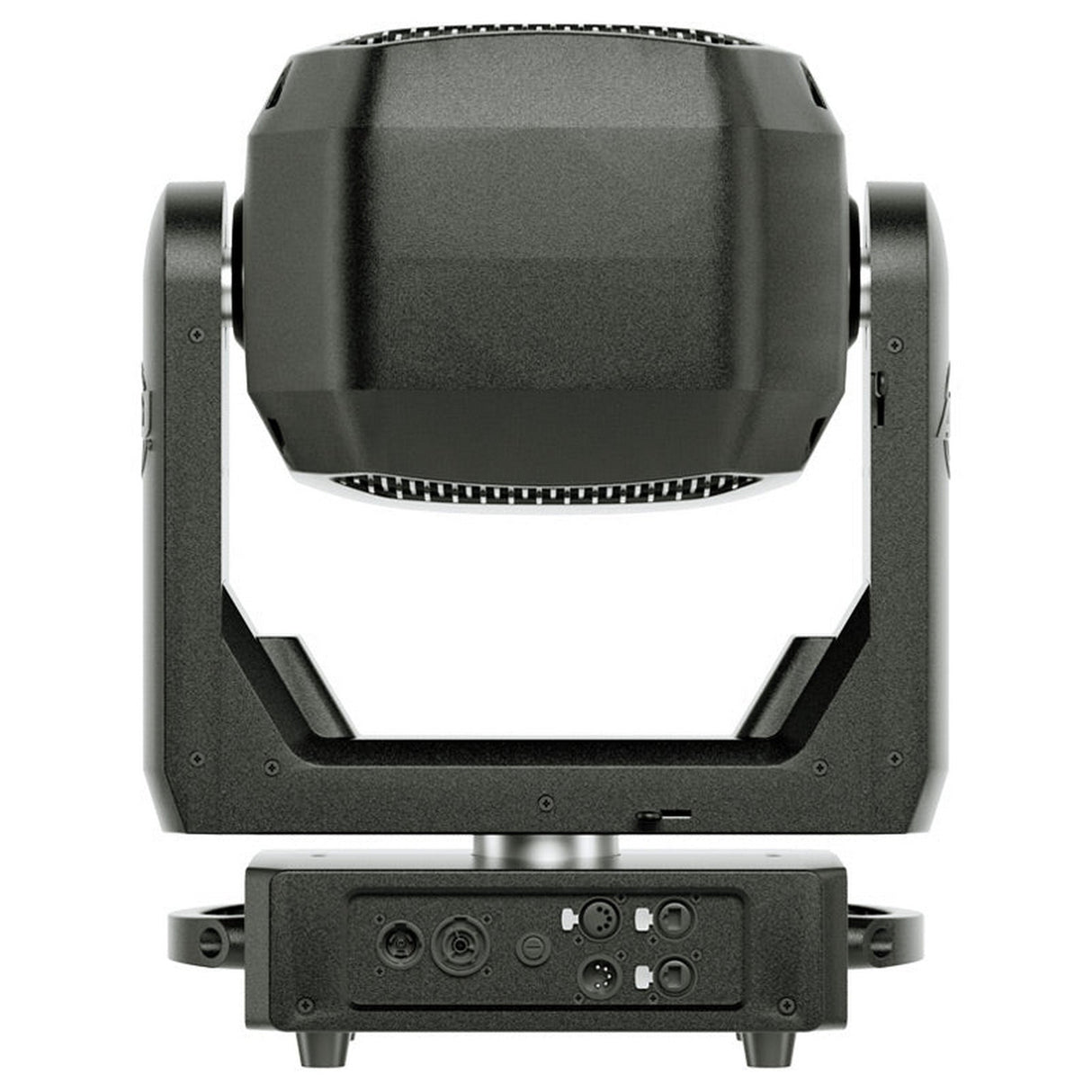

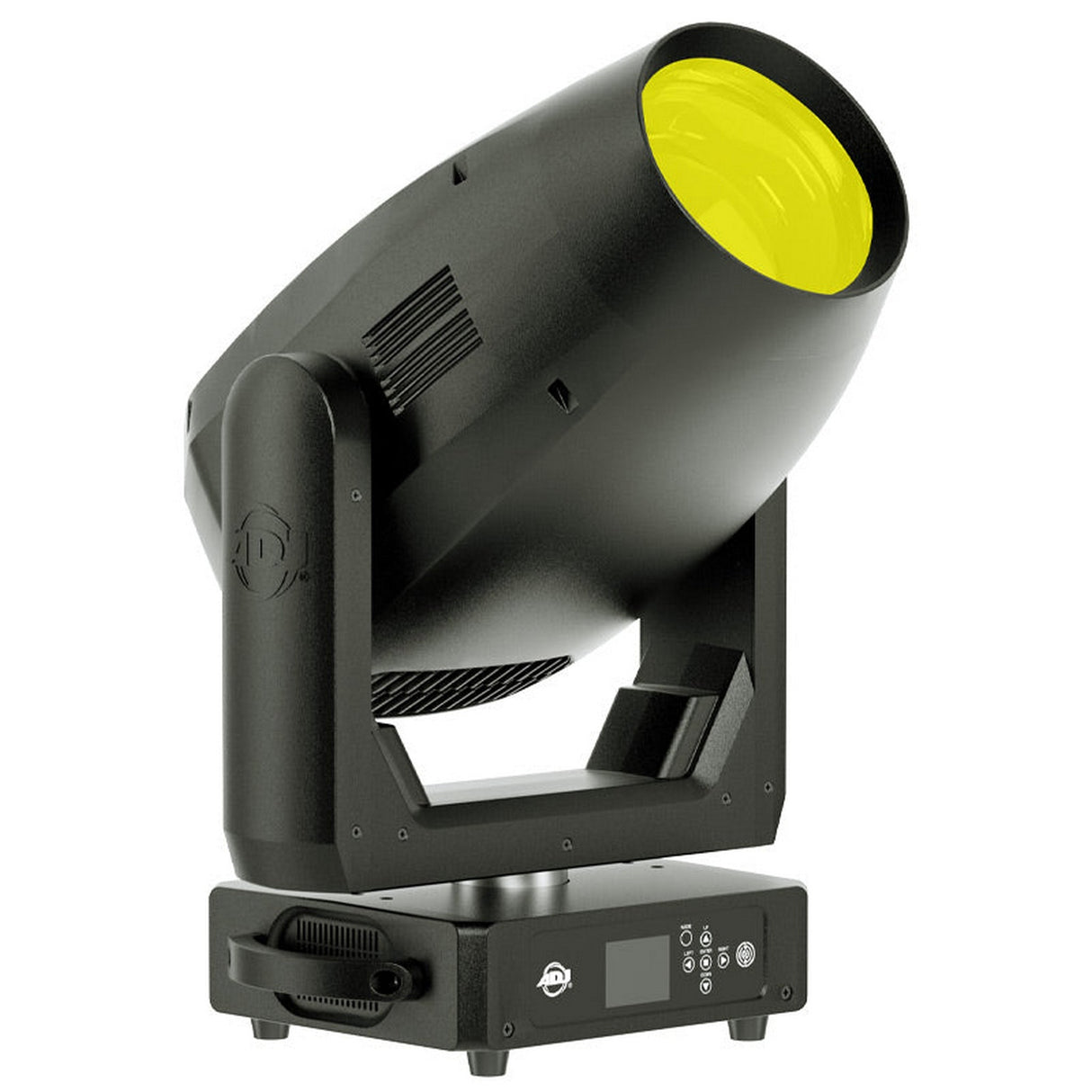

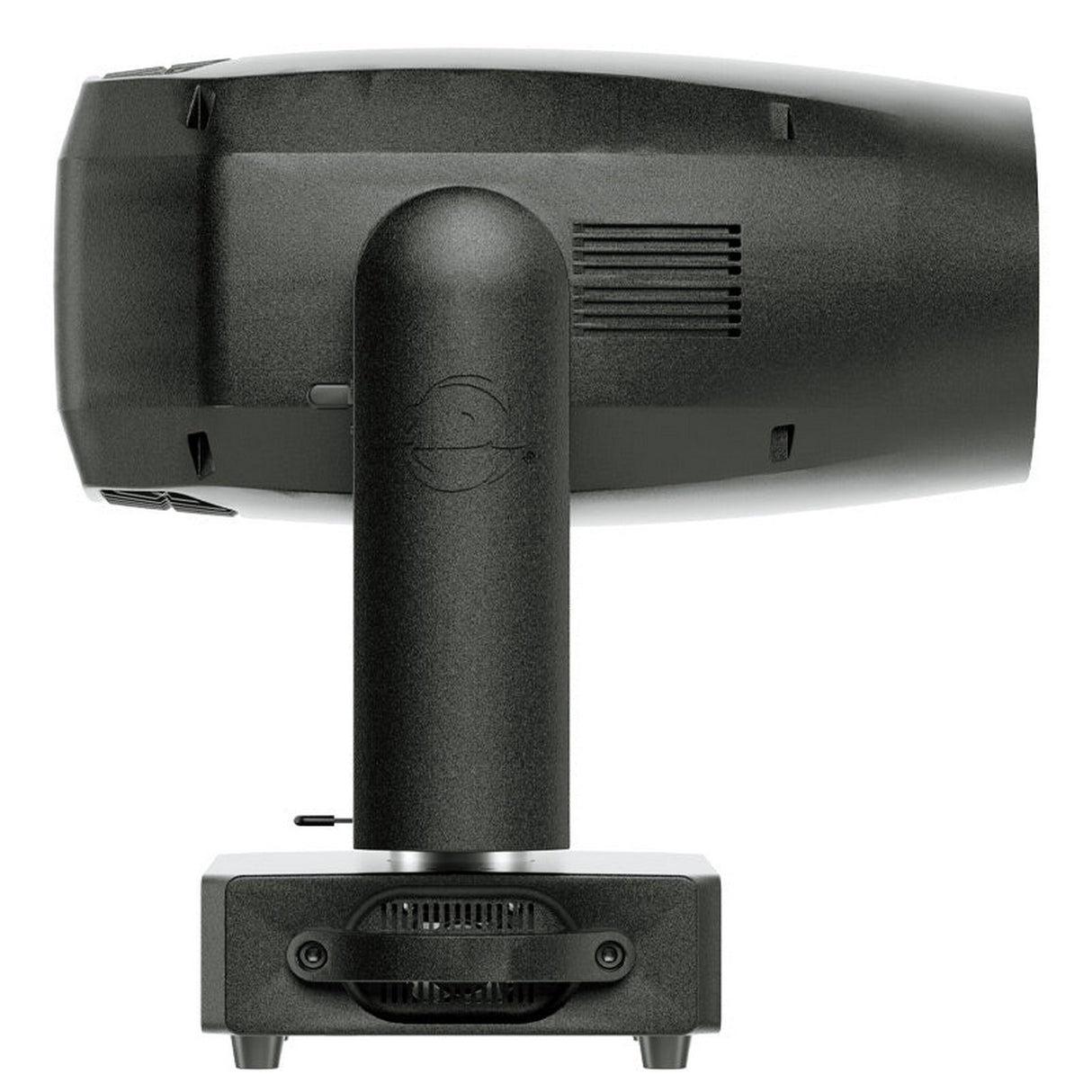

• Protege XL: 450W LED engine, up to 20000 lumens, CMY plus CTO, dedicated color wheel, dual rotating GOBO wheels, overlay prisms, dual frost filters, animation, motorized zoom approx. 4.1 to 45 degrees, continuous movement, DMX, Art-Net, sACN, RDM, and Aria X2 wireless.
