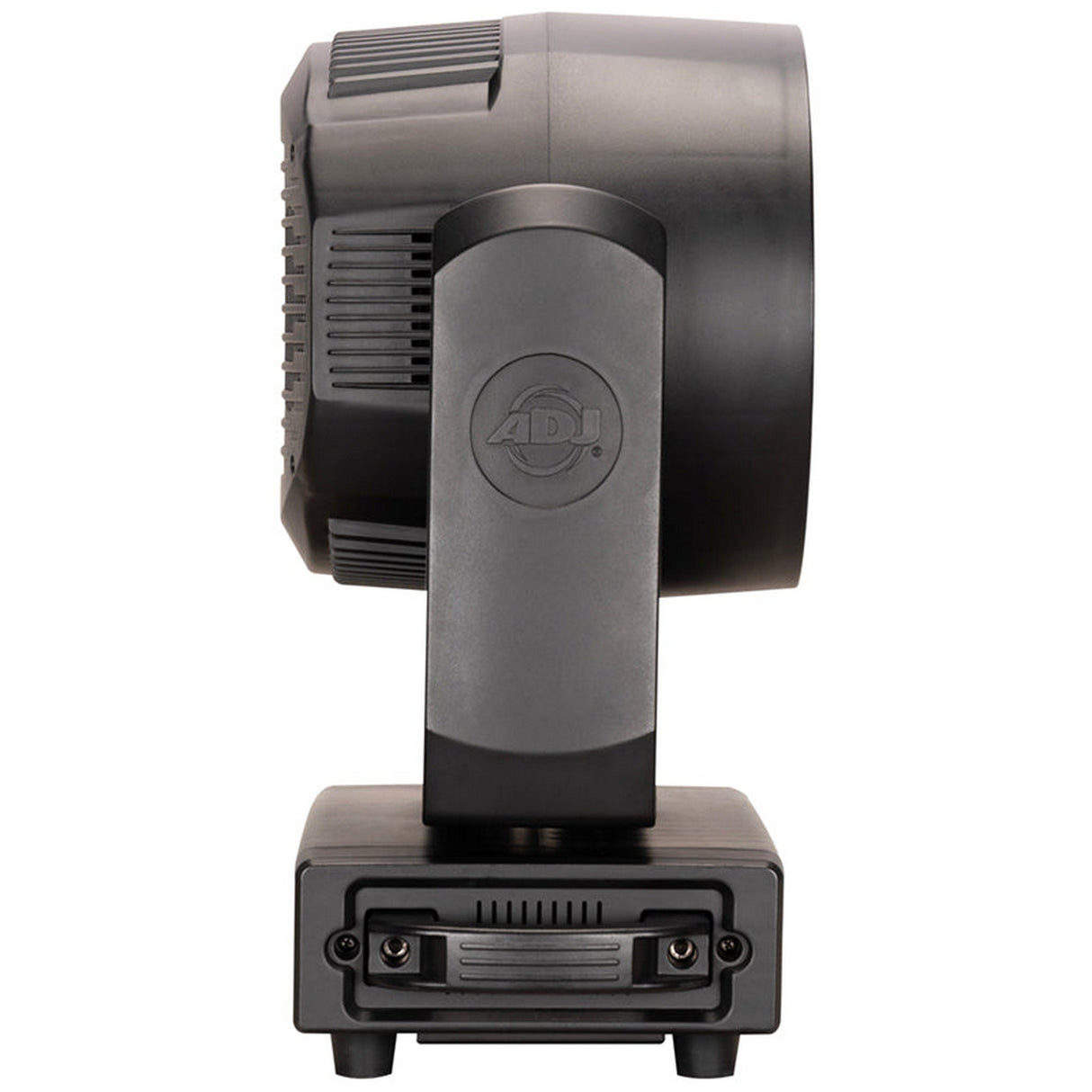

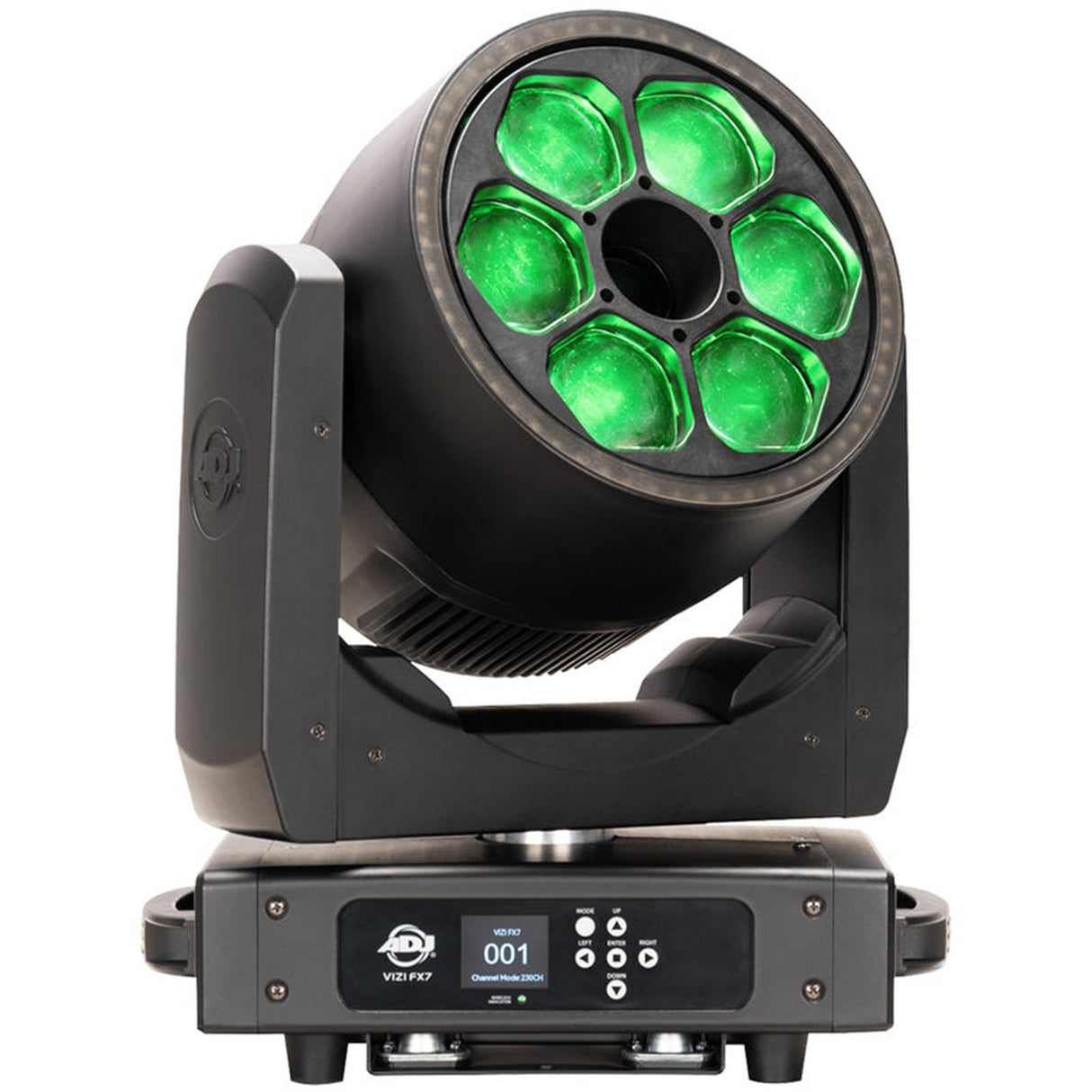

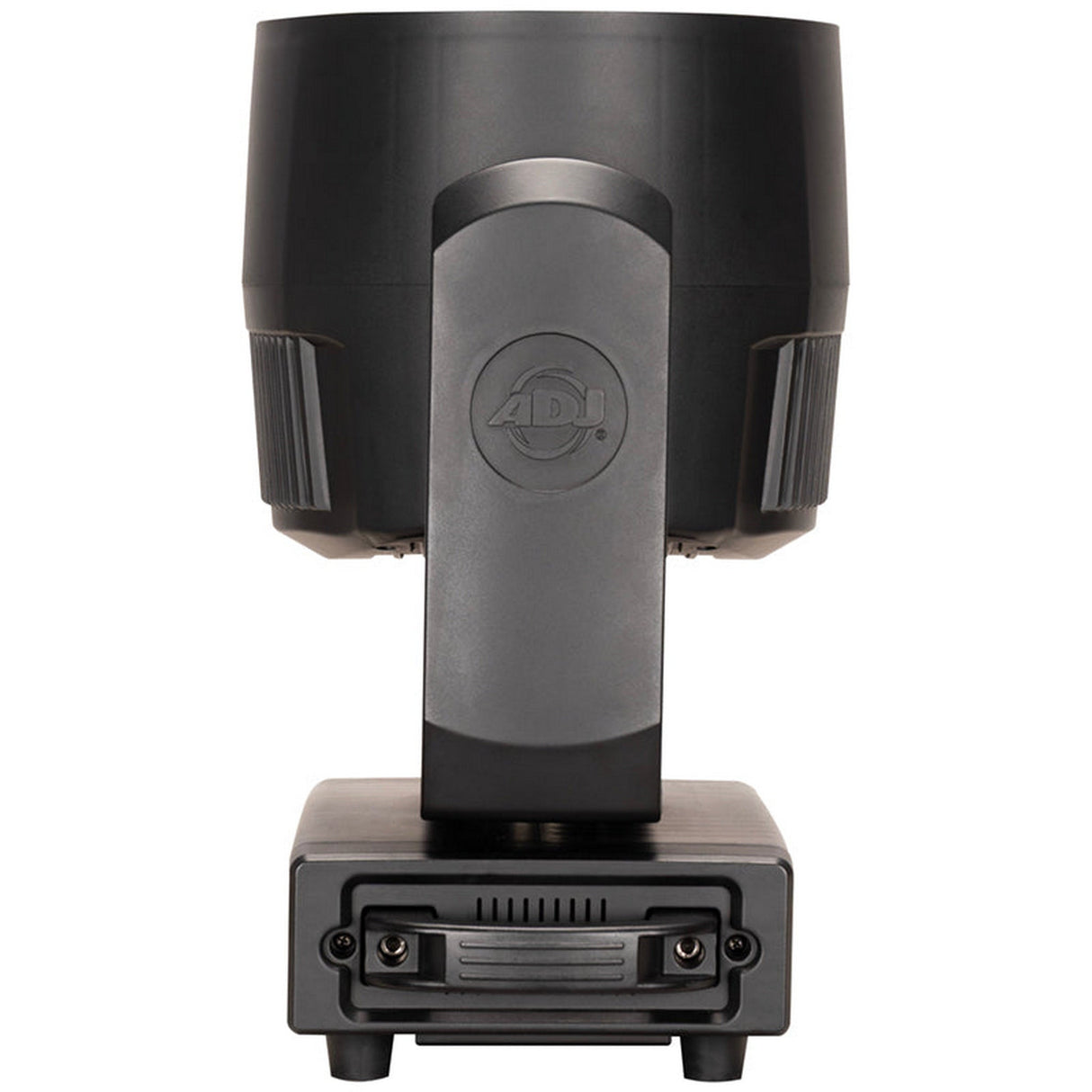

ADJ Vizi FX7 Multi Effect RGBL Moving Head

The Vizi FX7 Multi Effect RGBL Moving Head combines four powerful visual effects into a single compact, professional fixture. Designed for event production, touring, and venue installations, it delivers beam, wash, multi color kaleidoscope, and LED ring effects from one housing. With a 420 watt RGBL LED engine and precision optical system, it generates intense mid air beams, rich color washes, and eye catching face effects that can transform stages, clubs, houses of worship, and live entertainment spaces.

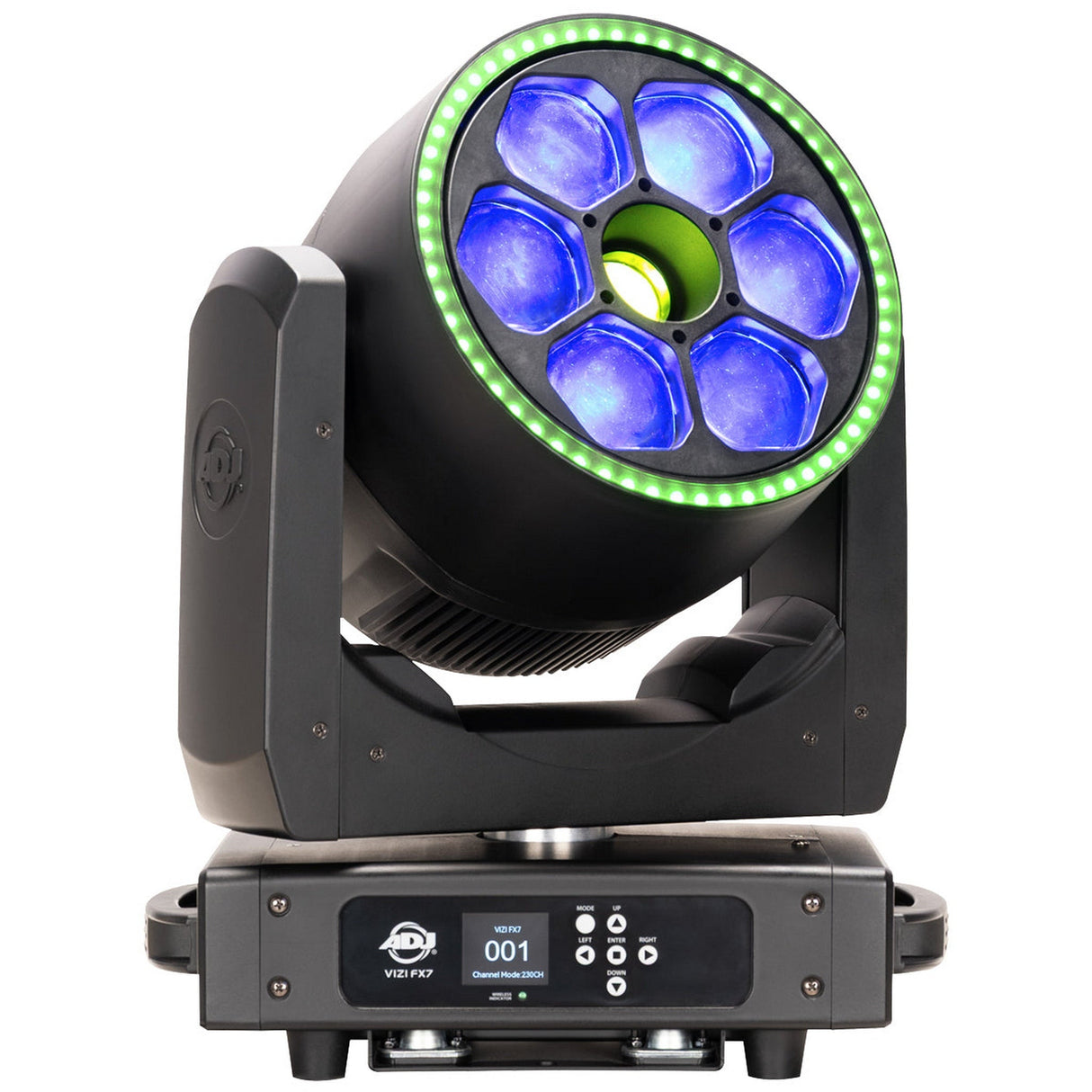

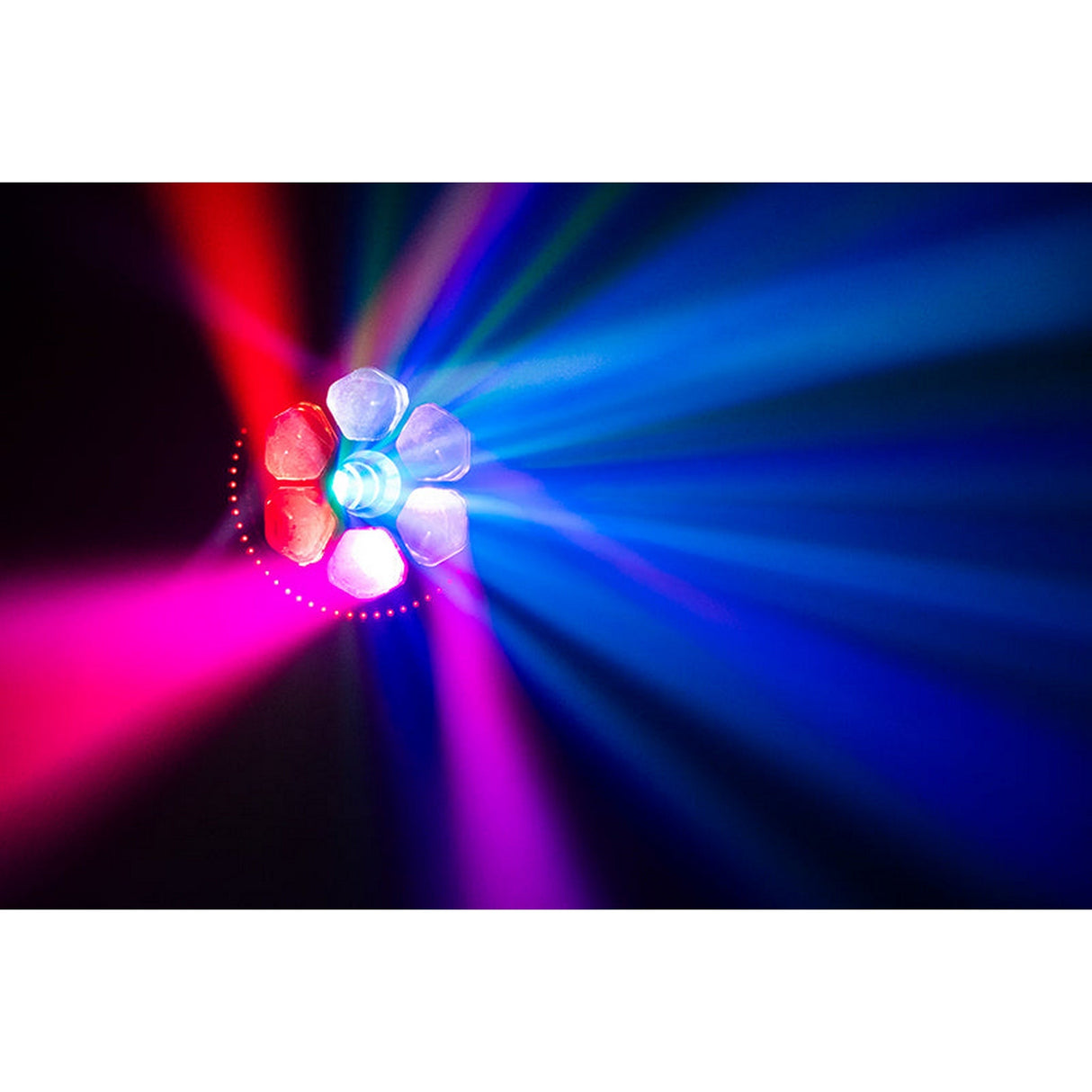

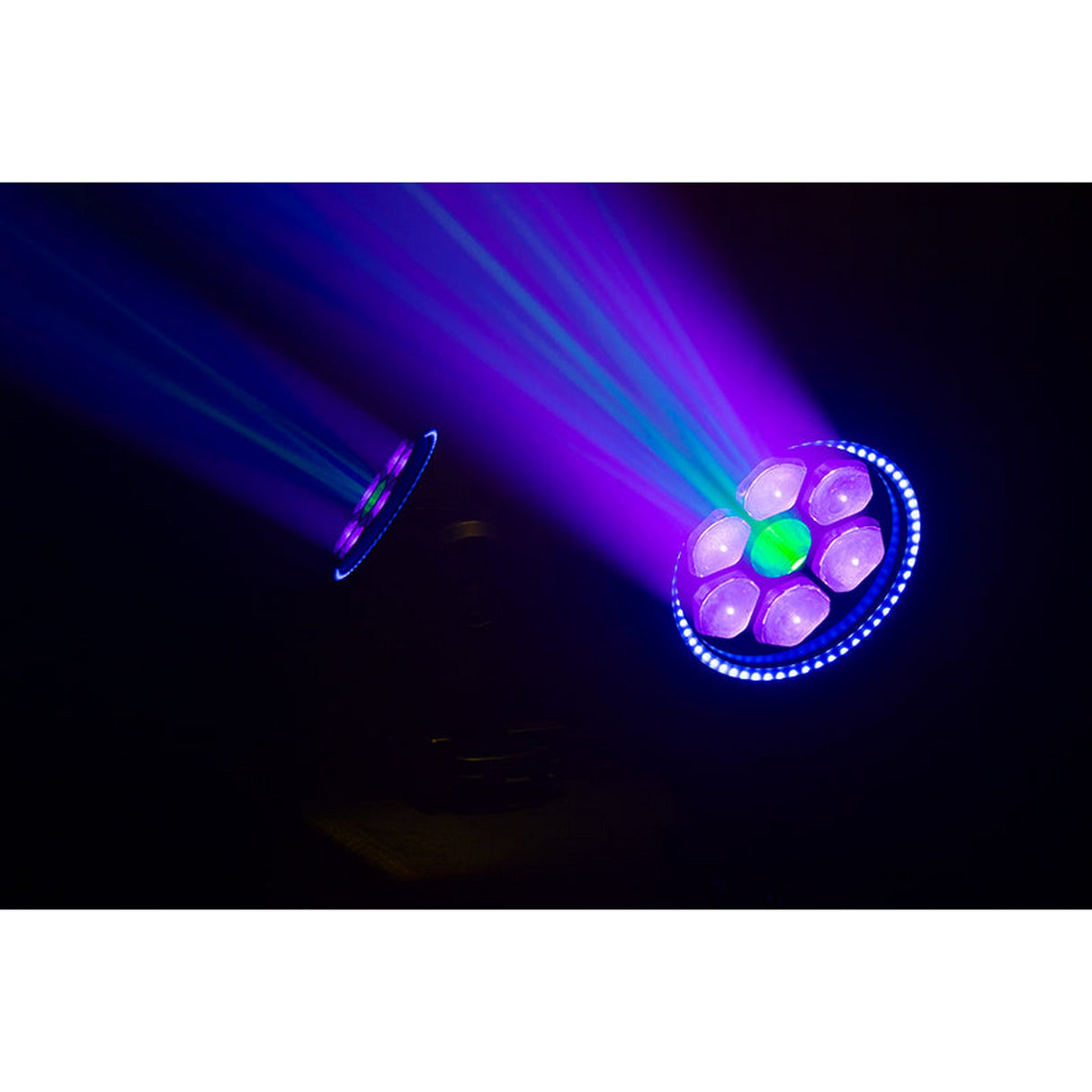

Six primary 60 watt RGBL LEDs provide the main beam and wash output, projecting through a motorized zoom system that adjusts the beam angle from 8 to 38 degrees for seamless transition between tight beams and wide coverage. The lens assembly can rotate in both directions, creating multi beam effects with fluid motion, while fast three phase motors deliver responsive pan and tilt movement. At the center, an additional 60 watt RGBL LED produces a rotating kaleidoscope effect, while an outer ring of sixty 0.5 watt RGB LEDs supplies animated eye candy looks that are ideal for both live audiences and camera work.

Built for modern control workflows, the Vizi FX7 offers DMX and RDM support alongside integrated Aria X2 wireless management for cable free control and remote configuration. Multiple DMX modes, selectable dimming curves and dimming modes, and adjustable LED refresh rates up to 25 kHz help ensure smooth fades and flicker free operation in broadcast environments. With its touch control panel, reversible LCD menu, flexible power linking, and robust construction, this fixture is a versatile multi effect moving head ready for professional use on tours, in clubs, and in fixed installations.

Key Features

• Four in one multi effect design: Combines beam, wash, multi color kaleidoscope, and RGB LED ring effects in a single moving head fixture.
• High power RGBL engine: Seven 60 watt RGBL LEDs deliver strong output with adjustable color temperature and saturated color mixing.
• Motorized zoom system: Beam angle variable from 8 to 38 degrees for tight mid air beams or wider wash coverage.
• Independent pixel and effect control: Individual control of primary LEDs, bi directional beam rotation, and rotating kaleidoscope effects with built in macros.
• Dedicated LED ring: Sixty 0.5 watt RGB LEDs form an outer ring for eye catching face and audience facing effects.
• Advanced control options: Multiple DMX modes, integrated Aria X2 wireless, RDM support, selectable dim curves and dimming modes.
• Professional motion system: Three phase motors provide fast and precise pan and tilt movement for dynamic shows.

Technical Specifications

• Type: 420 W RGBL moving head beam effect and wash fixture
• Main and Kaleidoscope Source: 7 x 60 W RGBL LEDs
• Color Temperature Range: 2800 K to 8500 K (linear control)
• LED Life: 50,000 hour average life (depending on usage and conditions)
• Ring Source: 60 x 0.5 W RGB LEDs
• Color Functions: Red, green, blue, and lime primary LEDs; multi color kaleidoscope center; red, green, and blue ring LEDs
• Color Temperature Presets: 2800, 3200, 3600, 4500, 5000, 5600, 6200, 6800, 7500, and 8500 K
• Beam and Zoom: Motorized zoom from 8 to 38 degrees
• Effects: Bi directional primary LED beam rotation, individual primary LED pixel control, bi directional multi color rotating kaleidoscope, built in FX programs with speed control
• Strobe: Electronic strobe, 1 to 20 Hz
• Dimming: 0 to 100 percent smooth dimming
• DMX Channel Modes: 4 standard modes (31, 55, 57, 60 and 237 channels) plus 1 user definable DMX mode
• Control Protocols: DMX and RDM with built in Aria X2 wireless management system
• LED Refresh Rates: Selectable from 900 Hz to 25 kHz
• Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2, and user settable dim speed from 0.1 to 10 seconds
• Dim Curves: Square, linear, inverse square, and S curve

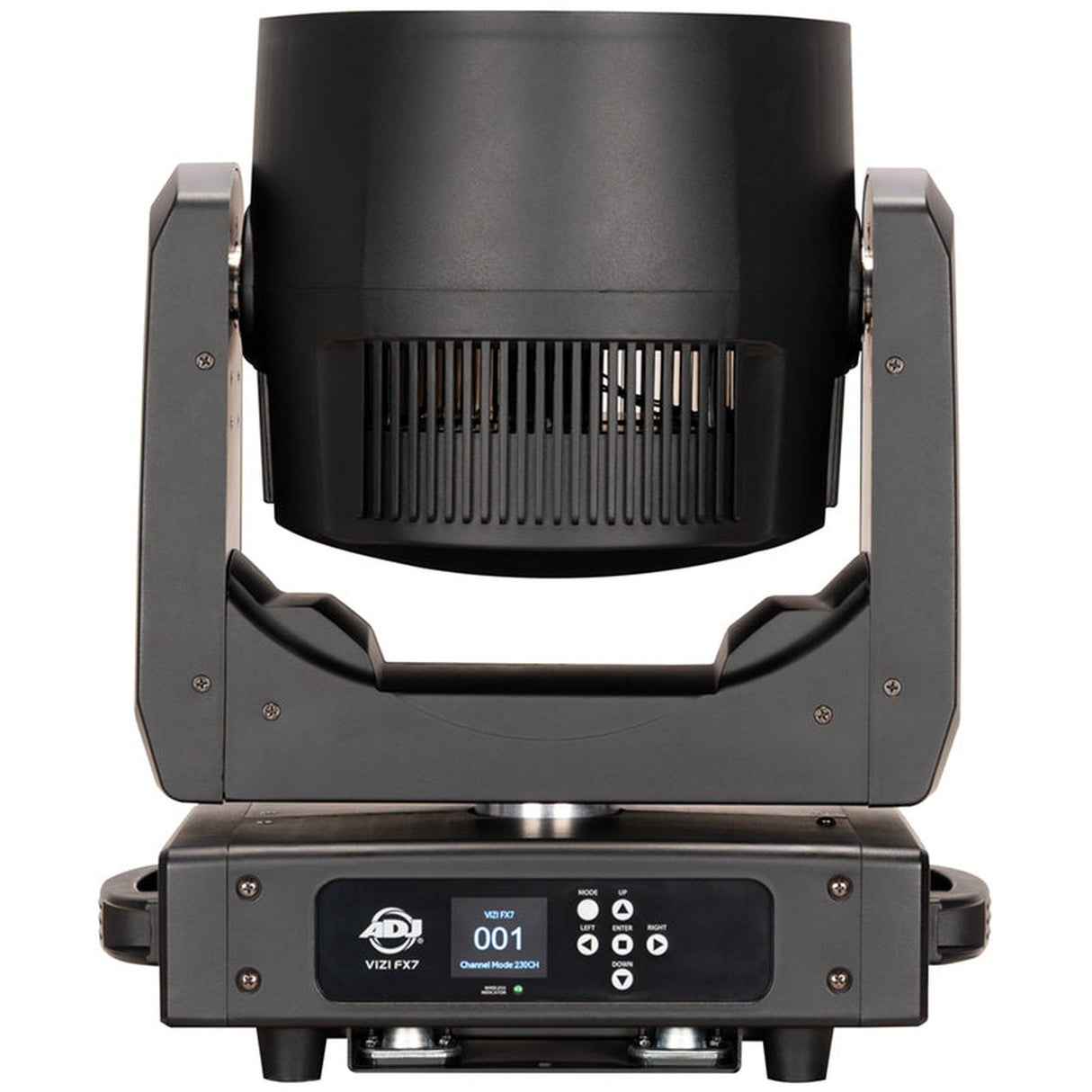

• User Interface: 6 button touch control panel with full color 180 degree reversible LCD menu display
• Movement Resolution: 8 bit or 16 bit adjustable movement
• Pan Range: 540 degrees
• Tilt Range: 190 degrees
• Pan and Tilt Motors: Three phase motors

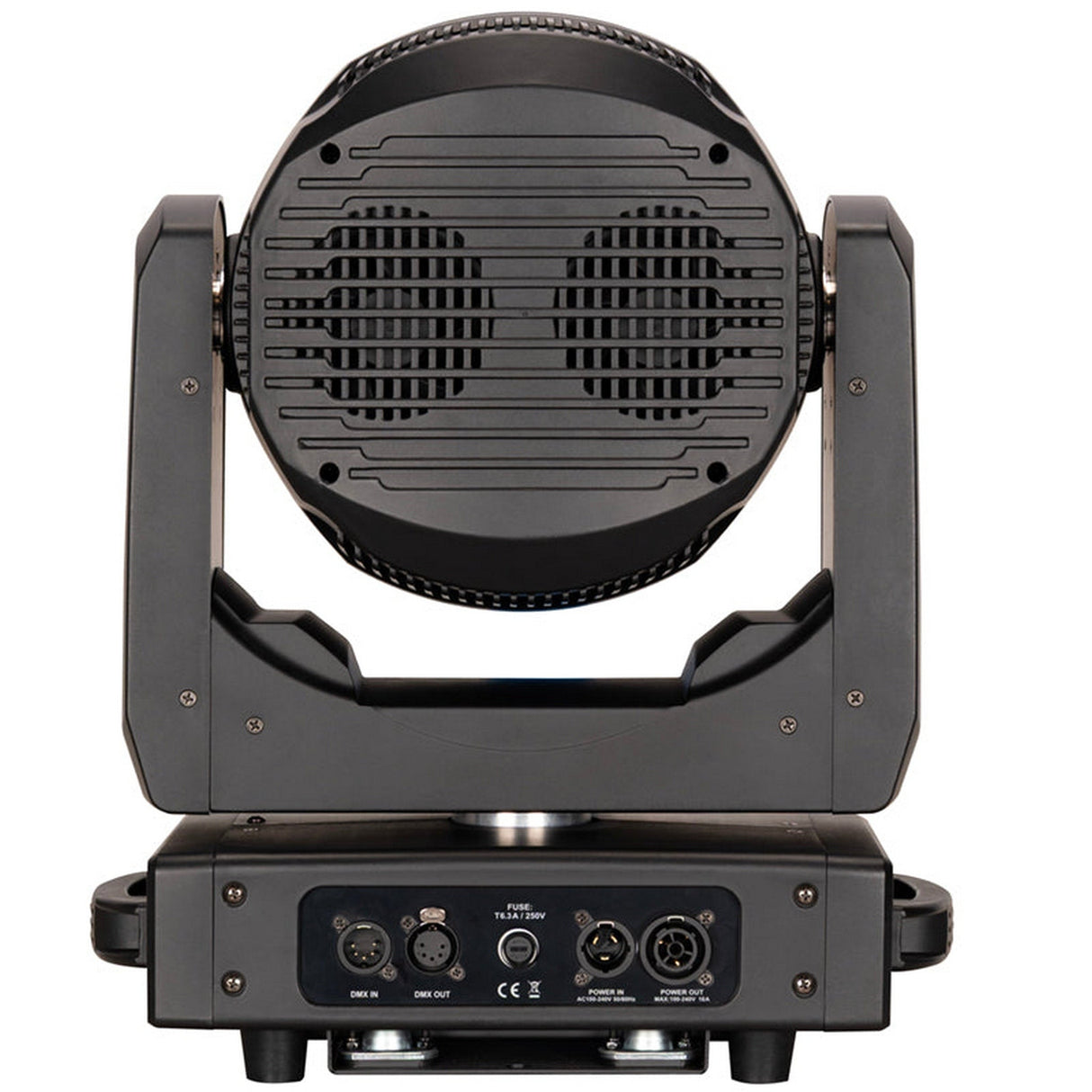

• DMX Connections: 5 pin XLR DMX in and out
• Power Connections: IP65 locking power input and output
• Length: 14.39 in (365 mm)
• Width: 8.66 in (220 mm)
• Height: 17.11 in (434.4 mm)
• Weight: 29.8 lb (13.5 kg)
• AC Power: 100 to 240 V, 50 or 60 Hz
• Max Power Consumption: 400 W (3.7 A at 120 V)
• Power Linking: Up to 3 units at 120 V and up to 6 units at 230 V
• Ambient Temperature Range: minus 13 degrees F to 113 degrees F (minus 25 degrees C to 45 degrees C)
• Cooling: Fan cooled
• Approvals and Ratings: cETLus control number 5027824, CE, FCC, UKCA, IP20
