ADJ Focus Spot 5Z 200 Watt LED Motorized Zoom Light
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

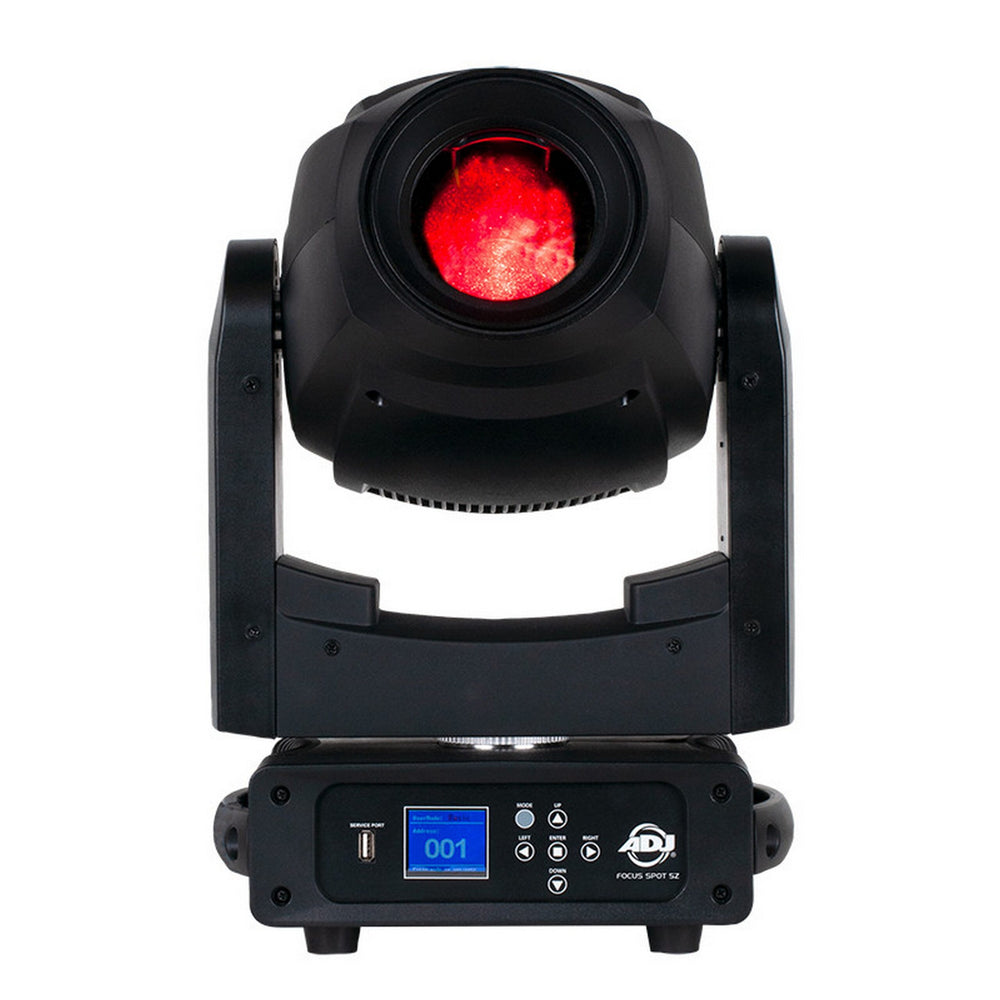

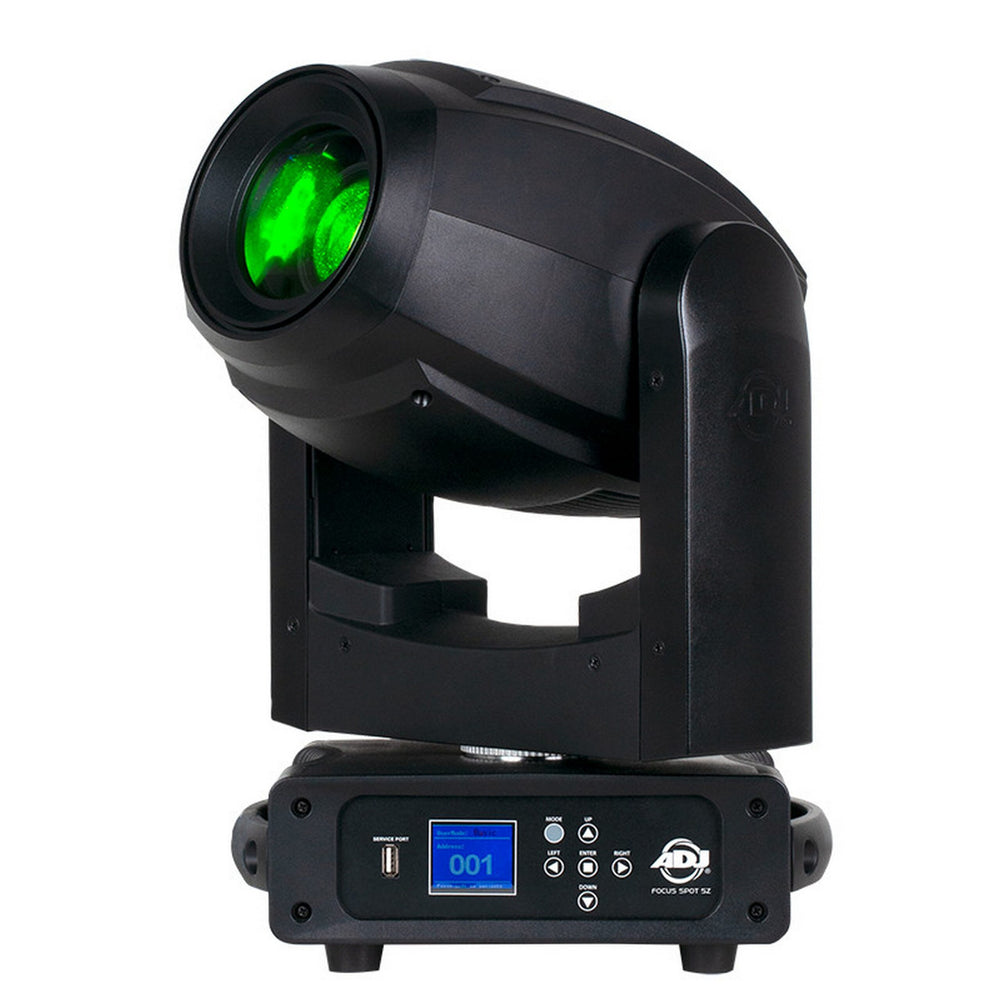

American DJ Focus Spot 5Z 200 Watt LED Motorized Zoom Light
Powered by a 200W cool white LED engine, the Focus Spot 5Z is feature packed with motorized focus and zoom, 2 prism effects, 2 color wheels (each with 7 colors), a GOBO wheel with 7 GOBOs + open, and two frost filters to create soft edge wash looks.
Key Features
- Motorized Focus
- 2 Frost Filter to create wash effects
- Motorized Zoom: 11 ~ 22-degrees
- 2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
- 0-100% smooth dimming
- Various strobe speeds
- USB firmware update port
- 2 cooling fans
Technical Specifications
Color Wheels
7 dichroic colors + white on tow separate wheels (includes CTO, CTB and UV filters)
GOBO Wheels
6 aluminum GOBOs, 1 glass GOBO + open
All GOBOs are removable & rotatable
GOBO Shake Effect
Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)
Prism Wheel
Prism Wheel 1: Rotatable 5-facet Linear
Prism Wheel 2: Rotatable 6-facet Circular
Each Prism is indexable
Frost Filters
Frost 1: Heavy frost for wash effect
Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX
Control
3 DMX Channel Modes: 22/25 Channels
Color LCD display with 6-button function menu
Control Mode: DMX512 or internal programs
6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
0-100% smooth dimming
Various strobe speeds
USB firmware update port
With Wired Digital Communication Network
Pan/Tilt
Pan
630 degrees
Tilt
270 degrees

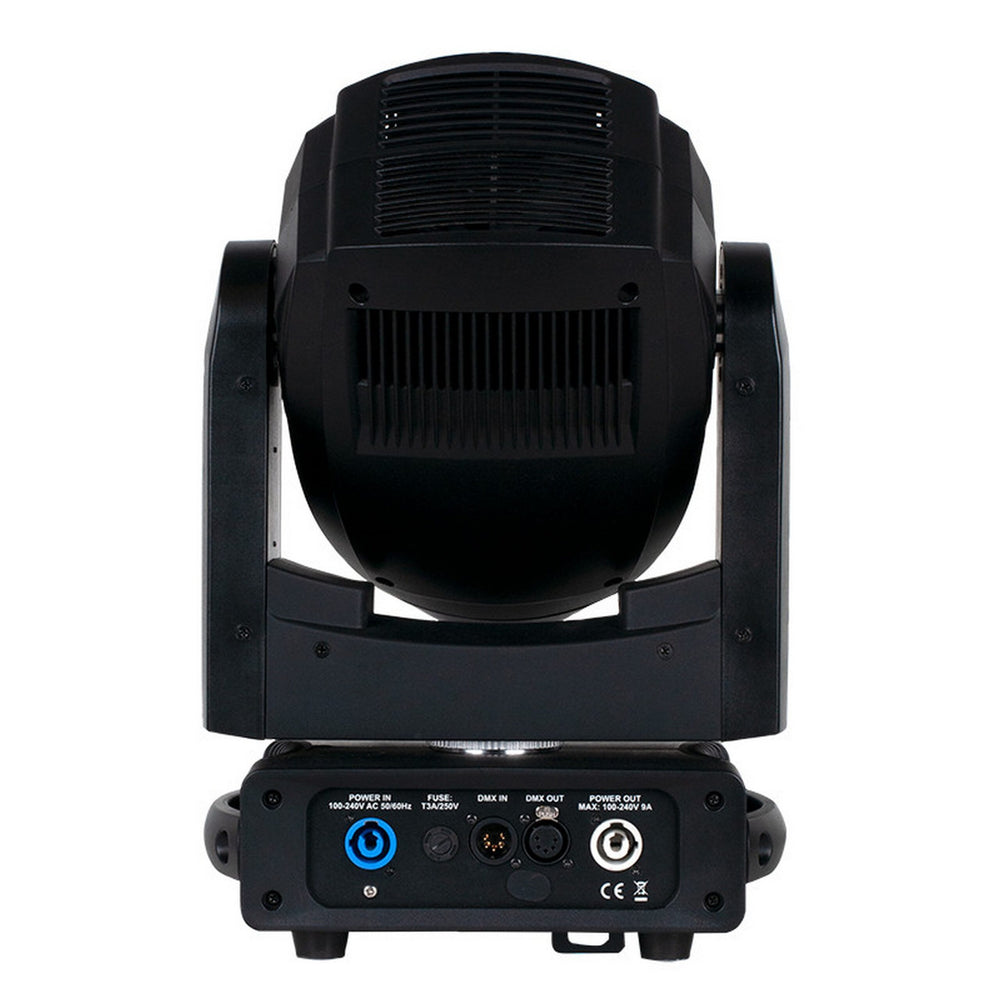

Connections
DMX Connections: 5-pin XLR In/Out
Power Connections: PowerLock In/Out to daisy chain power
Electrical
Multi-voltage operation: 90-240V, 50/60Hz
Max power consumption: 290W
Dimensions & Weight
Dimensions
7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)
Weight
23 lbs. / 10 kg.
