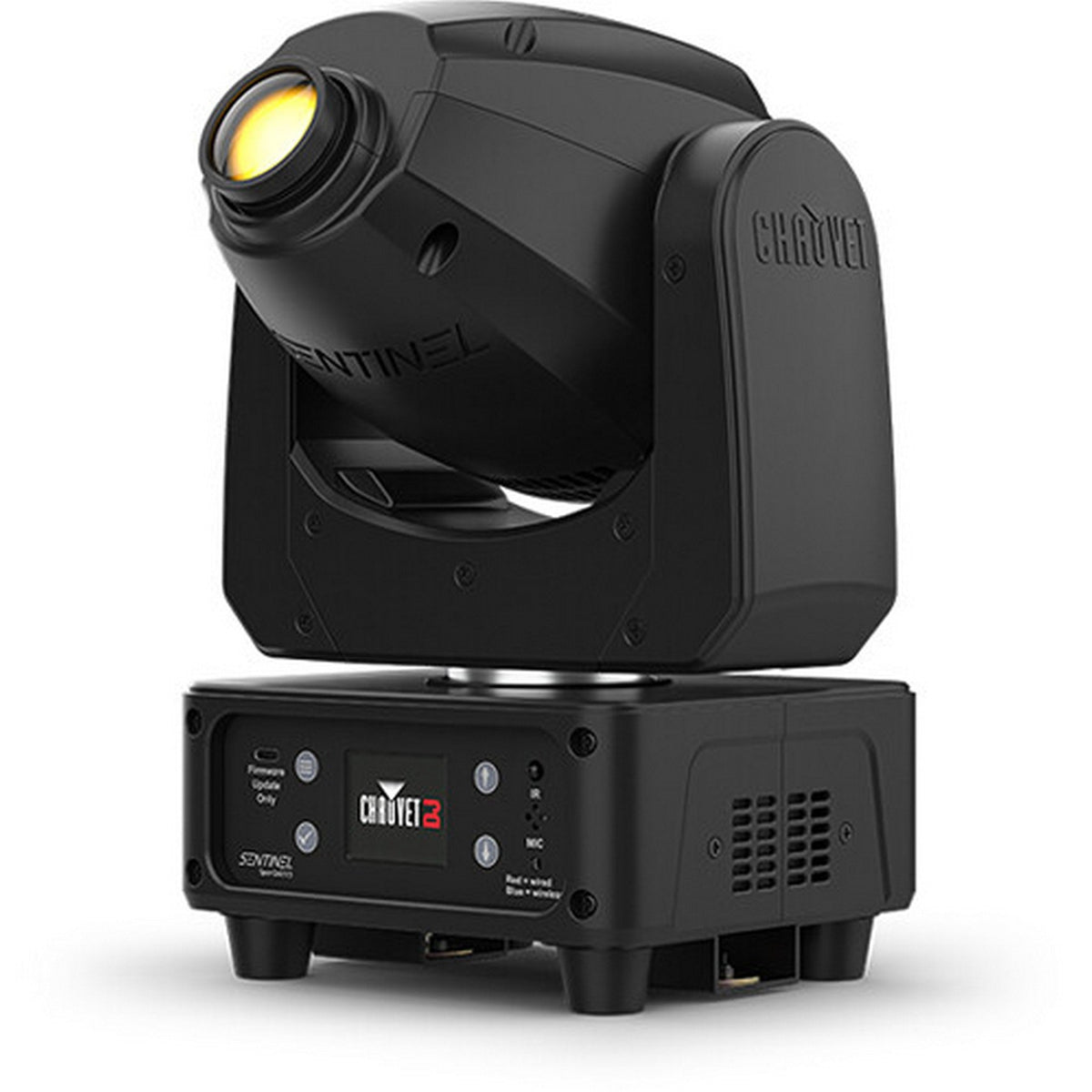

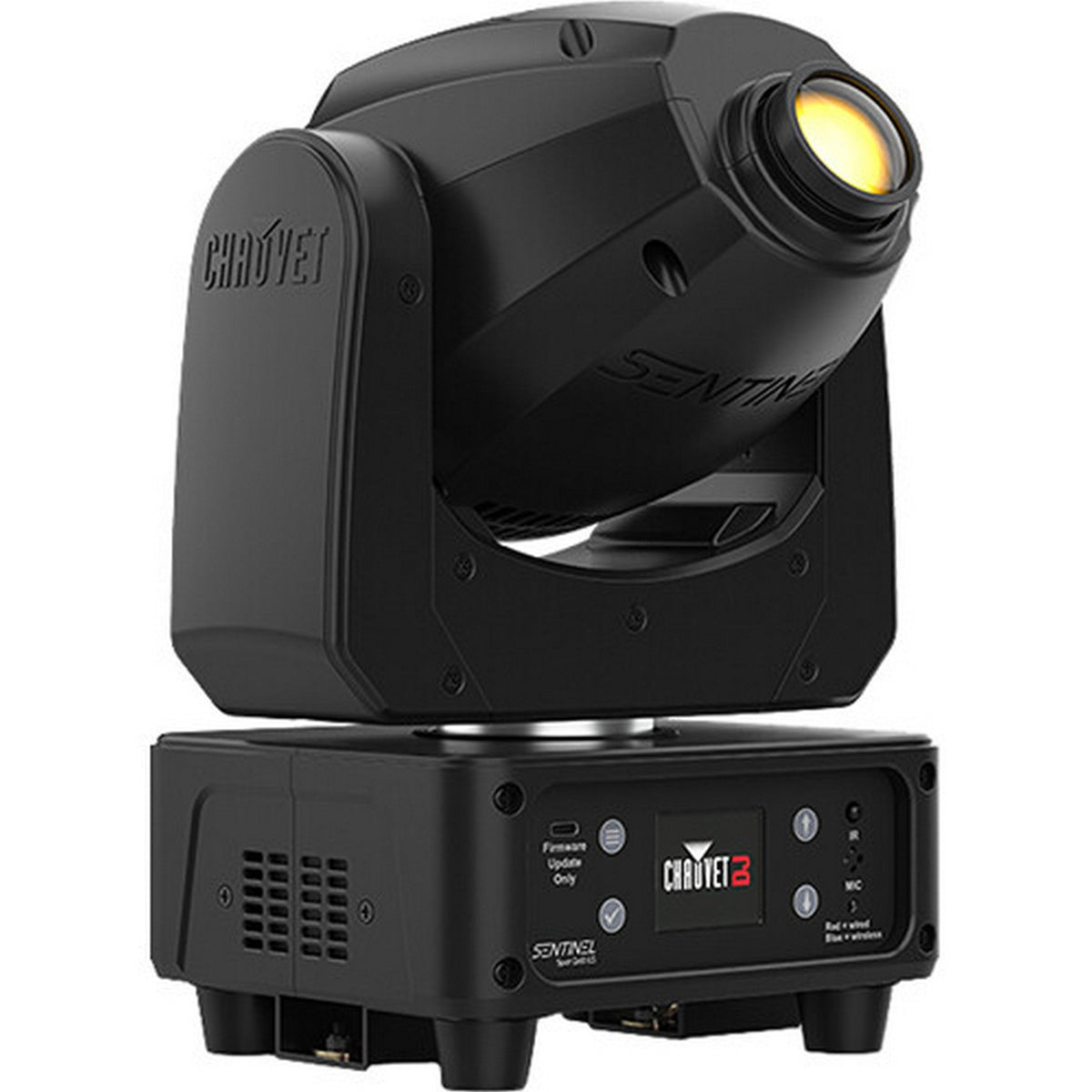

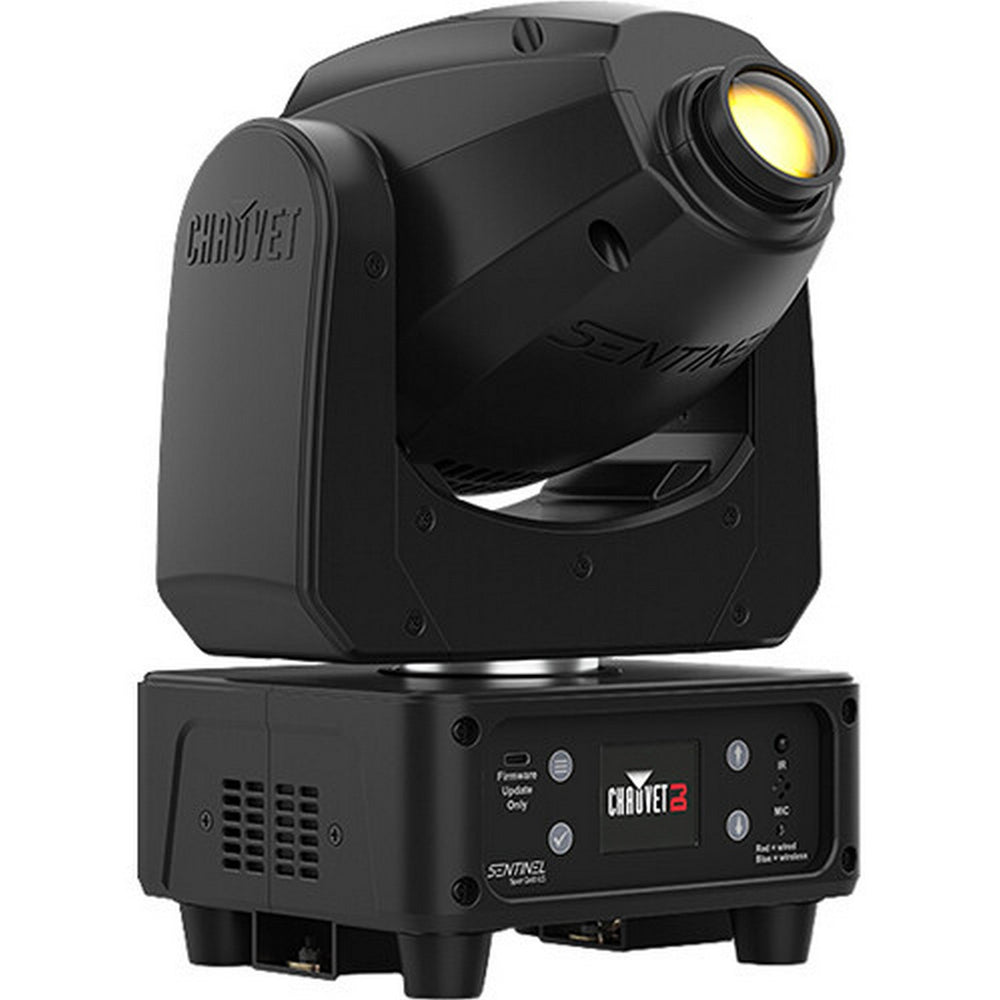

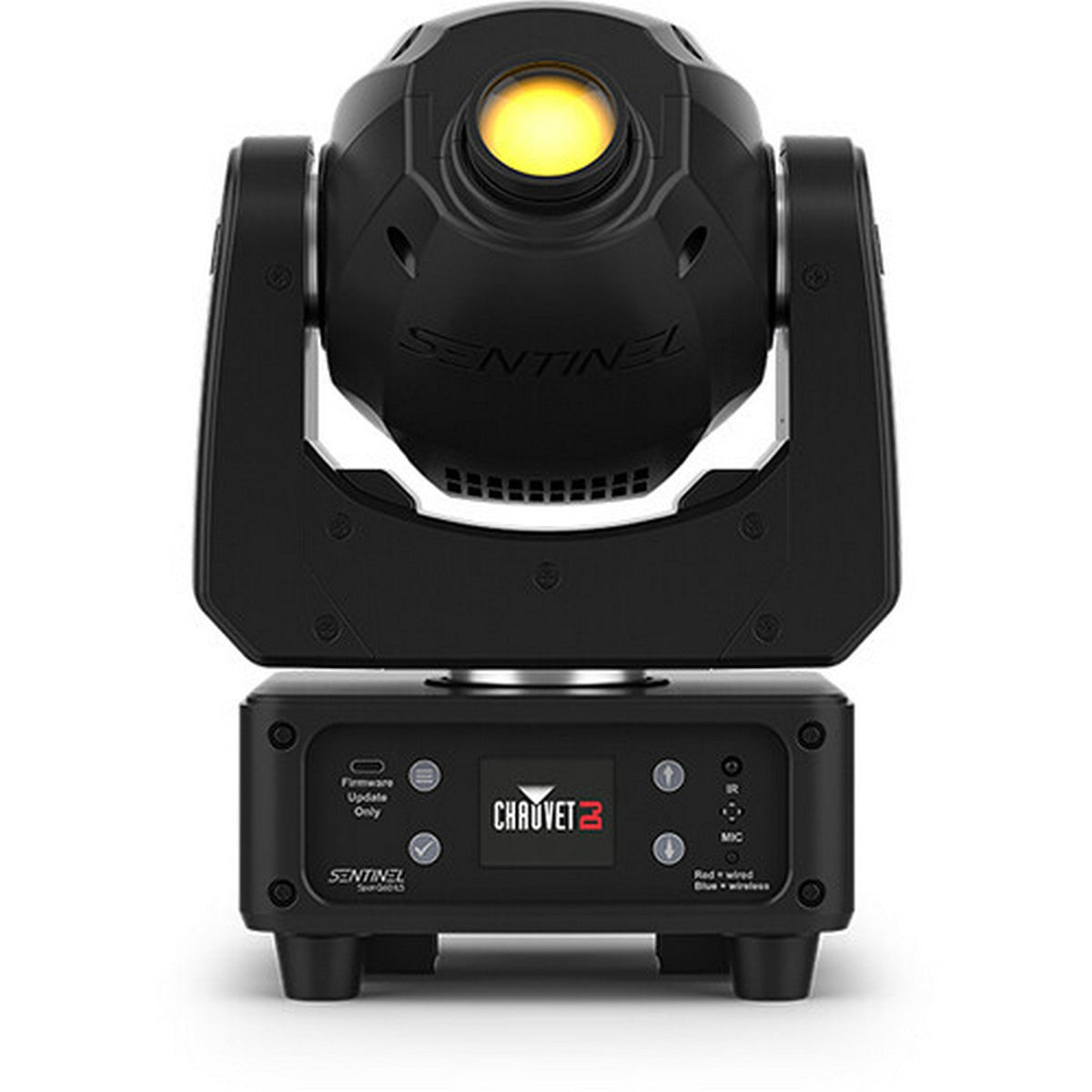

CHAUVET DJ Sentinel Spot Q60 ILS 60W RGBW LED Moving Head Spot

CHAUVET DJ Sentinel Spot Q60 ILS 60W RGBW LED Moving Head Spot

The CHAUVET DJ Sentinel Spot Q60 ILS is a compact LED moving head spotlight designed for DJs, live entertainment, and event lighting. Equipped with a 60W RGBW LED, 12-degree beam angle, rotating glass gobos, and built-in wireless D-Fi technology, this fixture produces focused beams, customizable colors, and synchronized lighting effects.

Designed for mobile DJs, wedding receptions, nightclubs, and professional event productions, the Sentinel Spot Q60 ILS combines precise motorized movement with versatile lighting effects. Its quad-color red, green, blue, and white LED provides direct color mixing without requiring a separate color wheel. Five interchangeable glass gobos create projected patterns, while continuous gobo rotation and indexing provide additional creative control. The fixture delivers 8,687 lux at 6.6 feet, making it suitable for focused lighting effects in entertainment environments. With selectable pan and tilt ranges, lighting operators can customize movement patterns to match the size and layout of their performance area.

The Sentinel Spot Q60 ILS integrates with CHAUVET DJ's Integrated Lighting System (ILS), allowing compatible fixtures to coordinate lighting sequences. Its built-in D-Fi transceiver supports wireless DMX and ILS communication, while conventional 3-pin XLR connections accommodate wired control systems. Totem Mode restricts movement to designated performance areas, and the full-color LCD simplifies fixture configuration. The compact housing supports floor placement or overhead mounting using the included hanging bracket. CE, FCC, and RoHS compliance further support use in professional entertainment environments.

Key Features

• 60W Quad-Color RGBW LED: Produces customizable red, green, blue, and white illumination for colorful moving spotlight effects.
• Focused 12-Degree Beam: Delivers 8,687 lux at 6.6 feet for defined beams and projected gobo patterns.
• Five Rotating Glass Gobos: Features interchangeable, indexable patterns with variable-speed continuous scrolling for versatile visual effects.
• Built-In D-Fi Wireless Technology: Supports wireless DMX and ILS communication with compatible lighting equipment.
• ILS Compatibility: Integrates with compatible CHAUVET DJ lighting fixtures to create coordinated lighting sequences.
• 540-Degree Pan and 229-Degree Tilt: Provides extensive movement capabilities with selectable operating ranges for different installations.
• Totem Mode: Restricts moving head positioning to help keep lighting effects focused on the dance floor.
• Multiple Control Options: Supports DMX, automated programs, sound activation, wireless control, and optional infrared remote operation.

Professional RGBW Moving Head Lighting

60W RGBW LED Color Mixing

The Sentinel Spot Q60 ILS uses a single 60W quad-color RGBW LED to produce a wide selection of lighting colors. Unlike fixtures that rely on a mechanical color wheel, its RGBW engine combines individual color channels to create different shades and color combinations.

The LED has a manufacturer-rated lifespan of 50,000 hours. Its focused optical system produces a 12-degree beam angle and delivers 8,687 lux at a distance of 6.6 feet.

Rotating Glass Gobos and Pattern Projection

Five glass gobos and an open position provide a selection of projected lighting patterns. The rotating gobo system supports indexing, continuous scrolling, and variable-speed rotation for animated effects.

The gobos are interchangeable through the fixture's slot-and-lock mechanism, allowing lighting professionals to replace existing patterns with compatible alternatives. This functionality makes the moving head suitable for event lighting, stage productions, and customized visual presentations.

Motorized Pan and Tilt Movement

The fixture provides a maximum horizontal movement range of 540 degrees and a maximum vertical movement range of 229 degrees.

Selectable pan settings of 180, 360, and 540 degrees allow operators to control horizontal movement. Vertical movement can be configured for 90, 180, or 229 degrees according to the manufacturer's published specifications.

These adjustments help operators tailor moving head behavior to different room sizes, stage layouts, and performance environments.

Wireless DMX and ILS Lighting Control

Built-In D-Fi Wireless Transceiver

The integrated D-Fi transceiver enables compatible wireless DMX communication without requiring a separate wireless receiver. This functionality helps reduce signal cabling in mobile entertainment setups and permanent lighting installations.

Wireless master/slave operation allows compatible Sentinel Spot Q60 ILS fixtures to synchronize without a conventional DMX controller.

CHAUVET DJ ILS Compatibility

Integrated Lighting System compatibility allows the fixture to participate in coordinated lighting sequences alongside supported CHAUVET DJ equipment.

When paired with compatible ILS controllers and fixtures, the Sentinel Spot Q60 ILS can synchronize movement, color, and effects as part of a coordinated lighting setup.

DMX and Standalone Operation

For conventional lighting control systems, the fixture offers 9-channel and 15-channel DMX configurations through 3-pin XLR input and output connections.

Standalone operation includes automatic programs and sound-active functionality. The integrated microphone responds to audio signals, allowing the fixture to generate lighting effects without continuous external programming.

Totem Mode and Full-Color LCD

Totem Mode limits the moving head's operating area to help direct lighting effects toward the dance floor. The feature supports different movement restrictions for overhead and floor-mounted configurations.

A full-color LCD provides access to fixture settings, operating modes, DMX configuration, and movement adjustments.

Applications for Mobile DJs and Live Events

Mobile DJ and Wedding Lighting

The Sentinel Spot Q60 ILS is suitable for mobile entertainment systems requiring compact fixtures with dynamic movement and color effects. Built-in automation, sound activation, and wireless control help simplify event setup and operation.

Nightclubs and Dance Floors

RGBW color mixing, rotating gobos, and motorized movement create changing visual effects for dance floors and entertainment venues. Totem Mode helps maintain lighting activity within the intended performance area.

Stage and Live Performance Lighting

The fixture provides focused beams and projected patterns for performers, stages, and live entertainment productions. DMX control allows lighting operators to incorporate the moving head into programmed sequences and coordinated lighting systems.

Multi-Fixture Lighting Installations

Power linking allows multiple compatible fixtures to share an AC power connection. The manufacturer specifies linking up to seven units at 120V or eleven units at 230V, subject to the specified electrical configuration.

Technical Specifications

• Manufacturer: CHAUVET DJ
• Model: Sentinel Spot Q60 ILS
• Manufacturer Item Code: 10012699
• Product Type: RGBW LED Moving Head Spotlight
• Product Series: Sentinel
• Fixture Color: Black
• Light Source: 1 x 60W Quad-Color RGBW LED
• LED Colors: Red, Green, Blue, White
• LED Current: 4.4A
• LED Life Expectancy: 50,000 Hours
• Beam Angle: 12 Degrees
• Illuminance: 8,687 Lux at 6.6 ft
• Gobo Wheel: 5 Rotating Glass Gobos + Open
• Gobo Features: Rotating, Interchangeable, Indexing, Slot-and-Lock, Continuous Variable-Speed Scrolling
• Gobo Outside Diameter: 0.9"
• Gobo Image Diameter: 0.8"
• Maximum Gobo Thickness: 0.04"
• Maximum Pan Movement: 540 Degrees
• Maximum Tilt Movement: 229 Degrees
• Selectable Pan Ranges: 180, 360, 540 Degrees
• Selectable Tilt Ranges: 90, 180, 229 Degrees
• Strobe Rate: 0-20 Hz
• DMX Channel Modes: 9 or 15 Channels

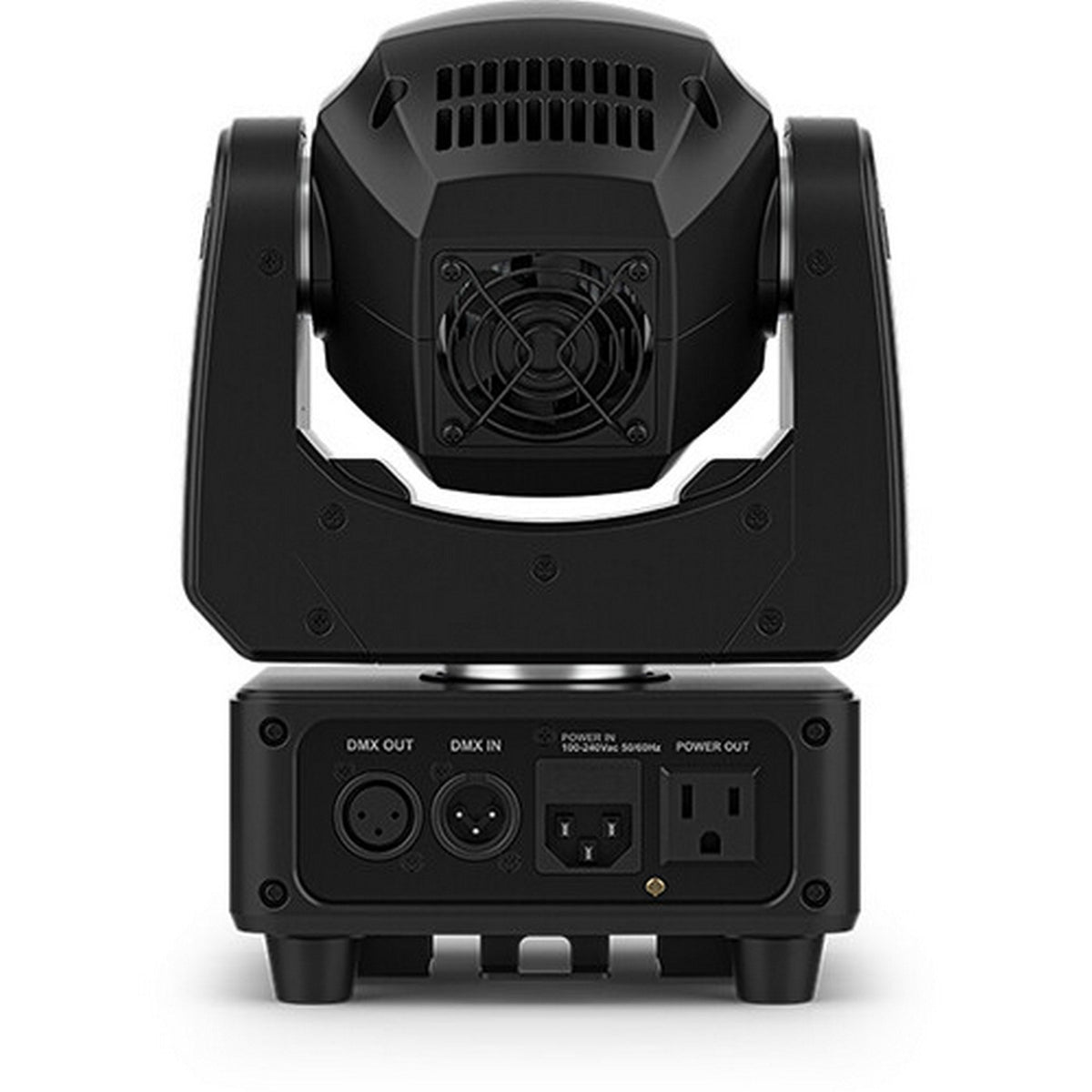

• DMX Connectors: 3-Pin XLR Input and Output
• Wireless Technology: Built-In D-Fi Transceiver
• Wireless Communication: DMX and ILS
• D-Fi Channel Selection: 1-16
• ILS Compatibility: CHAUVET DJ Integrated Lighting System
• Operating Modes: DMX, Automatic, Sound-Active, Manual, Master/Slave, ILS
• Additional Control Features: Totem Mode, Pan Reverse, Tilt Reverse, Follow Spot
• Control Display: Full-Color LCD
• Sound Activation: Integrated Microphone
• Optional Controllers: IRC-6, ILS Command
• Input Voltage: 100-240V AC, 50/60Hz
• Power Supply: Auto-Ranging
• Total Power Consumption: 76W
• Operating Current at 120V: 1A, 60Hz
• Operating Current at 230V: 0.7A, 50Hz
• Power Linking at 120V: Up to 7 Fixtures
• Power Linking at 230V: Up to 11 Fixtures
• Power Linking Current: 8A
• Fuse: T2A, 250V
• Power Input: IEC
• U.S. Power Output: Edison
• Maximum External Temperature: 104 Degrees F
• Manufacturer-Specified Cooling System: Convection

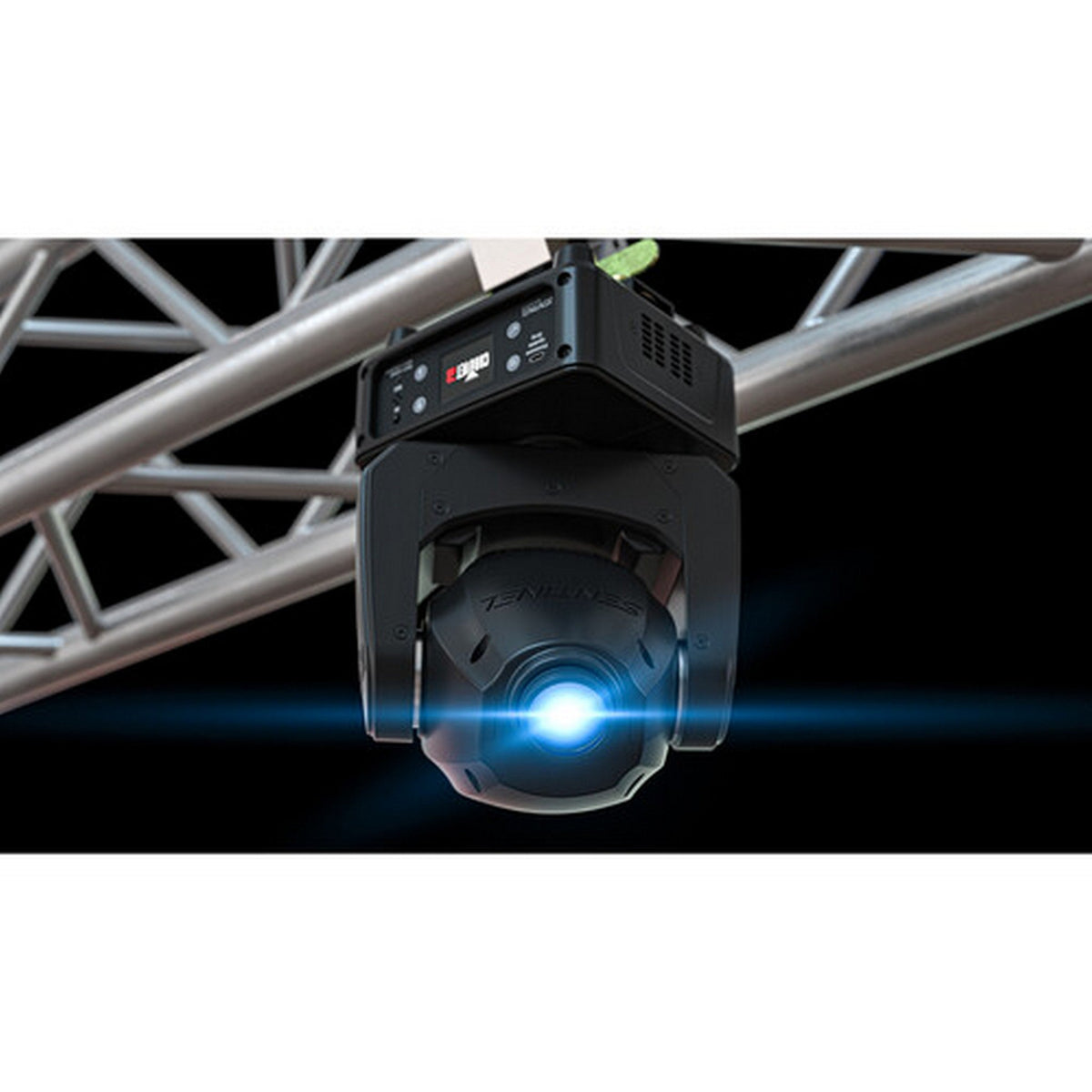

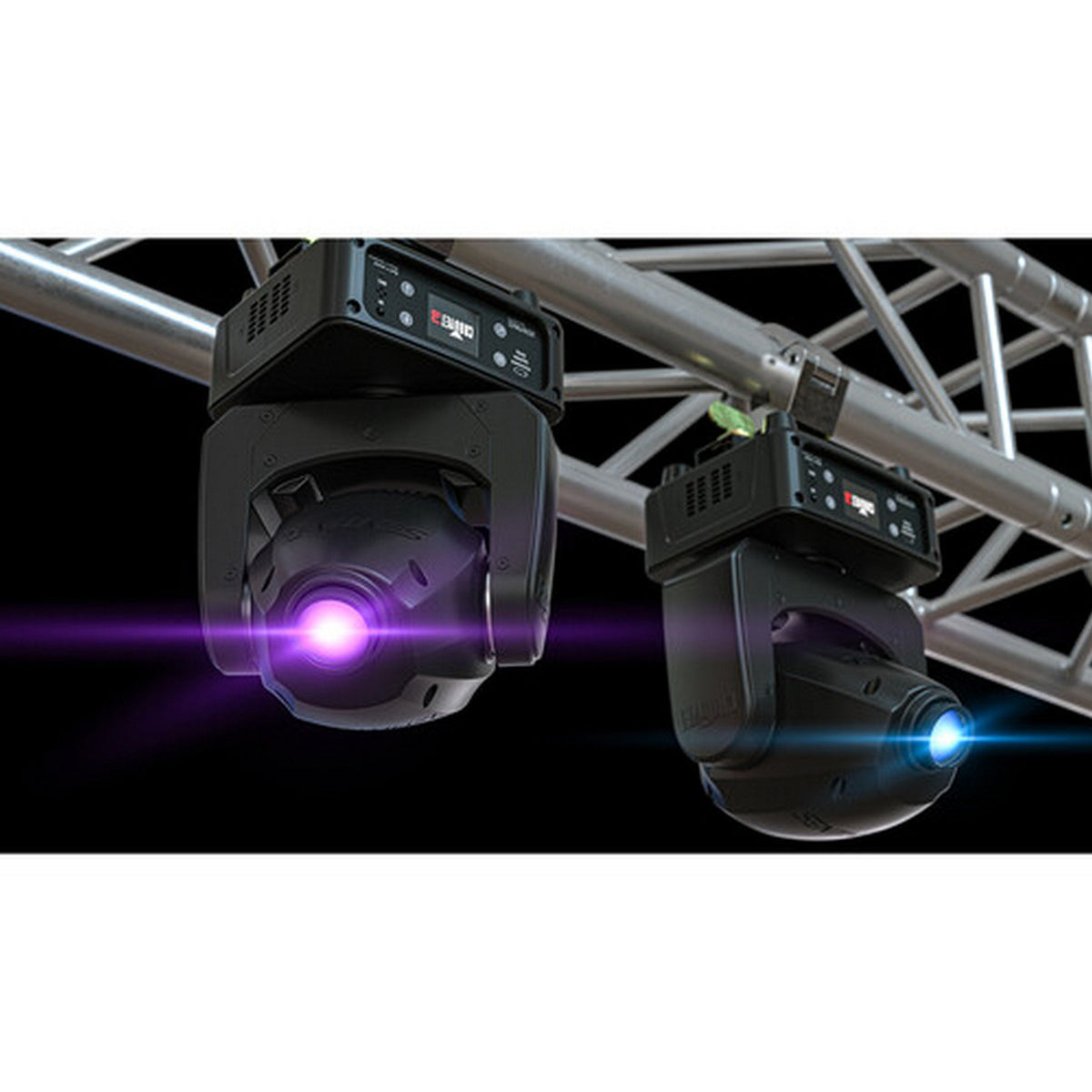

• Mounting: Floor Placement or Hanging Bracket
• Mounting Bracket Hole: Approximately 0.5"
• Fixture Length: 8"
• Fixture Width: 5.9"
• Fixture Height: 13"
• Fixture Weight: 9 lb
• Compliance: CE, FCC, RoHS
• Compatible Carrying Bag: CHAUVET DJ CHS-40 VIP Gear Bag

What's In the Box

• CHAUVET DJ Sentinel Spot Q60 ILS Moving Head Fixture
• Power Cable
• Hanging Bracket with Mounting Hardware
• Quick Reference Guide
