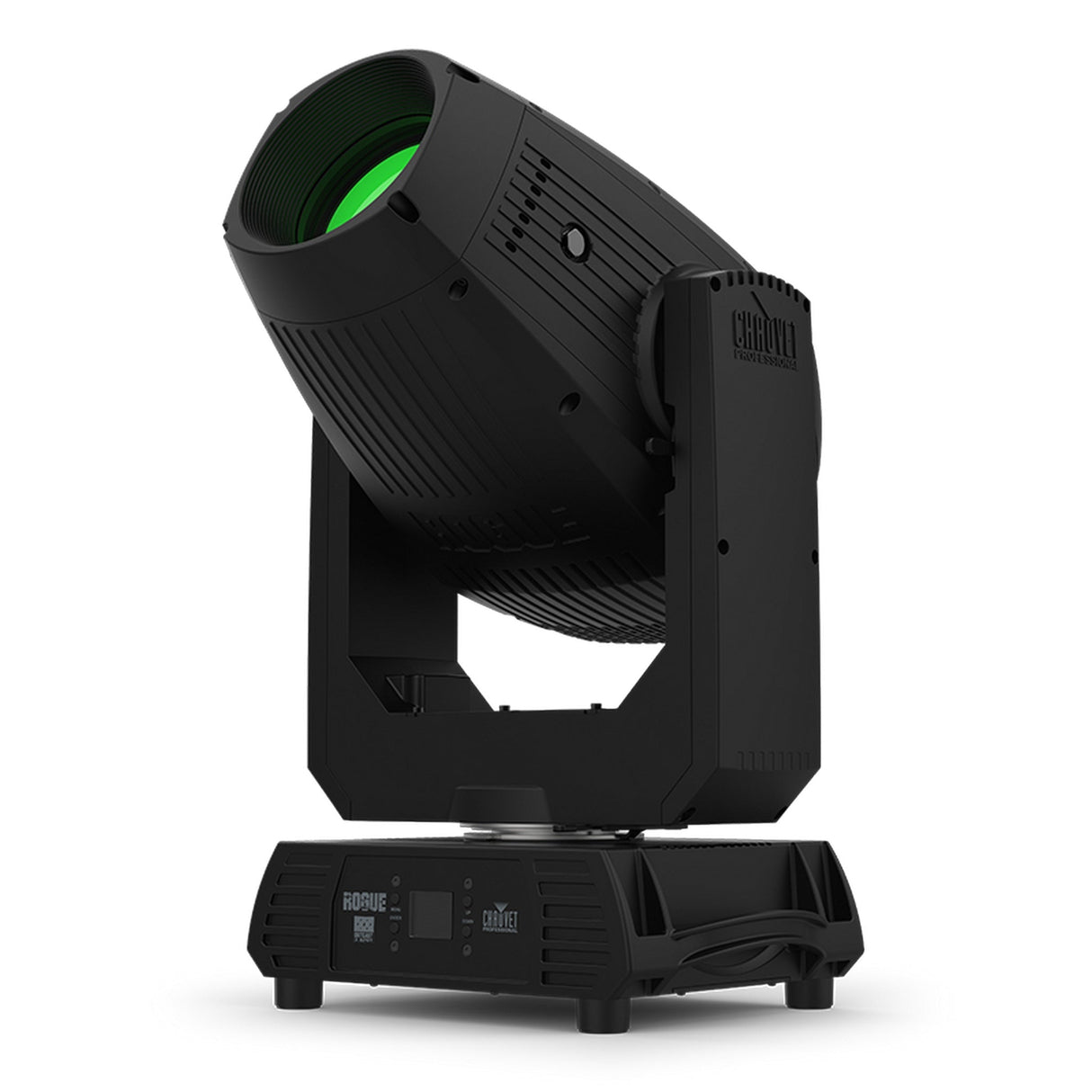

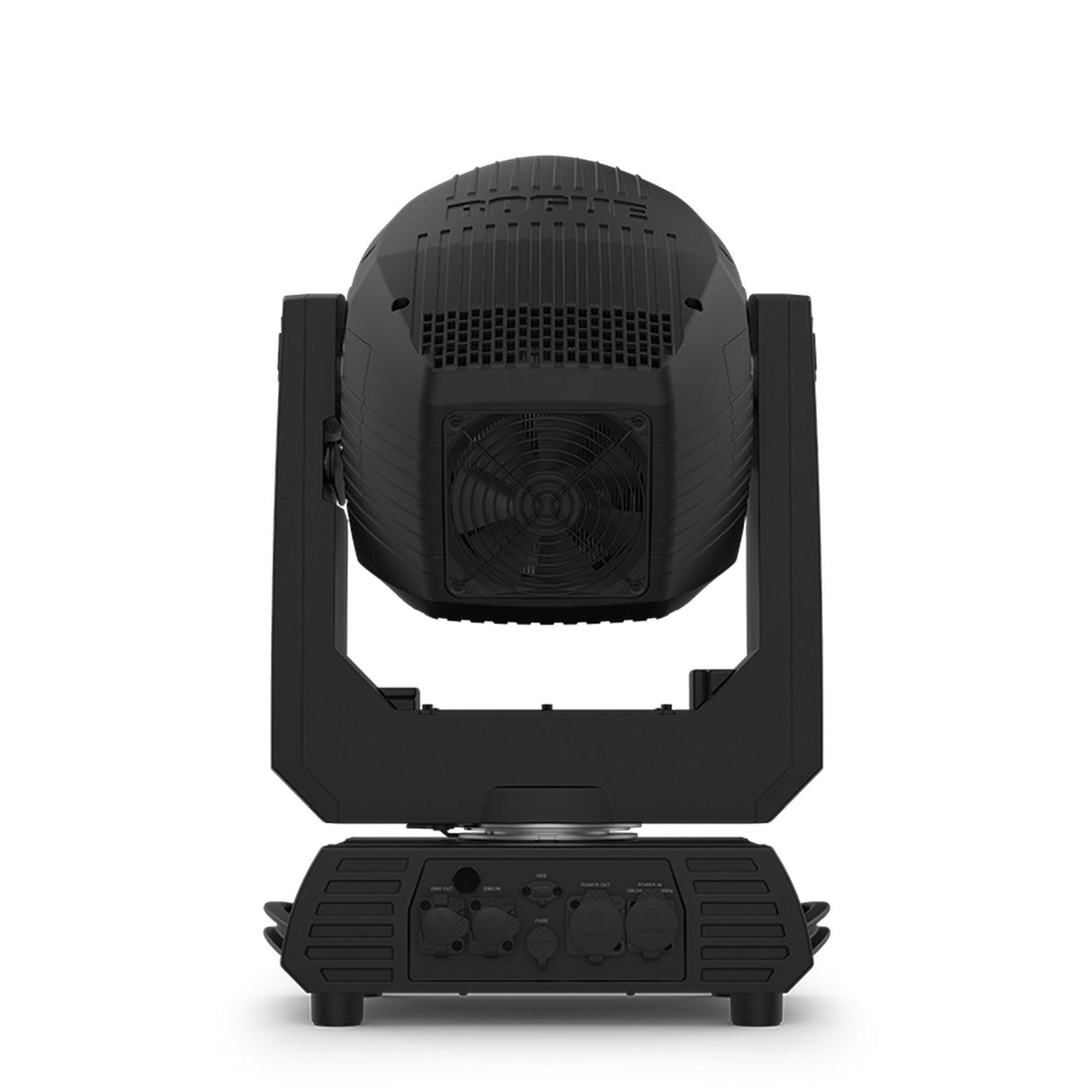

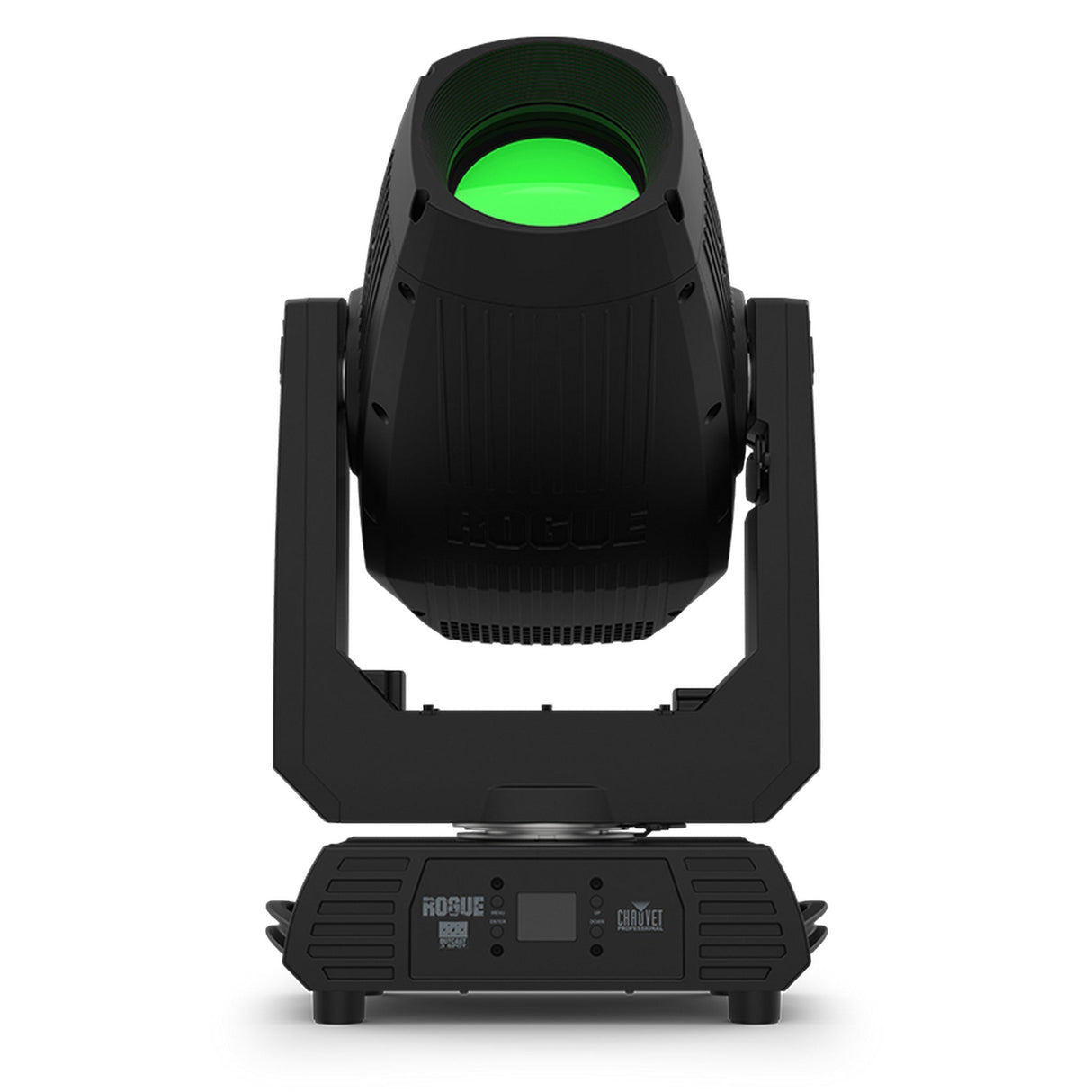

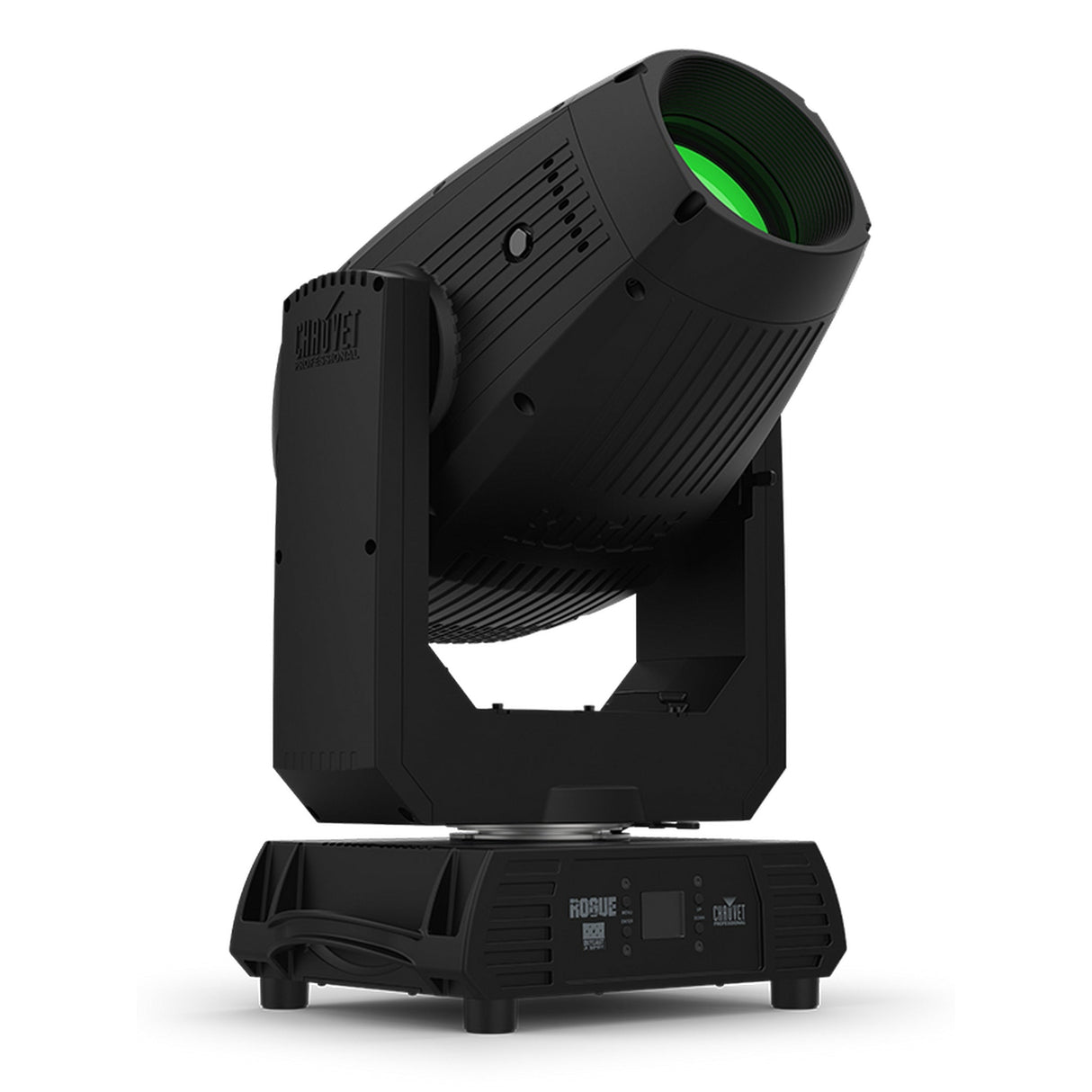

Chauvet Professional Rogue Outcast 3 Spot LED Moving Head

Chauvet Professional Rogue Outcast 3 Spot LED Moving Head

Chauvet Professional Rogue Outcast 3 Spot is an IP65 rated LED moving head spot designed for indoor and outdoor production environments. It enables dynamic beam shaping and color projection for lighting designers and programmers, supporting touring, rental, and permanent installations. This makes it ideal for applications where durability, flexibility, and consistent optical performance are required.

The fixture combines dual color wheels and dual gobo wheels to create layered color and morphing effects. A wide motorized zoom range, combined with iris, prism, and frost, allows adaptable beam control across varied throw distances. Selectable PWM settings support flicker free operation for live and on camera use.

This moving head is built with a durable housing that resists environmental exposure and airborne particulates. Its compact and lightweight design supports easier handling while maintaining outdoor rated reliability. Integrated power linking and DMX control streamline system integration.

Key Features

• IP65 Rated Construction: Designed for temporary outdoor and wet use.
• Dual Color Wheels: Provides layered color effects with split color capability.
• Dual Gobo Wheels: Supports morphing effects with rotating and static gobos.
• Wide Zoom Range: Motorized zoom allows flexible coverage from narrow to wide beams.
• Comprehensive Beam Tools: Includes iris, rotating prism, and frost.
• 16 Bit Dimming: Provides smooth fades and precise intensity control.

Technical Specifications

Optical
Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy
Color Temperature (at full): 7044 K
Front lens diameter: 119 mm
CRI: 70
Beam Angle: 4.9° to 33.7°
Field Angle: 5.5° to 38°
Cutoff Angle: 5.6° to 38.7°
Zoom Range: 4.9° to 38.7°
Lumens Source: 20,000
Lumens Output: 14,989
Illuminance (4.9°): 56,916 lux @ 5 m
Illuminance (38.7°): 2,145 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects
Pan and Tilt: 540° and 270°
Pan and Tilt Ranges: 180°, 360°, 540° pan and 90°, 180°, 270° tilt
Colors 1: 7 plus white, split colors, continuous scroll at variable speeds
Colors 2: 7 plus white, split colors, continuous scroll at variable speeds
Gobos 1: 7 plus open metal rotating interchangeable indexing slot n lock continuous scroll
Gobos 2: 8 plus open metal continuous scroll
Gobo Size Rotating: 25.5 mm outside, 14.8 mm image, 2 mm max thickness
Gobo Size Static: 24 mm outside, 16 mm image, 0.6 mm max thickness
Dimmer: Electronic
Shutter Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 facets motorized rotating
Strobe Rate: 0 to 20 Hz
Move in Black: Yes

Construction / Physical
Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
Weight: 51 lb (23.2 kg)
Exterior Color: Black
Housing Material: High impact flame retardant polymer

Connections
Power Connection: Edison local plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5 pin XLR
Cable Length (power): 5 ft (1.5 m)

Control
Control Protocol: DMX, RDM
DMX Channels: 20 or 25
Modes Personalities: 2 personalities (20, 25)

Electrical
Input Voltage: 100 to 240 VAC, 50 60 Hz auto ranging
Power Linking: 2 units @ 100 V; 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V; 6 units @ 240 V
Power and Current: 510 W, 5.13 A @ 100 V, 60 Hz
Power and Current: 506 W, 4.24 A @ 120 V, 60 Hz
Power and Current: 493 W, 2.43 A @ 208 V, 60 Hz
Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz
Power and Current: 494 W, 2.12 A @ 240 V, 50 Hz

Certifications / Qualifications
CE, MET, UKCA
IP Rating: IP65, temporary outdoor wet use with pressure equalizing M12 GORE valve
Noise Level Idle: 24.2 dB(A) @ 1 m
Noise Level Max: 33.9 dB(A) @ 1 m
Noise Level Auto: 34.5 dB(A) @ 1 m
Noise Level Eco: 31.0 dB(A) @ 1 m
Noise Level Full: 46.9 dB(A) @ 1 m
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature: 80° C / 176° F
Maximum Ambient Temperature: 45° C / 113° F

What’s in the Box

(1) Rogue Outcast 3 Spot
(1) Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware
