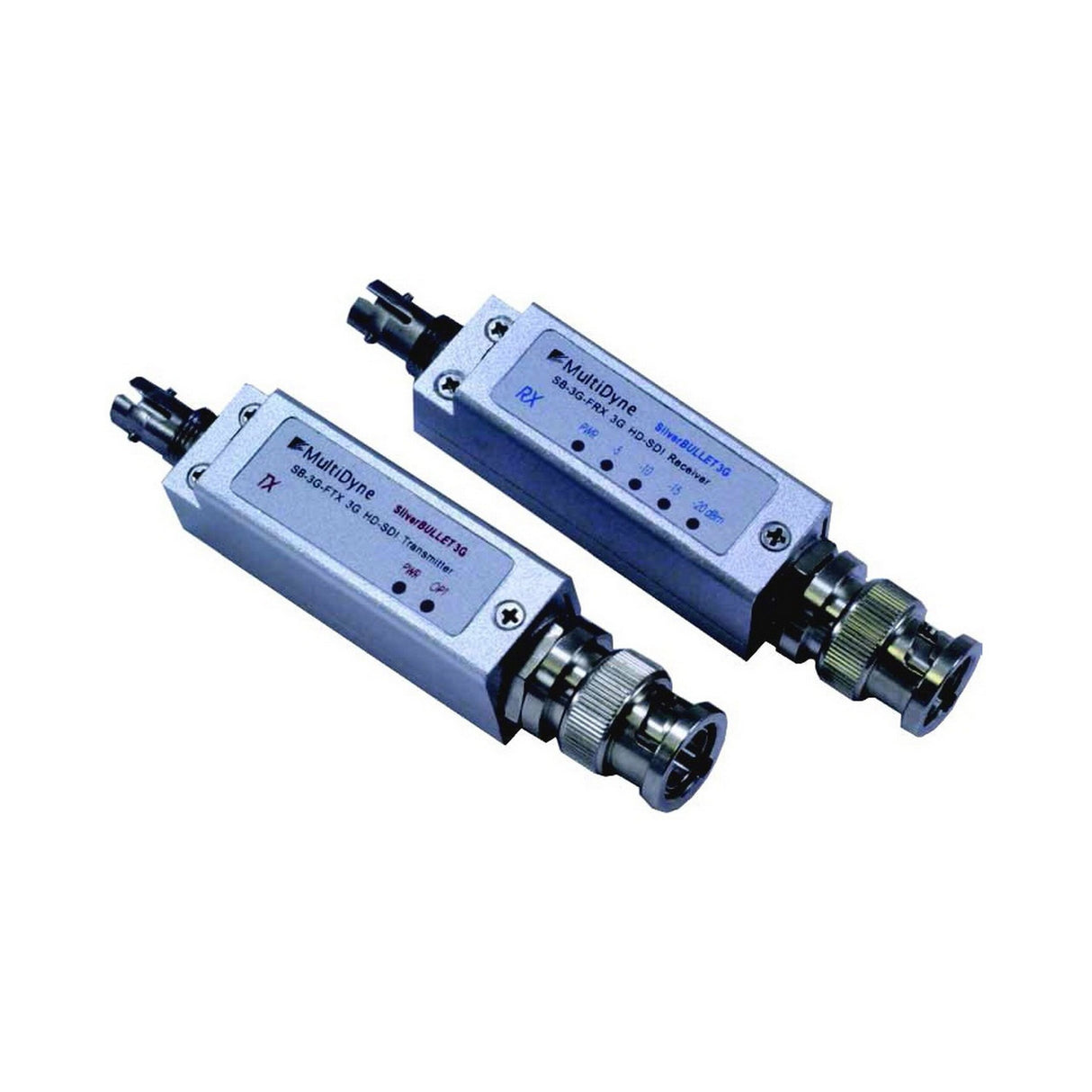

Multidyne SB-3G-FRX-ST SilverBullet Mini 3G HD/SDI Fiber Optic Link, Receiver
The SilverBULLETS are a highly portable and economical solution for transporting multi-rate SDI signals from 5 Mb/sec all the way up to 3 Gb/sec on singlemode or multimode fiber. At just three inches in length, SilverBullets are perfect for a wide variety of today's pro A/V and broadcast applications. But don't let the small size fool you! The case is a rugged, die cast aluminum that is over molded for even more rigidity. The optical connector is the popular metallic ST-type and the video connector is the standard BNC male. Power (5-16 VDC) is supplied via a locking 4-pin mini-XLR connector that eliminates any possibility of the power cord accidentally becoming unplugged.
Key Features
- Fiber transport from 5Mbps to 3Gbps
- Supports SMPTE 424M, 292M, 259M, 310M, 344M, 305M & DVB-ASI
- Equalizes 120m of Gepco VSD2001 or Belden 1694A cable at 3 Gb/sec
- Equalizes 150m of Gepco VSD2001 or Belden 1694A cable at 1.485 Gb/sec
- Supports embedded audio and data
- Monitor optical power level at RX
- Non re-clocking
- Singlemode fiber recommended
- ST optical connector
- Small, rugged, portable
- Stand-alone or rack
- Power supplies and convenient case included
- International AC adapters included
Technical Specifications
Video
Bit Rates
5Mbps to 3Gbps
# of Ins/outs
1 BNC
Impedence
75 Ohms
Level
800mV (peak to peak)
Standard
SMPTE 425M, 297M, 292M, 259M-C & DVB-ASI
Bit Error Rate
(@-22dBm) 10-11
Return Loss
>15 dB at 5 MHz - 1.485 GHz; >10 dB at 1.5 GHz to 3 GHz
Jitter (wideband)
< 0.3 UI
Rise/Fall times
<120psecs
Optical
Wavelengths
1310 or 1271-1611
Optical Connector
ST
Optical Source
FP laser or CWDM DFB
Optical Detector
PIN Diode
TX Output
-6 Standard (0 DFB)
RX Sensitivity
-20 dBm
Link Margin
14 to 20 dB (up to 40km) - (Distances based on using SINGLEMODE fiber)
Fiber Type
Multimode or Singlemode (Singlemode recommended)
Environmental / Electrical
Power
5-16 VDC
Consumption
600 mW
Temperature
0 to +55C
Humidity
0-95% RH non-condensing
Dimensions
3.2 x 0.65 x 0.75 inches
Weight
2.5 oz.
Coax Equalization
@ 270Mb/sec 350m; @ 1.5Gb/sec 140m; @ 3 Gb/sec 50m
