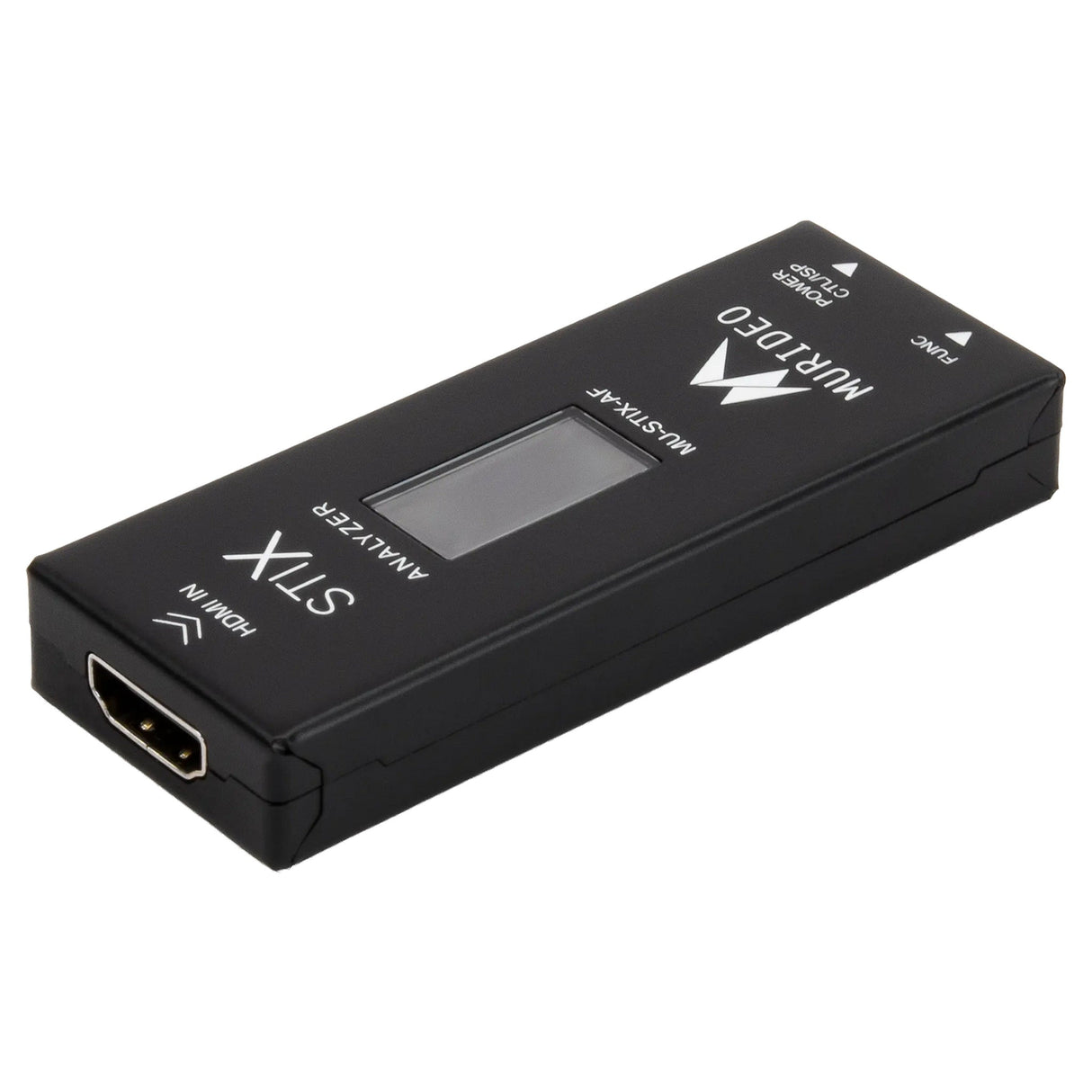

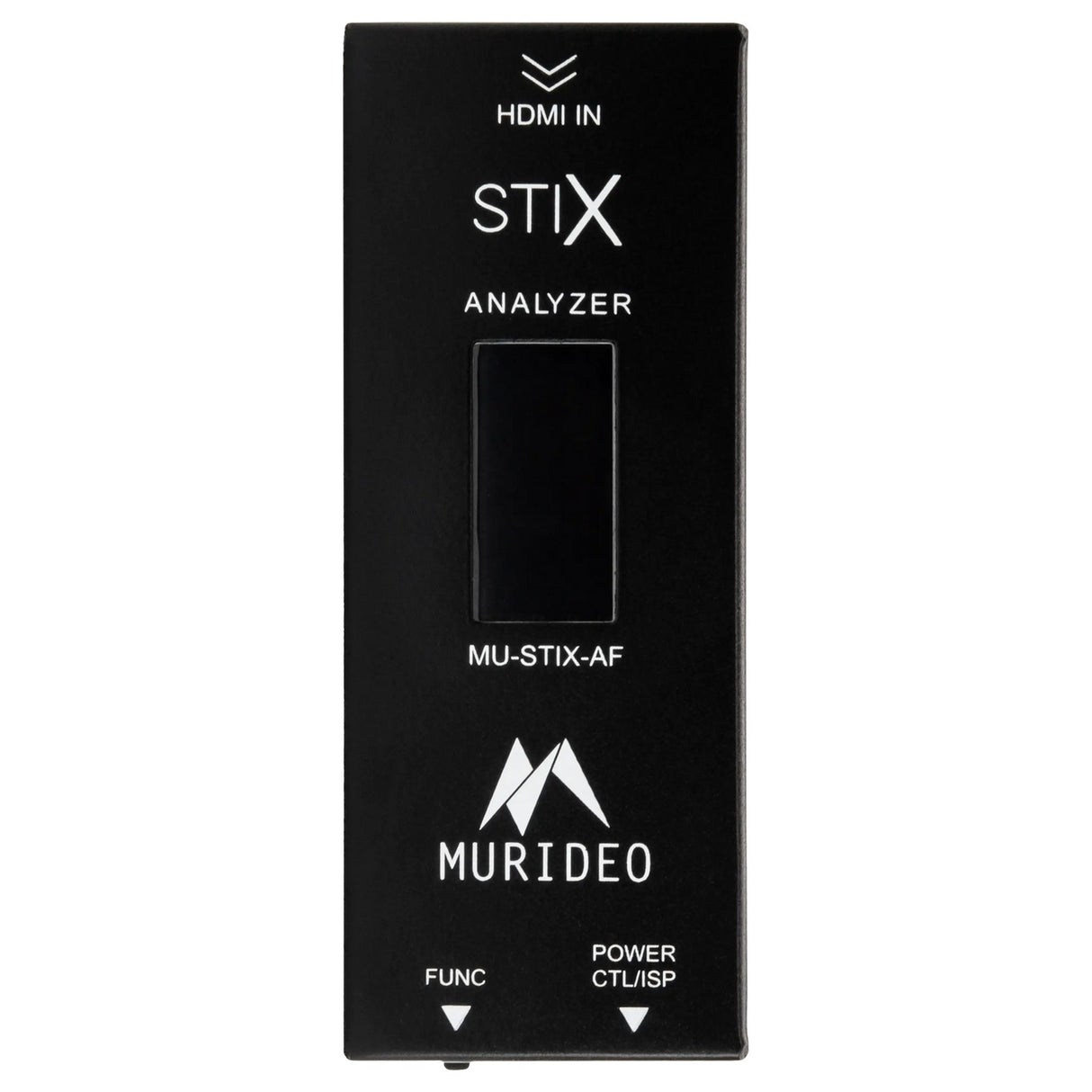

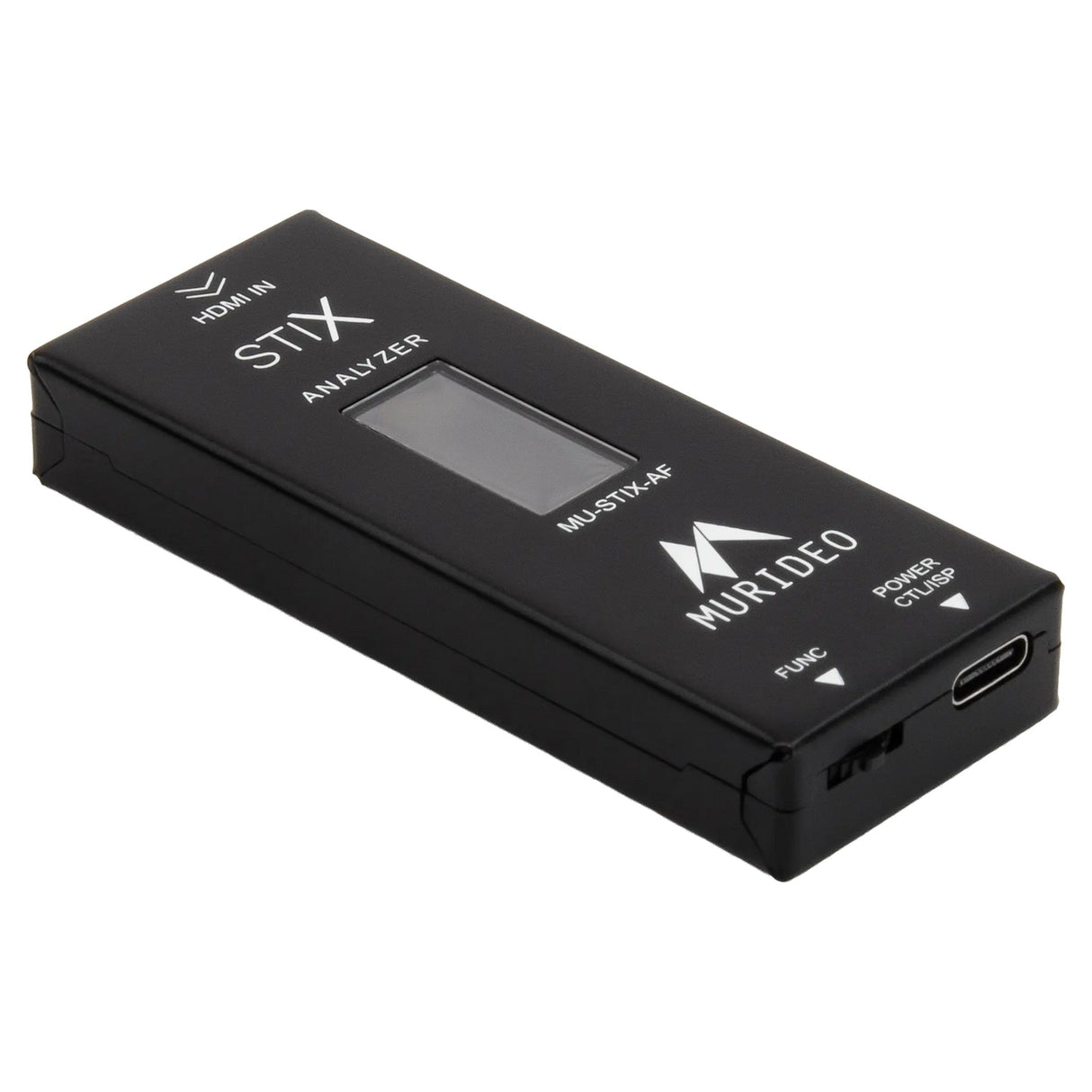

Murideo MU-STIX-AF STIX Test Signal Analyzer Female HDMI
The Murideo STIX Test Signal Analyzer Female HDMI is a compact HDMI 2.1b signal analysis tool designed for professional AV system verification and troubleshooting. It enables fast confirmation of HDMI signal integrity, display compatibility, and transmission performance in both field and rack room environments.
This analyzer supports HDMI 2.1 bandwidth up to 48 Gbps and analyzes video signals from 720p through 8K across multiple color depths and color spaces. An integrated OLED display provides real time visibility into incoming resolution, timing, FRL or TMDS mode, color space, and HDCP status.
Built for integrators and technicians, the STIX Analyzer delivers reliable pass or fail diagnostics for commercial and residential AV installations. Its thumb drive sized form factor and USB powered operation make it ideal for commissioning, validation, and ongoing system maintenance.
Key Features
- HDMI 2.1b signal analysis: Supports up to 48 Gbps FRL compliant HDMI signals.
- Multi-resolution support: Analyzes 720p, 1080p, 4K, and 8K signal timings.
- OLED diagnostic display: Shows incoming video image, timing, color depth, and HDCP version.
- Audio diagnostics: Displays audio sampling rate, bit rate size, and channel information.
- Ultra-compact design: Thumb drive sized analyzer for tight installation spaces.
Technical Specifications
- HDMI version: HDMI 2.1.
- HDCP support: HDCP 1.4 and HDCP 2.3.
- Maximum throughput: 12 Gbps per channel, 48 Gbps total.
- Resolution support: Up to 8K at 30 Hz and 4K at 120 Hz.
- Video sampling: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0.
- Color bit depth: 8-bit, 10-bit, and 12-bit.
- Audio format: LPCM up to 8 channels.
- Power consumption: 2.7 W maximum.
