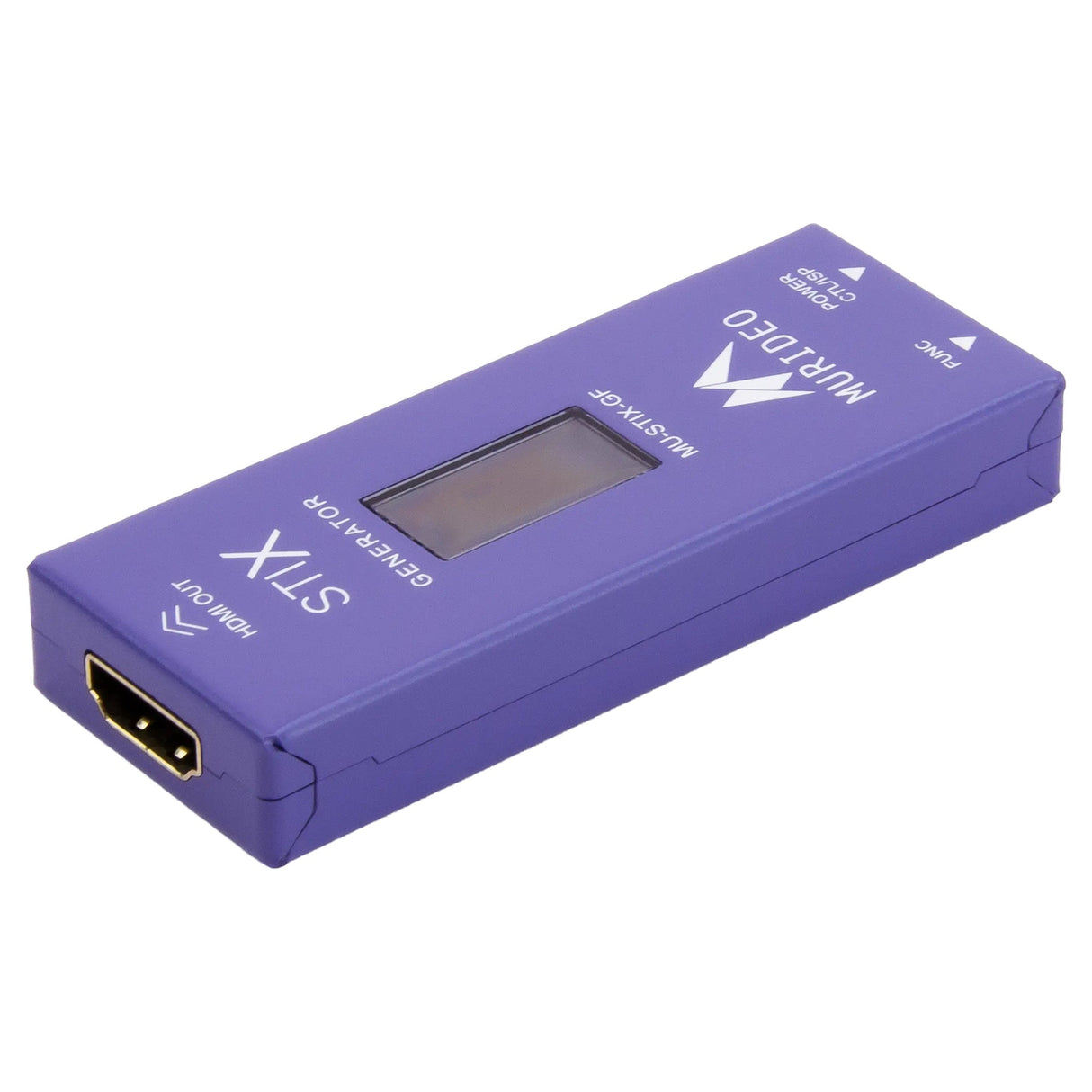

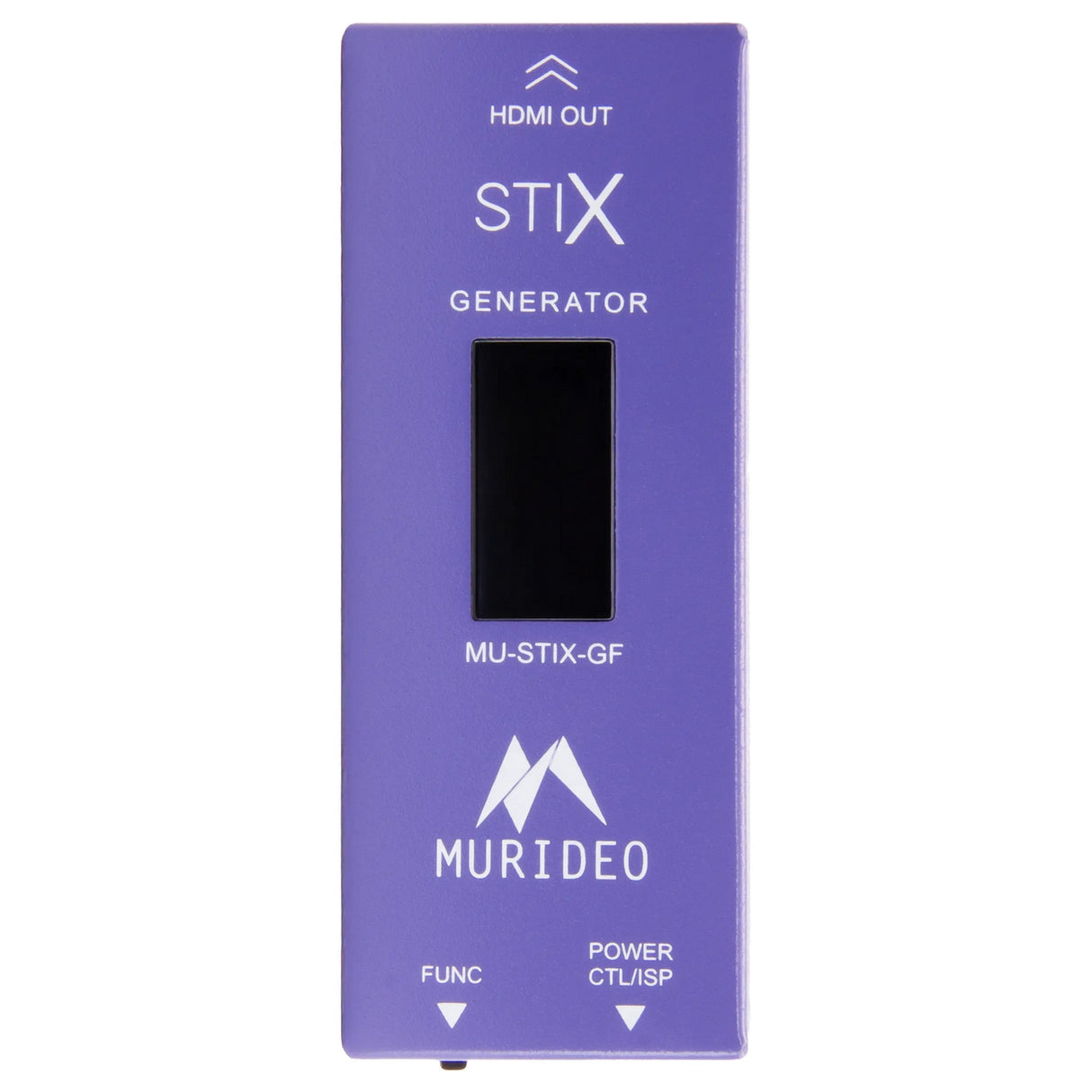

Murideo MU-STIX-GF STIX Test Signal Generator Female HDMI
The Murideo STIX Test Signal Generator Female HDMI is a compact HDMI 2.1b test pattern generator designed for professional AV validation and signal verification. It provides a fast and reliable way to confirm HDMI signal paths, display compatibility, and system performance up to 8K resolutions.
This generator supports HDMI 2.1b with 48 Gbps FRL bandwidth and produces test signals from 720p through 8K with multiple color depths and color spaces. Built-in diagnostic patterns and configurable HDCP options enable precise troubleshooting of signal integrity, timing, and transmission issues.
Designed for integrators and technicians, the STIX Test Signal Generator offers dependable operation in both commercial and residential AV environments. Its ultra-compact form factor and onboard OLED screen make it ideal for field testing, commissioning, and pass or fail verification workflows.
Key Features
- HDMI 2.1b compliance: Supports 48 Gbps FRL signaling for advanced HDMI testing.
- Multi-resolution output: Generates 720p, 1080p, 4K, and 8K signal timings.
- Configurable HDCP: Selectable HDCP Off, 1.4, and 2.3 operation.
- Built-in test patterns: Includes multiple diagnostic and color-based patterns.
- OLED status display: Integrated screen shows resolution, color space, bit depth, and HDCP status.
Technical Specifications
- HDMI version: HDMI 2.1.
- HDCP support: HDCP 1.4 and HDCP 2.3.
- Resolution timings: 4K at 120 Hz, 4K and 1080p at 60 Hz, 8K at 30 Hz.
- Video sampling: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2.
- Color bit depth: 8-bit, 10-bit, and 12-bit.
- Audio output: 8-channel LPCM at 1 kHz.
- Power consumption: 1.35 W maximum.
