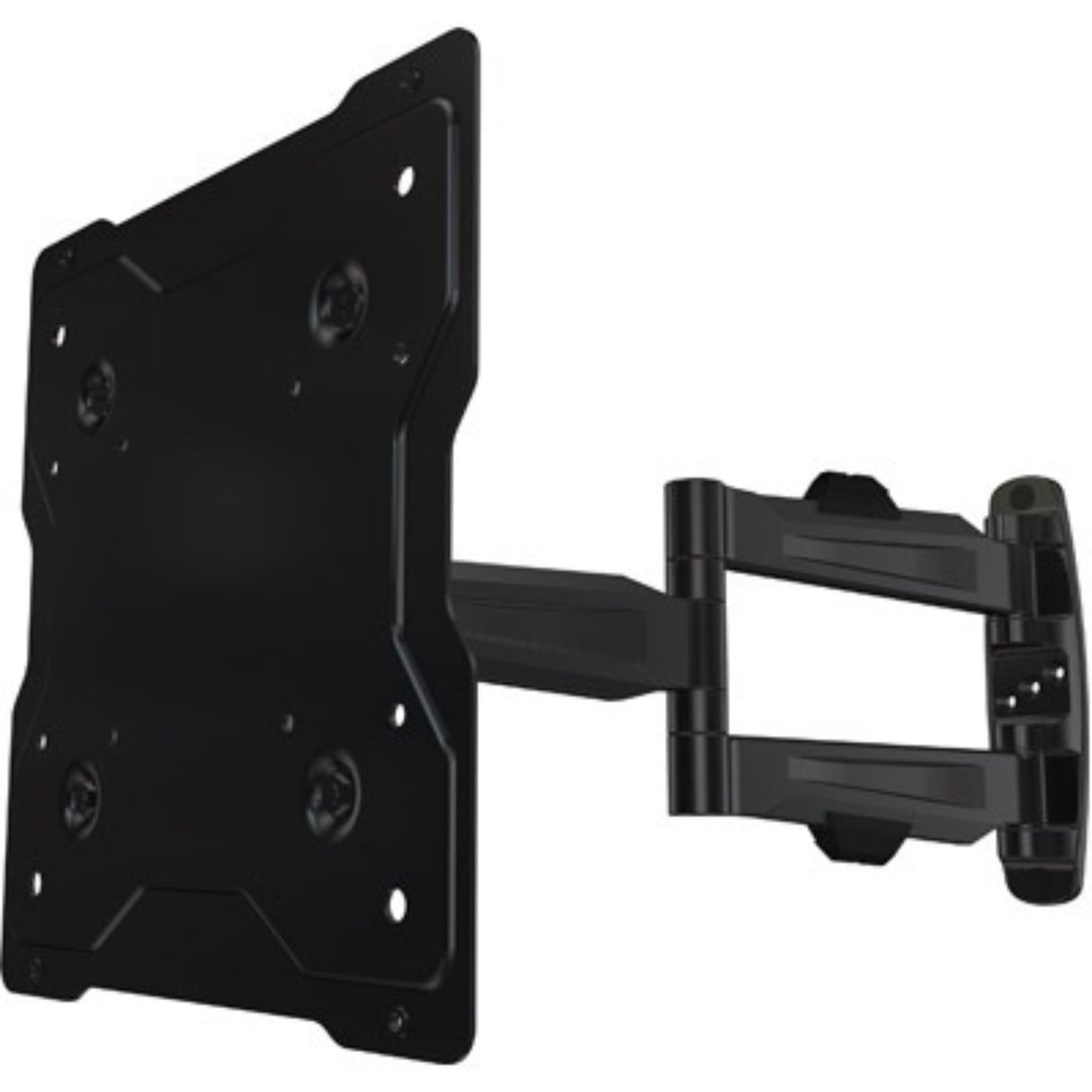

Mustang MPA-M22V Full Motion Articulating TV Wall Mount

Mustang MPA-M22V Full Motion Articulating TV Wall Mount

Product Overview

The Mustang Professional MPA-M22V is a single-stud, full motion articulating TV wall mount designed for compact-to-mid size displays where flexible viewing angles matter. With up to an 80 lb load rating and support for common VESA patterns up to 200 x 200mm, it’s built for secure mounting in residential and commercial environments.

Its multi-joint arm provides smooth positioning with tilt, pivot, and slight roll adjustment to help level the screen and reduce glare. Installation supports single stud mounting as well as structural concrete and cinder block, and integrated cable management helps keep the setup tidy.

Constructed from aluminum and high-grade cold rolled steel with a scratch-resistant epoxy powder coat finish, the MPA-M22V is designed for durable everyday use. It is UL Listed and includes a pre-sorted hardware pack to streamline installation and fastener selection.

Key Features

• Flexible Full-Motion Positioning: Uses a 3-pivot-joint articulating arm for adjustable viewing angles and placement.
• Wide Viewing Angle Adjustment: Provides up to 180° pivot (maximum pivot may be restricted by display width).
• Smooth Tilt Control: Supports tilt adjustment of +15° forward and -5° back for glare reduction and comfortable viewing.
• Fine-Leveling Roll: Adds 3° side-to-side roll to help dial in screen leveling after installation.
• Secure Weight Support: Rated for displays up to 80 lb (36 kg).
• VESA Pattern Fitment: Fits VESA hole patterns 75x75mm, 100x100mm, 200x100mm, and 200x200mm (max 200x200mm).
• Expandable Compatibility (Optional): Optional AD400 adapter extends compatibility up to 400x400mm.
• Clean Cable Routing: Integrated cable management helps reduce visible cord clutter.
• Versatile Mounting Surfaces: Installs to single stud, structural concrete, cinder block, or other structural surfaces.
• Durable Metal Construction: Built from aluminum and high-grade cold rolled steel with a scratch-resistant epoxy powder coat finish.

Technical Specifications

• Recommended Display Size: 13" – 49"
• Weight Capacity: 80 lb (36 kg)
• Max VESA Pattern: 200 x 200mm
• Min Mounting Pattern: 100 x 100mm
• Pivot: Up to 180° (maximum pivot may be restricted by display width)
• Tilt: +15° / -5°
• Roll: 3°
• Depth From Wall (Retracted): 2.5" (63.5mm)
• Max Extension: 21" (533mm)
• Construction: Aluminum and high-grade cold rolled steel
• Finish: Scratch-resistant epoxy powder coat
• Color: Black
• Product Weight: 9.0 lb (4.1 kg)
• Certification: UL Listed
• Warranty: 5 year limited

What's Included

• Pre-sorted hardware pack (high-grade fasteners)
• Pre-installed securing screw
