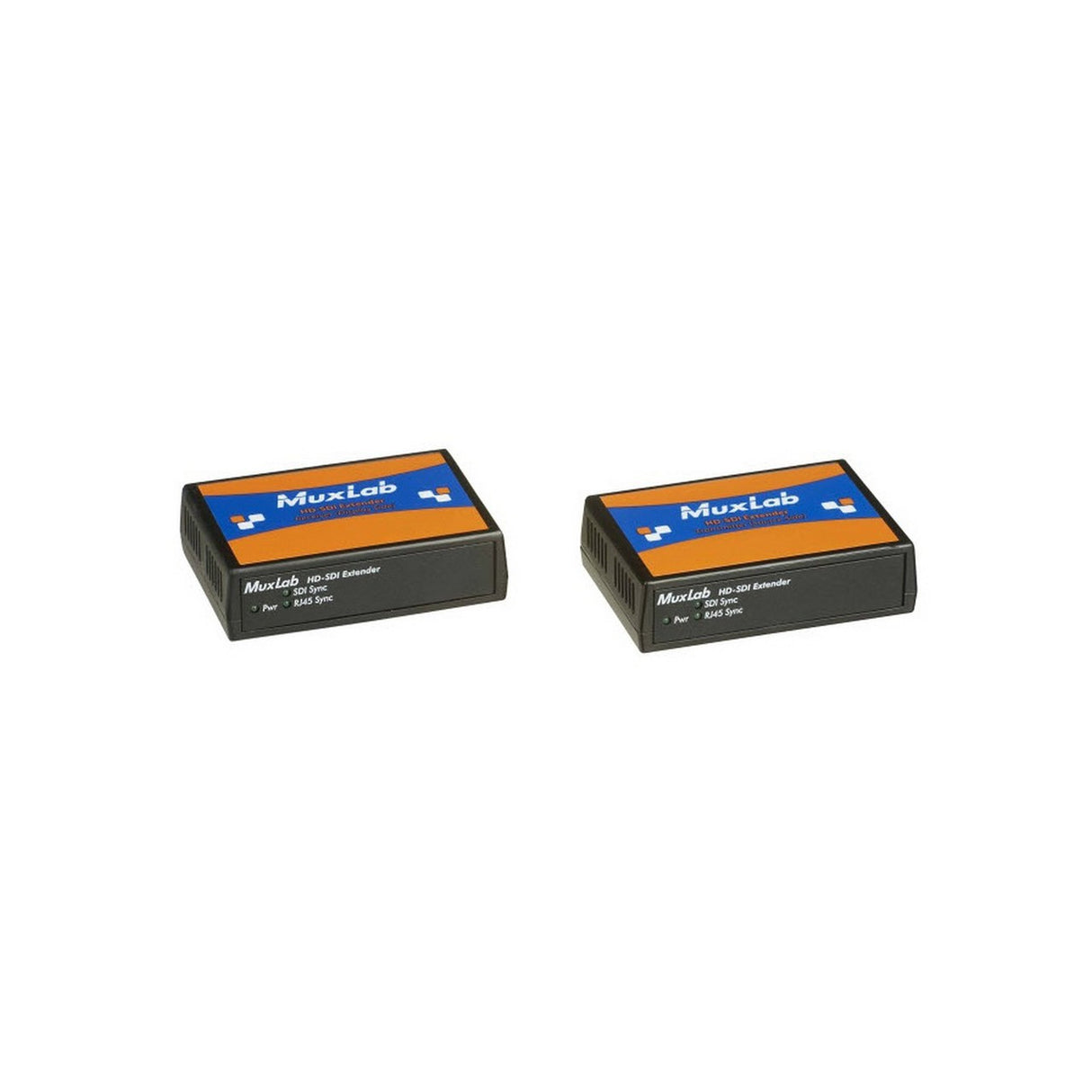

MuxLab 500700 HD-SDI Extender Kit
Elevate your professional video setups with the MuxLab 500700 HD-SDI Extender Kit. Designed for broadcast, video production, live events, and CCTV applications, this reliable kit allows you to effortlessly transmit high-definition SDI signals over standard Cat5e/6 cables, eliminating the need for expensive and bulky coaxial runs. With support for resolutions up to 1080p and uncompressed data rates up to 3.0 Gbps, you can ensure pristine video quality and minimal latency over long distances. The durable, cast aluminum enclosure is built to withstand demanding environments, making it the ideal solution for both fixed installations and mobile productions. The MuxLab 500700 is a plug-and-play solution that simplifies your workflow and extends your reach, offering unmatched versatility and performance.
Key Features
- Extended Range: Transmit HD-SDI signals up to 330 ft (100m) via Cat5e cable or up to 400 ft (122m) using Cat6 cable.
- High-Speed Transmission: Supports uncompressed, unencrypted digital video at speeds up to 2.97/3.0 Gbps.
- Versatile Standards Support: Compatible with professional video standards, including SMPTE 259M, SMPTE 292M, and SMPTE 424M.
- Diagnostic LEDs: Sync, signal detect, and link LEDs provide real-time status for easy troubleshooting and setup verification.
- Durable Build: Features a robust cast aluminum enclosure designed for professional use.
- Embedded Audio Support: Optionally transmits up to 32 channels of embedded audio and/or time code along with the video signal.
Specifications
- Environment: SDI single link: SD, HD, and 3G
- Supported Resolutions:
- SD: 525i (59.94 Hz), 625i (50 Hz)
- HD: 1035i (60 Hz), 1080i (50 Hz/60 Hz), 1080p (24 Hz/25 Hz/30 Hz), 720p (60 Hz)
- 3G: 1080p (60 Hz), 720p (60 Hz)
- Connectors: 1 x BNC 75 ohm female, 1 x RJ45S, 1 x Power connector (2mm)
- Compliance: Regulatory: FCC, CE, RoHS; Flammability: 94V0
- Dimensions: 4.5" x 3" x 1.25" (11.4 x 7.6 x 3.2 cm)
- Weight: 2.5 lb (1.1 kg)
- Warranty: 2-year manufacturer warranty
Package Content
- MuxLab 500700 HD-SDI Extender Kit (Transmitter/Receiver)
- 2 x Power Supplies with interchangeable blades (for North America, Europe, and UK)
