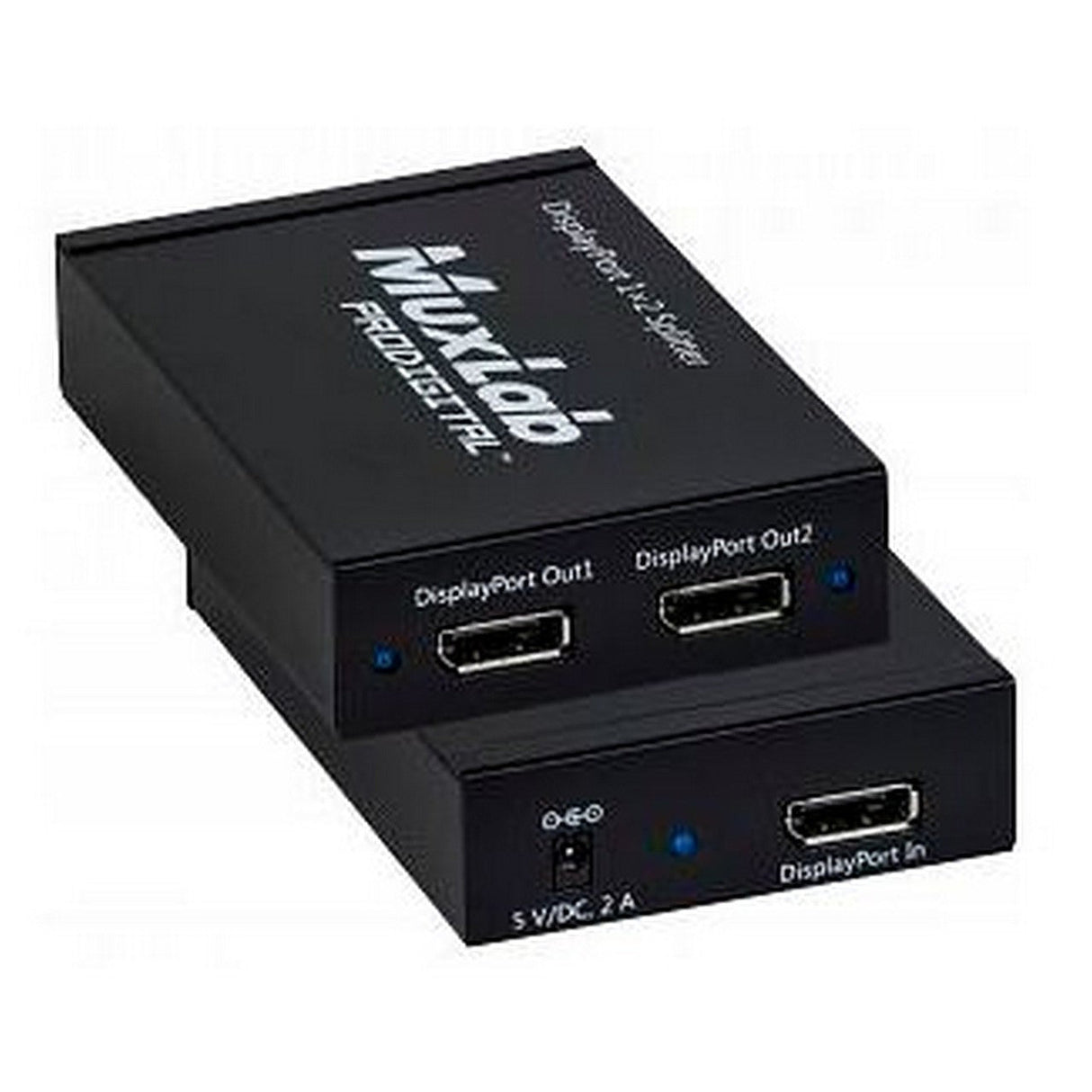

MuxLab 500506 Displayport 1.2A 1X2 HUB

The DisplayPort 1.2a 1×2 Hub, MST is a device that allows you to extend different DisplayPort 1.2a content from one DisplayPort connector to two monitors. The hub supports video resolutions up to 4K and PCM Audio up to 7.1-Channel and up to 192 kHz sampling rate, and supports Multi-Stream Transport (MST) of up to eight streams. Typical Applications: Commercial and residential AV systems, Classroom training systems, Digital signage, Boardroom systems, Collaborative PC systems.

Key Features

• Extend different DisplayPort 1.2a content from one DisplayPort connector to two monitors
• Supports data rate of 5.4 Gbps per lane with a total of 21.6 Gbps link rate
• HDMI link rate: 3.2 Gbps/data pair
• Supports dual mode DisplayPort
• 4K at 60Hz, 24 bits/pixel in DP 1.2a configuration
• 1080p at 240Hz, 24 bits/pixel
• Supports Multi-Stream Transport (MST) of up to eight streams
