Description

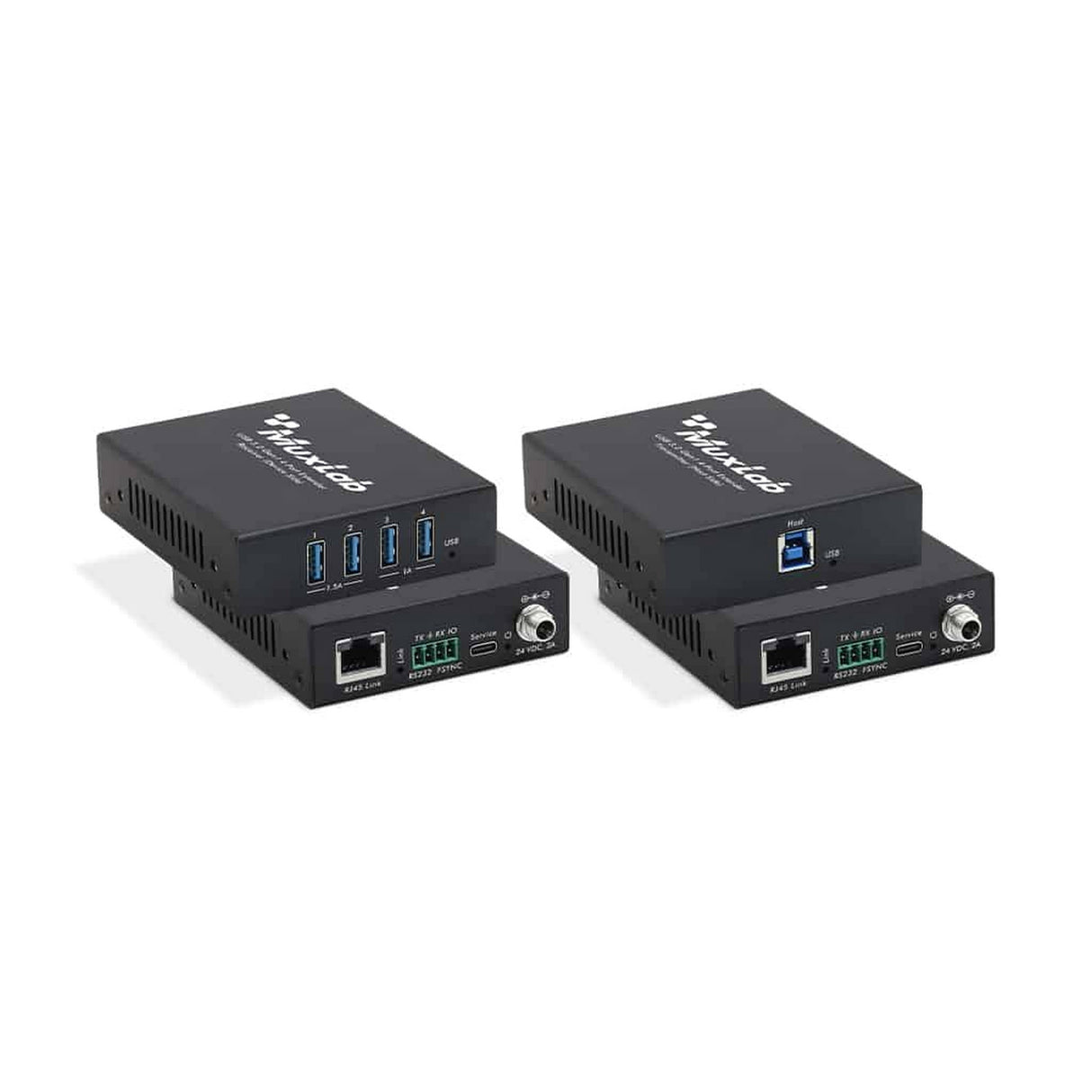

MuxLab 500530 USB 3.2 Gen1 4-Port Extender Kit
The MuxLab USB 3.2 Gen1 4-Port Extender Kit (100m) is designed to extend true USB connectivity over long distances using standard CAT6a UTP cabling. It supports data transfer rates up to 5Gbps and enables reliable USB extension for professional AV and industrial applications. This extender kit operates in a point to point configuration for stable and secure signal transmission.
This extender kit supports USB 3.2 Gen1 connectivity up to 100m or 328ft and features RS-232 pass-through and FSYNC GPIO support. The transmitter provides one USB HOST input while the receiver delivers four USB 3.2 Gen1 Type A outputs. Bi-directional 24VDC PoC simplifies installation by reducing the need for additional power connections.
Ideal for conference rooms, digital signage, classroom projector systems, and industrial control environments, this USB extender kit offers true plug and play operation. It requires no additional drivers and is compatible with major operating systems. The metal enclosure supports dependable performance in demanding professional installations.
Key Features
- Long Distance USB Extension: Extends USB 3.2 Gen1 signals up to 100m or 328ft over CAT6a cable.
- High Speed Data Transfer: Supports data transmission rates up to 5Gbps.
- Multiple USB Outputs: Receiver provides four USB 3.2 Gen1 Type A device ports.
- Control Signal Support: Supports RS-232 pass-through and FSYNC GPIO pass-through.
- Power over Cable: Supports bi-directional 24VDC PoC for simplified installation.
Technical Specifications
USB ProtocolUSB 3.2 Gen1
Transmission Rate
Up to 5Gbps
Network Bandwidth
10G
Transmission Distance
100m / 328ft over CAT6a (F/FTP) cable
ESD Protection
IEC 61000-4-2 ±8kV (Air-gap discharge), ±4kV (Contact discharge)

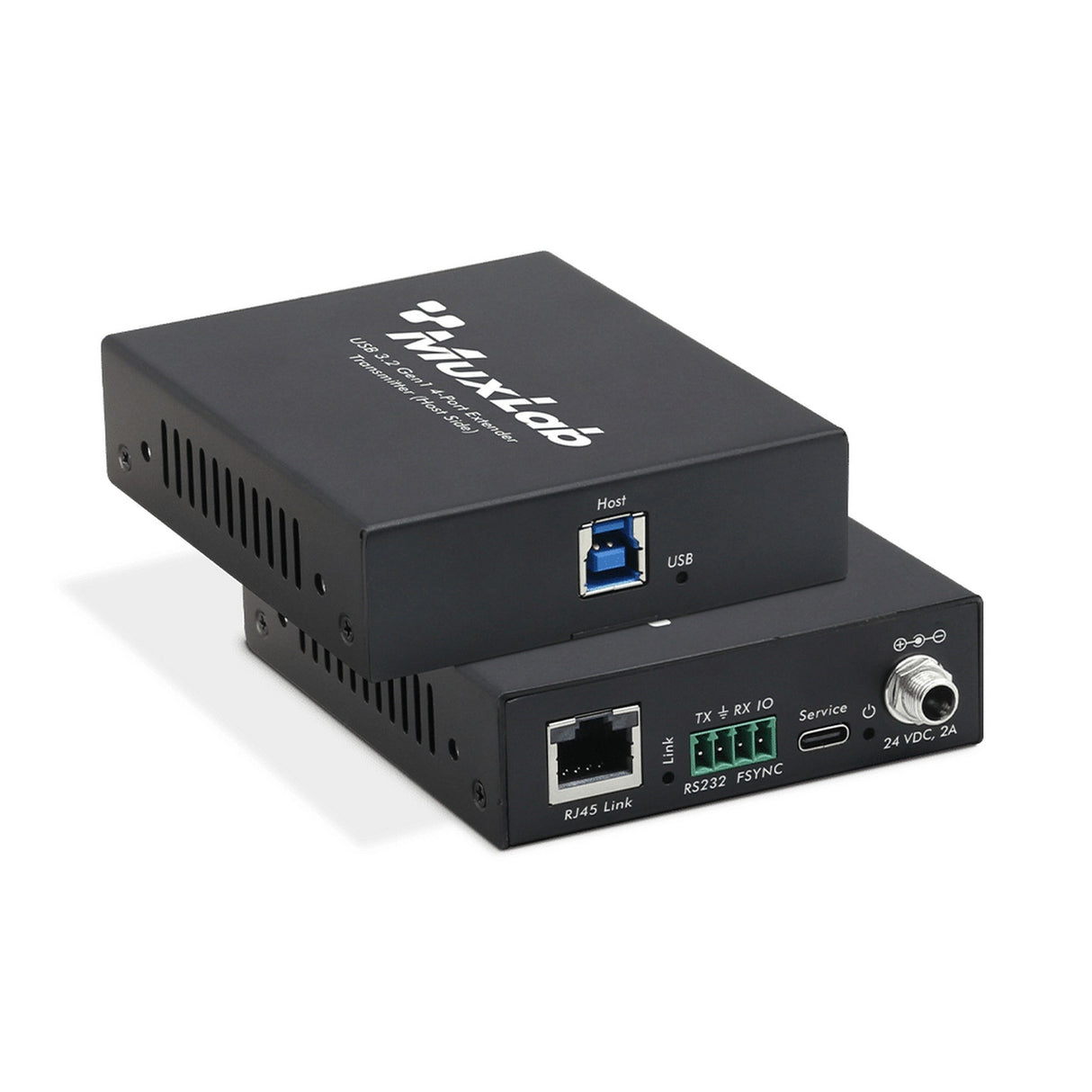

Transmitter Input
1 x USB HOST (USB-B, 9pin Female)
Transmitter Output
1 x HDBT OUT (RJ45, Female)
Transmitter Control
1 x RS-232 (3pin-3.5mm Phoenix Connector)
Transmitter FSYNC
1 x FSYNC (1pin-3.5mm Phoenix Connector)
Transmitter Service Port
1 x SERVICE (USB-C Update Port)
Receiver Input
1 x HDBT IN (RJ45, Female)

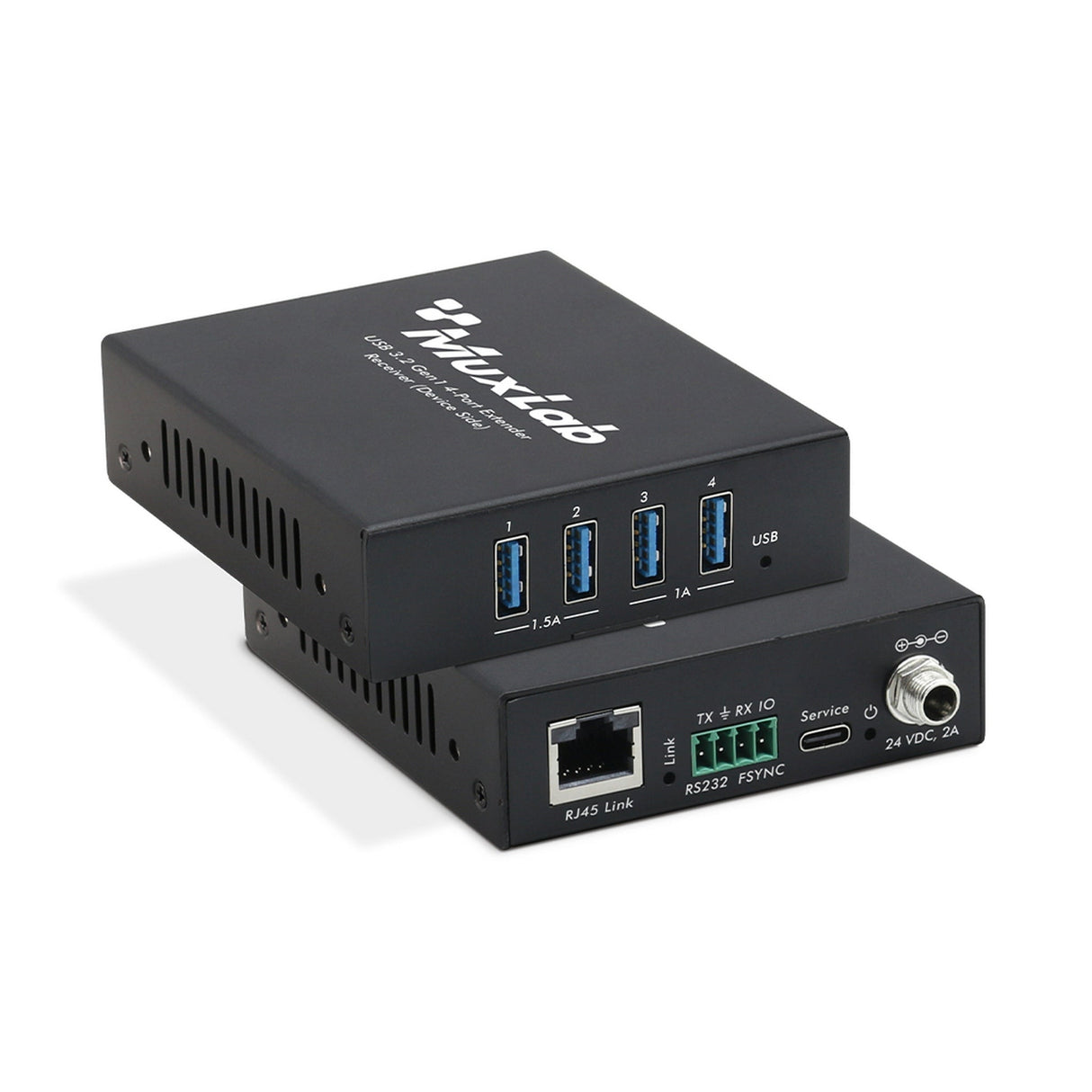

Receiver Output
4 x USB Devices (USB-A, 9pin Female)
Receiver Control
1 x RS-232 (3pin-3.5mm Phoenix Connector)
Receiver FSYNC
1 x FSYNC (1pin-3.5mm Phoenix Connector)
Receiver Service Port
1 x SERVICE (USB-C Update Port)
Housing
Metal Enclosure
Color
Black
Unit Dimensions(Transmitter and Receiver)
85mm W x 100mm D x 25.5mm H
Unit Weight
Transmitter 253g
Receiver 260g
Power Supply Input
100-240VAC 50/60Hz
Power Supply Output
24VDC 2A
PoC Power Consumption
40W Max
Operating Temperature
0°C to 40°C 32°F to 104°F
Storage Temperature
-20°C to 60°C -4°F to 140°F
Relative Humidity
20 to 90 percent RH non-condensing
Warranty
2 years
What’s in the Box
(1) USB 3.2 Gen1 Transmitter(1) USB 3.2 Gen1 Receiver
