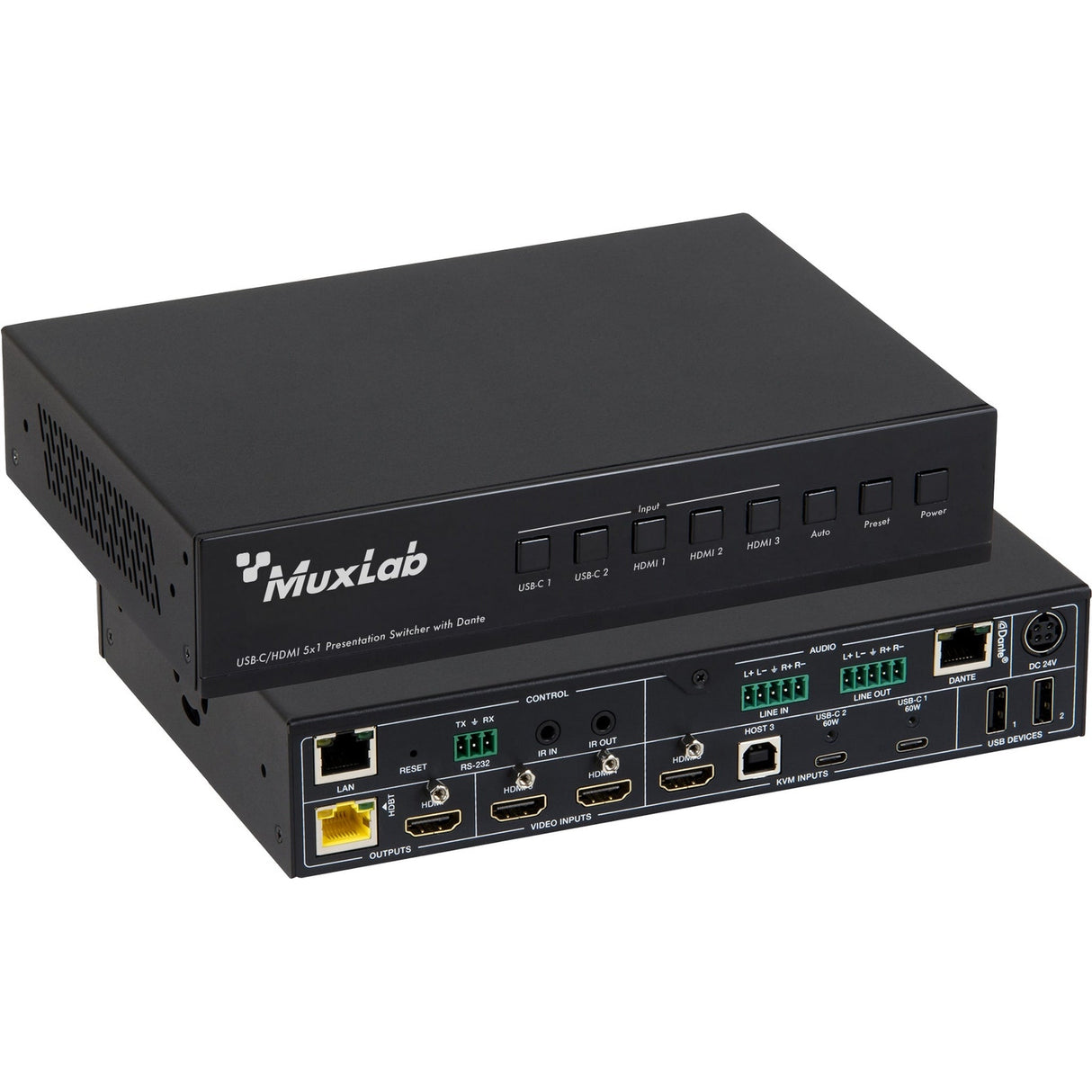

MuxLab 500533 USB-C HDMI 5x1 Presentation Switcher with Dante

MuxLab 500533 USB-C HDMI 5x1 Presentation Switcher with Dante

The MuxLab USB-C HDMI 5x1 Presentation Switcher with Dante is a professional presentation switching solution designed for advanced multimedia environments. It enables seamless switching between USB-C and HDMI sources while integrating video, audio, KVM, and Dante audio networking. This switcher is built to support modern conference rooms, control centers, and collaborative presentation spaces.

Supporting video bandwidth up to 18Gbps, the switcher delivers resolutions up to 4K60Hz 4:4:4 and provides five multiview display modes. It supports HDBaseT 3.0 with PoE, Dante 2x2 audio embedding and output, and USB 2.0 KVM switching over HDBaseT. Flexible signal routing enables seamless and reliable presentation workflows.

The system supports manual or automatic switching and offers control via front panel buttons, IR remote, RS-232, TCP/IP, and web GUI. Designed for reliability and scalability, it is ideal for conference centers, boardrooms, education facilities, hotels, and command and control environments requiring advanced presentation switching and Dante audio integration.

Key Features

• USB-C and HDMI Switching: Supports seamless 5x1 presentation switching
• High Resolution Video: Supports video resolution up to 4K60Hz 4:4:4
• Dante Audio Integration: Supports Dante 2x2 audio embedding and output
• Multi-view Display: Provides five multiview display modes
• Advanced Control: Supports front panel, IR, RS-232, TCP/IP, and web GUI control

Technical Specifications

HDMI Compliance
HDMI 2.0b

HDCP Compliance
HDCP 2.2

Video Bandwidth
18Gbps

Input Video Resolution
480i
1080p50/60Hz
4Kx2K24/30Hz
4Kx2K50/60Hz 4:4:4

Output Video Resolution
Auto
3840x2160p60
3840x2160p50
4096x2160p60
4096x2160p50
3840x2160p30
3840x2160p25
1920x1080p60
1920x1080p50
1360x768p60
1280x800p60
1280x720p60
1280x720p50
1024x768p60

Color Space
Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4)
Output: 8-bit

Color Depth
RGB
YCbCr
4:4:4
4:2:2
4:2:0

Audio Formats
LPCM 2.0

Audio Sample Rate
48KHz

Transmission Distance
1080p60 230ft/70m
4K60 131ft/40m

HDR
Input supports HDR, output does not support HDR

ESD Protection
Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

TX Analog Audio (Base)
Input Impedance: 10K Ohms
Output Impedance: 330 Ohms
Line Input Level (Max): 8.2dBu (2Vrms) balanced or unbalanced audio
Line Output Level (Max): 8.2dBu (2Vrms) balanced, 2.2dBu (1Vrms) unbalanced audio
Frequency Response: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay: 0 to 50ms
Audio S/N Ratio: 93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N: <0.1% @ 0dBV, 1kHz

RX Analog Audio (HDBaseT)
Output Impedance: 330 Ohms
Line Input Level (Max): 8.2dBu (2Vrms) balanced or unbalanced audio
Line Output Level (Max): 8.2dBu (2Vrms) balanced, 2.2dBu (1Vrms) unbalanced audio
Frequency Response: (+0.5 dB, -1 dB) 20 Hz to 20 kHz
Audio Output Sync Delay: 0 to 50ms
Audio S/N Ratio: 93dB @ 2Vrms, 1kHz A-weighted
Audio THD+N: <0.1% @ 0dBV, 1kHz

Dante Audio Format
LPCM 2.0

Dante Sample Rate
44.1, 48, 88.2 and 96KHz at 24 bits

Dante Audio Delay
2ms, 3ms, 4ms, 5ms, 10ms

Dante Network Bandwidth
100Mbps

Transmitter Inputs
3 x HDMI INPUT (Type A, 19-pin female)
2 x USB-C (24-pin female)
1 x LINE IN (5pin-3.5mm phoenix connector)
1 x DANTE (RJ45)

Transmitter Outputs
1 x HDMI OUTPUT (Type A, 19-pin female)
1 x HDBT OUTPUT (RJ45)
1 x LINE OUT (5pin-3.5mm phoenix connector)

Transmitter Controls
1 x RS-232 (3pin-3.5mm phoenix connector)
1 x LAN (RJ45)
1 x USB HOST (USB Type B)
2 x USB DEVICES (USB Type A)
1 x IR IN (3.5mm stereo mini-jack)
1 x IR OUT (3.5mm stereo mini-jack)

Receiver Inputs
1 x HDMI IN (Type A, 19-pin female)
1 x HDBT IN (RJ45)

Receiver Outputs
1 x HDMI OUT (Type A, 19-pin female)
1 x LINE OUT (5pin-3.5mm phoenix connector)

Receiver Controls
1 x RS-232 (3pin-3.5mm phoenix connector)
1 x USB HOST (USB Type B)
2 x USB DEVICES (USB Type A)
1 x SERVICE (Micro USB)
1 x IR IN (3.5mm stereo mini-jack)
1 x IR OUT (3.5mm stereo mini-jack)

Housing
Metal enclosure with Aluminum front panel

Color
Black

Dimensions (WxDxH)
Transmitter: 220mm x 150mm x 44mm
Receiver: 140mm x 105mm x 21.5mm

Weight
Transmitter: 1.21Kg
Receiver: 424g

Power Supply
Input: 100VAC - 240VAC 50/60Hz
Output: 24VDC/8A

Power Consumption
150W (Max)

Operating Temperature
0°C to 40°C / 32°F to 104°F

Storage Temperature
-20°C to 60°C / -4°F to 140°F

Relative Humidity
20 to 90 percent RH (non-condensing)

Compliance
Regulatory: FCC, CE, RoHS

Warranty
2 years

What’s in the Box

(1) USB-C HDMI 5x1 Presentation Switcher with Dante
