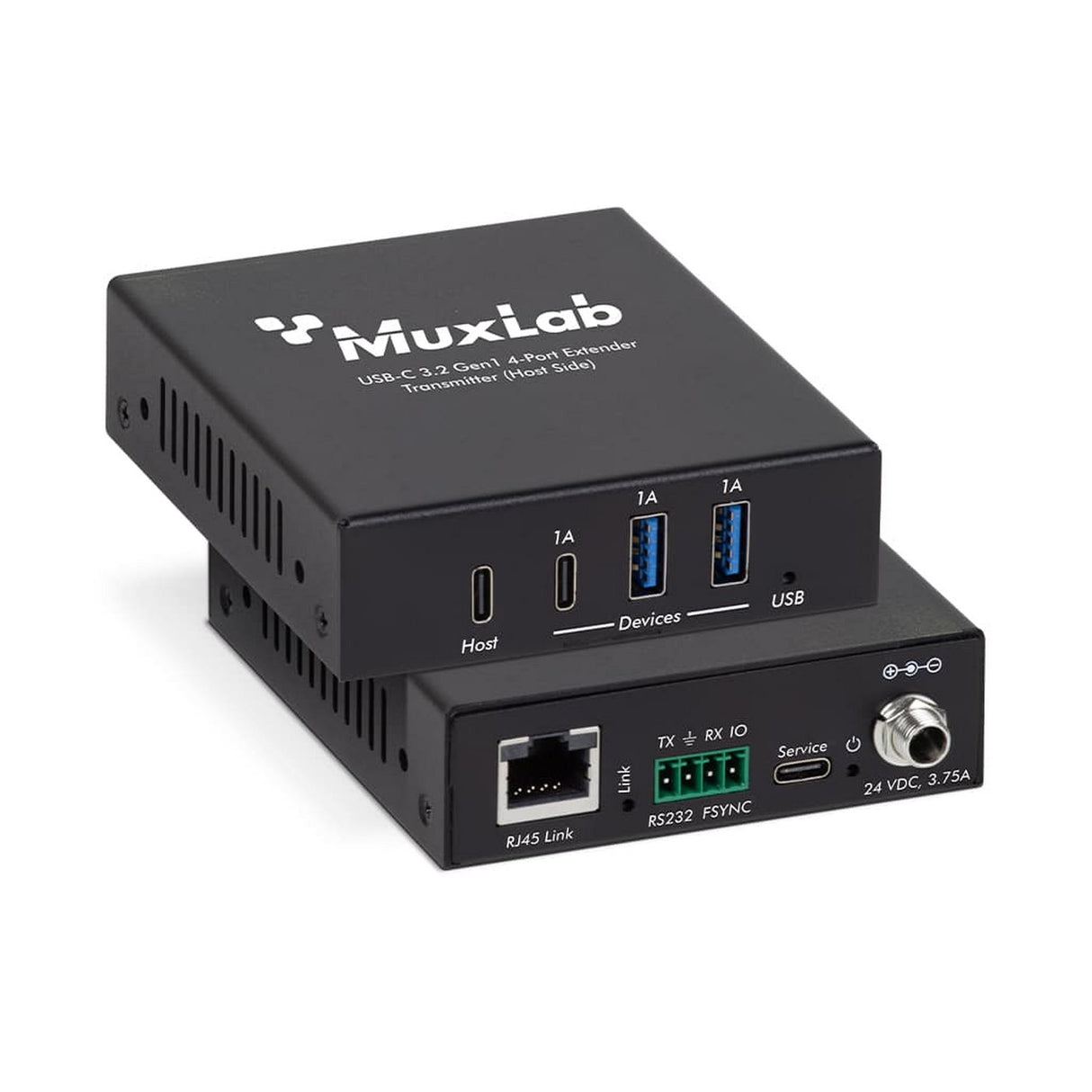

MuxLab 500534 USB-C 3.2 Gen1 4-Port Extender Kit
The MuxLab USB-C 3.2 Gen1 4-Port Extender Kit (100m) enables high speed USB extension over long distances using standard CAT6a cabling. It is designed for professional AV, control, and data acquisition environments where USB devices must be deployed remotely. This solution supports true USB 3.2 Gen1 connectivity for commercial and institutional applications.
Supporting data transfer rates up to 5Gbps, the extender transmits USB signals up to 100m over CAT6a (F/FTP) cable. The transmitter features one USB-C and two USB-A inputs, while the receiver provides two USB-A and two USB-C outputs along with RS-232 and FSYNC GPIO pass-through. Hardware acceleration supports isochronous and bulk data transfer for reliable performance.
This plug and play extender kit requires no drivers and is compatible with major operating systems. Its metal enclosure and bi-directional 24VDC PoC support simplify installation while ensuring durability. The system is well suited for digital signage, conferencing, industrial control, and security applications.
Key Features
- Long Distance USB Extension: Extends USB 3.2 Gen1 signals up to 100m over CAT6a cable
- High Speed Data Transfer: Supports USB connectivity with data transfer rates up to 5Gbps
- Multi-Port USB Support: Provides USB-C and USB-A device connectivity on the receiver
- Control Signal Pass-Through: Supports RS-232 and FSYNC GPIO pass-through
- Plug and Play Design: No driver or software installation required
Technical Specifications
USB ProtocolUSB 3.2 Gen1
Transmission Rate
Up to 5Gbps
Network Bandwidth
10G
Transmission Distance
100m / 328ft over CAT6a (F/FTP) cable
ESD Protection
IEC 61000-4-2 Ā±8kV (Air-gap discharge), Ā±4kV (Contact discharge)
Transmitter Input
1 x USB HOST (USB-C, 24-pin Female)
Transmitter Output
1 x USB-C DEVICE (USB Type C, 24-pin female)
Transmitter Additional Output
2 x USB-A DEVICE (USB Type A, 9-pin female)
Transmitter HDBT
1 x HDBT-USB (RJ45 Connector, 24V PoC)
Transmitter Control
1 x RS-232 (3pin-3.5mm Phoenix Connector)
Transmitter FSYNC
1 x FSYNC (1pin-3.5mm Phoenix Connector)
Transmitter Service Port
1 x SERVICE (USB-C Update Port)
Receiver Input
1 x HDBT-USB (RJ45 Connector, 24V PoC)
Receiver Output
2 x USB-A DEVICE (USB Type A, 9-pin female)
Receiver Additional Output
2 x USB-C DEVICE (USB Type C, 24-pin female)
Receiver Control
1 x RS-232 (3pin-3.5mm Phoenix Connector)
Receiver FSYNC
1 x FSYNC (1pin-3.5mm Phoenix Connector)
Receiver Service Port
1 x SERVICE (USB-C, Firmware Update Port)
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter / Receiver: 85mm [W] x 100mm [D] x 25.5mm [H]
Weight
Transmitter: 265g, Receiver: 275g
Power Supply Input
100-240VAC 50/60Hz
Power Supply Output
24VDC 3.75A
PoC Power Consumption
45W (Max)
Operating Temperature
0Ā°C to 40Ā°C / 32Ā°F to 104Ā°F
Storage Temperature
-20Ā°C to 60Ā°C / -4Ā°F to 140Ā°F
Relative Humidity
20 to 90 percent RH (non-condensing)
Warranty
2 years
Whatās in the Box
(1) USB-C 3.2 Gen1 Transmitter(1) USB-C 3.2 Gen1 Receiver
