Description

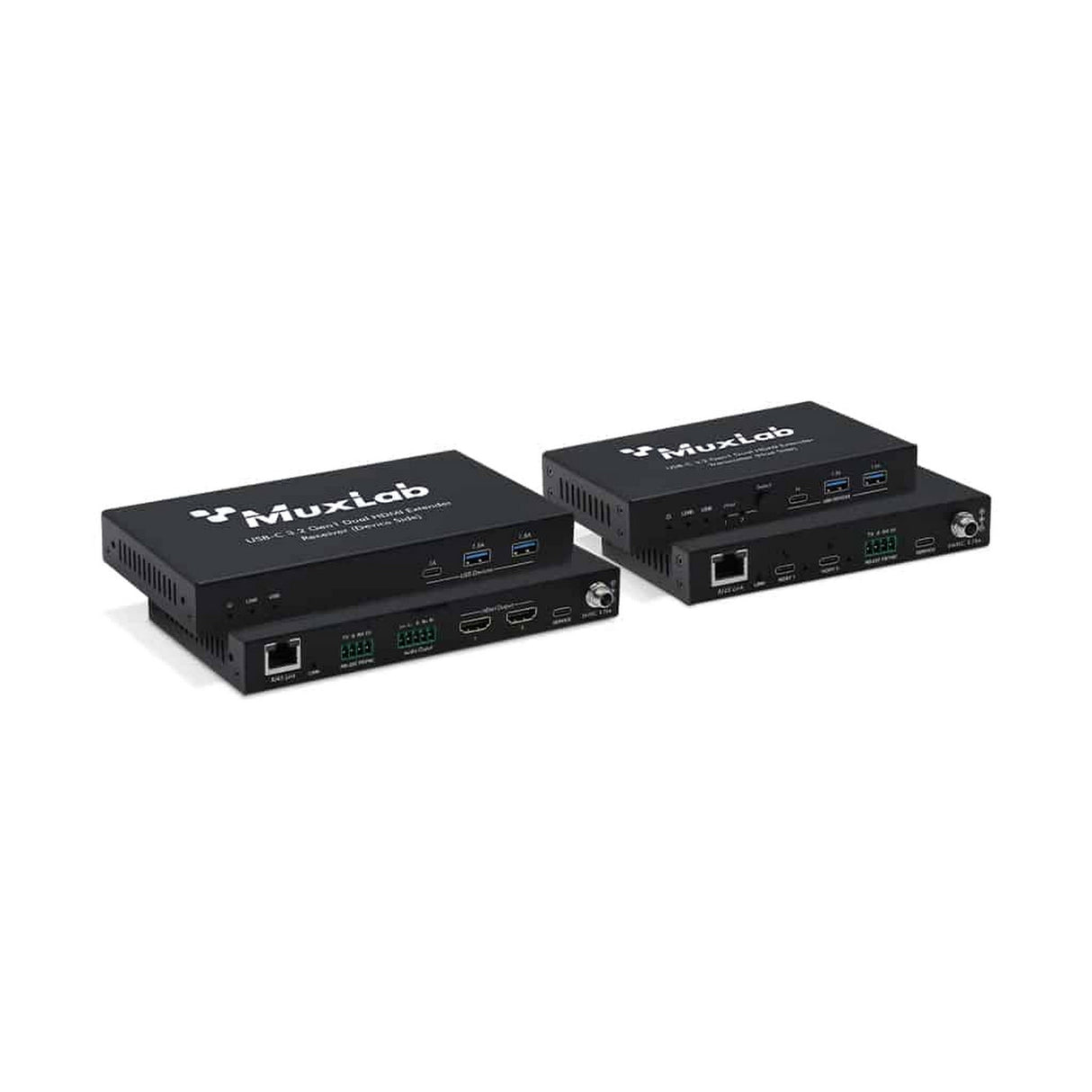

MuxLab 500536 USB-C 3.2 Gen1 Dual HDMI Extender Kit
The MuxLab USB-C 3.2 Gen1 Dual HDMI Extender Kit 100m extends high speed USB connectivity and dual HDMI video over long distances using standard CAT6a cabling. It is designed for professional AV, control, and data acquisition environments where USB and video devices must be deployed remotely. This extender kit supports reliable signal extension for commercial and institutional installations.
Supporting data transfer rates up to 5Gbps, the system extends true USB 3.2 Gen1 signals up to 100m over CAT6a (F/FTP) cable. The transmitter features selectable USB-C host ports with USB-A local inputs, while the receiver delivers multiple USB outputs, dual HDMI outputs, audio output, RS-232, and FSYNC GPIO pass-through. Built-in DisplayLink technology enables video over USB with support for dual HDMI outputs.
This plug and play extender kit requires no drivers and is compatible with major operating systems. Its metal enclosure and bi-directional 24VDC PoC support simplify installation while ensuring dependable performance. The solution is ideal for conference rooms, digital signage, control rooms, and industrial USB and video applications.
Key Features
- Long Distance USB Extension: Extends USB 3.2 Gen1 signals up to 100m over CAT6a cable
- Dual HDMI Video Support: Provides dual HDMI outputs for extended display applications
- High Speed Data Transfer: Supports USB connectivity with data transfer rates up to 5Gbps
- Control Signal Pass-Through: Supports RS-232 and FSYNC GPIO pass-through
- Plug and Play Operation: No driver or software installation required
Technical Specifications
USB ProtocolUSB 3.2 Gen1
Transmission Rate
Up to 5Gbps
Network Bandwidth
10G
Transmission Distance
100m/328ft over CAT6a (F/FTP) cable
ESD Protection
IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

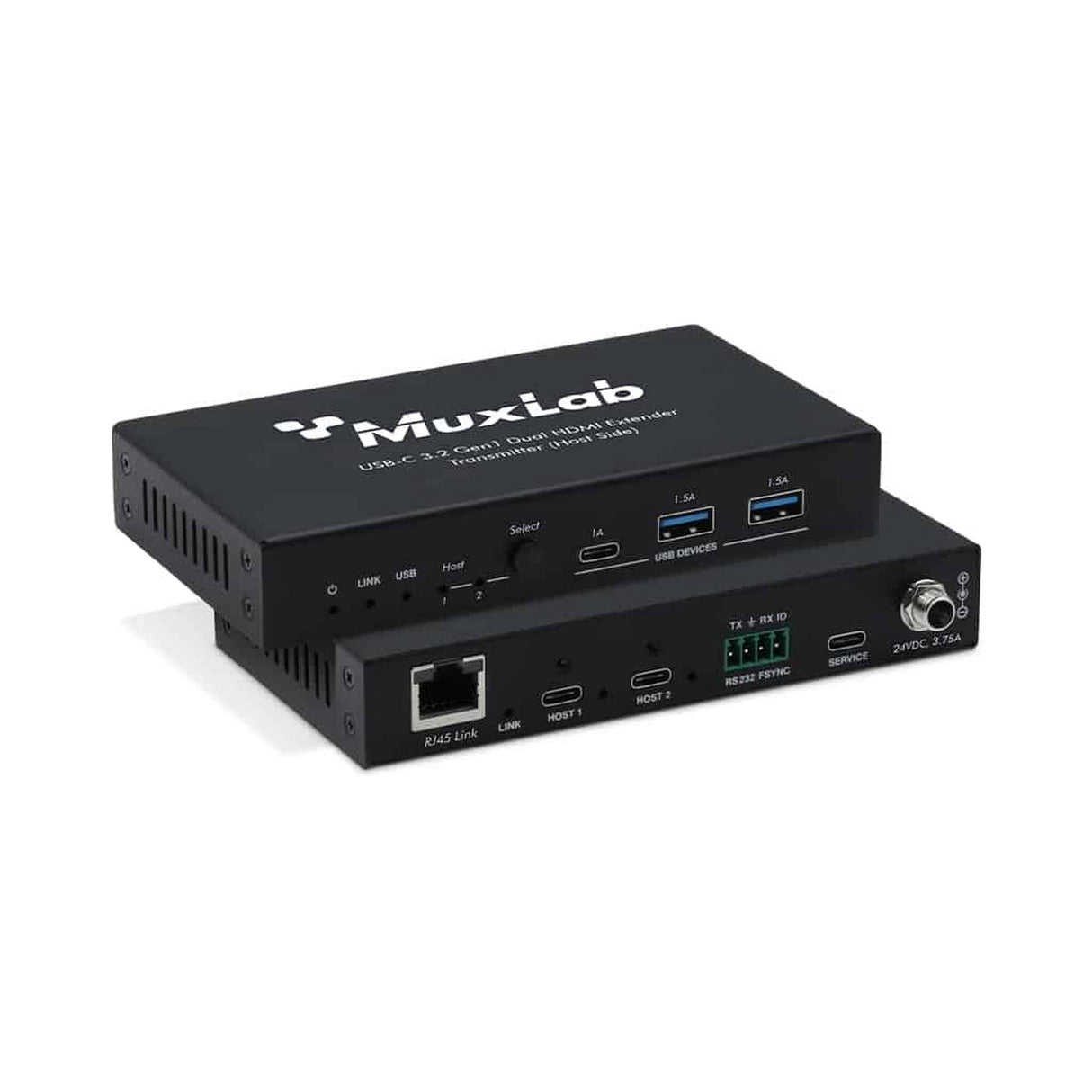

Transmitter Input
2 x USB HOST (USB-C, 24pin Female)
Transmitter Output
1 x USB-C DEVICE (USB Type C, 24-pin female)
2 x USB-A DEVICE (USB Type A, 9-pin female)
1 x HDBT-USB (RJ45 connector, 24V PoC)
Transmitter Control
1 x RS-232 (3pin-3.5mm Phoenix Connector)
Transmitter FSYNC
1 x FSYNC (1pin-3.5mm Phoenix Connector)
Transmitter Service Port
1 x SERVICE (USB-C Update Port)

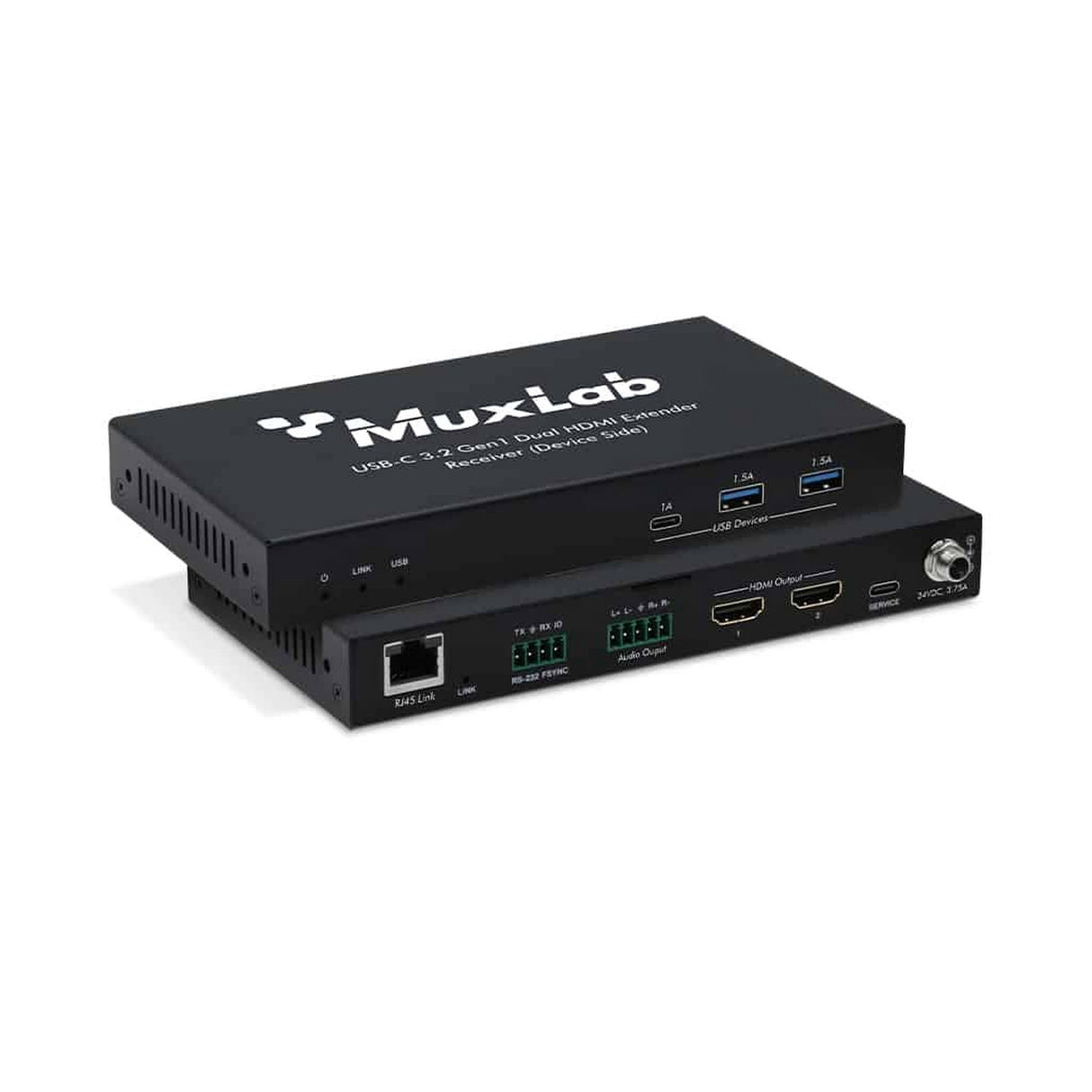

Receiver Input
1 x HDBT-USB (RJ45 connector, 24V PoC)
Receiver Output
2 x USB-A DEVICE (USB Type A, 9-pin female)
1 x USB-C DEVICE (USB Type C, 24-pin female)
2 x HDMI OUT (Type A, 19-pin Female)
1 x AUDIO OUT (Terminal Block 5-pin)
Receiver Control
1 x RS-232 (3pin-3.5mm Phoenix Connector)
Receiver FSYNC
1 x FSYNC (1pin-3.5mm Phoenix Connector)
Receiver Service Port
1 x SERVICE (USB-C, Firmware Update Port)
Housing
Metal Enclosure
Color
Black
Dimensions
Transmitter: 140mm [W] x 75mm [D] x 23mm [H]
Receiver: 180mm [W] x 95mm [D] x 23mm [H]
Weight
Transmitter: 486g, Receiver: 486g
Power Supply
Input: 100-240VAC 50/60Hz
Output: 24VDC/3.75A
Power Consumption
PoC Power Supply: 68W (Max)
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Relative Humidity
20 to 90 percent RH (non-condensing)
Warranty
2 years
What’s in the Box
(1) USB-C 3.2 Gen1 Dual HDMI Transmitter(1) USB-C 3.2 Gen1 Dual HDMI Receiver
