Description

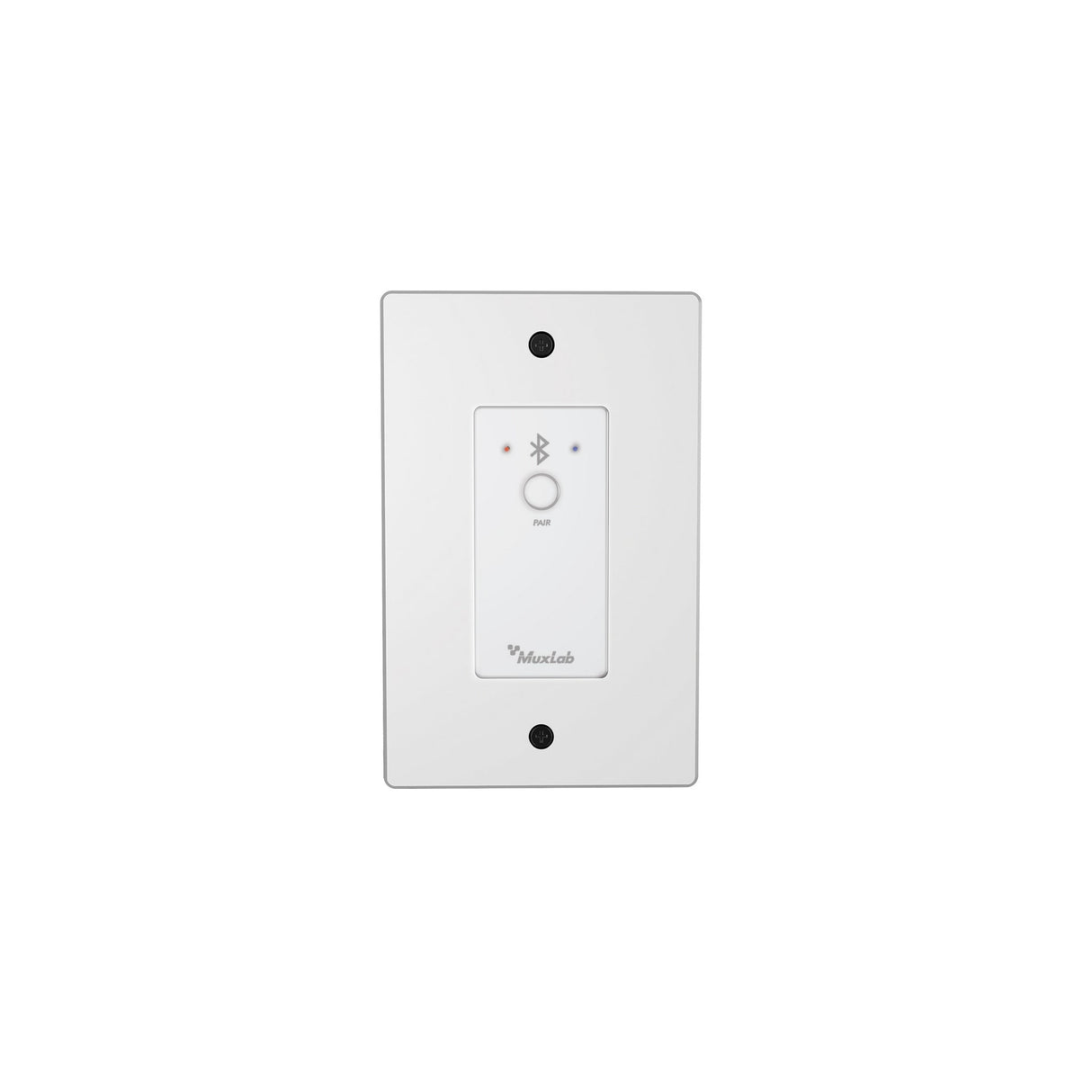

MuxLab 500554-WH Bluetooth Audio to Dante Interface White for Networked Audio Systems
The Bluetooth Audio to Dante Interface White is a two way audio transmission panel designed for Bluetooth and Dante network integration. It allows mobile phones, tablets, and other Bluetooth devices to transmit audio directly into a Dante enabled audio network. This solution is ideal for modern AV installations requiring wireless audio input.
The interface converts received audio signals into Dante network streams using a single network cable. Power and audio transmission are integrated into one cable, eliminating the need for ground loops or additional wiring. The device is designed to be compatible with standard single gang US wall boxes with Decora faceplates.
Built for commercial and professional environments, this interface supports simple Bluetooth pairing and stable long range connections. LED indicators provide clear connection status visibility. It is well suited for conferencing spaces, hospitality venues, and fitness facilities.
Key Features
- Bluetooth Audio Integration: Enables wireless audio input into Dante networks.
- Extended Wireless Range: Bluetooth 5.0 for long range and stable connections.
- Single Cable Installation: Power supply and audio transmission integrated into one cable.
- Wall Plate Design: Designed to be compatible with standard single gang US wall boxes with Decora faceplates.
- Status Visibility: Shows connection status through LED indicator light.
- Network Audio Support: Supports PoE and AES67.
Technical Specifications
Bluetooth interfaceBluetooth 5.0, Stereo I/O
Bluetooth range
Typical range is 15 - 23 m (50 - 75 ft) max
Dante interface
RJ45 interface, stereo input output
Frequency response
20Hz-20kHz
Sampling rate
48kHz 24bit
Floor noise
-90dB
Form Factor
1 Gang US
Power consumption
2W
THD
less than 0.005 percent
Operating temperature
0 C - 40 C
Operating humidity
5-95 percent
Dimensions (LxWxH)
123.5mm x 79mm x 35mm
Net Weight
156g
Warranty
2 years
What's in the Box
(1) 500554-WH Bluetooth Audio to Dante Interface(White)
