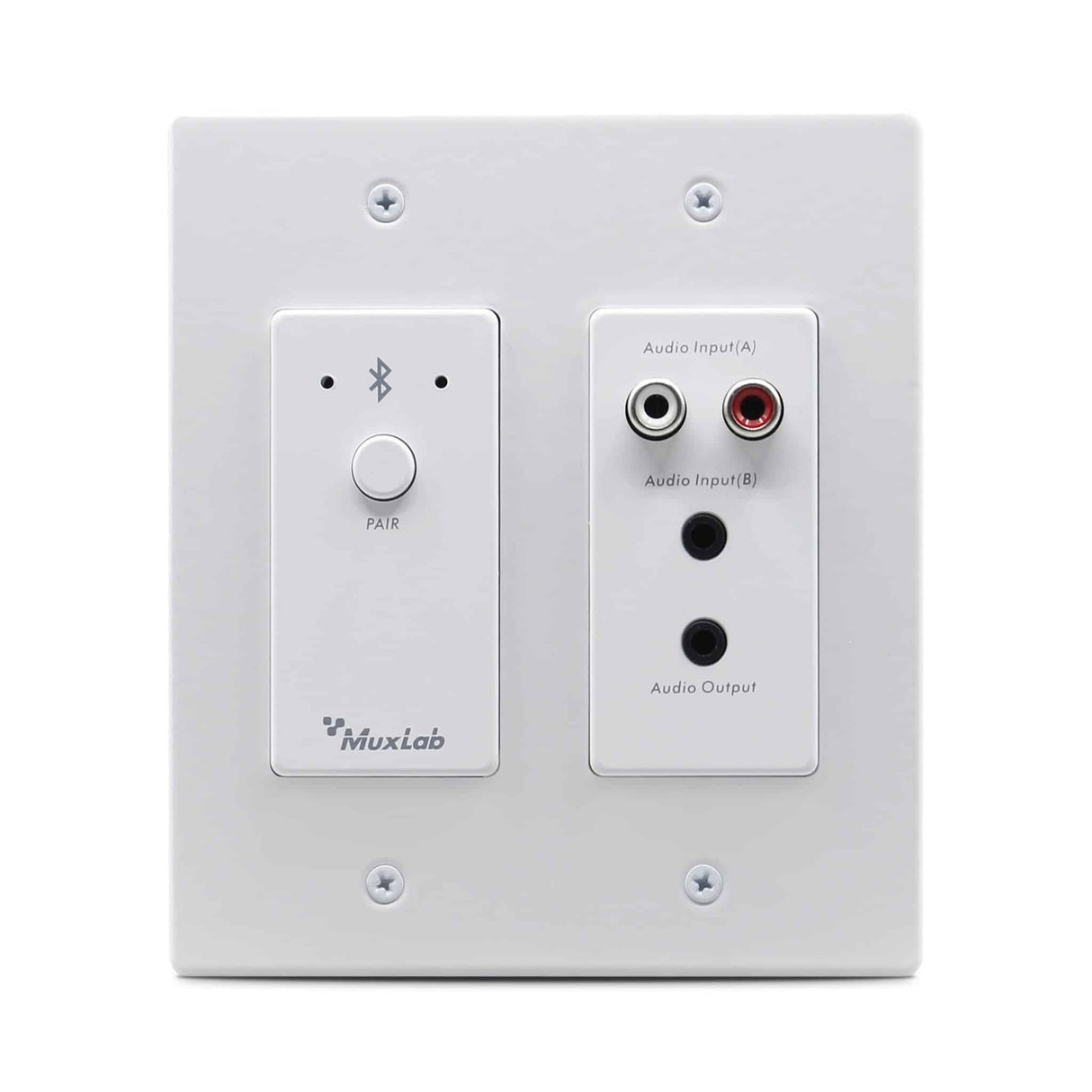

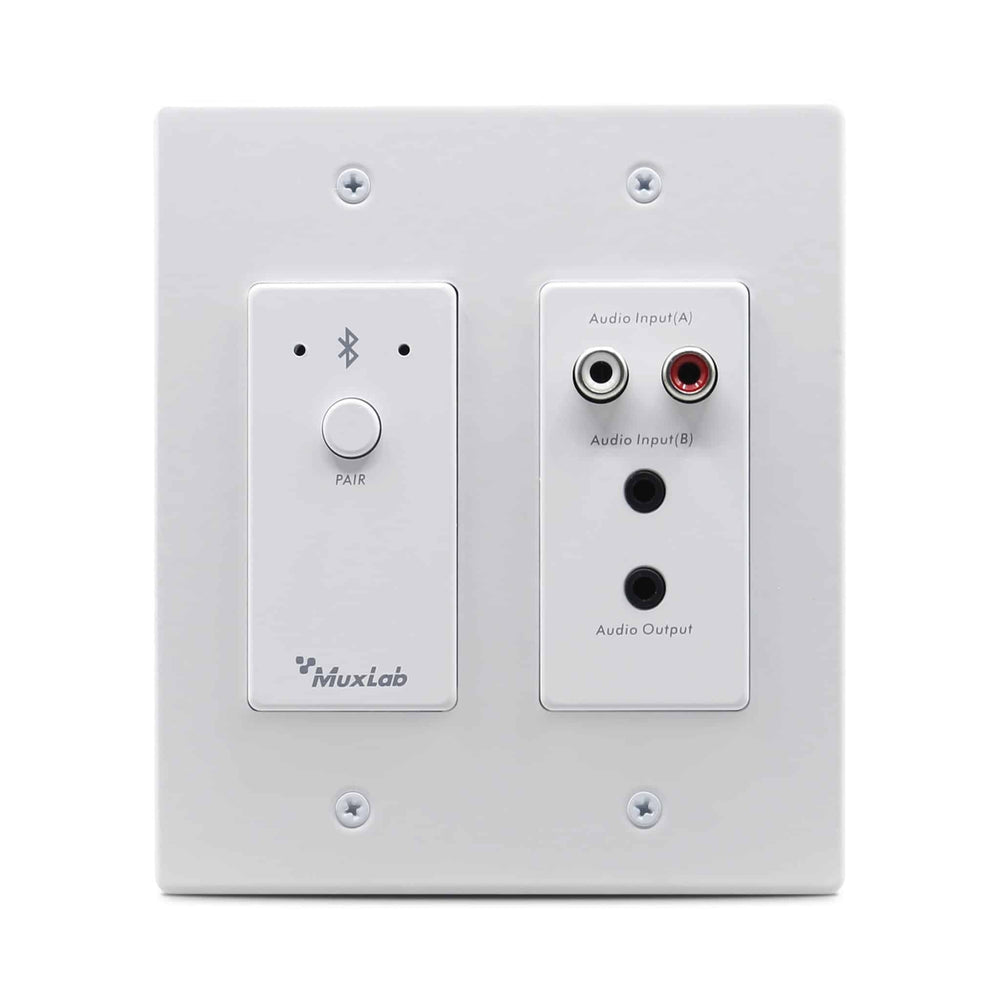

MuxLab 500555-WH Bluetooth and Analog Audio to Dante Interface for Networked Audio Systems
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
MuxLab 500555-WH Bluetooth and Analog Audio to Dante Interface for Networked Audio Systems
The Bluetooth and Analog Audio to Dante Interface White is a two way audio transmission panel designed for Bluetooth, analog audio, and Dante network integration. It allows mobile phones, tablets, and other devices to connect wirelessly or via analog audio sources. This interface converts received audio into digital audio streams over a Dante network.
Power, control, and audio data are transmitted using a single network cable, eliminating the need for ground loops or additional wiring. The interface supports both Bluetooth and wired audio inputs for flexible installation options. It is designed to be compatible with standard dual gang US wall boxes with Decora faceplates.
Built for professional AV environments, this interface supports stable Bluetooth connections and clear audio transmission. LED indicators provide real time connection status visibility. It is well suited for conferencing, hospitality, education, and fitness facility installations.
Key Features
- Bluetooth Audio Integration: Supports Bluetooth 5.0 stereo audio transmission.
- Analog Audio Support: RCA and 3.5mm TRS stereo inputs supported.
- Dante Network Audio: Converts audio to Dante network stereo input output.
- Single Cable Installation: Power supply and audio transmission integrated in one cable.
- Wall Plate Design: Designed to be compatible with standard dual gang US wall boxes with Decora faceplates.
- Status Indicators: Shows connection status through LED indicator light.
Technical Specifications
Input InterfaceBluetooth 5.0, stereo
RCA X 2
3.5mm TRS X 1
Output Interface
Bluetooth 5.0, stereo
3.5mm TRS X 1
Dante Interface
RJ45 interface, stereo input output
Frequency response
20Hz-20kHz
S N
greater than 100dB
Floor noise
-90dB
Power consumption
2W
THD
less than 0.005 percent
Form Factor
Dual Gang US
Operating temperature
0 C - 40 C
Operating humidity
5-95 percent
Dimensions (LxWxH)
132.5mm x 109.1mm x 30mm
Net Weight
310g
Warranty
2 years
What's in the Box
(1) 500555-WH Bluetooth and Analog Audio to Dante Interface (White)
