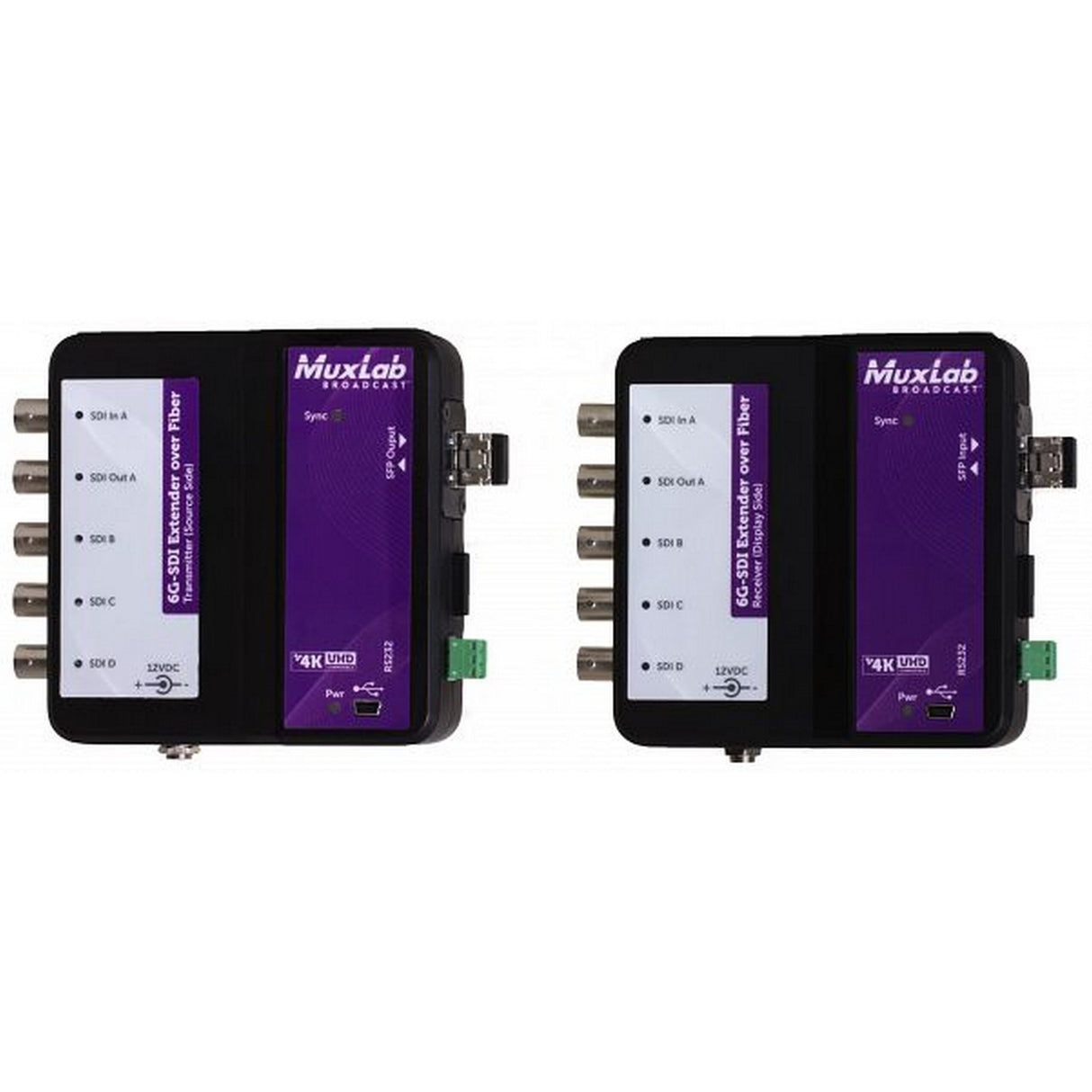

MuxLab 500734 6G-SDI Extender Over Fiber Optic with Return Channel

The 6G-SDI Extender over Fiber Optic with Return Channel is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 400m (1300ft) using OM4 multi-mode fiber (model 500734), 10km (33,000ft) using single-mode fiber (model 500734-SM10), 40km (132,000ft) using single-mode fiber (model 500734-SM40), and 80km (264,000ft) using single-mode fiber (model 500734-SM80).

Key Features

• Extend up to 4K @ 30Hz resolution from 300m to 80km over multimode or singlemode fiber
• Supports multichannel transmission, and can simultaneously transmit up to 9Gbps of data
• Accepts mixed signal transmission of up to one 6G-SDI signal + one 3G-SDI, or two 3G-SDI signals + two HD-SDI signals, and many other combinations in any direction, including the return channels
• Supports one input and one output SDI port, plus three configurable directional SDI ports
• Supports RS232 pass-through for remote control and as a return channel for tally light and camera control unit (CCU)
• Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
• Supports all 6G channel configurations (1, 2, or 4 BNC)
• Automatic SDI Link recognition and configuration
• Supports a standard SFP+ module for the optical fiber interface, or other media
• USB interface for diagnostics and field upgradable firmware
• Aluminum casting enclosure for ruggedized use
