Description
MuxLab 500755-AMP Audio Amplifier over IP Extender Kit with Microphone and 50W Per Channel Output
The Audio AMP over IP Extender Kit with Mic and AMP 50W per Channel allows dual channel analog audio and microphone signals to be extended over an IP network. The system consists of a transmitter and a receiver sold separately and supports point to point configurations over Cat5e or Cat6 cabling. This solution is designed for scalable audio distribution in professional AV environments.

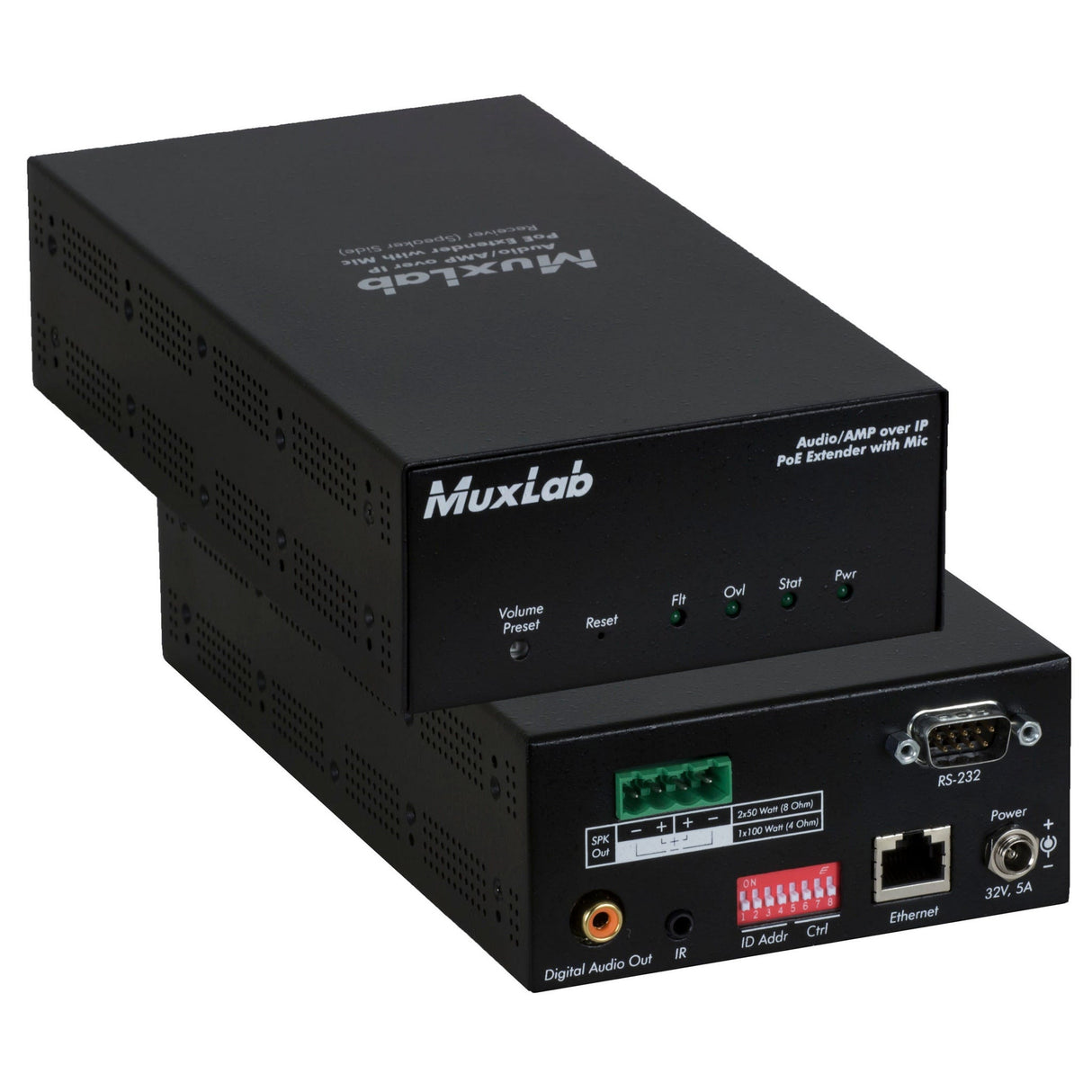

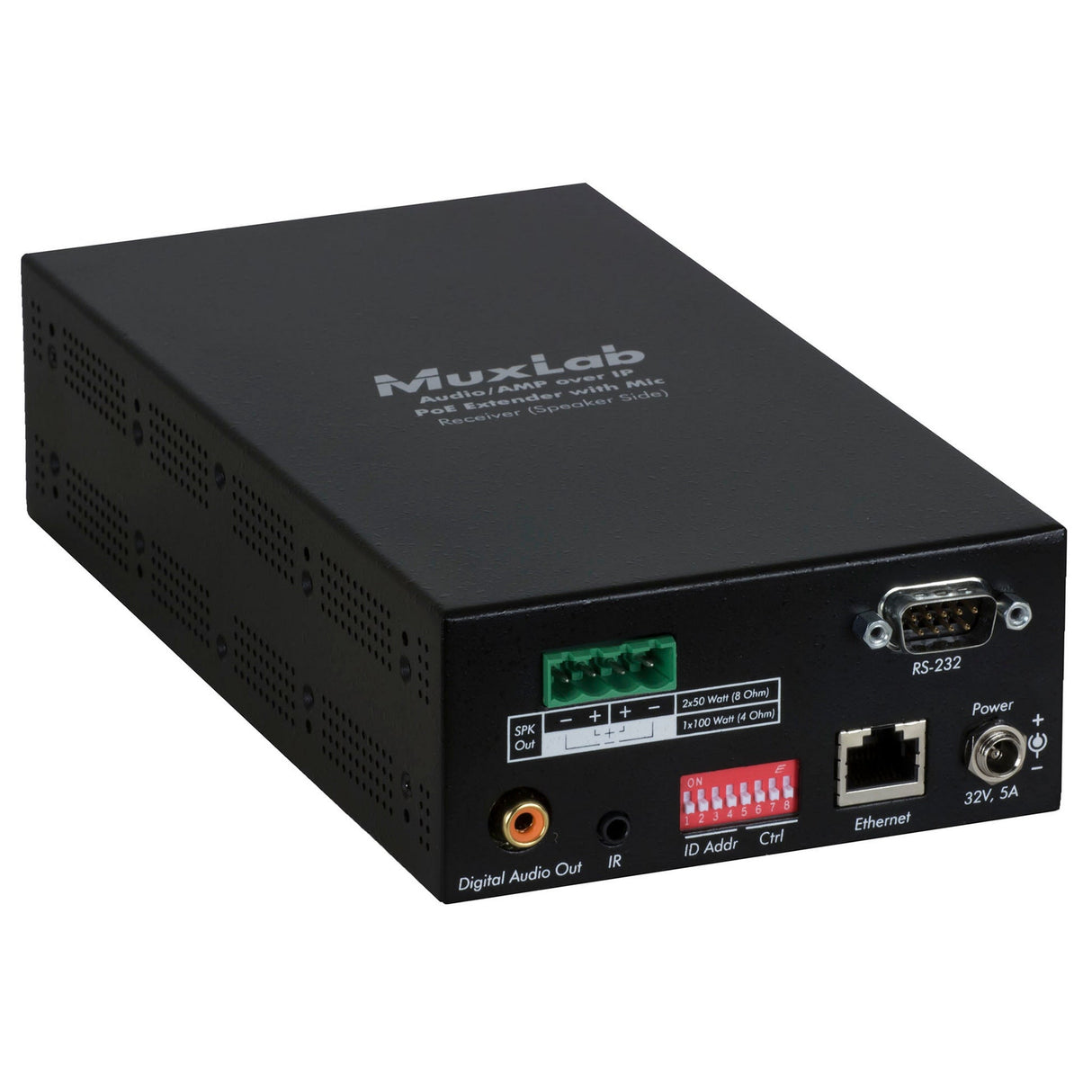

The transmitter supports dual channel audio input and a microphone input, while the receiver features a built in Class D amplifier with bridge mode for 1x100W output. Digital audio output is supported, and multiple transmitters and receivers can be connected on the same local Ethernet network. Depending on network configuration, transmitters can communicate with multiple receivers using multicast.
Designed for commercial and residential AV systems, this extender supports RS232 and directional IR transmission for remote device control. The transmitter supports PoE powered operation when used with a PoE Ethernet switch. This makes it well suited for digital signage, classrooms, boardrooms, and collaborative PC systems.
Key Features

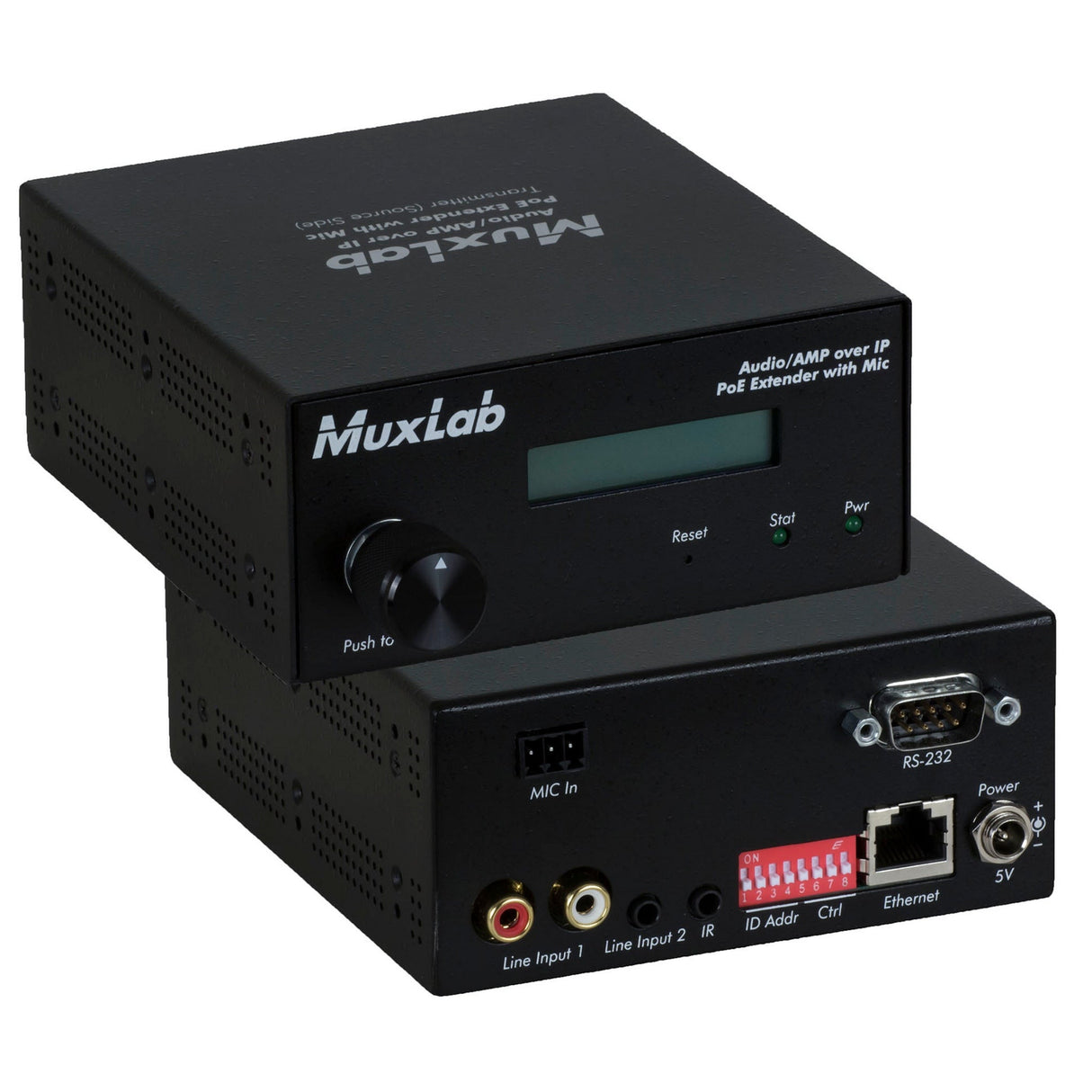

- Dual Channel Audio Support: Supports dual channel audio inputs and a mic input on the transmitter.
- Extended Audio Distance: Extends 2CH audio or mic signals up to 330ft (100m) over Cat5e or Cat6 cable.
- Integrated Amplifier: Receiver includes a Class D 2x50W amplifier and bridge mode for 1x100W output.
- Flexible Speaker Compatibility: Compatible with 500755 70V or 100V speaker systems.
- Advanced Control: Supports digital audio out, RS232, and IR transmission for remote control.
- Scalable Deployment: Supports point to point, point to multipoint, and multipoint to multipoint applications.
Technical Specifications
Environment2CH analog audio distribution over multiple zones via an IP network.
Devices
2CH audio source equipment, microphones, amplifiers, speakers, PA systems.
Signal Bandwidth
20Hz to 20KHz
LCD Display
2 line x 20 character backlit LCD display on TX
Control
Local control via front push button knob and LCD display, remote control via web interface and 500811 controller on TX
Audio Signals
(2) CH audio audio in
(1) Mic in
(1) SPDIF out 2CH digital audio
Connectors
(2) RCA receptacle for Analog Audio In on TX
(1) 3.5mm jack for Analog Audio In on TX
(1) 3.5mm phoenix connector for Mic In on TX
(1) RCA receptacle for SPDIF Out on RX
(2) RJ45s for Cat5e unshielded or shielded twisted pair one for TX and one for RX
(2) 3.5mm jacks for IR Emitter or IR Sensor one for TX and one for RX
(2) DB9 Serial Ports for RS232 one for TX and one for RX
(2) 8 position DIP Switches for addressing on TX and RX
(1) 4 pin phoenix connector speaker terminals 2x50W and 1x100W on RX
(1) 2.1mm locking power connector one for TX and one for RX
Cable
One (1) Cat5e or better twisted pair cables required.
Maximum Distance
Cat5e 330ft (100m)
Note When installed in an electrically noisy environment an STP cable must be used Also cross connections in the signal path reduce the effective distance depending on the grade of twisted cable used
IR Frequency
Directional IR 38kHz to 56kHz
RJ45 Pin Configuration
RJ45 Link
Pin 1 R
Pin 2 T
Pin 3 R
Pin 6 T
Pin 4 R
Pin 5 T
Pin 7 R
Pin 8 T
Reverse Polarity Sensitive Use EIA TIA 568A or 568B straight through wiring
Power Source
Transmitter supports PoE PD an external power supply is not included It is intended to be powered via a PoE PSE Ethernet Switch If required an optional power supply 500993 may be purchased separately Receiver includes a power supply 160W maximum 32VDC 5A
PoE Standard
IEEE 802.3af
Power Consumption
Transmitter 3W
Receiver 160W max
Temperature
Operating 0 to 40 C
Storage minus 20 to 85 C
Humidity Up to 90 percent non condensing
Dimensions
TX: 4.33 x 4.76 x 1.97 in 11 x 12.1 x 5 cm
RX: 4.33 x 7.91 x 1.97 in 11 x 20.1 x 5 cm
Weight
TX 1.20lbs 0.55kg
RX 1.96lbs 0.89kg
Compliance
Regulatory FCC CE RoHS
Flammability 94V0
Warranty
3 years
Order Information
(1) 500755-AMP Audio AMP ver IP Extender Transmitteror or Receiver (Dependant on Selected Variant)
