MuxLab 500760 HDMI 4K/60 KVM Over IP Extender Transmitter and Receiver Kit - RX

MuxLab 500760 HDMI 4K/60 KVM over IP Extender Transmitter and Receiver Kit

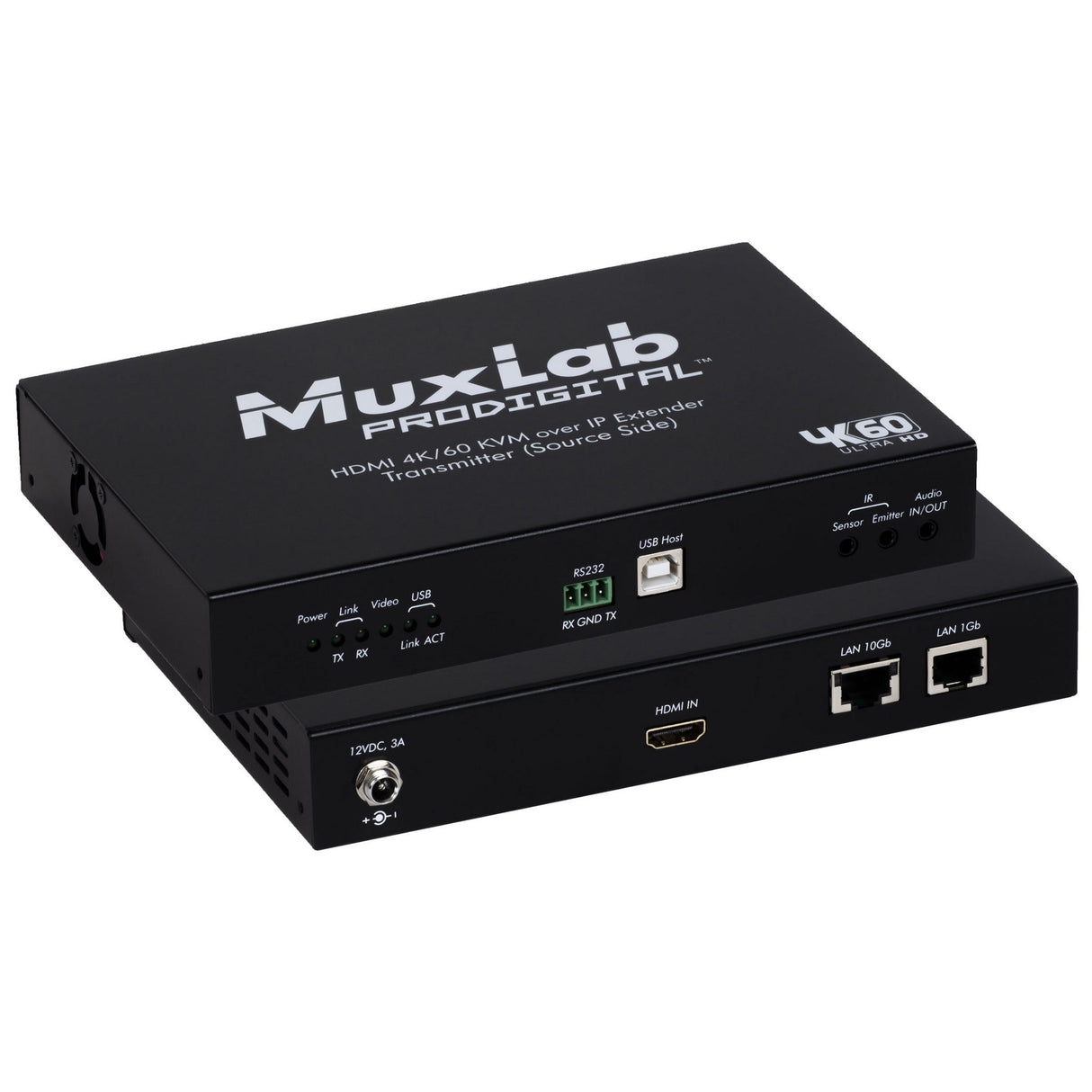

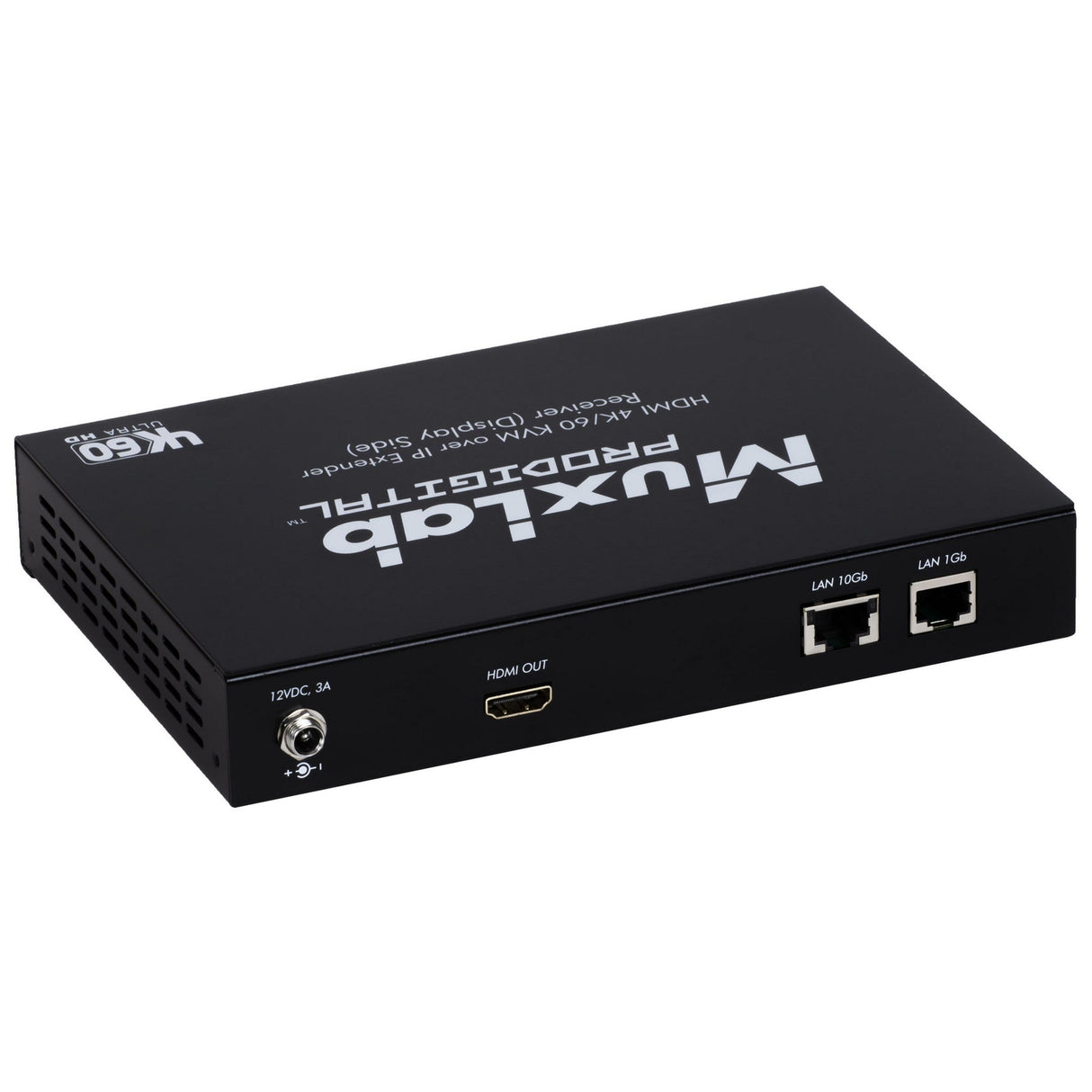

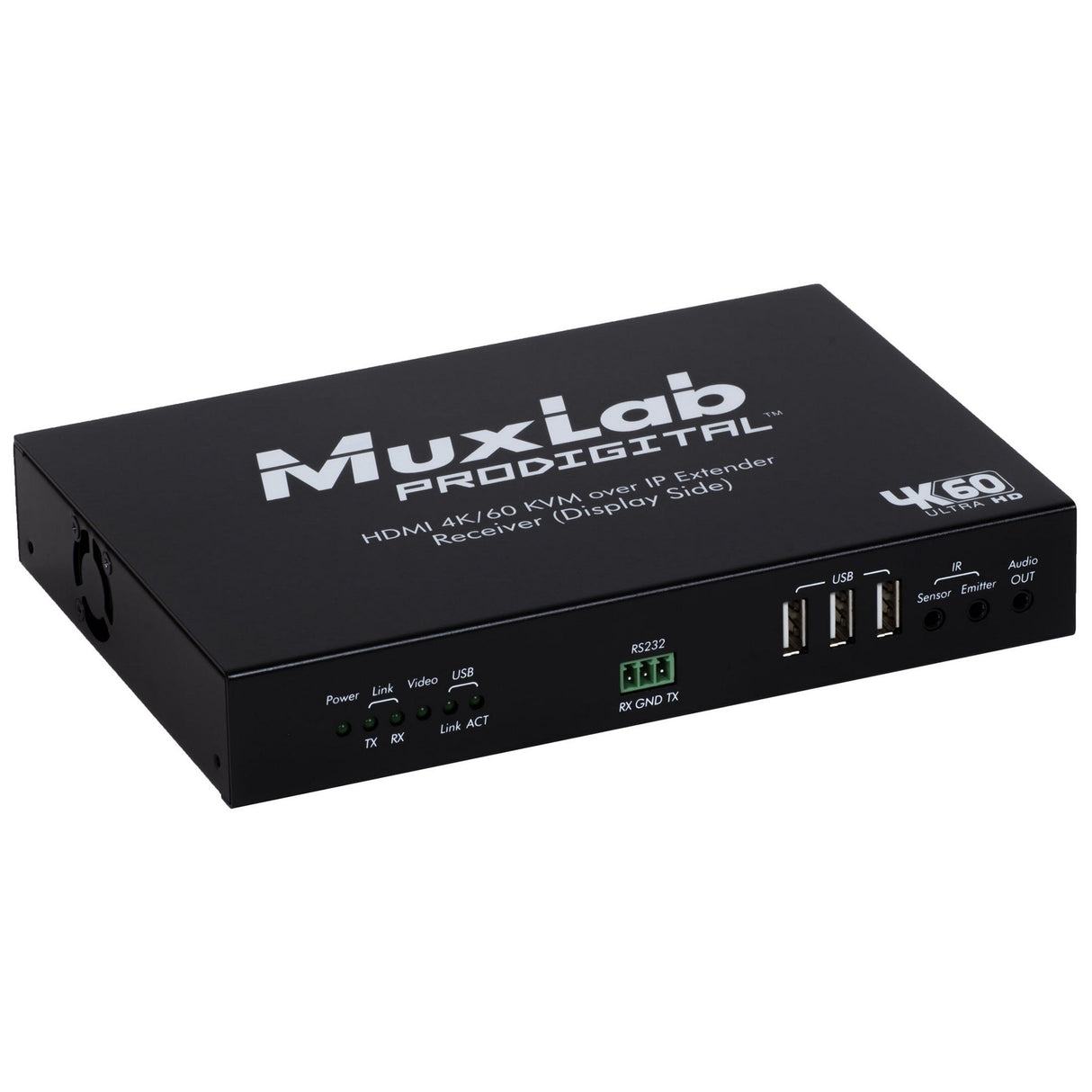

The MuxLab HDMI 4K/60 KVM over IP Extender delivers high-performance HDMI and USB KVM extension over standard IP networks for professional AV and IT environments. It is designed for server workstations, PCs, and Smart Whiteboards where remote access and centralized control are required. This extender kit supports point-to-point installations and scalable networked deployments.

Built on SDVoE technology, it supports HDMI 2.0 signals up to 4K/60Hz (4:4:4) with visually lossless performance and zero latency. The system integrates seamlessly with 1G Ethernet switch ports for connecting network devices and can be configured for unlimited endpoints. It also supports audio insert (TX) and audio extract (RX) for flexible system integration.

With RS232, IR transmission, and KVM functionality, this solution is ideal for control rooms, enterprise AV routing, and education applications requiring dependable remote management. It includes support for MuxControl and third party apps to simplify configuration and operation. A wall mount bracket kit and IR sensor and emitter are included for streamlined installation.

Key Features

• 4K/60Hz Video Support: Supports HDMI resolutions up to 4K/60 (4:4:4).
• SDVoE Technology: SDVoE Technology.
• Visually Lossless Performance: Visually lossless at (4:4:4) (with zero latency).
• Network Transmission: Transmission up to 330ft (100m) over Cat5e/6.
• Audio Routing: Supports audio insert (TX) and audio extract (RX).
• Control Options: Supports RS232 and 2-way IR transmission for remote control.

Technical Specifications

Environment
HDMI 2.0

Devices
Servers/Workstations/PCs, Smart Whiteboards, Monitors, TVs, and Keyboard and Mouse Devices.

Bandwidth
594MHz

Signals
HDMI 2.0 and HDCP 2.2

Connectors
Connectors per TX and RX:
(1) HDMI receptacle.
(2) RJ45s for Cat5e unshielded or shielded twisted pair (for 10GbE and 1GbE ports).
(2) 3.5mm jacks for IR emitter, IR sensor.
(1) 3.5mm jack for line-level 2CH Audio-In (TX) and Audio-Out (RX).
(3) USB 2.0 (480Mbps) Type A connectors for KVM (RX).
(1) USB 2.0 (480Mbps) Type B connector for KVM (TX).
(1) 3-Pin Phoenix connector for RS232 (supports up to 115.2K baud rate).
(1) 2.1mm power jack (for DC power).
Note: Cables not included.

Maximum Distance
Cat5e/6: 330ft (100m) up to 4K @ 60Hz
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.

Latency
Zero latency (undetectable in human terms)

Compression
Uncompressed up to 4K@60 (4:2:0), and light compression for 4K@60 (4:4:4) only

Network Bandwidth
< 10Gbps

Network Requirement
10Gig Network XFI, IEEE 802.3

IR Frequency
38 to 56KHz

RJ45 Pin Configuration
RJ45 Link
Pin 1 (R)
Pin 3 (R)
Pin 4 (R)
Pin 7 (R)
Pin 2 (T)
Pin 6 (T)
Pin 5 (T)
Pin 8 (T)
Reverse Polarity Sensitive. Use EIA/TIA 568A or 568B straight-through wiring.

Cable
(1) Cat 5e/6 or better twisted pair cables required

Power source
Input: 100-240V/1.5A (max) @ 50-60Hz
Output: 12VDC @ 3A
Includes appropriate AC multi-blades per region (US, UK and Euro)

Power Consumption
Transmitter: 16 Watts
Receiver: 16 Watts

Temperature
Operating: 0° to 40°C
Storage: -20° to 70°C
Humidity: 10% to 90% non-condensing

Unit Dimensions
7.7" x 5.2" x 1.3" (195mm x 132mm x 33mm) per unit

Packaging shipping Weight
3.12lbs (1.42kg) per unit

Compliance
Regulatory: FCC, CE, RoHS
Flammability: 94V0

Warranty
3 years

What's in the Box

(1) HDMI 4K/60 KVM over IP Transmitter/Receiver (Dependant on Selection)
