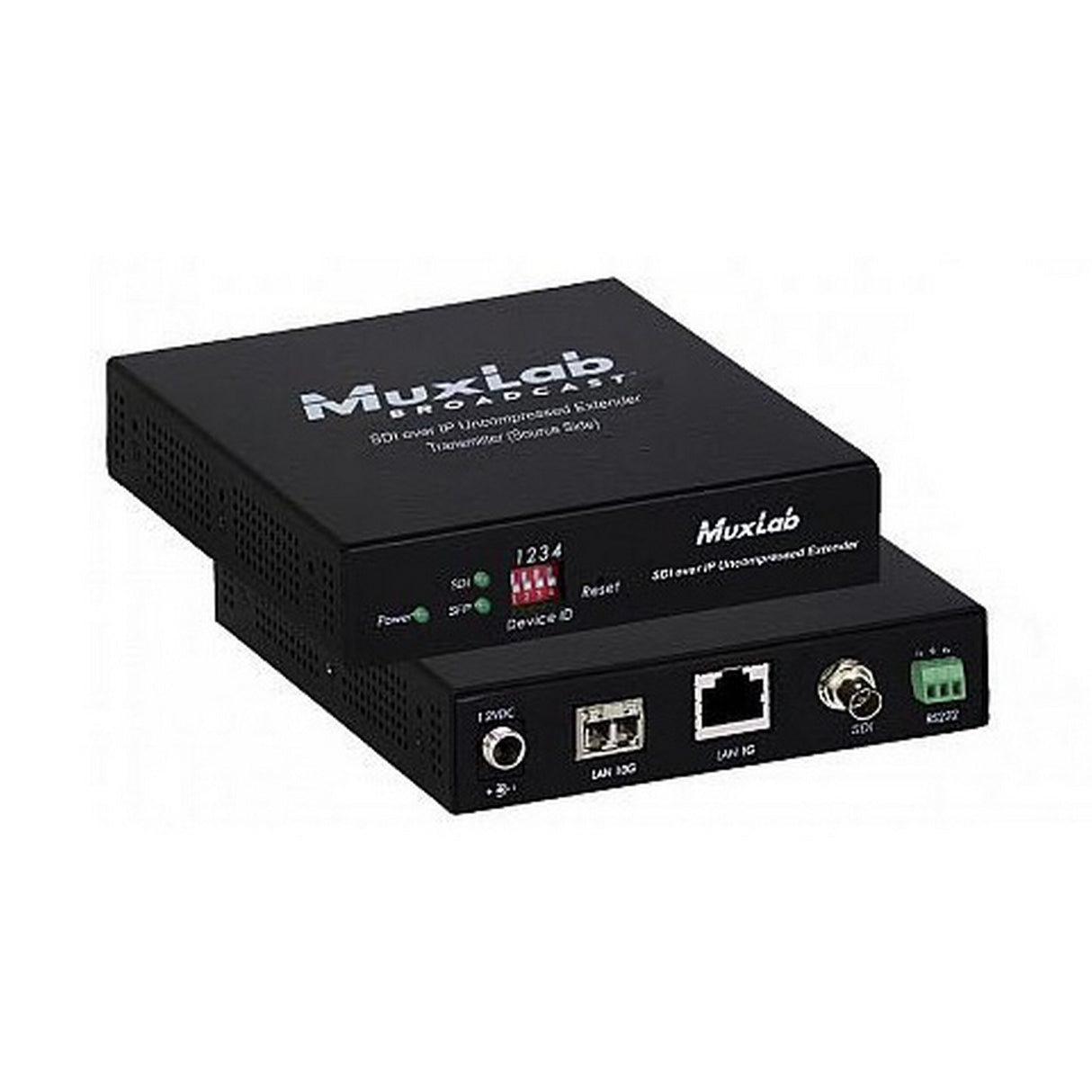

MuxLab 500767-TX-UTP 3G-SDI/ST2110 Over IP Uncompressed Gateway Converter

The Muxlab 500767 3G-SDI/ST2110 over IP Uncompressed Gateway Converter allows HD-SDI and 3G-SDI equipment to be extended up to 100ft (30m) via UTP Cat 5e/6 cable or up to 1300ft (400m) via duplex multimode OM4 fiber with LC connectors, at up to 1080p resolution @ 60Hz uncompressed, in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint configurations are also possible by connecting several units to a 10G Ethernet network. The unit provides a 1G Ethernet Switch port to connect additional network devices, and an RS232 port for remote control of end devices. The 3G-SDI/ST2110 over IP Uncompressed Gateway Converter supports SMPTE ST-2110. The MuxLab Pro Digital Network Controller (500811) is available to simplify centralized configuration and control, software updates, and allows for management from the MuxLab Control smartphone and tablet App, and third party control Apps.

Key Features

• Transmit Uncompressed SDI video up to 3G-SDI (1080p @ 60Hz) over a 10G Ethernet network
• Supports the SMPTE ST-2110 protocol
• Extend up to 100ft (30m) over Cat5e/6, or 1300ft (400m) over OM4 fiber
• Supports 100's of Transmitters & Receivers depending on network bandwidth
• Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
• Supports a 1G Switch port for additional network devices
• Supports RS232 for remote control of end devices
• Managed via Pro Digital Network Controller (500811), MuxLab Control App via smartphones and tablets, and 3rd Party control Apps
