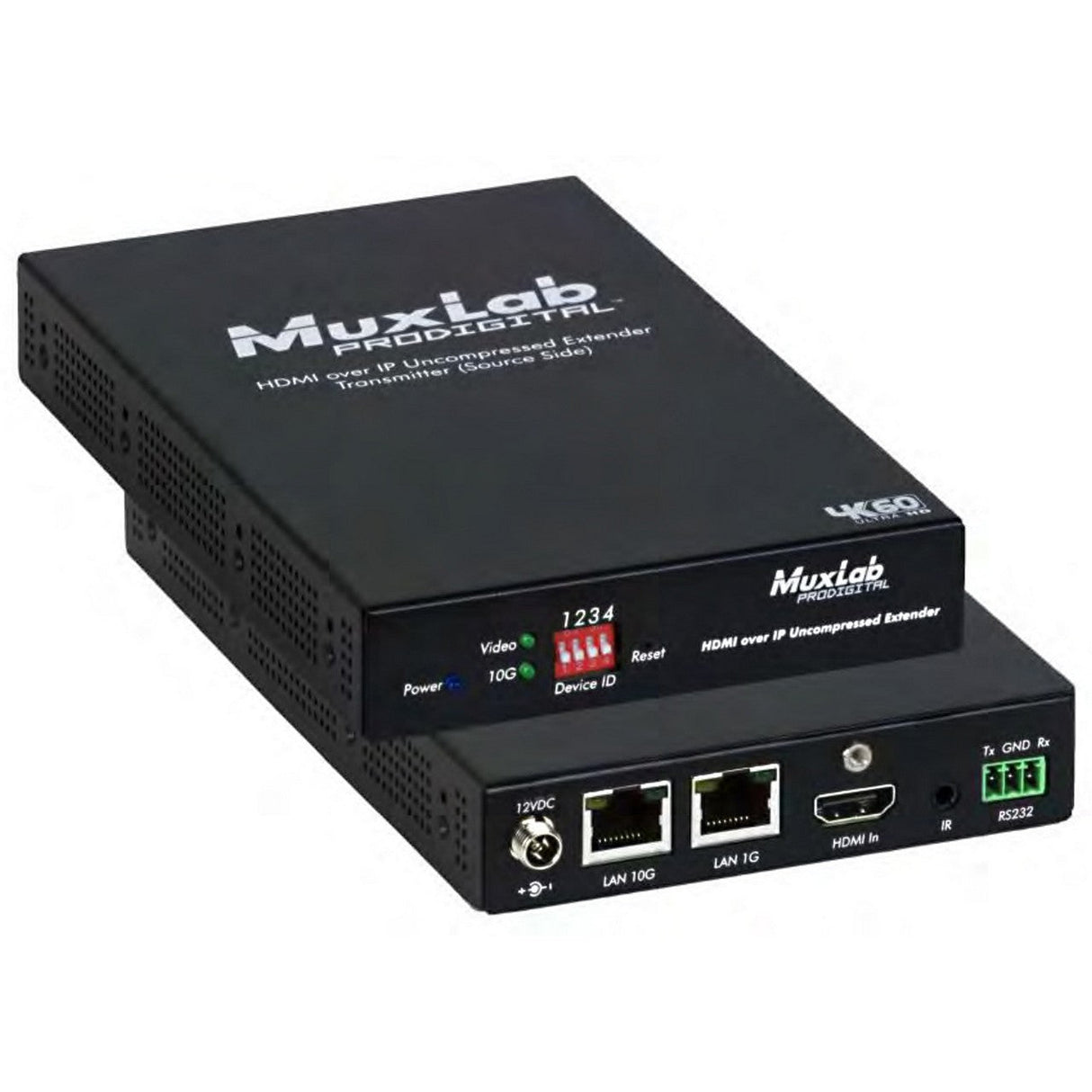

MuxLab 500768-TX HDMI Over IP Uncompressed 4K/60 Transmitter

MuxLab 500768-TX HDMI Over IP Uncompressed 4K/60 Transmitter

The 500768-TX HDMI over IP Uncompressed Extender, 4K/60 allows HDMI source equipment supporting up to 4K (3840x2160) resolution @ 60Hz to be connected via Cat5e/6 cable up to 330ft (100m) from a 10G Ethernet Switch, in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations.

Key Features

• Supports HDMI up to 4K/60 (4:2:0) between Transmitter and Receiver
• Uncompressed video up to 4K/60 (4:2:0) (zero latency)
• Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
• Transmission up to 330ft (100m) over Cat5e/6
• Supports a 10G Ethernet port for communications and a 1G Switch port for additional network devices
• RS232 and directional IR transmission for remote control of end devices
• Managed via Pro Digital Network Controller (500811), MuxLab Control App via smartphones and tablets, and 3rd Party control Apps

Technical Specifications

Environment
HDMI 2.0 and HDCP 2.2
Devices
Blu-Ray, projectors, monitors, TV, PC, laptops, and media servers supporting HDMI.
Bandwidth
594 MHz
Signals
HDMI 2.0 protocol
Maximum Distance
Cat5e/6: 330ft (100m) up to 4K @ 60Hz (4:2:0)
Latency
Zero Latency up to 4K/60 (4:2:0).
Compression
Uncompressed up to 4K/60 (4:2:0).
Network Bandwidth
< 10Gbps
Network Requirement
10Gig Network XFI, IEEE 802.3
IR Frequency
38 to 56KHz
Cable
One (1) Cat 5e/6 or better twisted pair cable required
Power Source
Input: 100-240V @ 50-60Hz; Output: 12DC (Includes multi-blades for US, UK and EU)
Operating Temperature
0° to 40°C
Storage Temperature
-20° to 85°C
Humidity
Up to 95% non-condensing
Dimensions
4.33" x 6.93" x 1" (11cm x 17.6cm x 2.5cm)
Weight
1.16 lbs (0.53 kg)
Compliance
Regulatory: FCC, CE, RoHS; Flammability: 94V0
Warranty
3 years
