MuxLab 500772 KVM HDMI Over IP PoE Extender UHD-4K for Networked AV Systems
The MuxLab KVM HDMI over IP PoE Extender UHD-4K allows HDMI and USB equipment to be connected up to 330ft (100m) over an Ethernet LAN. It supports HDMI up to 4K at 30Hz (4:4:4) and 4K at 60Hz (4:2:0) over Cat5e or better cabling. This solution is designed for point-to-point and point-to-multipoint configurations.

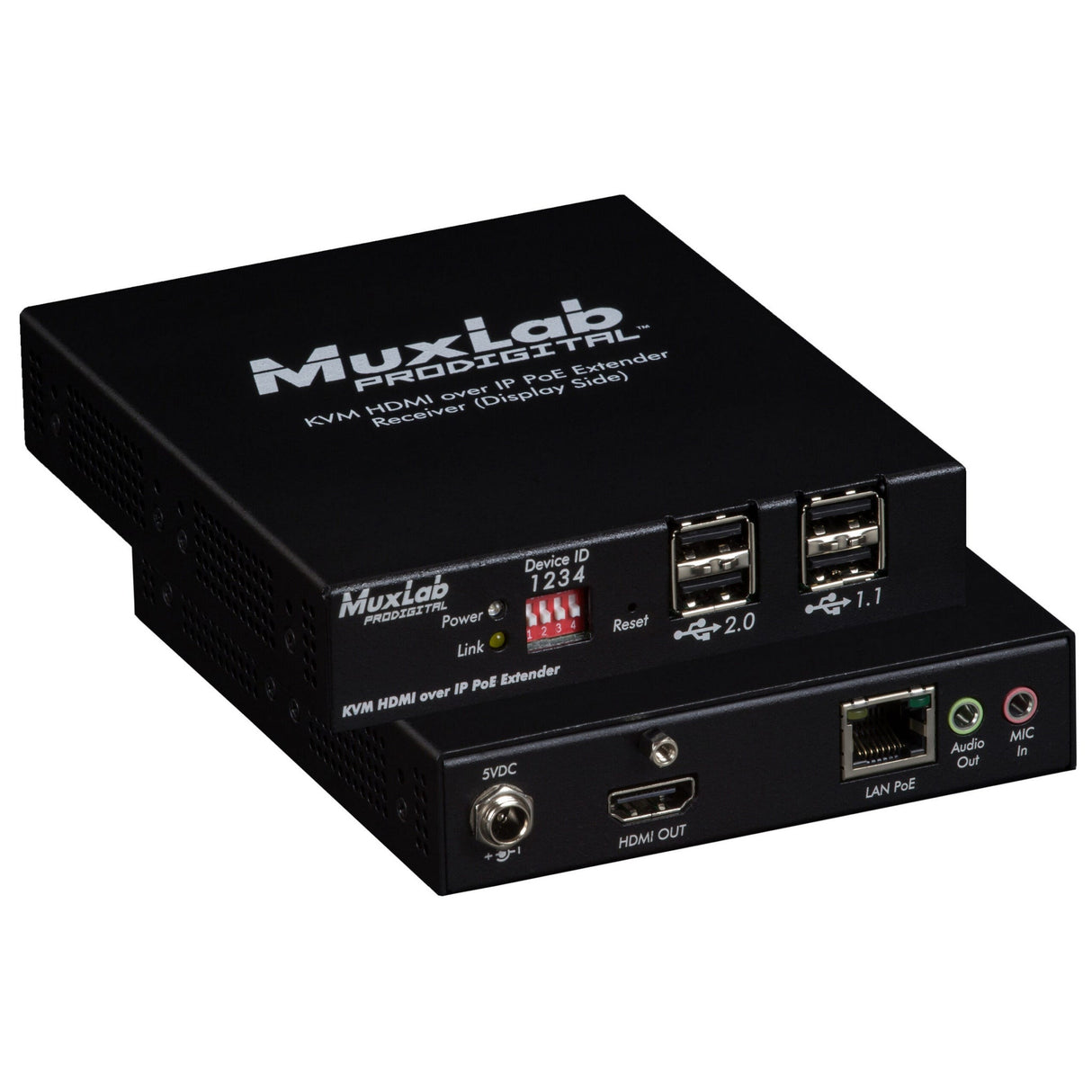

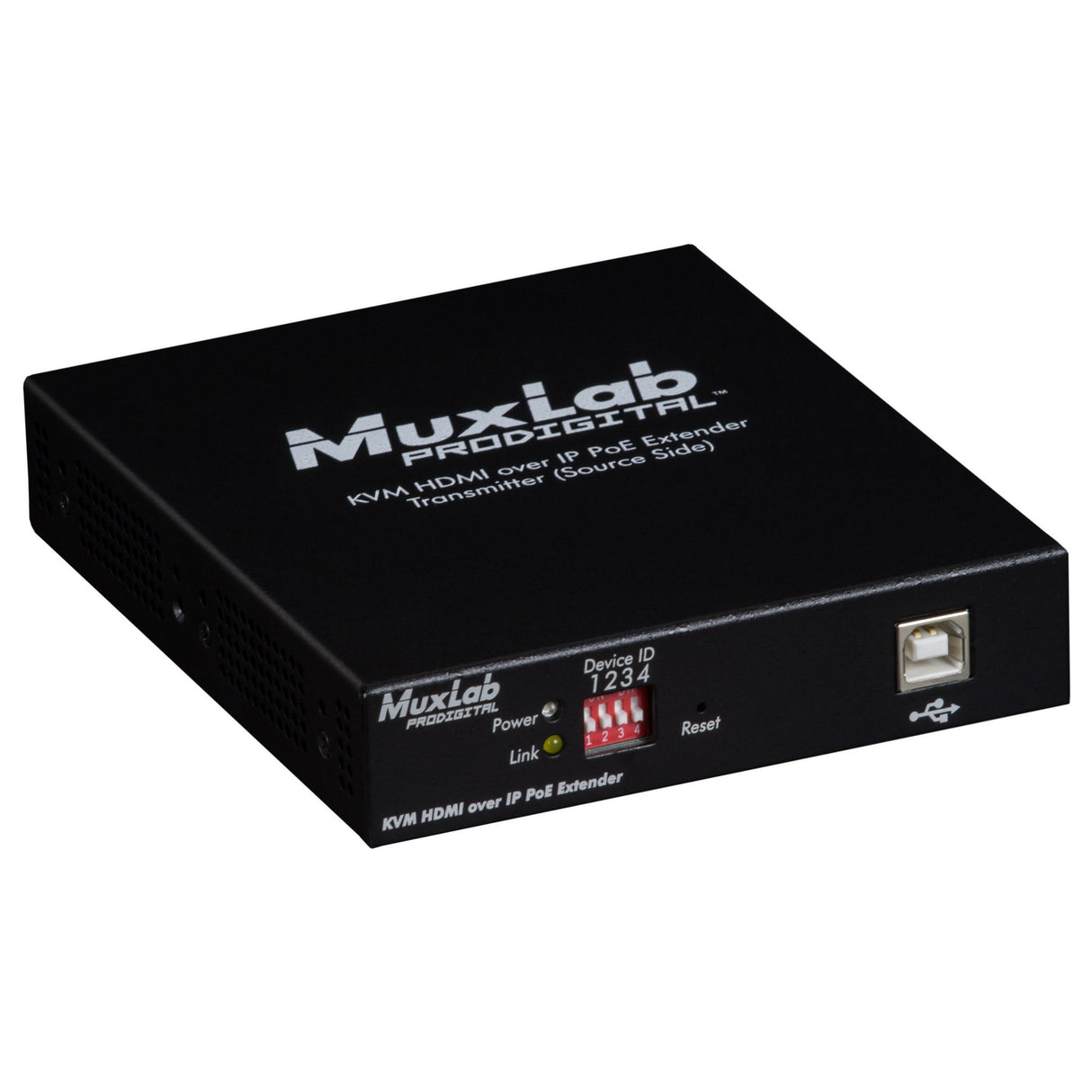

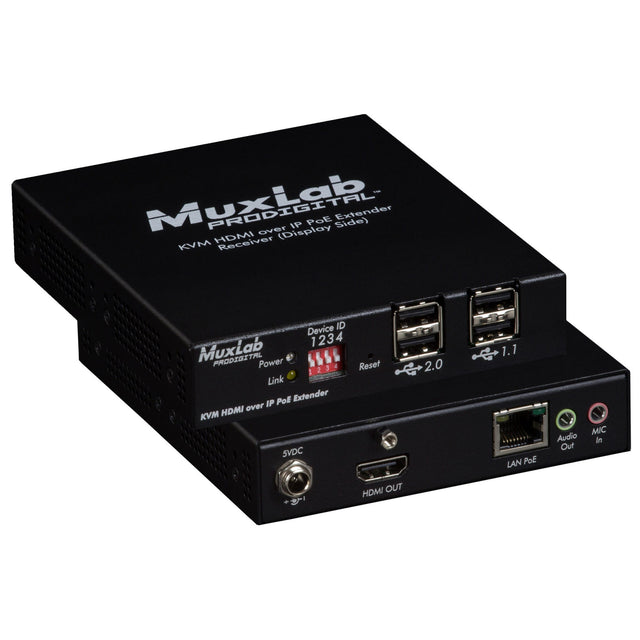

The transmitter and receiver support PoE when used with a PoE Ethernet switch, enabling simplified installation and centralized power delivery. The transmitter connects to a computer server or workstation, while the receiver provides HDMI display output and USB device connectivity. A single receiver can be switched via hotkey sequences to multiple transmitters on the network.
This extender is ideal for managing multi-server systems in corporate, educational, and data center environments. It supports USB keyboard, mouse, and peripheral devices for distributed KVM applications. The system delivers reliable performance for professional AV and IT deployments.
Key Features
- 4K Video Support: Supports HDMI up to 4K at 30Hz (4:4:4) and 4K at 60Hz (4:2:0).
- PoE Powered: Supports PoE when used with a PoE Ethernet switch.
- KVM Functionality: Receiver supports USB devices for keyboard and mouse applications.
- Long Distance Transmission: Up to 330ft (100m) over Cat5e.
- Flexible Configurations: Supports point-to-point and point-to-multipoint applications.
Technical Specifications
EnvironmentHDMI 1.4
Devices
Computers and servers with HDMI monitor ports.
Transmission
Transparent to the user
Bandwidth (HDMI)
300MHz
Signals
HDMI 1.4 protocol, HDCP 1.4, HDCP 2.2
Connectors
(1) HDMI receptacle.
(1) RJ45s for Cat5e unshielded or shielded twisted pair.
(2) 3.5mm jacks for audio-in and audio-out (TX audio-out and Mic-in on RX).
(1) 2.1mm locking jack for power.
(1) USB Type A connector for Host (RX).
(4) USB Type A connectors for Device (RX).
Maximum Distance
Cat5e: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
Latency
Typical one (1) Frame (16ms), maximum 2 frames (33ms)
Compression
JPEG 2000
Network Bandwidth
Up to 500Mbps
Network Requirement
1000BaseT with PoE
RJ45 Pin Configuration
RJ45 Link
Pin 1 (R)
Pin 2 (T)
Pin 3 (R)
Pin 6 (T)
Pin 4 (R)
Pin 5 (T)
Pin 7 (R)
Pin 8 (T)
Reverse Polarity Sensitive. Use EIA/TIA 568A or 568B straight-through wiring.
Cable
One (1) Cat5e or better twisted pair cables required
Power Source
This device supports PoE (PD), an external power supply is not included. It is intended to be powered via PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
PoE Standard
IEEE 802.3af
Power Consumption
Transmitter: 6W
Receiver: 6W
Temperature
Operating: 0° to 40°C
Storage: -20° to 85°C
Humidity: Up to 95 percent non-condensing
Dimensions
4.4" x 5.0" x 1.0" (112mm x 127mm x 25mm)
Weight
1.15lbs (0.68kg)
Compliance
Regulatory: FCC, CE, RoHS
Flammability: 94V0
Warranty
3 years
