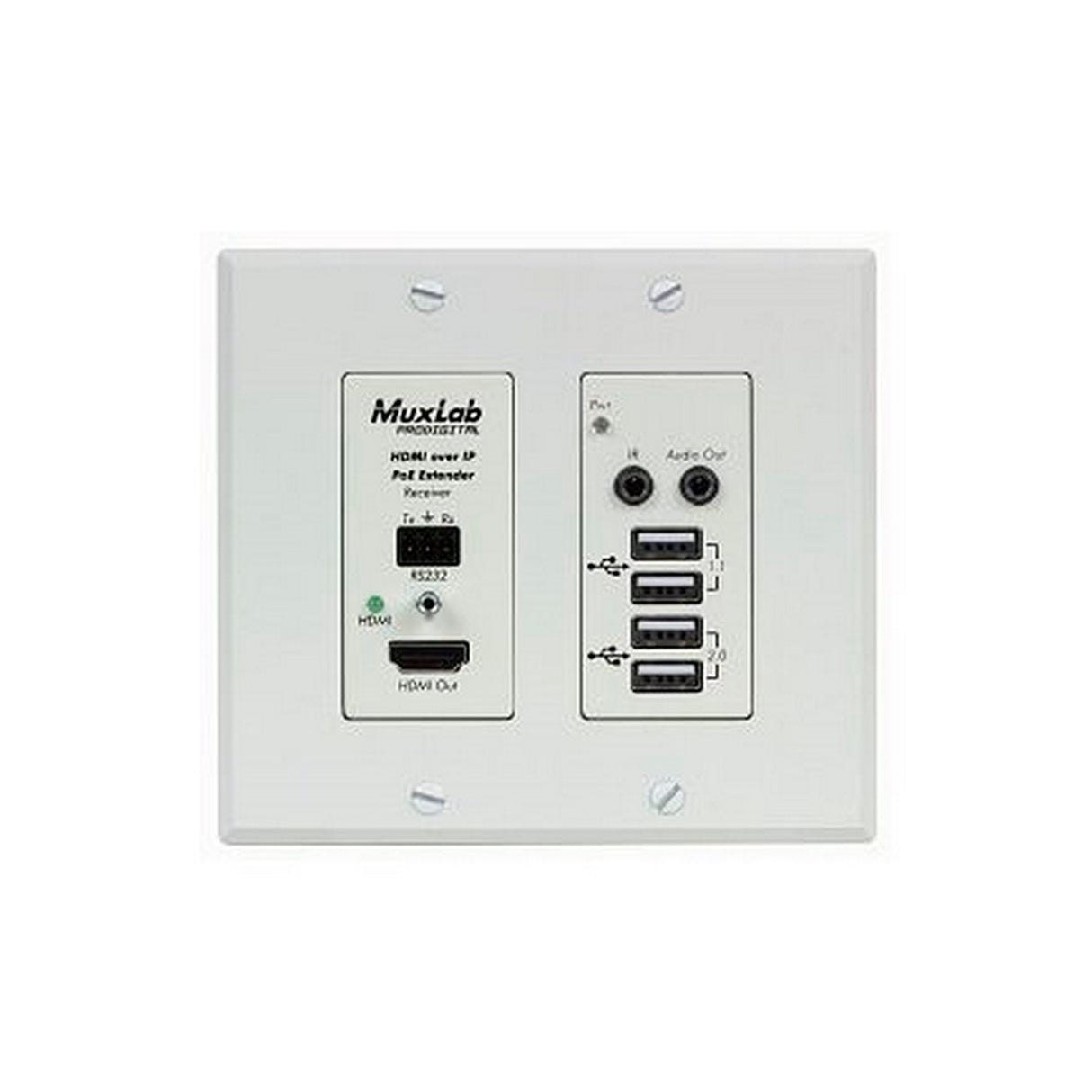

MuxLab 500777-RX-WH HDMI/USB over IP PoE WP Receiver, UHD-4K, White

The HDMI/USB over IP PoE Wall Plate Receiver, UHD- 4K installs in a double-gang wall box to provide a convenient interface for HDMI display equipment and USB connectivity to manage Smart White Boards and other USB based devices. The unit has one (1) HDMI- Out, one (1) Audio-Out, two (2) USB 2.0 Type-A ports, two (2) USB 1.1 type-A ports, and one Ethernet Port. It'supports video up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0). The HDMI/USB over IP PoE Wall Plate Receiver, UHD-4K allows HDMI and USB equipment to be extended up to 330ft (100m). The unIt'supports an RS232 port plus a Directional IR port to manage remote devices. The device may be powered via a PoE enabled 1Gig Ethernet Switch.

Key Features

• HDMI 2.0b up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
• Audio-Out capability: Supports two (2) USB 2.0 and two (2) USB 1.1 Type-A ports
• Extend HDMI, 2CH Audio, and USB up to 330ft (100m) over Cat5e/6 cable
• HDCP 2.2 compliant
• Compatible with 500777-TX, 500759-TX, 500770-TX and 500771-TX over IP Transmitters
• RS232 and Directional IR for remote control of end-devices
• PoE powered
• Managed via Pro Digital Network Controller (500811), MuxControl App and 3rd Party Control Apps
