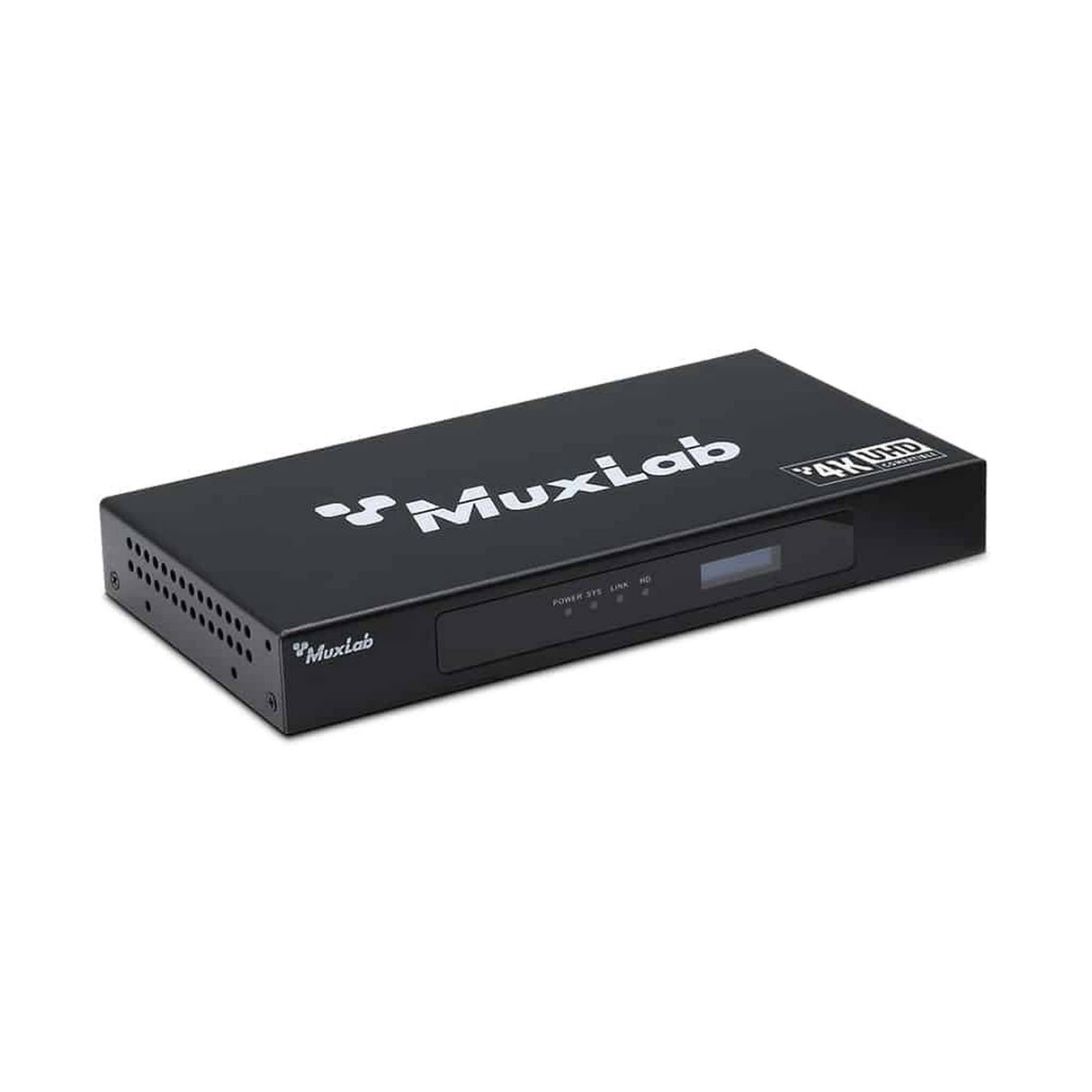

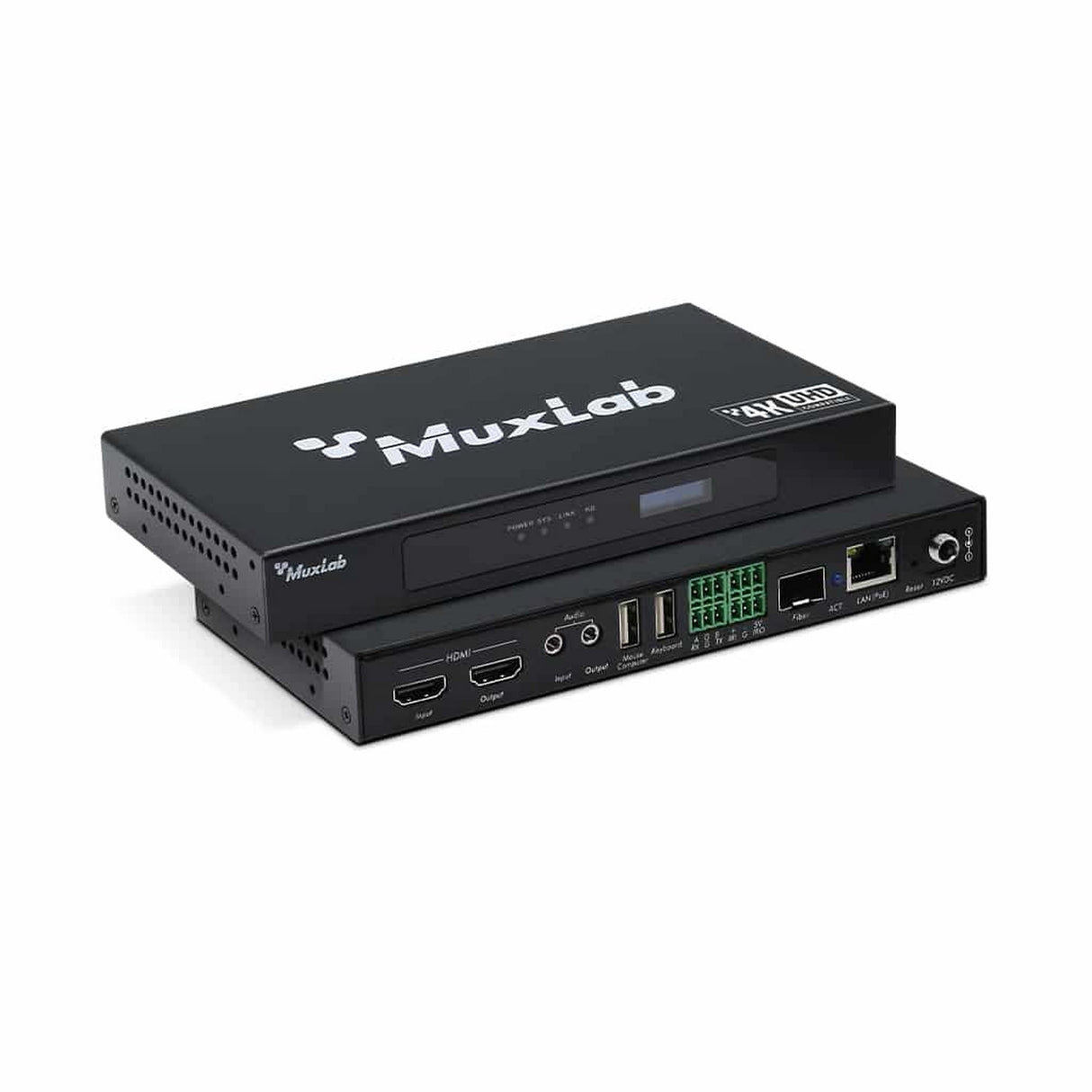

MuxLab 500860 HDMI Over IP PoE Seamless Transceiver 4K30 for AV Over IP Systems
The HDMI over IP PoE Seamless Transceiver 4K30 allows HDMI source equipment to be extended locally up to 330ft (100m) at up to 4K at 30Hz resolution via Cat5e or Cat6 cable. It is compatible with MuxLab 500861 Transceivers to support point to point, point to multipoint, and multipoint to multipoint configurations. This solution enables Video Wall and Multiview capabilities in a low bandwidth, expandable, and cost effective manner.
The exceptionally low bandwidth requirements allow audio and video content to be streamed over a local network, over WiFi, and over the Internet for distributed installations. The transceiver accepts 4K video at 30Hz and streams the content to an H.264 or H.265 Receiver to be displayed on a 4K monitor. The device supports PoE and may be powered by a PoE Ethernet Switch.
This unit functions as a Transmitter, a Receiver, or both simultaneously, providing flexible deployment options. It supports seamless switching, multiview layouts, and video wall creation. Centralized management is supported via compatible network controllers for professional AV environments.
Key Features
- 4K30 Video Support: Supports up to 4K at 30Hz video streams.
- Efficient Video Compression: Supports H.264 and H.265 video codec, excellent for LAN and Internet transmission.
- Seamless Switching: Supports seamless switching between sources.
- Flexible Operation: Operates as a Transmitter, Receiver, or both simultaneously.
- Advanced Display Control: Supports Video Wall and Multiview with up to 16 windows per screen.
- Remote Control Support: Supports RS232, RS485, USB, Relay and I O for remote control of end devices.
- PoE Powered: Powered via PoE Ethernet Switch.
Technical Specifications
EnvironmentHDMI 1.4
Devices
Blu-Ray, Set Top Boxes, projectors, monitors, TVs, PCs, supporting HDMI.
Signal Protocol Standard
HDMI 1.4 and HDCP 1.4
Video Resolution
Up to 4K 30 in and out
Audio
3.5mm Line in out or HDMI audio
Latency
80 to 120ms
Network Bandwidth
Up to 12Mbps
Protocols
Supports Multicast, RTSP, RTMP
Compression
Supports H.264 265

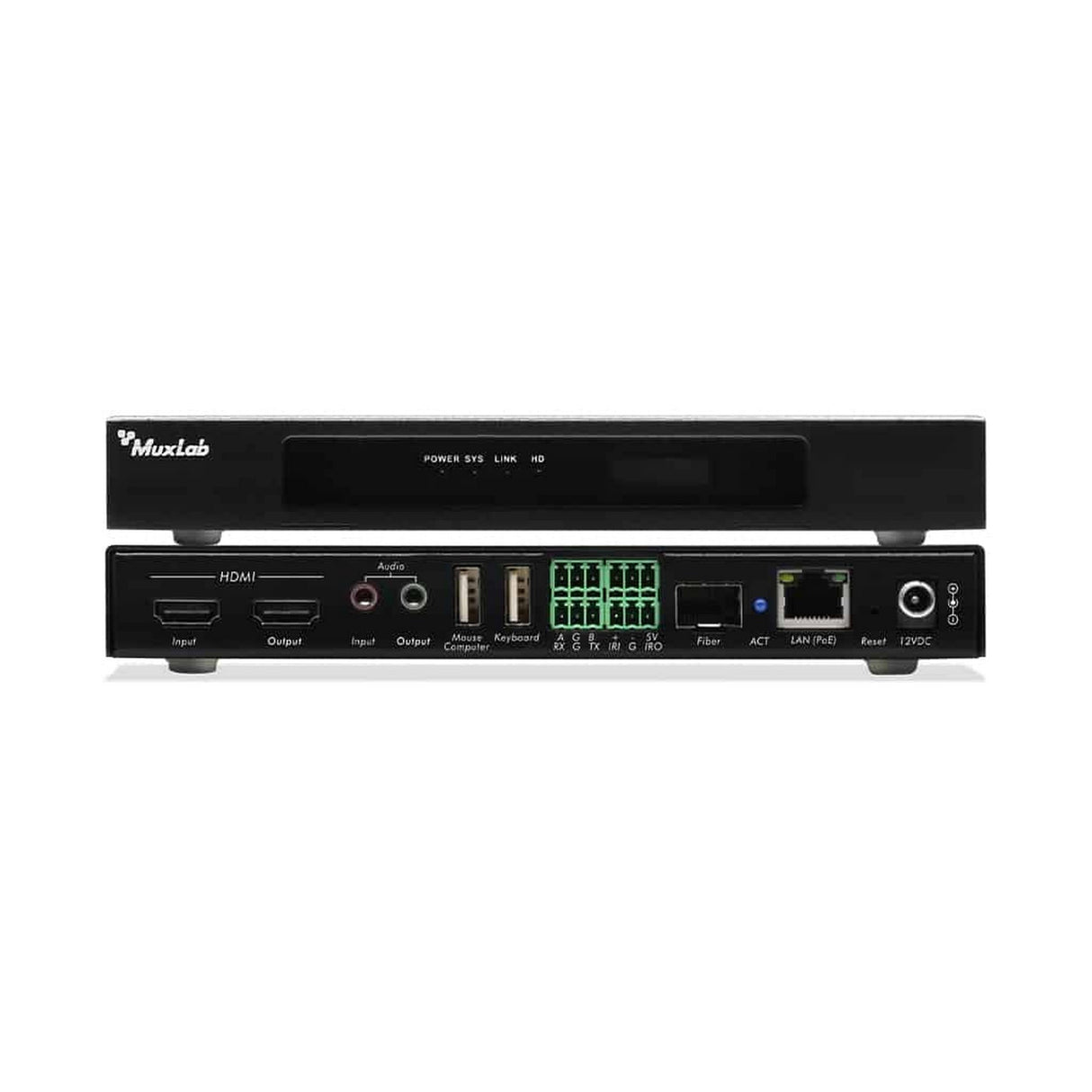

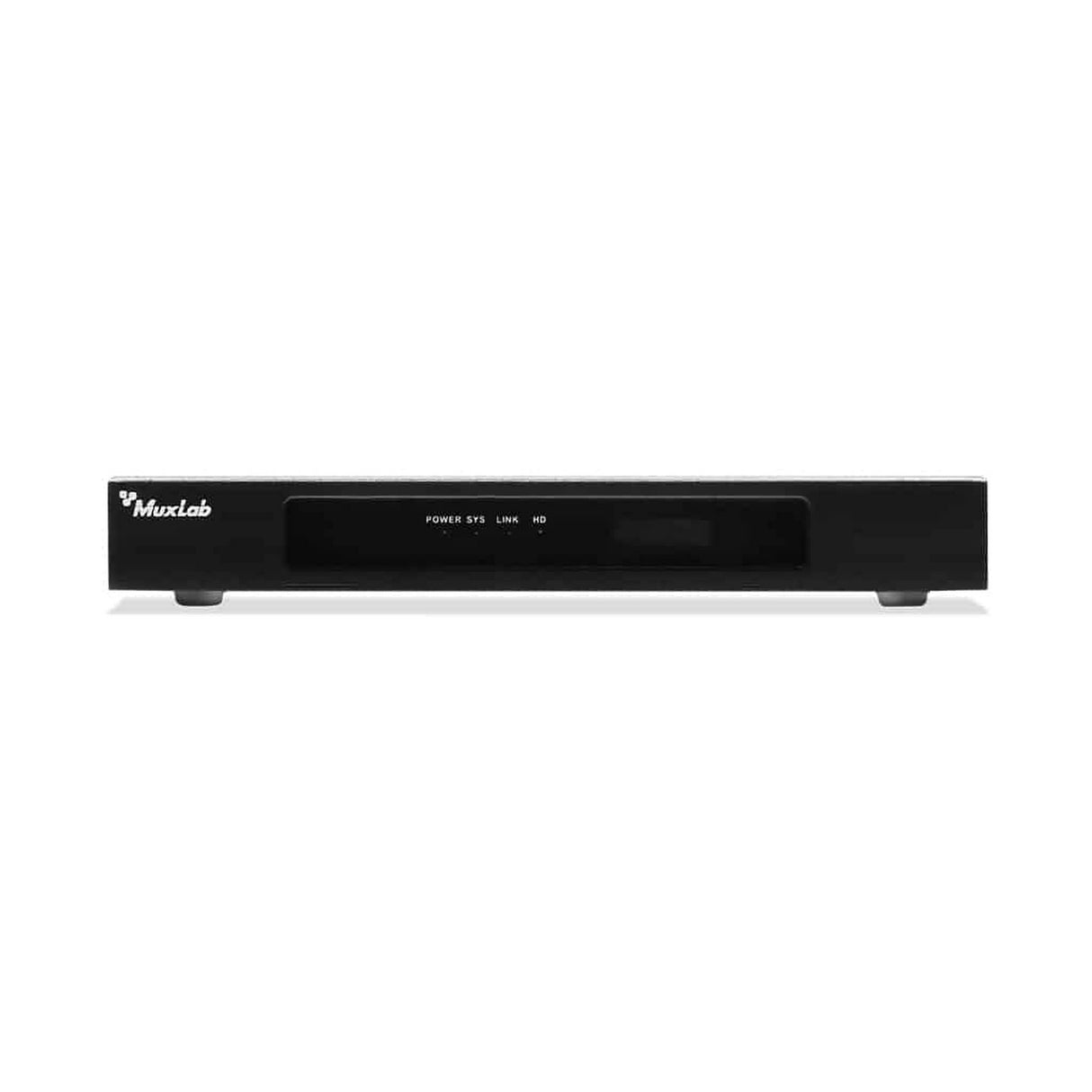

Indicators
Power Power indicator Sys
System indicator Link LAN
cable connection indicator HD
HDMI signal status
OLED Screen
Showing the Model, ID, IP, status

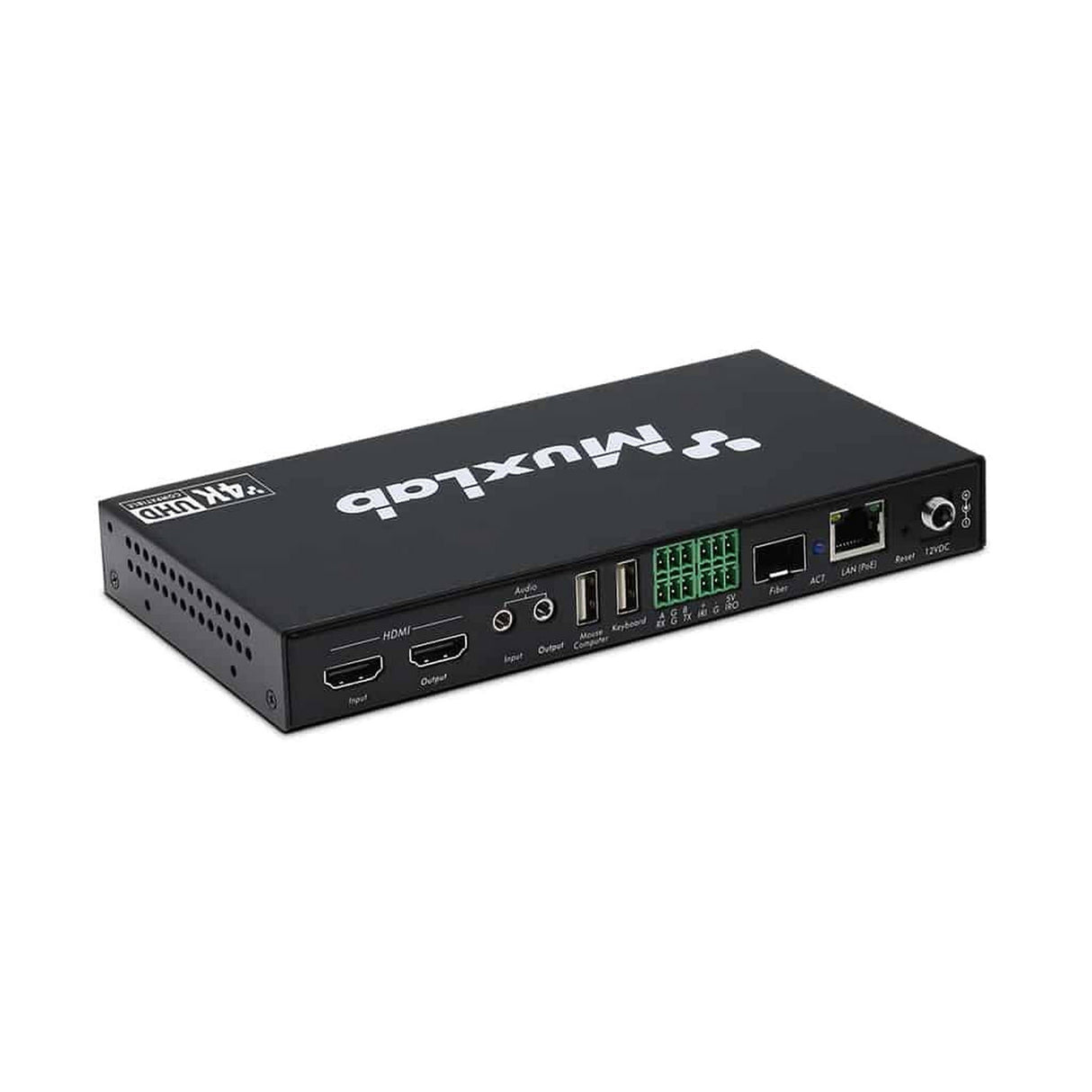

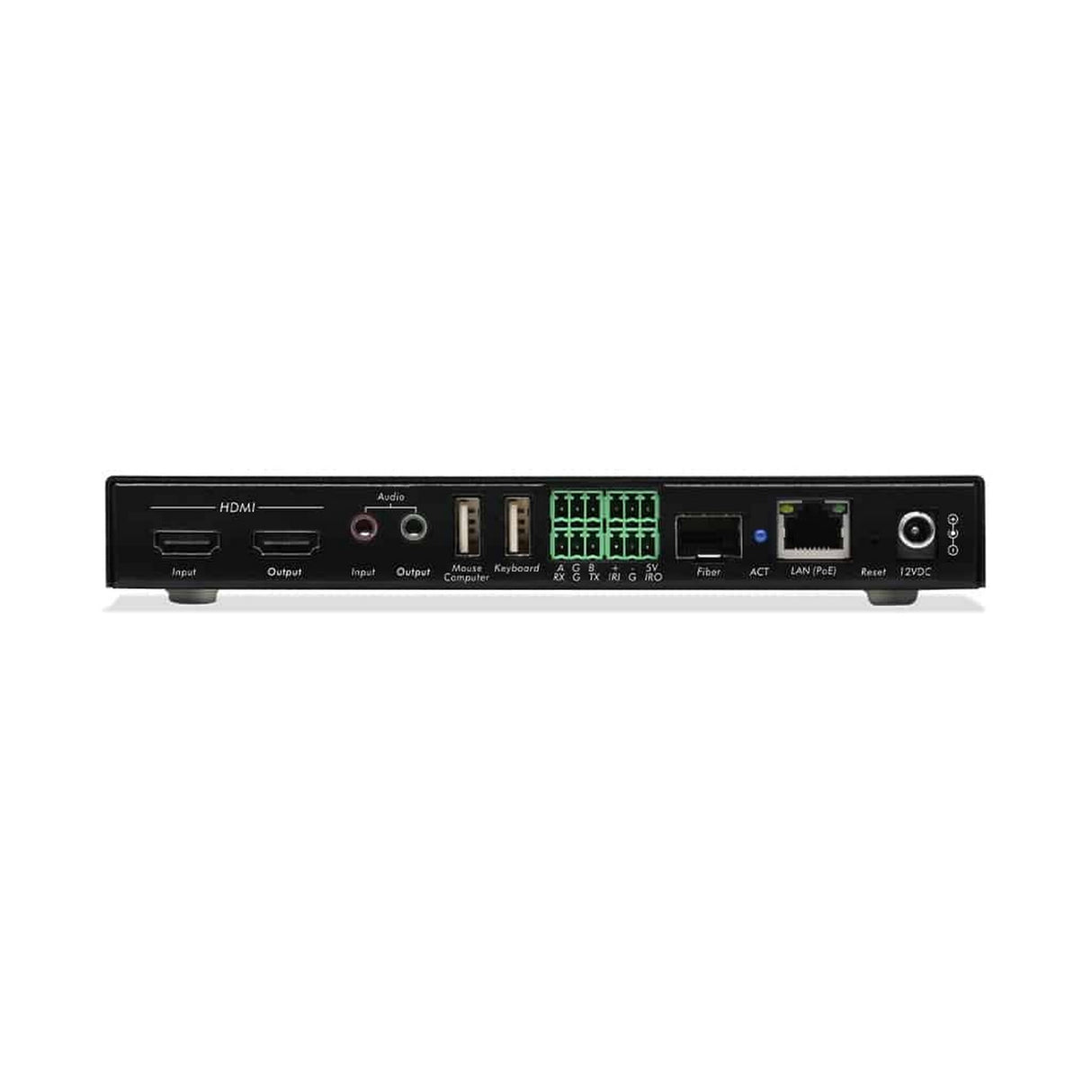

Video
2 x HDMI Type A
Control Ports
1 x RS485 phoenix connector
1 x Relay phoenix connector
1 x I O phoenix connector Programmable as IR input output or voltage sensor
Audio Ports
1 x 3.5mm IN
1 x 3.5mm OUT
LAN
1 x RJ45 PoE
1 x SFP Cage
USB
2 x USB B ports for Keyboard and Mouse or PC host
Power
12VDC 1A
Control
Windows PC software MuxLab AV Management Tool Android iOS APP
Power Source
This device supports PoE PD an external power supply is not included It is intended to be powered via a PoE PSE Ethernet Switch If required an optional power supply 500988 may be purchased separately
Power Consumption
less than 10W
Temperature
Operating 0 to 40 C
Storage m
