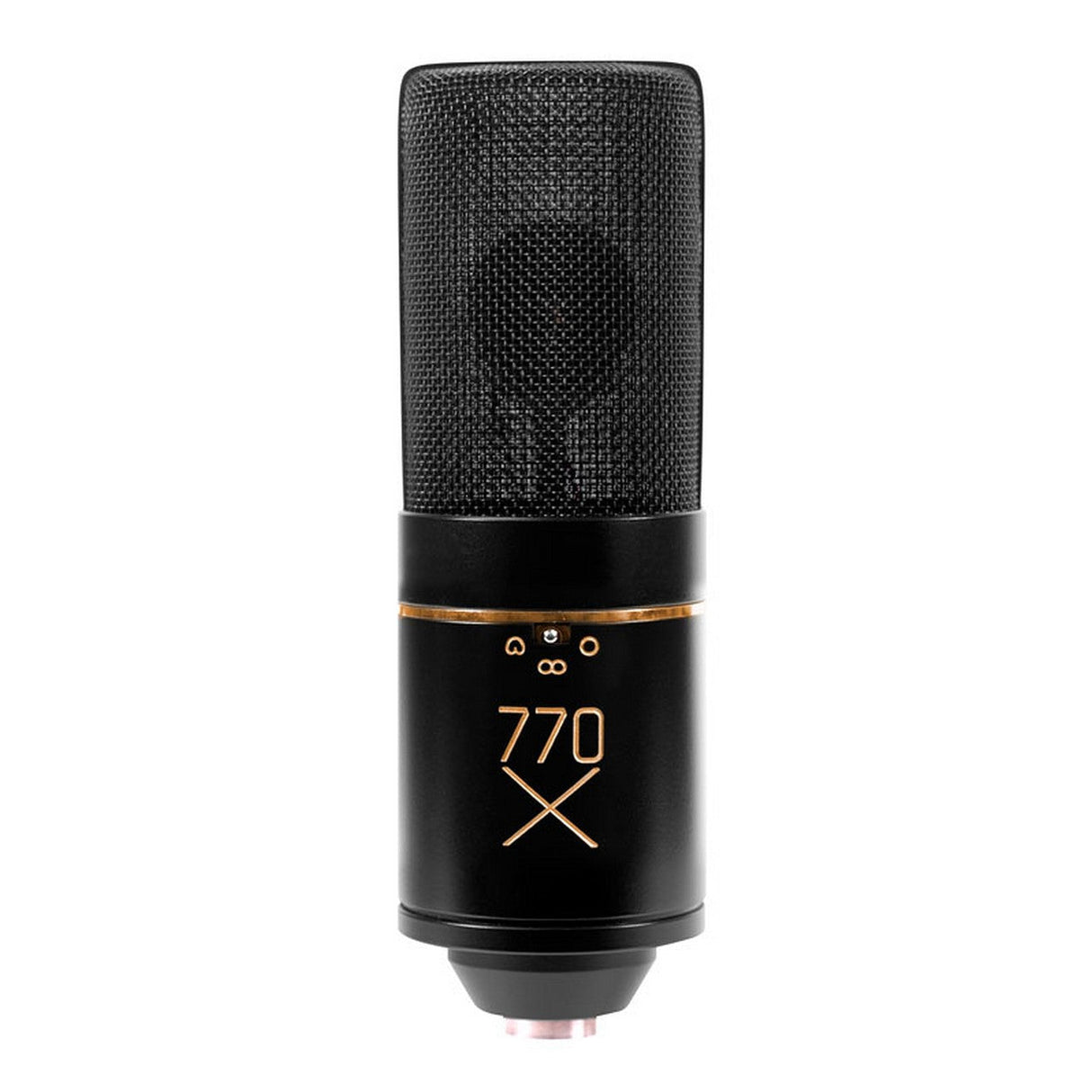

MXL 770X | Multi-Pattern Condenser Microphone Package

The MXL 770X multi-pattern condenser microphone package takes recording flexibility and performance to a new level. Building on the popular MXL 770, the 770X boasts an upgraded larger gold-sputtered diaphragm, increasing dynamic range and enhancing detail for superior audio quality. This versatile microphone offers three selectable polar patterns—cardioid, figure-8, and omnidirectional—making it suitable for a wide range of recording situations, from vocals and instruments to room recordings. Ideal for both amateur and professional recording musicians, the 770X package comes complete with essential accessories, offering exceptional value and making it a perfect all-in-one recording solution.

MXL is renowned worldwide as a leading manufacturer of high-performance audio products, trusted by top artists, engineers, producers, and businesses in the industry. With its award-winning solutions, MXL continuously delivers sonic excellence in both live and studio environments. The 770X microphone package is a testament to MXL’s commitment to quality, combining innovative features and reliable performance at a competitive price point.

Key Features

• Premium condenser microphone with a large 1.25" gold-sputtered diaphragm
• Stunning clarity and detailed highs balanced with a warm low end
• Switchable cardioid, figure-of-eight, and omnidirectional polar patterns to suit various recording needs
• Complete package includes 770X microphone, heavy-duty shock mount with integrated pop-filter, 20" balanced XLR cable, and a microfiber cleaning cloth
• Perfect for recording vocals, instruments, and room ambiance

Specifications

• Type: Pressure Gradient Multi-Pattern Condenser Mic
• Diaphragm: 6-Micron Gold-Sputtered
• Capsule Size: 32mm/1.26 in.
• Frequency Response: 20 Hz - 20 kHz
• Polar Pattern: Cardioid/Figure-8/Omni
• Sensitivity: -35 dB re 1 V/Pa
• Output Impedance: 200 ohms
• Attenuation Switch: 0 dB -10 dB
• High Pass Filter: 6 dB/Octave @ 135 Hz
• Equivalent Noise: 16 dB (A-weighted IEC 651)
• Signal-to-Noise Ratio: 78 dB (Ref. 1 Pa A-Weighted)
• Max SPL for .5% THD: 130 dB/140 dB (0 dB -10 dB pad)
• Power Requirements: 48V phantom power (+/- 4V)
• Size: 60mm x 185mm/2.36 in. x 7.28 in.
• Weight: 1.1 lbs/500 g
• Metal Finish: Black with Black Grill

Package Contents

• MXL 770X Microphone
• Heavy-Duty Shock Mount with Integrated Pop-Filter
• 20" Balanced XLR Cable
• Microfiber Cleaning Cloth
