MXL V69M EDT | Mogami Edition Large Diaphragm Tube Studio Condenser Microphone

The MXL V69M EDT Mogami Edition Large Diaphragm Tube Studio Condenser Microphone is a powerhouse for vocal recording. Enhanced with the finest Mogami cable and wiring, this microphone is specially crafted to bring out the richness, warmth, and vintage tone that every vocalist desires. Whether you are producing hip-hop tracks or hard rock anthems, the MXL V69M EDT will give your vocals a polished, professional edge. Its transformerless design ensures clarity in the high-end frequencies, while the 12AT7 dual-triode tube bathes each note in warmth and character.

Designed for serious musicians and engineers, the MXL V69M EDT doesn't just capture sound; it elevates it. The large diaphragm capsule captures every nuance of your performance, creating recordings that are vivid and lifelike. This microphone’s cardioid polar pattern is optimized to isolate the main source of sound while minimizing background noise, making it perfect for home studios, professional setups, and everything in between.

Key Features

• Vocal mic that gives singers a warm, rich sound
• 12AT7 dual-triode tube that delivers vintage tone
• Transformerless design that gives a crisp high end
• Ideal microphone for hip-hop and hard rock
• Mogami cable and wiring for exceptional audio fidelity

Specifications

• Type: Pressure gradient
• Sensitivity: 22 mv/Pa
• Capsule Size: 1.26” / 32mm
• Frequency Response: 20Hz - 18kHz
• Polar Pattern: Cardioid
• Weight: 1 lbs / 453g
• Impedance: 200 ohms
• Max SPL for .5% THD: 140 dB
• S/N Ratio: 72 dB (Ref. 1 Pa A-weighted)
• Equivalent noise: 22 dB (A-weighted IEC 268-4)
• Power Requirements: 110/220 VAC, 50-60Hz / Dedicated power supply
• Size: 1.85” x 8.5” / 47mm x 218mm
• Diaphragm: 6 micron, gold-sputtered
• Metal Finish: Black with Gold grill

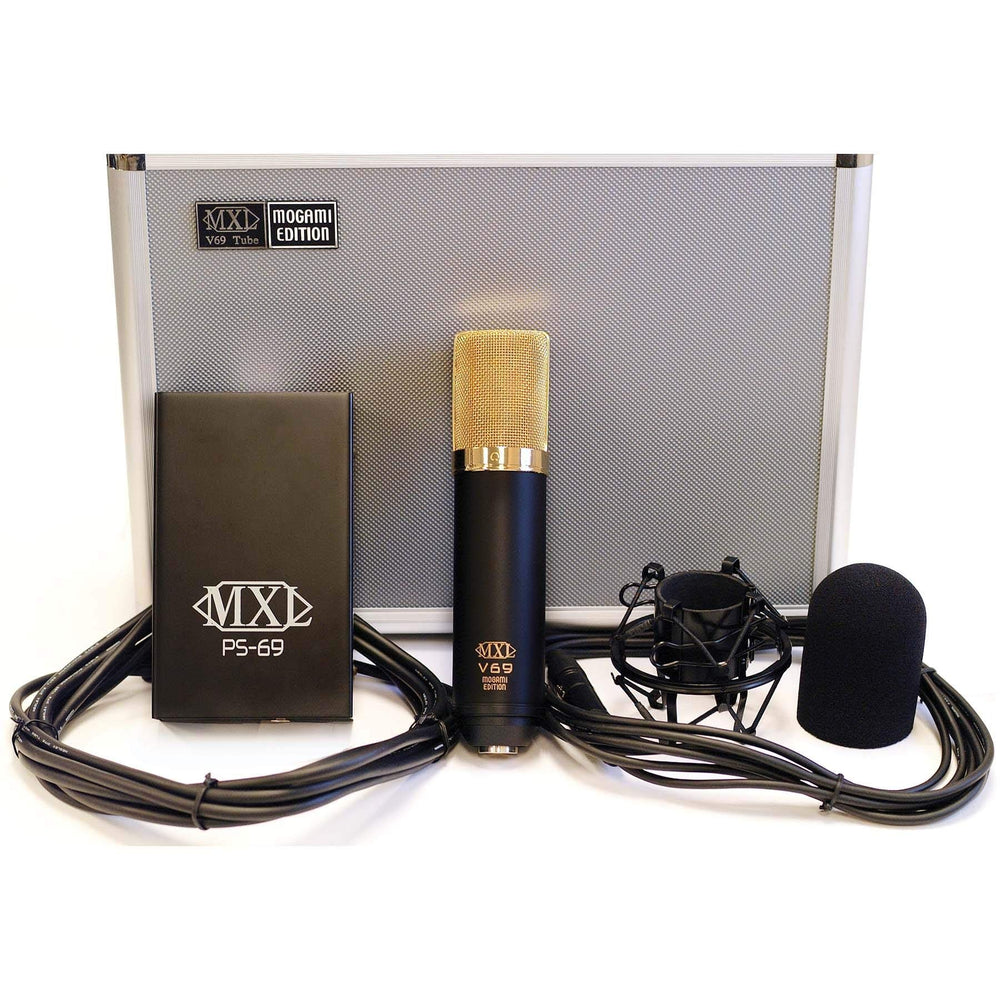

Package Contents

• MXL V69M EDT Microphone
• Dedicated power supply
• Mogami Cable

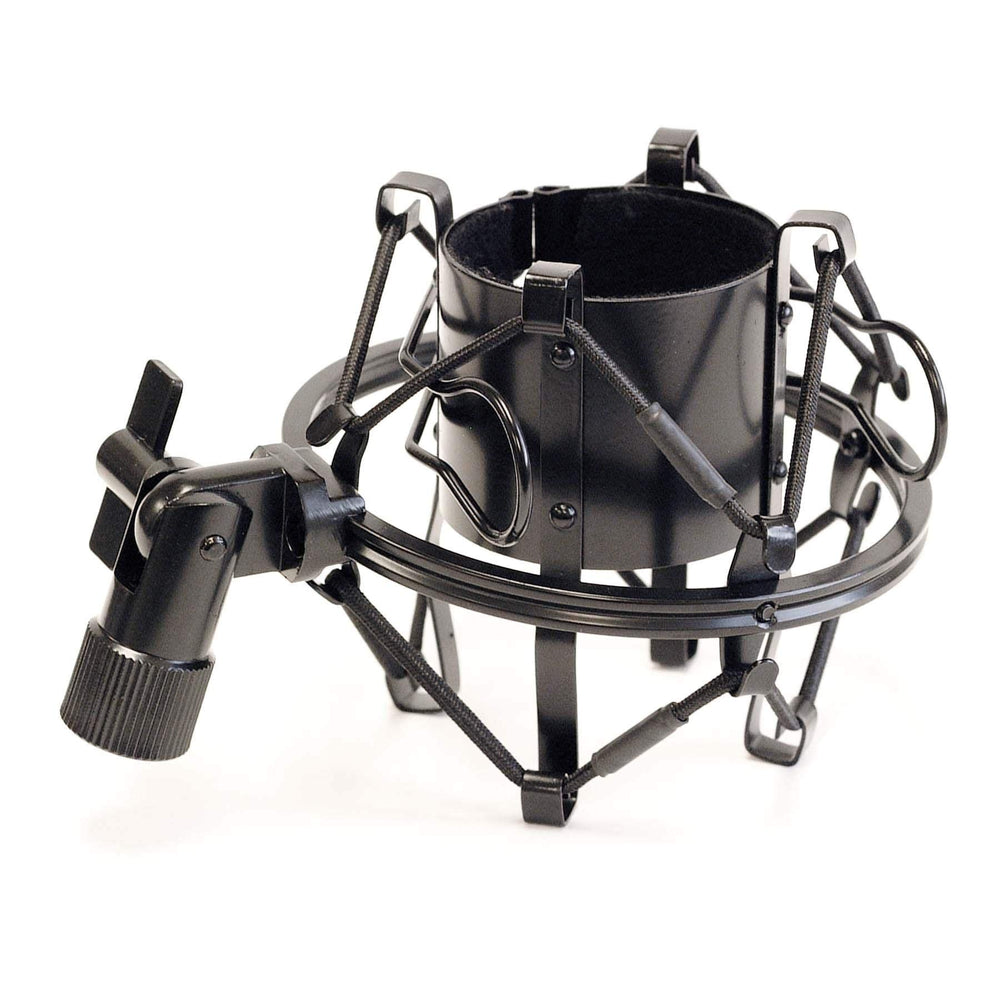

• Shock mount
• Protective case
• User manual
