Napco Starlink Fire MAX 2 Universal Panel-Powered Commercial Fire FACU Communicator

The StarLink Max Fire FACP Series offers an unparalleled solution for fire alarm communication with advanced technology and universal compatibility. Specifically designed for commercial fire alarm reporting, this series includes the SLE-MAX2-FIRE, SLE-MAX2-CFB, and SLE-MAX2-CFBPS models, each catering to diverse installation needs. These communicators provide dual-path, full-data transmission over 5G LTE-M cellular and/or IP networks, ensuring uninterrupted performance across Verizon® and AT&T® networks.

Engineered for reliability, the StarLink Max series features auto-network selection to automatically lock onto the strongest cellular carrier at installation. This dynamic capability ensures seamless operation even in challenging environments. With visual indicators for carrier connection and robust remote management via the StarLink Network Operations Center (NOC), the series offers ease of use and advanced monitoring features.

Supporting 12V-24V FACUs and compatible with legacy panels using Contact ID or 4/2 formats, the StarLink Max series simplifies integration with existing systems. Additionally, its Signal Boost™ circuitry and dual-diversity twin antennas provide industry-leading performance, making it a trusted choice for primary or backup alarm communication in compliance with UL and NFPA standards.

Key Features

• Dual-path communication via 5G LTE-M cellular and IP for universal compatibility.
• Available models: SLE-MAX2-FIRE, SLE-MAX2-CFB, and SLE-MAX2-CFBPS.
• Auto-network selection ensures connection to the strongest carrier (Verizon® or AT&T®).
• EZ Cell-Network indicators for quick visual confirmation of carrier status (Red for Verizon, Blue for AT&T).
• Remote monitoring and management through the StarLink NOC.
• Supports 12V-24V FACUs; no reprogramming needed for legacy panels.
• Signal Boost™ circuitry and dual-diversity antennas for superior signal acquisition.
• Complies with UL 864 10th Edition and NFPA 72 standards, replacing costly POTs lines.

Technical Specifications

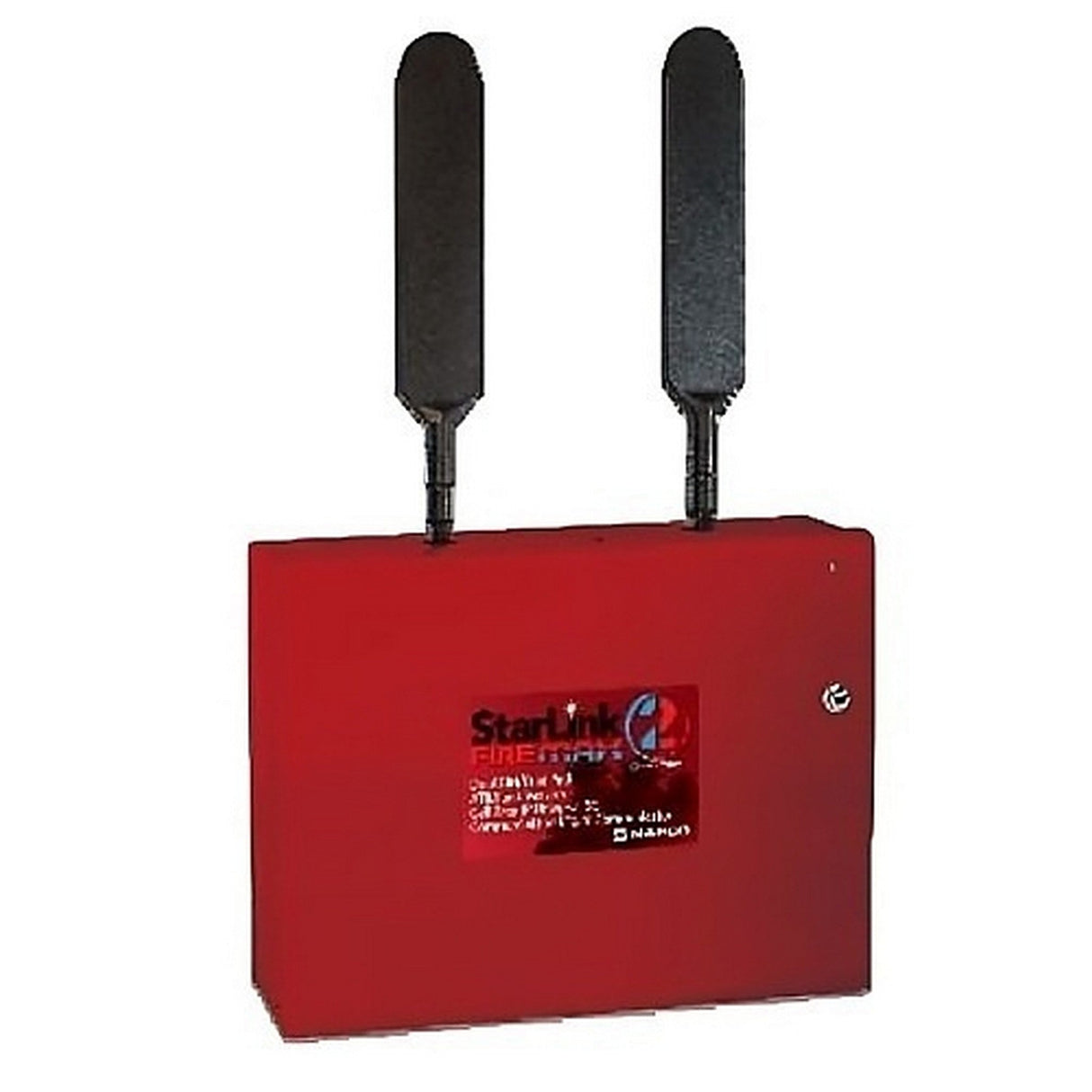

SLE-MAX2-FIRE & SLE-MAX2-CFB
Electrical Ratings for +12V / 24V (Models w/o Power Supply):
• Input Voltage: 10-24VDC regulated (power-limited output from UL-certified FACU/panel Aux/Remote Fire Power).
• Input Current: 24VDC standby: 85mA

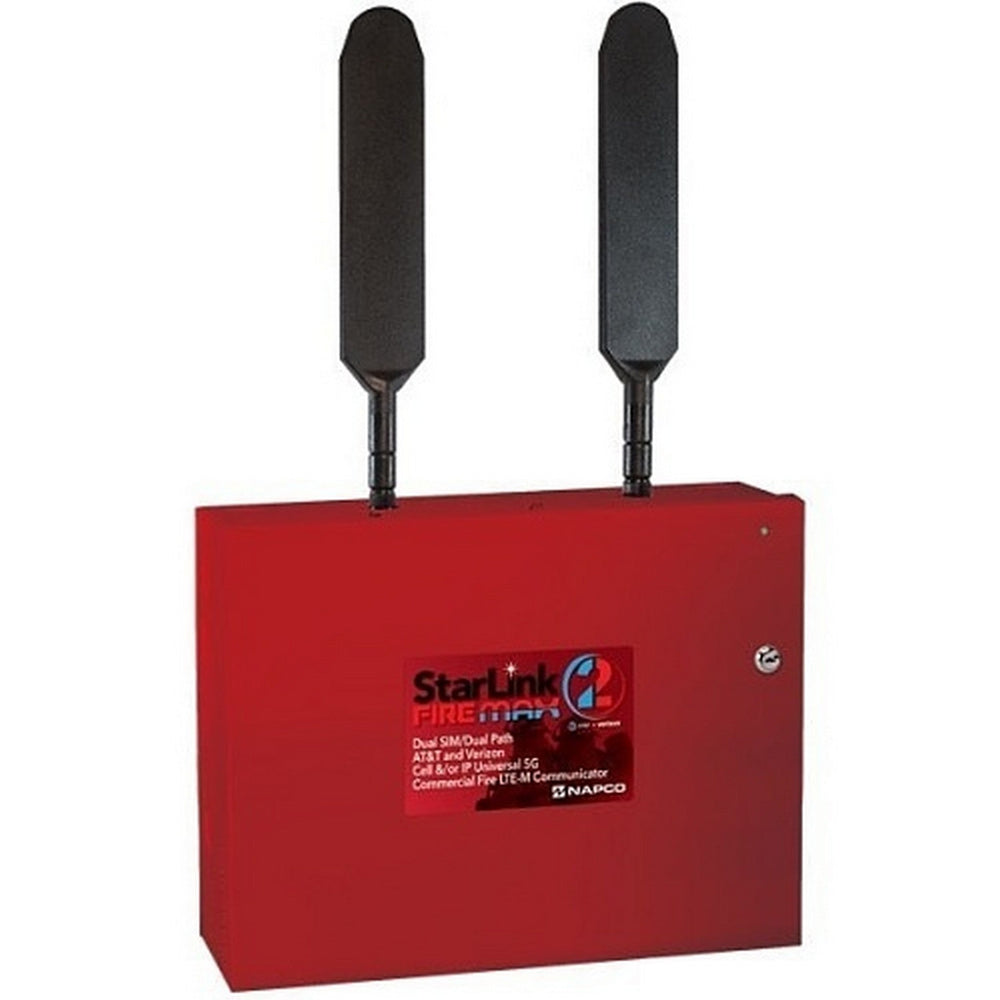

SLE-MAX2-CFBPS
Electrical Ratings for 120VAC, 60Hz (Models with Power Supply):
• Input Voltage: 120VAC nominal
• Input Current: 200mA maximum
• Maximum Charging Current: 200mA

Electrical Ratings Fire Input 1:
• Input Voltage: 9-25VDC
• Max Input Current: Up to 2mA from FACU NAC circuit

Electrical Ratings for Inputs 2 to 5 (Class B):
• Maximum Loop Voltage: 25VDC
• Maximum Loop Current: 1.2mA (metal models); 1.7mA (plastic)
• End of Line Resistor (EOLR) Value: 10K

Electrical Ratings for PGM3 Output:
• Open Collector Output: Max Voltage 3V when active; 25V max. when not.
• PGM Max Sink Current: 50mA (up to 15VDC), 25mA (15.1VDC -25VDC)

Physical & Environmental:

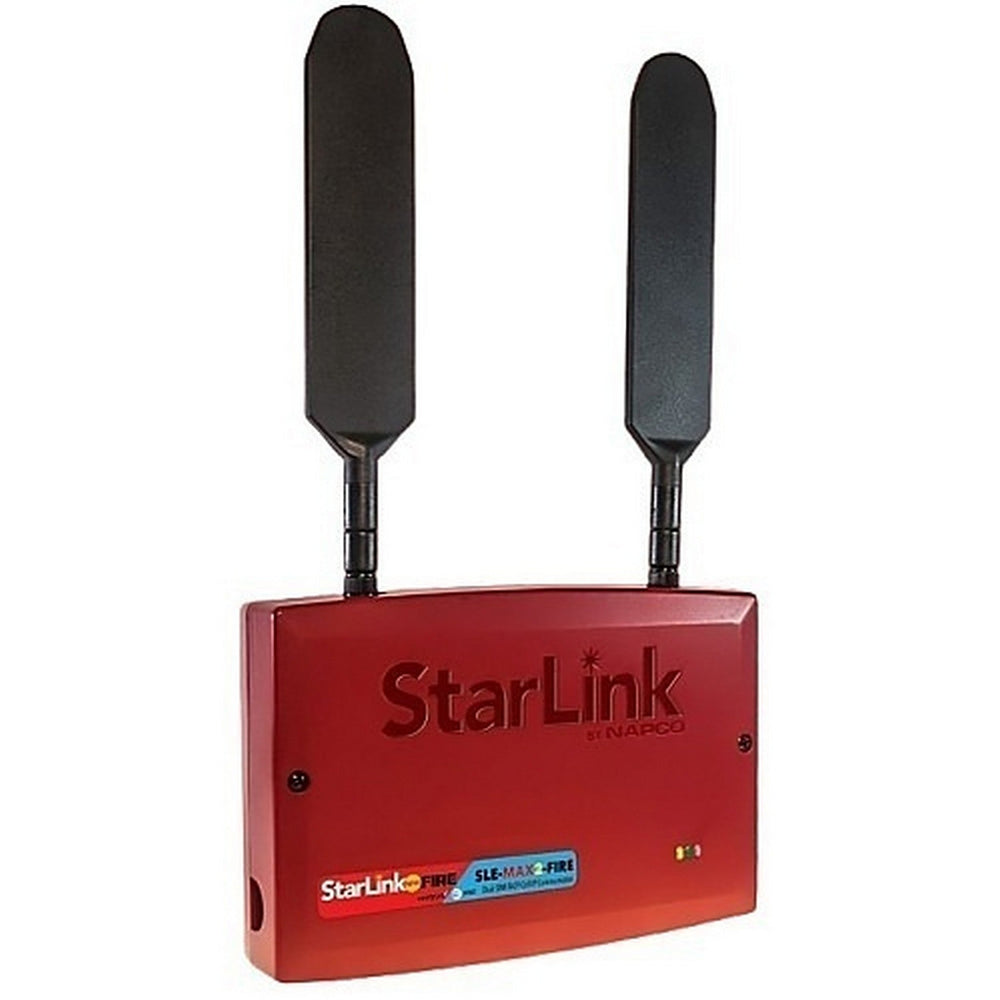

• Plastic Housing: 8" x 5.5" x 1.5" + antennas (2ea, supplied) 8.25" H
• Metal Housing: 11.5" x 9.5" x 3.5" + antennas (2ea, supplied) 8.25" H
• Housings: 2 Keyholes for wall mount
• Operating Temperature: 32°F to 120°F
• Humidity: 93% maximum

Compliances:
• NFPA 72 Editions: 2022, 2019, 2016, 2013, 2010
• UL 2610, UL 985, UL 1023, UL 864 10th Edition
• CSFM, NYC FD, LAFD certifications
• Napco US Network Operations Center (NOC) UL 864 10th Edition, UL 1610, UL 1635

What’s Included

• SLE-MAX2-FIRE, SLE-MAX2-CFB, or SLE-MAX2-CFBPS Communicator
• Two antennas
• Installation guide
