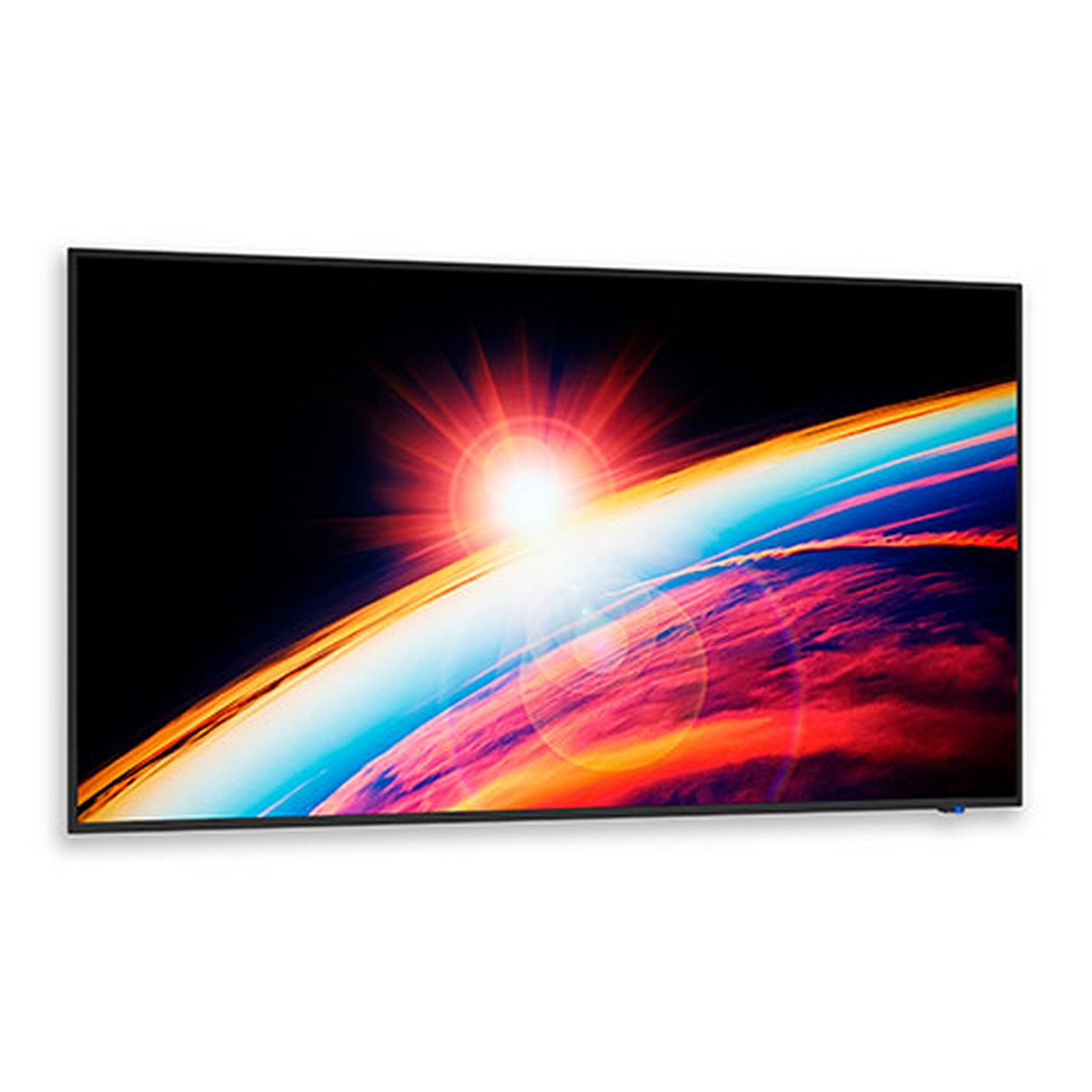

NEC E658 65 Inch 4K UHD Display
NEC E658 65 Inch 4K UHD Display
NEC E658 65 Inch 4K UHD Display
The 65” NEC E658, a direct-lit, commercial-grade display, is ideal for education, corporate and other digital signage applications. Compared to previous generation displays, this model's 4K UHD resolution and LED direct backlighting allows for higher visual acuity, reduced power consumption and localized dimming that gives a higher dynamic contrast ratio.The E658 has an integrated ATSC/NTSC tuner and dual 10W speakers allow users to enjoy high-definition broadcast capabilities. This display also features a USB player in which video, audio or JPEG picture files can be loaded and played in sequence for signage purposes.
Key Features
- 4K UHD resolution allows for high end visual acuity
- Integrated multimedia USB player makes digital signage simple
- Direct LED backlighting reduces power consumption while localized dimming gives a greater dynamic contrast ratio
- Thinner bezel improves display's aesthetics
- 24-Hour On/Off timer maintains power schedules
- Video signal wake-up function allows for plug and play functionality
- Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
- Built-in, low-profile 10W speakers enhance the experience with superior sound
- USB Type-C port for external power supply 5V/3A
- Supports Video muting in addition to Audio mute and can also be muted individually
- Joystick key for screen guided operation
- New temperature and ambient light sensors
Technical Specifications
Display
Panel Technology
IPS
Aspect Ratio
16:9
Pixel Pitch
0.37 mm
Brightness (typical)
350 cd/m2
Viewing Angle (typical)
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>20
Refresh Rate
60Hz
Orientation
Landscape
Viewable Image Size
65”
Native Resolution
3840x2160
Backlight Type
LED Direct-lit
Contrast Ratio (typical)
8,000:1 (Out of the box conditions, local dimming ON)
Response Time (Gray to Gray)
8 ms
Active Screen Area
56.24 x 31.64 in. / 1428.48 x 803.52mm
Displayable Colors
More than 1.07 billion
Synchronization Range
Horizontal (Analog/Digital)
15.0 - 136.0kHz
Vertical
24.0 - 75.0Hz
Physical
Bezel Width (Left/Right, Top/Bottom)
0.51 in./0.51 in., 0.51 in./0.57 in. : 12 mm/13 mm, 13 mm/14.4 mm
Dimensions (WxHxD)
Without stand
57.38 x 32.83 x 2.87 in. / 1457.5 x 883.9 x 73 mm
Shipping
62.60 x 38.98 x7.48 in. / 1590.0 x 990.0 x 190.0 mm
Weight
Net Weight (without stand)
51.3 lbs. / 23.3 kg.
Shipping
67.7 lbs. / 30.7 kg
