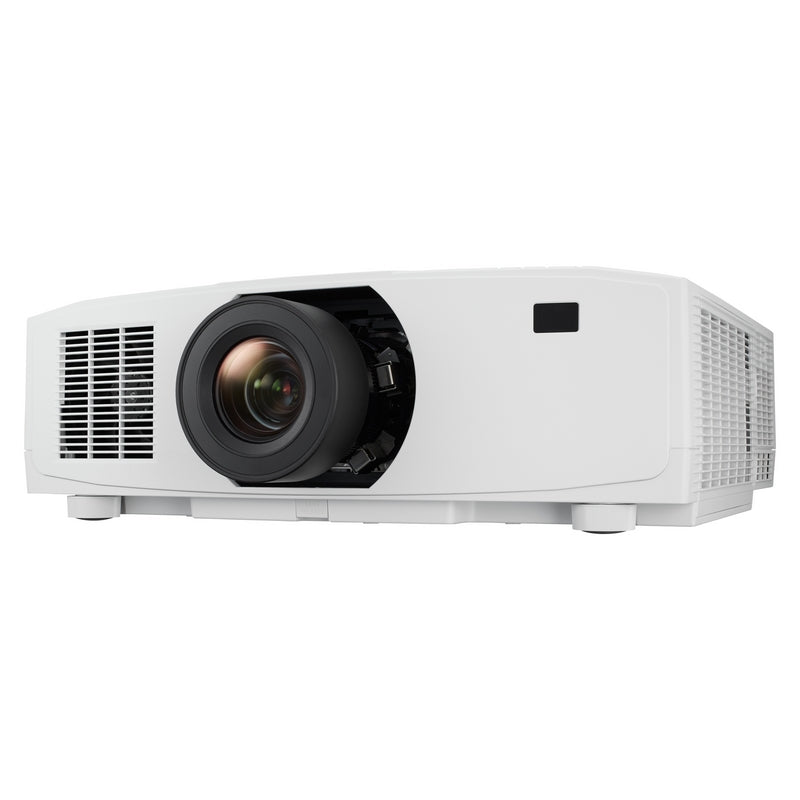

NEC NP-PV710UL-W1-13ZL WUXGA 7100 Lumen Advanced Professional LCD Laser Projector, White is a top-performing LCD laser projector that offers advanced installation features for corporate and higher education settings. With a brightness of 7100 lumens (Center: 7400lm), its multitude of digital inputs allow for easy connection to a range of high-definition devices and computers. Additionally, it offers design and installation flexibility, with a complete line of optional motorized lenses and roll-free installation capabilities.

4K Ready: Display stunning 4K content using NEC's high-performance video processing/scaling chip without losing critical details.

Built-in Wall Color Correction: Presets provide adaptive color tone correction to display properly on non-white surfaces.

Dual HDMI Inputs: Ensure quick switching between presentations and allow simultaneous digital connections of high-definition sources.

Lens Shift: Vertical and horizontal lens shift capabilities enable flexible projector placement.

Power Management: Automatically turns off when an incoming signal is not detected from any of the inputs.

Crestron Roomview: Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

Direct Power Off: Protects the lamp when the projector is unplugged or the power strip is switched off.

Dual Computer Inputs: Ensures quick switching between presentations.

Motorized Zoom and Focus: Simplifies installation and operation by easily adjusting the lens with the remote control.

Quick Startup and Quick Power-Off: Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.

Roll-Free Installation: Allows the projector to be rotated freely (360°) to point up or down depending on the installation requirements.

Variable Audio Out: Adjusts the volume of an external speaker system using the remote control.

AutoSense: Intuitively syncs with most computer signals and features one-touch image optimization.

Landscape/Portrait Capable: Allows for distortion-free display of content in various orientations, creating new application opportunities.

Portrait Mode: Ability to install a projector in its side to create a 10:16 portrait image.

Virtual Remote: Allows control of the projector directly from a computer without the need for additional control cables over the VGA cable.

Key Features

• NEC's PV710UL-W1-13 is a white cabinet LCD laser projector with advanced professional installation features.

• It is designed for higher education and corporate users.

• The projector has a brightness of 7100 lumens (Center: 7400lm), which enhances images for most applications.

• It offers design and installation flexibility with optional motorized lenses for lens shift, focus, and zoom.

• The projector supports a multitude of digital inputs, allowing connection to any computer or high-definition device.

• It has roll-free installation capabilities, making it easy to set up.

• The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power, and control signals.

• It is 4K ready and can display stunning 4K 60P content without losing critical details.

• The projector supports HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” on all digital inputs.

• It offers basic control of competitors' products, reducing the need for reprogramming of a control system.

• Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP, and PJ link allow for complete interactivity and control.

• ProAssist software enables easy control and adjustment of the projector and projected image from a computer via a network. It is
• particularly useful for combining multiple projectors to project a large screen in classrooms, meeting rooms, auditoriums, or other large spaces.

Technical Specifications

Display
Aspect Ratio
16X10
Native Resolution
WUXGA 1920x1200
Maximum Resolution
4K 4096 x 2160
Brightness (typical)
7100 Lumens
Brightness (maximum)
7400 Center Lumens
Contrast Ratio (typical)
3,000,000:1 (with Dynamic Contrast)
Synchronization Range
Horizontal (Analog/Digital)
24-100kHz
Vertical
50-85Hz
Signal Compatibility/Connectivity
Supported Video Standards
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD
Macintosh Signal Compatibility
Yes
Sync Compatibility
Separate Sync / Composite Sync / Sync on G
External Control
RS-232, IR, Wired Remote, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)
Input Terminals
RGB2(digital)
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB3(digital)
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB5(digital)
HDBaseT w/HDCP (V1.4/2.2)
Output Terminals
Audio
Stereo Mini Jack
Audio Out
Stereo Mini Jack
Power Consumption (typical)
On
456W / 412W / 1.7W / 0.16W
Input Current
6.1A - 2.5A
Power Requirements
100-240V AC, 50/60 Hz
Power Supply Voltage
100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product
19.8 x 6.6 x 16.2 in. / 503 x 168 x 411 mm
External
19.8 x 6.6 x 16.2 in. / 503 x 168 x 411 mm
Shipping
23.3 x 10.2 x 19.3 in. / 591 x 259 x 591 mm
Weight
Net Weight
24.7 lbs. / 11.2 kg
Shipping
29.5 lbs. / 13.4 kg
Environmental Conditions
Operating Temperature
32-113 Degrees F / 0-45 Degrees C
Operating Humidity
20 to 85% Humidity (Non-Condensing)
Operating Altitude
2 to 2600 m (8,500 ft)
Storage Temperature
14-122 Degrees F / -10 50 Degrees C
Storage Humidity
20% - 80% (non-condensing)
Storage Altitude
0-12,000m / 0-39,370ft (above sea level)
