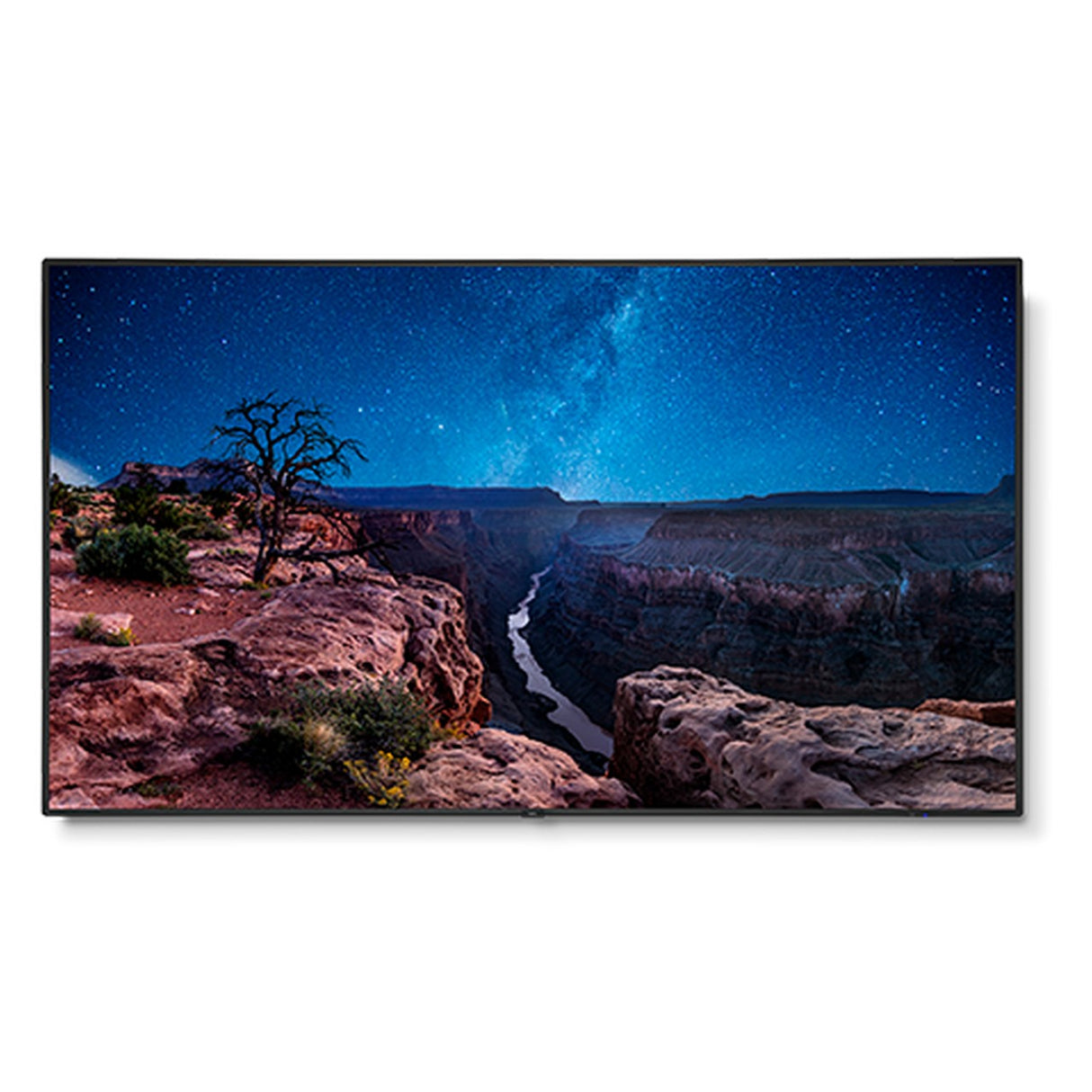

NEC V984Q 98 Inch UHD Professional Display

With industry leading experience in superior design and customer focus, the 98" NEC V984Q allows for clear, detailed imagery for unobtrusive digital signage. New contemporary and slim mechanical design with focused aesthetics allows for the smooth and stylistic integration into any type of environment while the full metal chassis coupled with real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for commercial environments. With a wide range of the latest connectivity interfaces including HDMI 2.0 x3 and DisplayPort 1.2 x2/daisy chain option, these displays offer the future-proofing necessary for the investment. These displays also include expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The V984Q series boasts a 500 cd/m brightness along with a new anti-glare surface that allows for efficient readability when ambient light is present and is ideal for 24/7 signage in Retail, Transportation, Financial and Healthcare environments.

Key Features

• Stylish and sleek design allows for easy and unobtrusive integration into any environment
• 500 cd/m2 brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
• Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display
• SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
• Integrated Media Player allows for audio, video or image playback via USB or SD card
• Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation
• Full 3 year commercial warranty to allow for peace of mind and protection of this investment

Technical Specifications

Panel Technology
S-IPS
Viewable Image Size
98"
Native Resolution
3840 x 2160
Supported Resolutions
DisplayPort: V1.2 (HDCP 1.3) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (DisplayPort 1.2)) HDMI: (HDCP 1.4/2.2) VGA60, SVGA60, XGA60, WXGA60, SXGA60, UXGA60, WUXGA60, 1920 x 1080 (60Hz), 1080p, 1080i, 720p@50Hz/60Hz, 576p@50Hz, 480p@60Hz, 576i@50Hz, 480i@60Hz, 3840 x 2160 (24Hz/30Hz/25Hz/60Hz (MODE2)), 4096 x 2160 (30Hz, 24Hz, 25Hz, 60Hz (MODE2))
Pixel Pitch
0.56mm
Pixels Per Inch
45PPI
Brightness (maximum)
500cd/m2
Contrast Ratio (typical)
1300:1 (without local dimming)
Viewing Angle (typical)
178 deg Vert., 178 deg Hor. (89U/89D/89L/89R) @ CR>10
Response Time (typical)
8ms
Refresh Rate
60Hz
Active Screen Area
84.99 x 47.81 in. / 2158.85 x 1214.35mm
Orientation
Landscape/Portrait
Dimming Capability
Local Dimming Capable
Displayable Colors
More than 1.07 billion
Synchronization Range
Horizontal (Analog/Digital)
26kHz - 135.0kHz
Signal Compatibility/Connectivity
PC Signal Compatibility
Yes
Macintosh Signal Compatibility
Yes
Input Terminals
Digital:HDMI 2.0 (3), DisplayPort 1.2 (2) Audio:Audio Mini-Jack, DisplayPort Audio, HDMI AudioExternal Control:RS-232C, LAN, IR Remote
Output Terminals
Digital:DisplayPort (Outputs DisplayPort1 or Option)Audio:Audio Mini-Jack, External Speaker Out (2), DisplayPort AudioExternal Control:LAN
Power Consumption (typical)
On
380W
ECO Mode Standby
0.5W
Network Standby
2W
Power Consumption (max)
650W (520W Brightness Max)
Input Current
7.5A @ 100V
3.1A @ 240V
Physical Specifications
Bezel Width (Left/Right, Top/Bottom)
0.63in. / 0.63in. ; 0.63in. / 0.63in. : 15.9mm/15.9mm, 15.9mm/15.9mm
Dimensions (WxHxD)
With stand:2193.8 x 1286.0 x 606.0mm / 86.37 x 50.63 x 23.9 in. Without stand:2193.8 x 1248.8 x 93.0mm / 86.37 x 49.17 x 3.66 in. Shipping:2355.0 x 1454.0 x 330.0mm / 92.72 x 57.24 x 12.99 in.
Weight
Net Weight (with stand): 214.5lbs. / 97.30kg Net Weight (without stand): 204.8lbs. / 92.89kgShipping:242.5 lbs. / 110.0kg
VESA Hole Configuration
400 x 400mm (M8 x 16mm)
600 x 400mm (M8 x 16mm)
Environmental Conditions
Operating Temperature
32-104 degF / 0-40 degC
Operating Humidity
20-80%
Operating Altitude
9843 ft. / 3000m
Storage Temperature
-4-140 degF / -20-60 degC
Storage Humidity
10-90%
Storage Altitude
40,000 ft. / 12,192m
Limited Warranty (parts & labor)
3 Years Advanced Replacement
Additional Features
Raspberry Pi Compute Module Compatible
SpectraView Engine Color Control (Including Uniformity Adjustment)
Integrated OPS Option Slot
Localized Dimming
On-Screen Key Guide
Ethernet Control and Communication
USB Upstream/Downstream
RS-232 Control and Communication
CEC Communication
HDCP 1.4 and 2.2 support through HDMI
HDCP 1.3 support through DisplayPort
Firmware via USB/Network
Landscape/Portrait Capable
Image Flip
TileMatrix (10 x 10)
Carbon footprint meter
24/7 Scheduler with Real Time Clock
Holiday Settings
Screen saver function
Multi-Picture Mode
28% haze panel
Ambient light sensor
Screen Saver Function
Optional Human Sensor
Intelligent Wireless Data (Near Field Communications)
Metal rear cabinet
Carrying Handles
Variable picture modes
Advanced video settings (Noise Reduction, Adaptive Contrast)
Input labeling
Backlight adjust
Aspect ratio control
Built-in 10W x 2 speakers
Powered USB
LED edge-lit backlighting
NaViSet Administrator Compatible
Auto ID/IP Address Control
Crestron RoomView Support
AMX Beacon
PJLInk Support
HDMI and DisplayPort Cable Included
Accessories Optional
Table Top Stand (ST-801)
External Speakers (SP-TF1)
Any OPS Option Card
Standard Wall Mount (WMK-3257)
Large Wall Mount (WMK-6598)
Human Sensor Accessory (KT-RC2)
Compute Module Interface Board (DS1-IF10CE)
NEC Raspberry Pi Compute Module (RPi3CM16GB)
IR Touch Overlay (OLR-751)
