Neets NEB Keypad Expansion Wall Panel AV Control System White
Free Shipping
More finance options:
Last 1
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

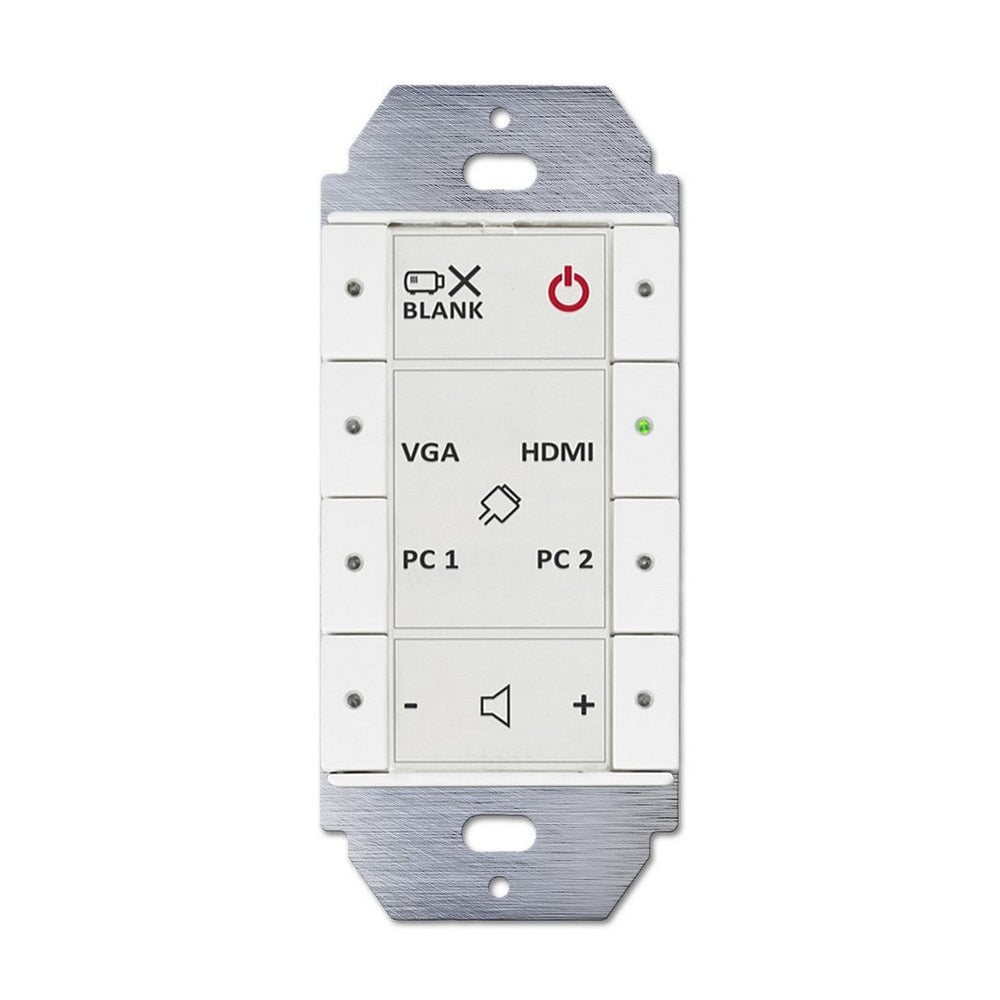

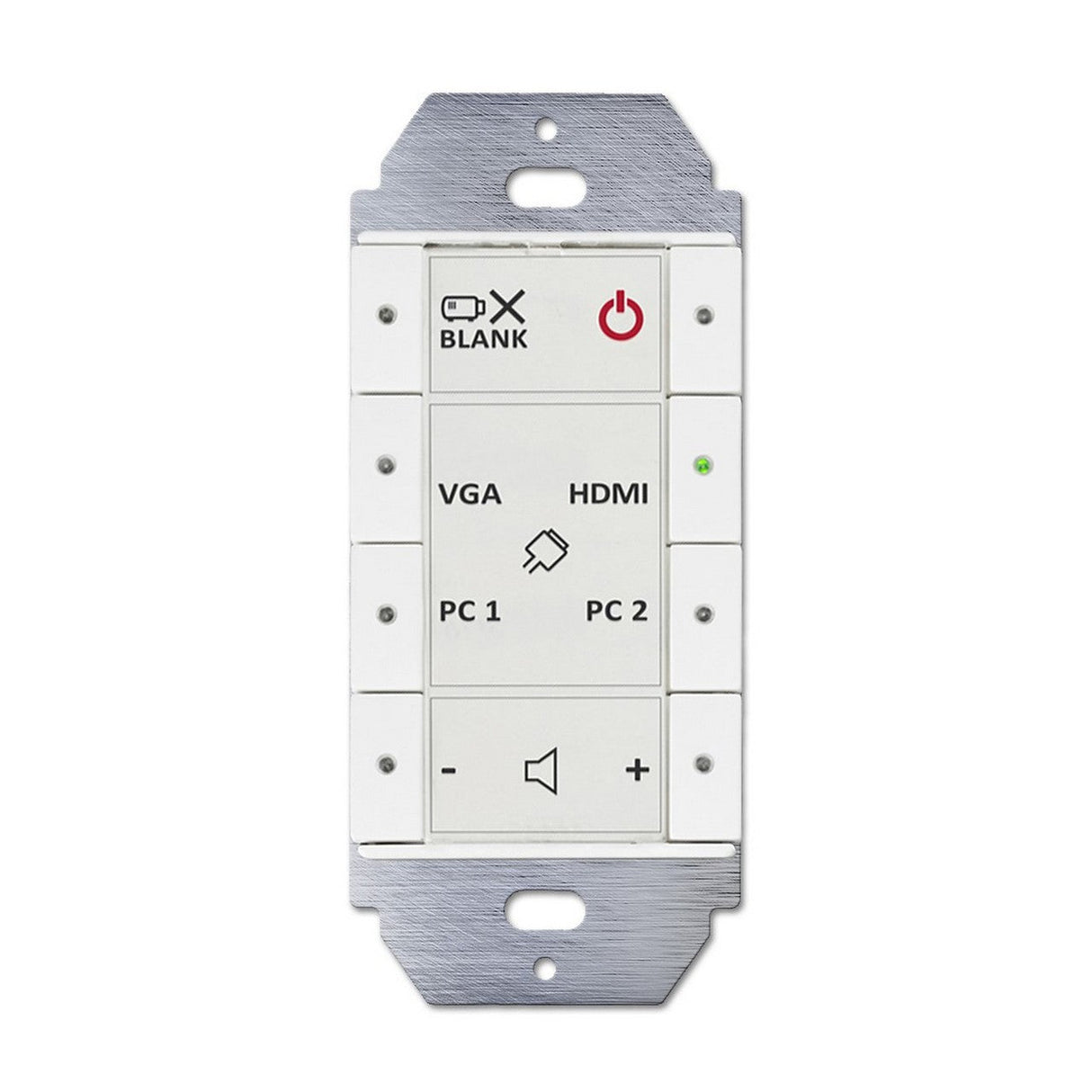

Neets NEB Keypad Expansion Wall Panel AV Control System White
The Neets Expansion Bus (NEB) makes it possible to add keypads for Neets Control Systems.
You can add NEB Keypads to the Neets Control System to have extra panels in the room to control the AV-equipment.
Furthermore it increases ease of use by ensuring the same user interface on all keypads, and thereby a recognizable design in all rooms.
Key Features
- Simple control:
Control AV systems via wall panel buttons - Easy to use:
Choose source, start presentations, roll down screens and dim the light with one button - Configuration:
All eight buttons can be freely configured for any function - LED colors:
Red color for Neets Control EcHo/ EcHo Plus
Multicolor for Neets Control SieRRa, AlFa II and DelTa. - An obvious choice for:
Installations where another keypad is needed
Suitable for meeting rooms and conference rooms
Technical Specifications
8 LED Input
Neets Control - EcHo: Red
Neets Control - SieRRa II: Multicolor
8 switches
Connection to Neets Control - Echo and Sierra II
4 pin NEB connector
Cable length max 20 cm.
Size (without frame)
Standard: US
Height: 21,65 Inches
Width: 21,65 Inches
Depth: 6,69 Inches
Power
Voltage: 12 V
Power: 0,1 W
Conformity
Approval: CE
EN 55022
EN 55024
