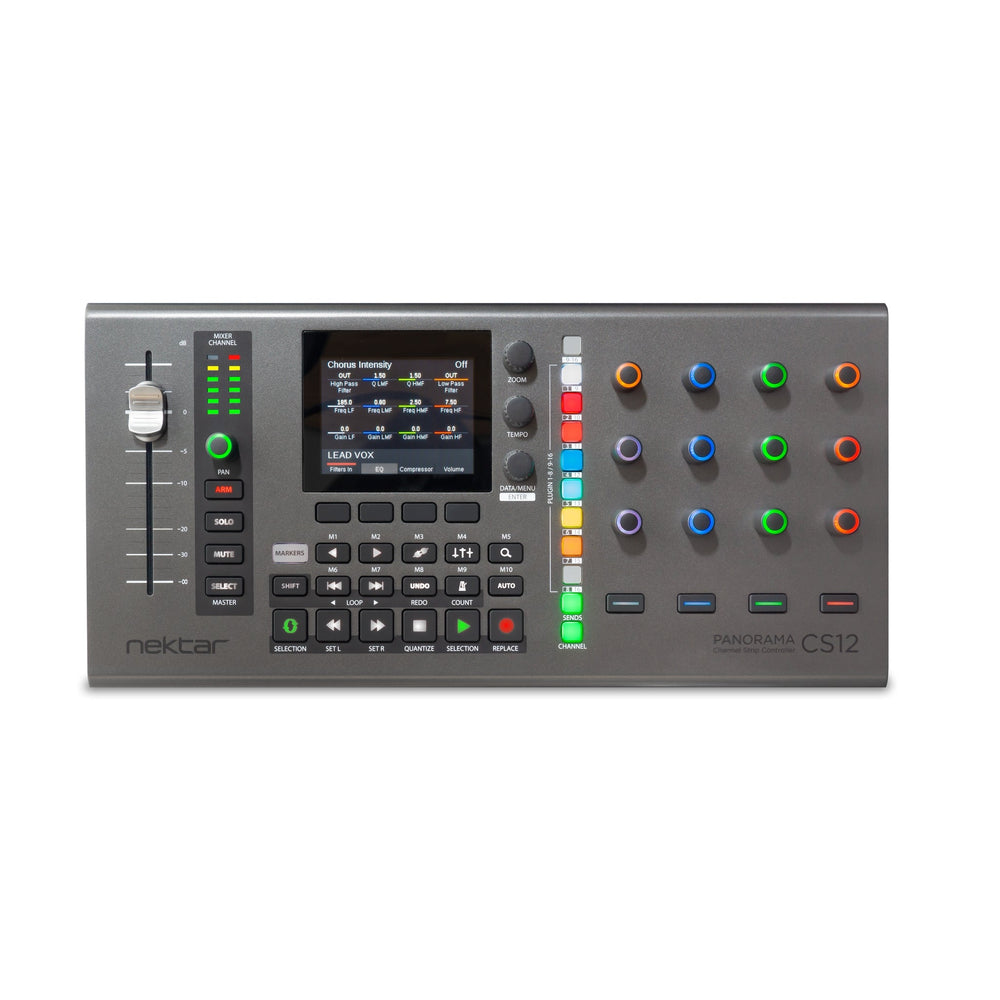

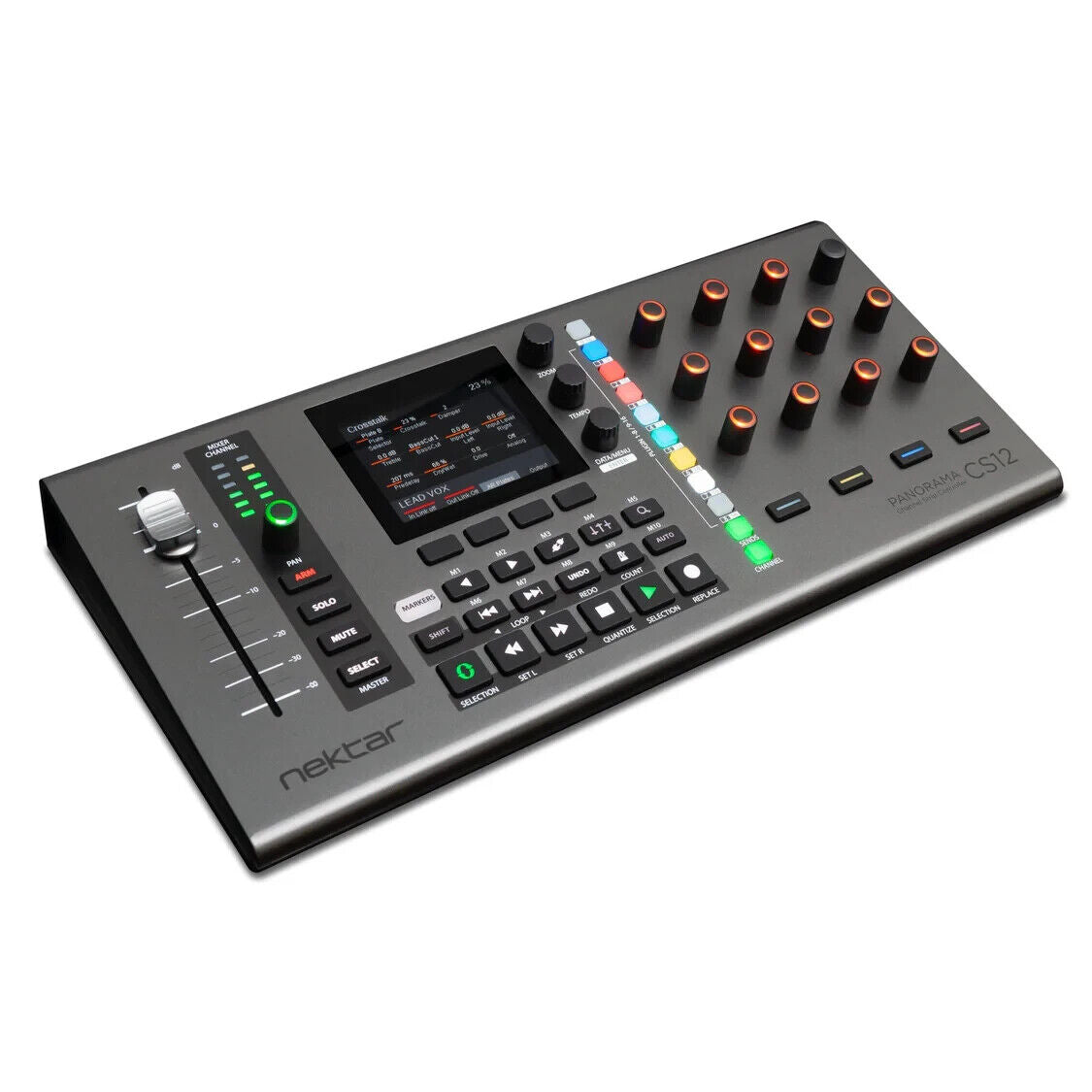

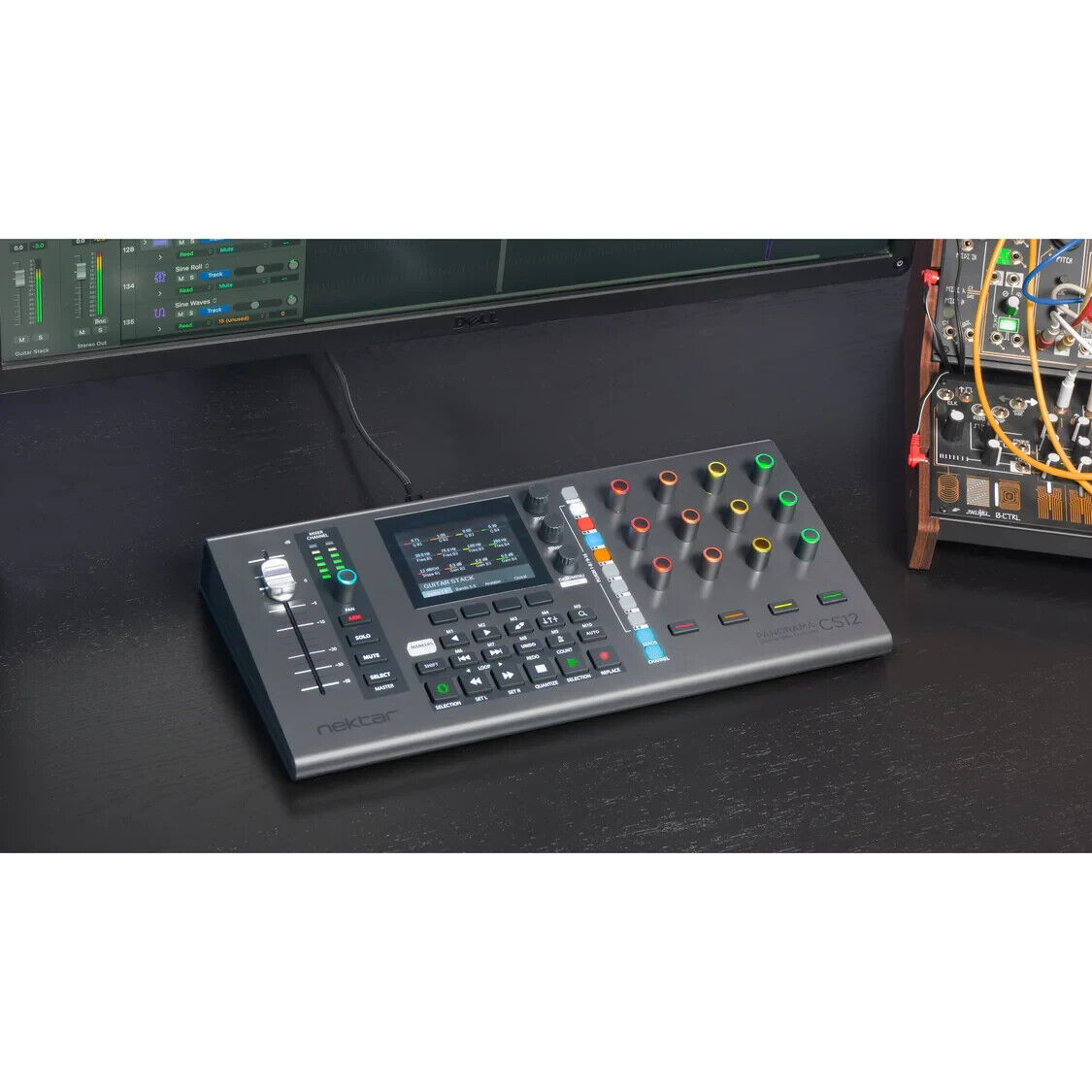

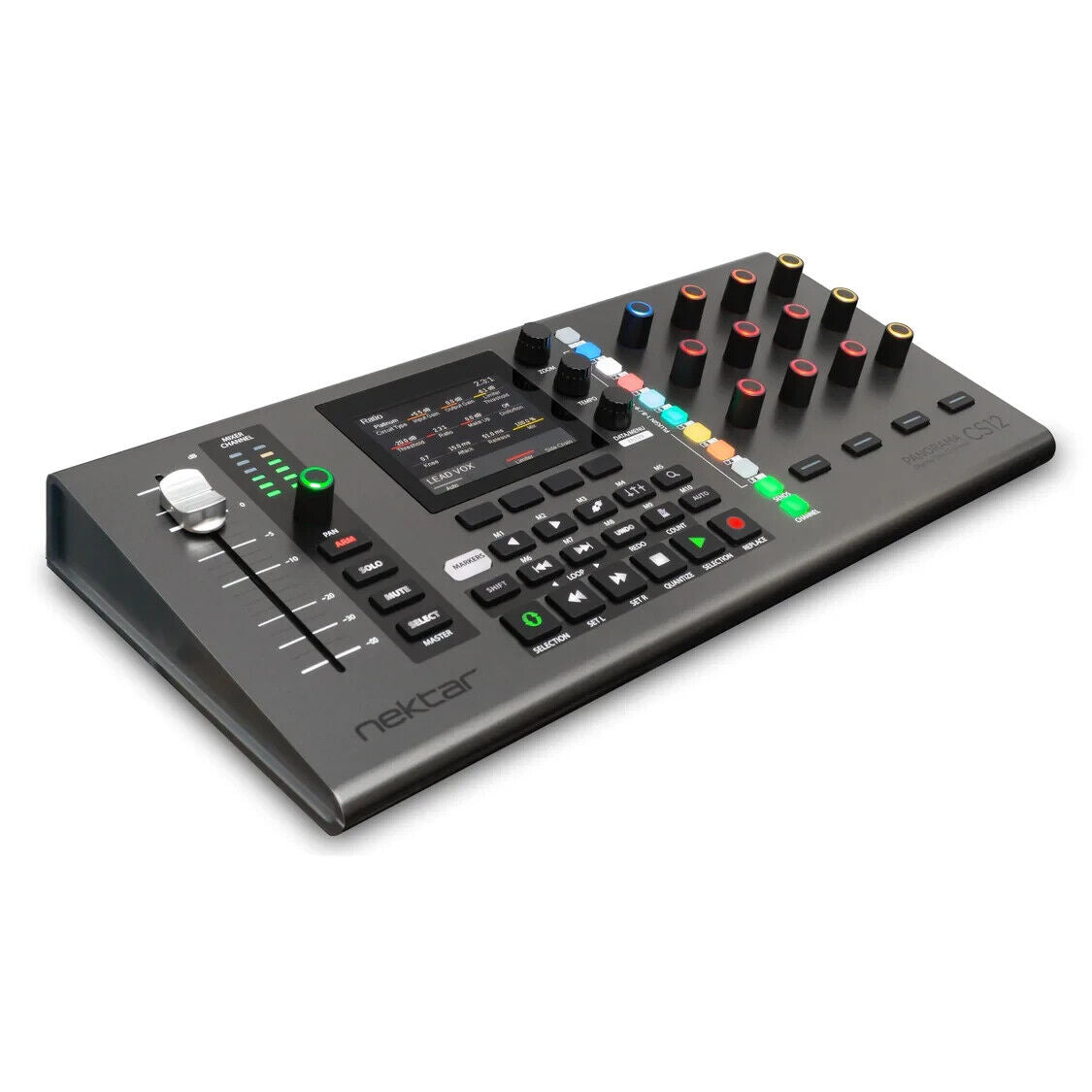

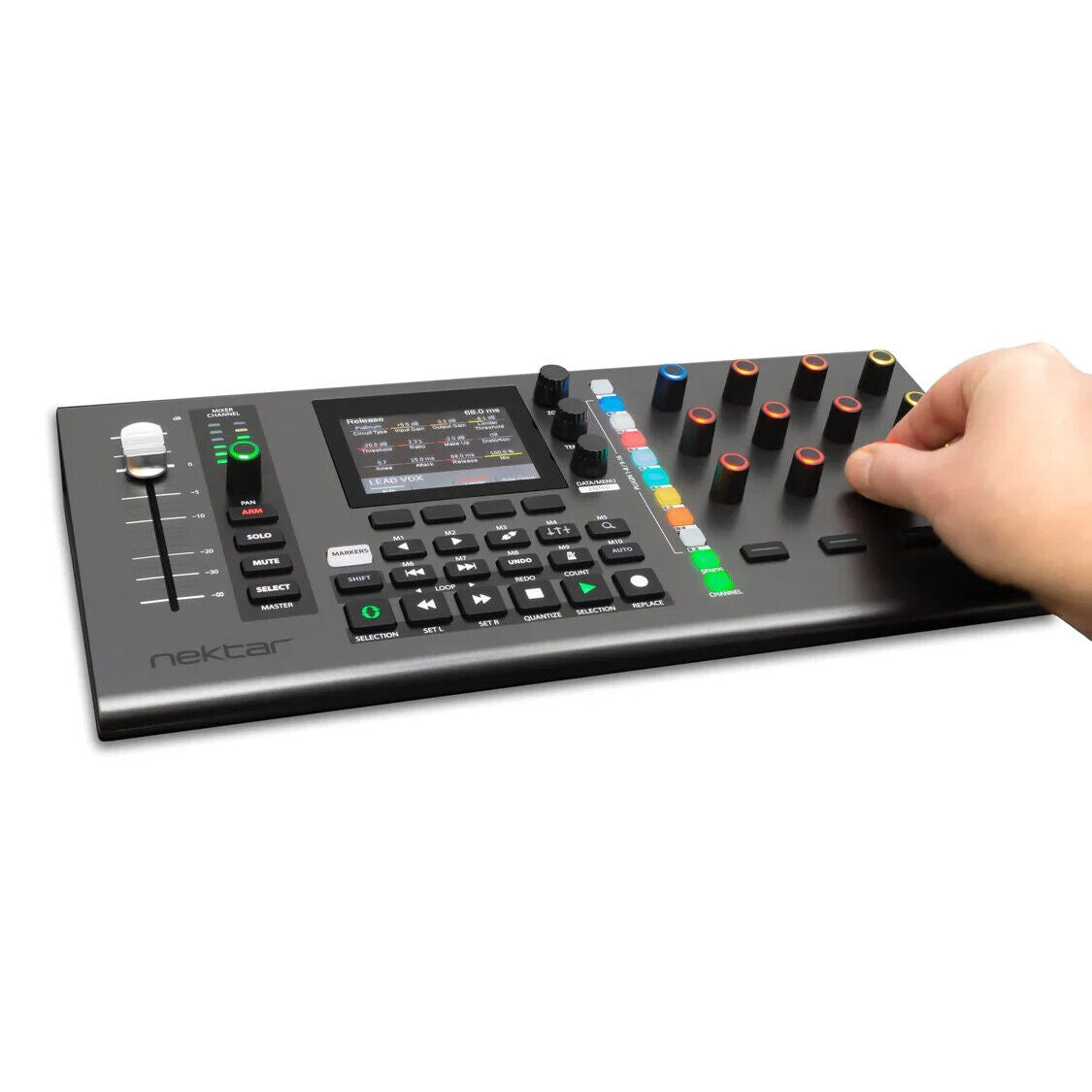

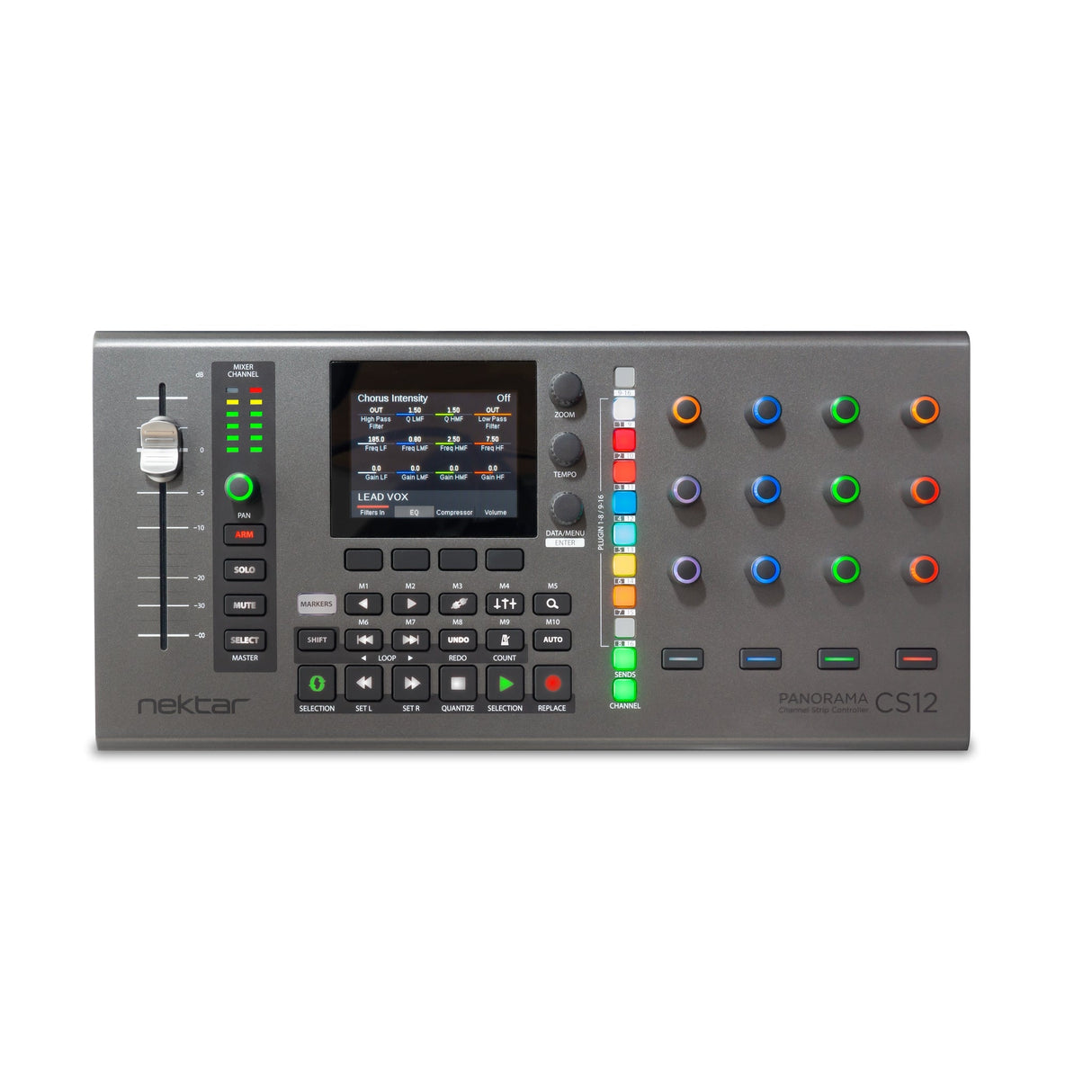

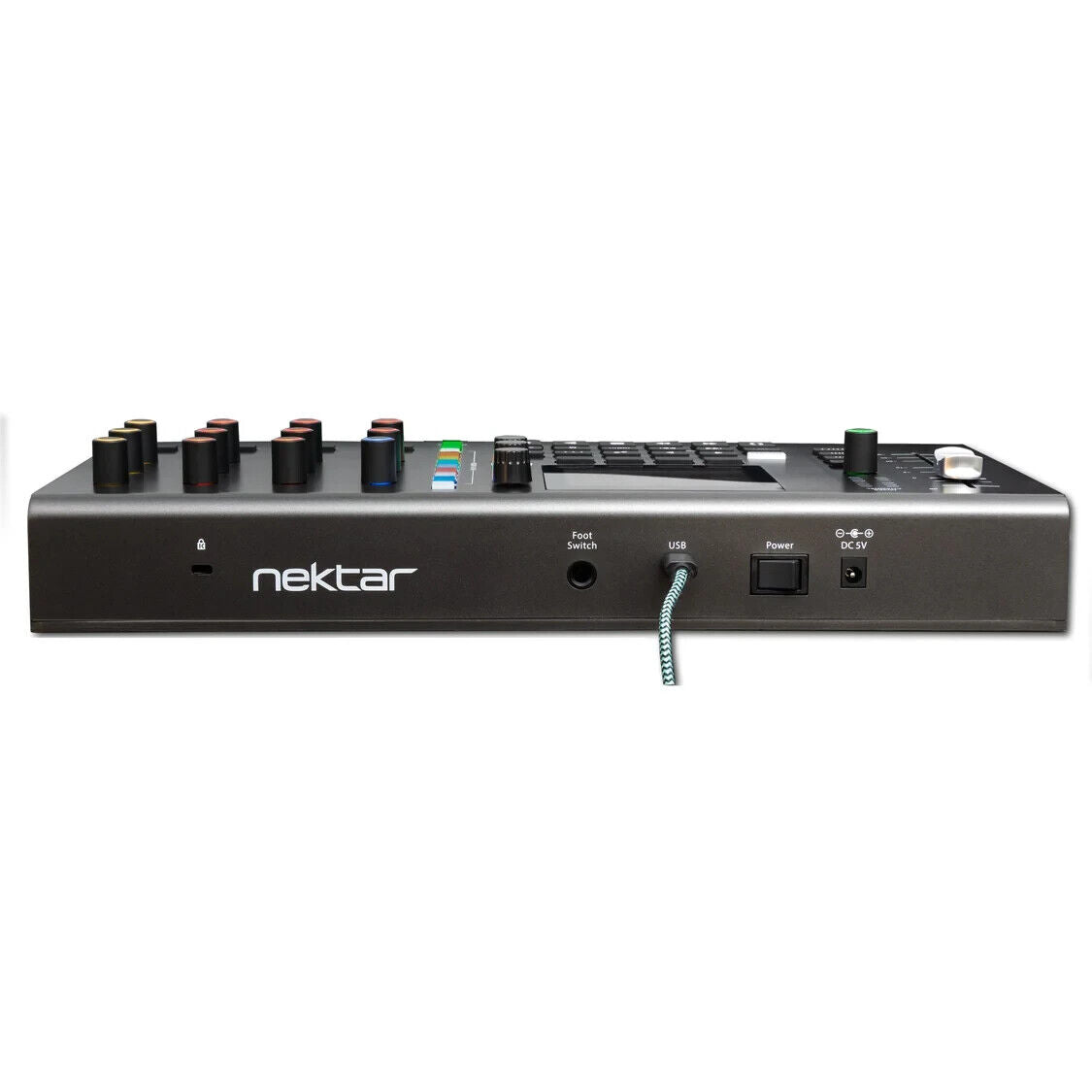

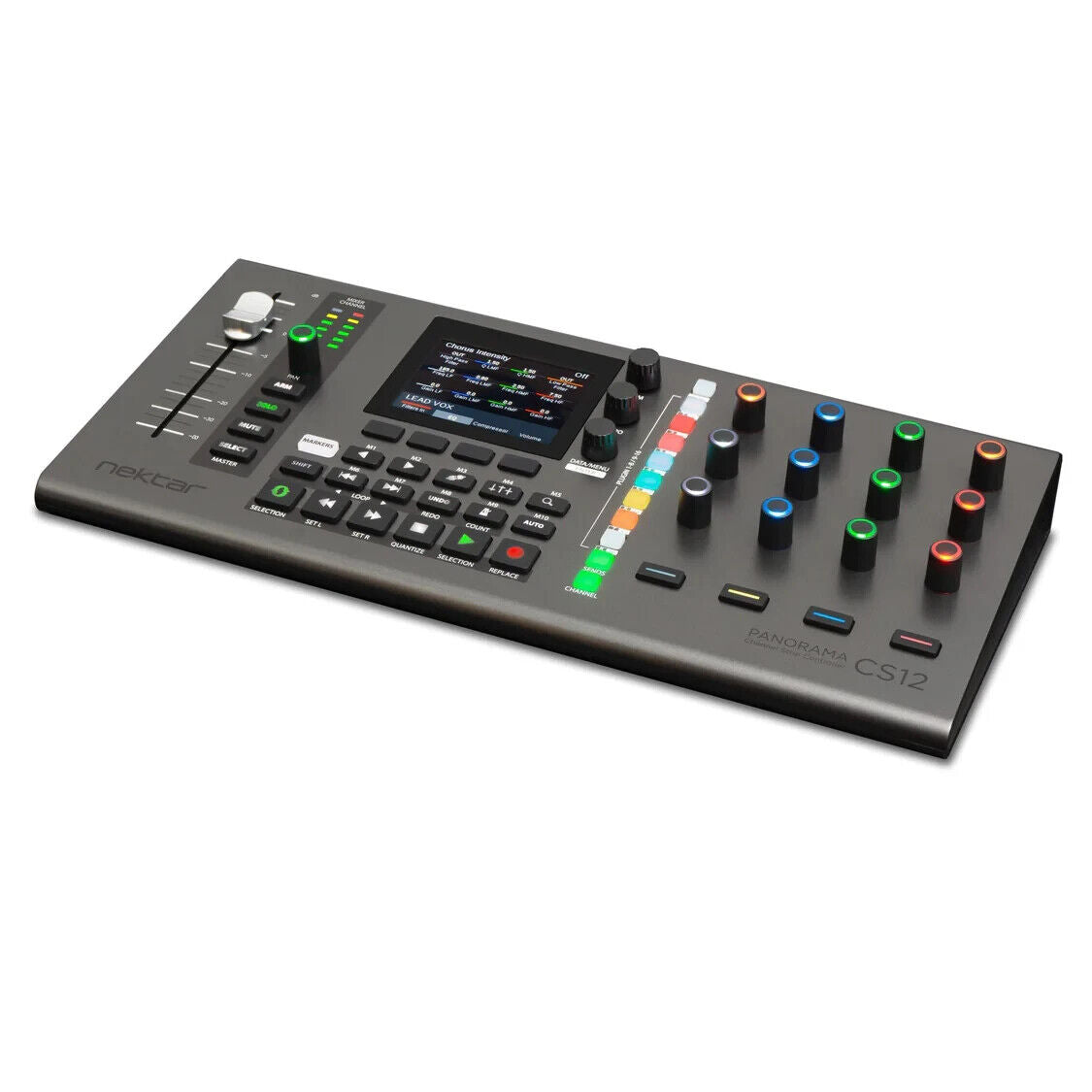

Nektar Panorama CS12 Channel Strip Controller is a unique controller offering complete control over all Logic Pro channel strip parameters, including plugins, setting it apart from other controllers. This innovative device is far from ordinary, as its entire workflow is custom-designed to introduce remarkable features not seen before on a control surface.

High-Resolution Fader with Touch Sensing
The 100mm ALPS motorized fader seamlessly follows the selected mixer channel, providing detailed control with up to 14-bit resolution and touch sensing for real-time automation override and updates.

Dedicated Controls
Alongside the fader, there are dedicated pan controls, as well as buttons for solo, mute, and record arm, offering instant access to all primary mixer parameters on the selected channel.

Effortless Parameter Control
By simply clicking on a parameter, the 100mm ALPS fader instantly adjusts to the clicked position, allowing you to take control. The fader or pan rotary can manage any parameter in the currently selected Logic Pro channel at any given time.

Clean Automation
Panorama CS12 simplifies automation recording by enabling the insertion of automation points with ease, providing a clean and efficient process.

Complete Plugin Control
The device excels in controlling plugins, with pre-mapped commonly used plugins and the ability to control any plugin without the need to view the plugin's UI, ensuring a seamless editing experience.

Plugin Slot Selection
CS12 uniquely controls insert plugins with 8 plugin slot select buttons, allowing immediate control over the selected plugin.

Plugin Parameter Learn
A quick learn feature facilitates on-the-fly assignments by simply moving a parameter and matching a control, with the added option to customize LED colors.

Nektarine Map Creation
For comprehensive control mapping, the Nektarine application/plugin lets users assign parameters to controls through drag-and-drop, creating optimized page structures for the CS12, ensuring a tailored experience.

Key Features

• Motorized fader with a long throw of 100mm

• Control resolution of up to 14 bits

• Ability to set volume and insert automation point by touching the fader

• Dedicated pan control with illuminated channel color

• Features arm, mute, and solo functions

• Option to use fader or pan control to adjust any parameter in the current channel, including plugins

• Advanced control of AU and Logic Pro insert effects

• Capability to control up to 12 sends per channel

• Instrument control through Selected parameter, SmartControl, or Logic Pro learn user pages

• 11 color illuminated buttons for selecting plugin slots, sends, and channel menus

• Fine control at a resolution up to 10 times normal (14 bit)

• Zoom and tempo controls

• Access to 26 transport, navigation, and Logic Pro functions

Technical Specifications

System Requirements
USB class compliant, no driver needed.
Nektar ControlCore installation required. Unit doesn’t operate on its own.
A Nektar account for registration and download of support files.
USB Power Requirement: 500 mA minimum, connect to a USB high power port recommended.
MacOS: 11.5 or later.
Logic Pro: 10.7 or higher.
Dimensions & Weight
39 cm (L) x 11,5 cm (D) x 3,2 cm (H), 0,49 kgs
Included
Panorama CS12
Quickstart guide and functional overview. All other documentation is part of the download package.
USB A to C cable.
