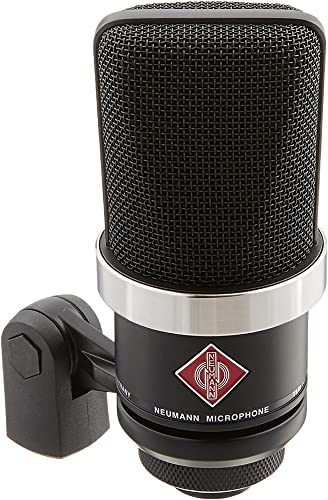

Neumann TLM 102 BK Cardioid Mic with K102 Capsule, includes SG2 and Carton Box Black

The reduced overall size contributes to an exceptionally compact appearance, which unIt's all of the typical design components of a Neumann microphone. The harmonious proportions and gleaming grille ring ensure that even at first glance, the Neumann TLM102BK Cardioid Mic with K102 Capsule, includesSG2 and Carton Box | Black attracts attention.

The TLM 102 is impressive in terms of sound: In the interior is a newly developed large-diaphragm capsule (cardioid) with a maximum sound pressure level of 144 dB, which permits the recording of percussion, drums, amps and other very loud sound sources, for example. Instruments that are not especially loud also benefit from the very fast transient response of the TLM 102. However its most important applications are in the realm of vocals and speech; a slight boost above 6 kHz provides for excellent presence of the voice in the overall mix. Up to 6 kHz the frequency response is extremely linear, ensuring minimal coloration and a clearly defined bass range. The capsule has an elastic suspension for the suppression of structure-borne noise. A pop screen integrated into the grille serves to suppress plosives in vocal and speech recording.

Due to its price and flexible field of application, the TLM 102 is ideal for the home recording and project studio sector, as well as for the broadcasting area, especially when clear lines of sight to the speakers are a priority.

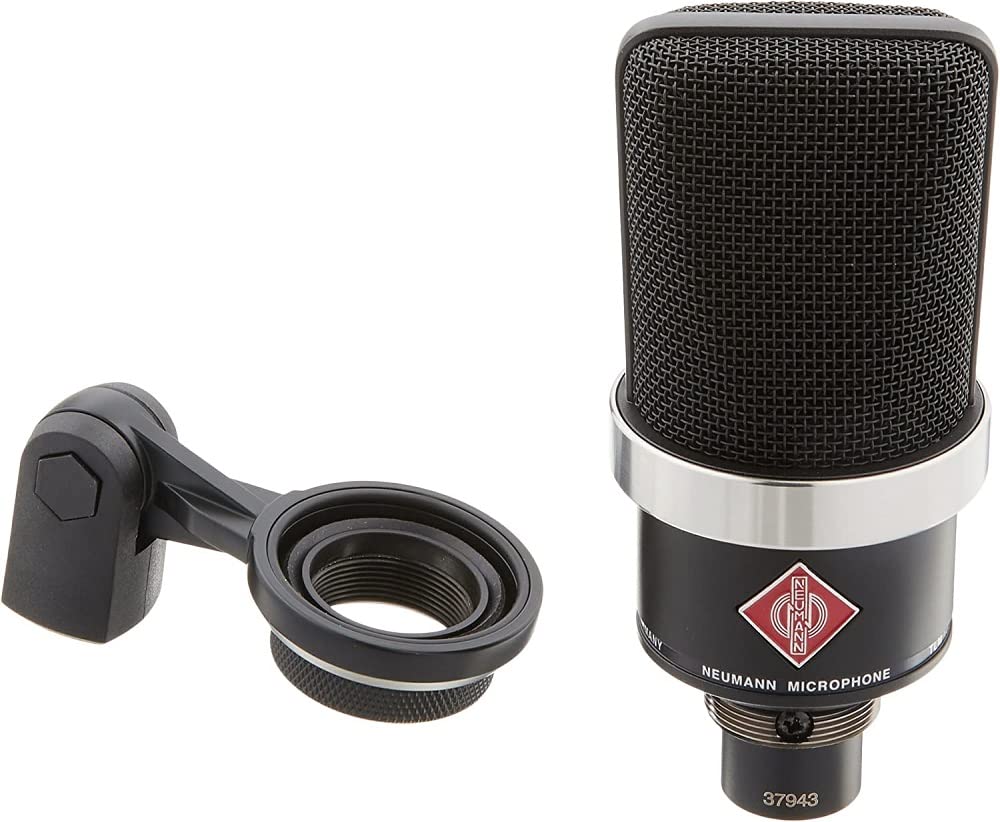

The TLM 102 is available in black and nickel; a stand mount is included.

Key Features

Large-diaphragm microphone with cardioid directional characteristic (pressure gradient transducer)
Compact, characteristic but smaller-scale Neumann design
Very high maximum sound pressure level
Slight presence boost above 6 kHz
Transformerless circuitry

Technical Specs

Acoustical operating principle
Pressure gradient transducer
Directional pattern
Cardioid
Frequency range
20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm
11 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR
21 dB
Equivalent noise level, CCIR
21 dB
Equivalent noise level, A-weighted
12 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)
73 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
82 dB-A
Maximum SPL for THD 0.5 %
144 dB
Maximum output voltage
13 dBu
Dyn. range of the mic. amplifier (A-weighted, 0.5 %)
132 dB
Supply voltage (P48, IEC 61938)
48 V ± 4 V
Current consumption (P48, IEC 61938)
3.5 mA
Matching connector
XLR 3F
Weight
210 g, 0.5 lbs
Diameter
52 mm
Length
116 mm
