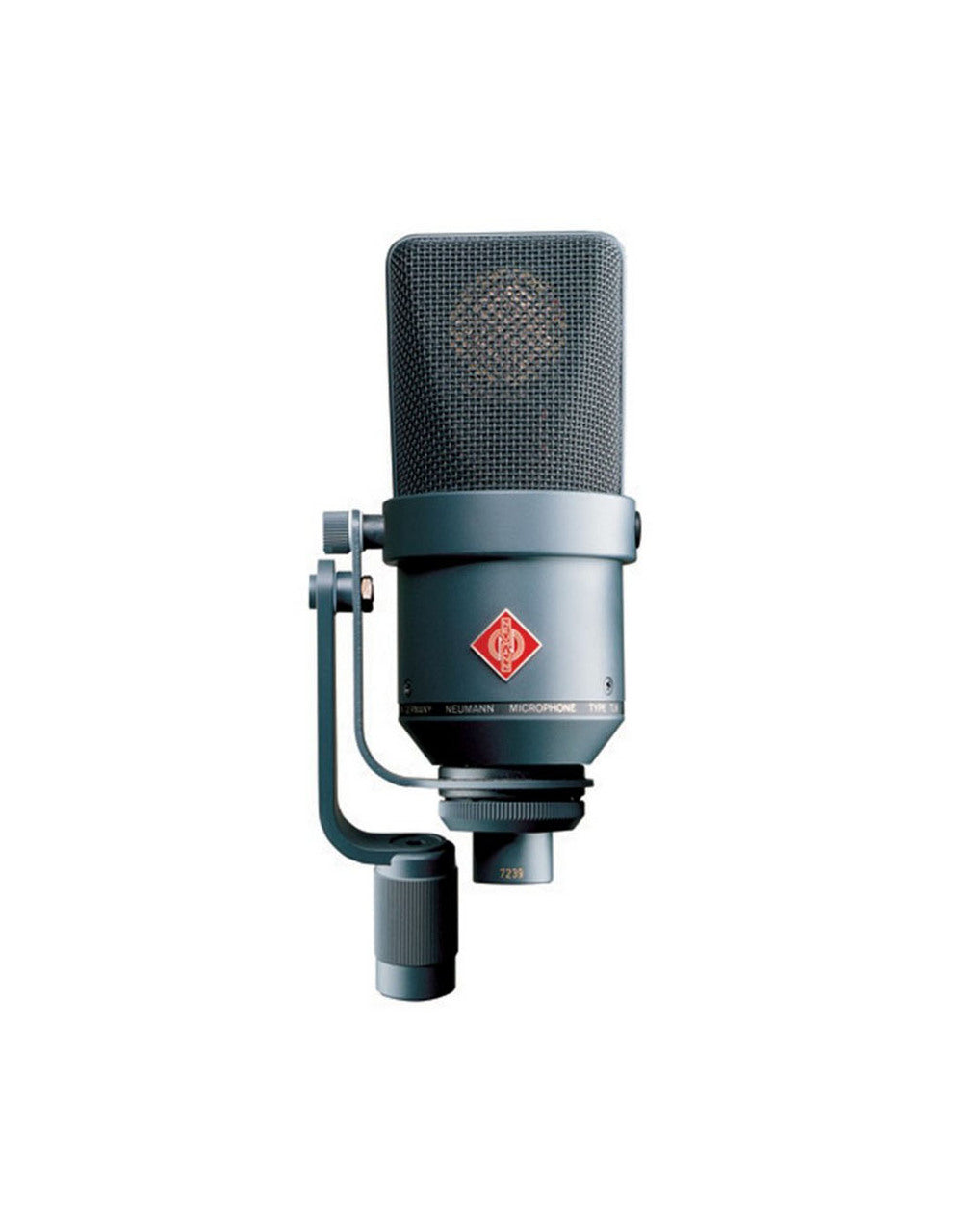

Neumann TLM 170 R MT Stereo Factory-Matched Stereo Set of Two TLM170RMT with EA170MT in Mic Briefcase Matte Black

The Neumann TLM170RMTSTEREO Factory-Matched Stereo Set of Two TLM170RMT with EA170MT in Mic Briefcase | Matte Black doubles the quality and sound of the famed condenser microphone by including two factory matched microphones in this kit. Achieve excellent stereo recordings of instruments, performances, ambiance and more. Two shock mounts and a storage case is also included.

Key Features

Local and remote controlled large diaphragm microphone
Pressure-gradient transducer with double membrane capsule
Five directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Patented circuitry for remote and local switching of directional characteristics
Switchable low frequency roll-off and 10 dB preattenuation
Tiltable, elastically suspended bracket mount

Technical Specs

Acoustical operating principle
Pressure gradient transducer
Directional pattern
Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range
20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm
8 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR
26 dB
Equivalent noise level, A-weighted
14 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)
68 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
80 dB-A
Maximum SPL (tube characteristic) for THD < 0.5 %
144 dB
Maximum SPL (tube characteristic) for THD < 5 %
154 dB
Maximum output voltage
10 dBu
Dyn. range of the mic. amplifier (A-weighted, 0.5 %)
130 dB
Supply voltage (P48, IEC 61938)
3 mA
Matching connector
XLR 3F

Weight
625 g, 1 -1/4 lbs
Diameter
60 mm
Length
152 mm
