Neumann TLM 67 SET Z | Multi-Pattern Mic with K67 Capsule, Omni, Cardioid and Figure 8 Patterns, Pad, and Filter
Neumann TLM 67 SET Z | Multi-Pattern Mic with K67 Capsule, Omni, Ca...
Free Shipping

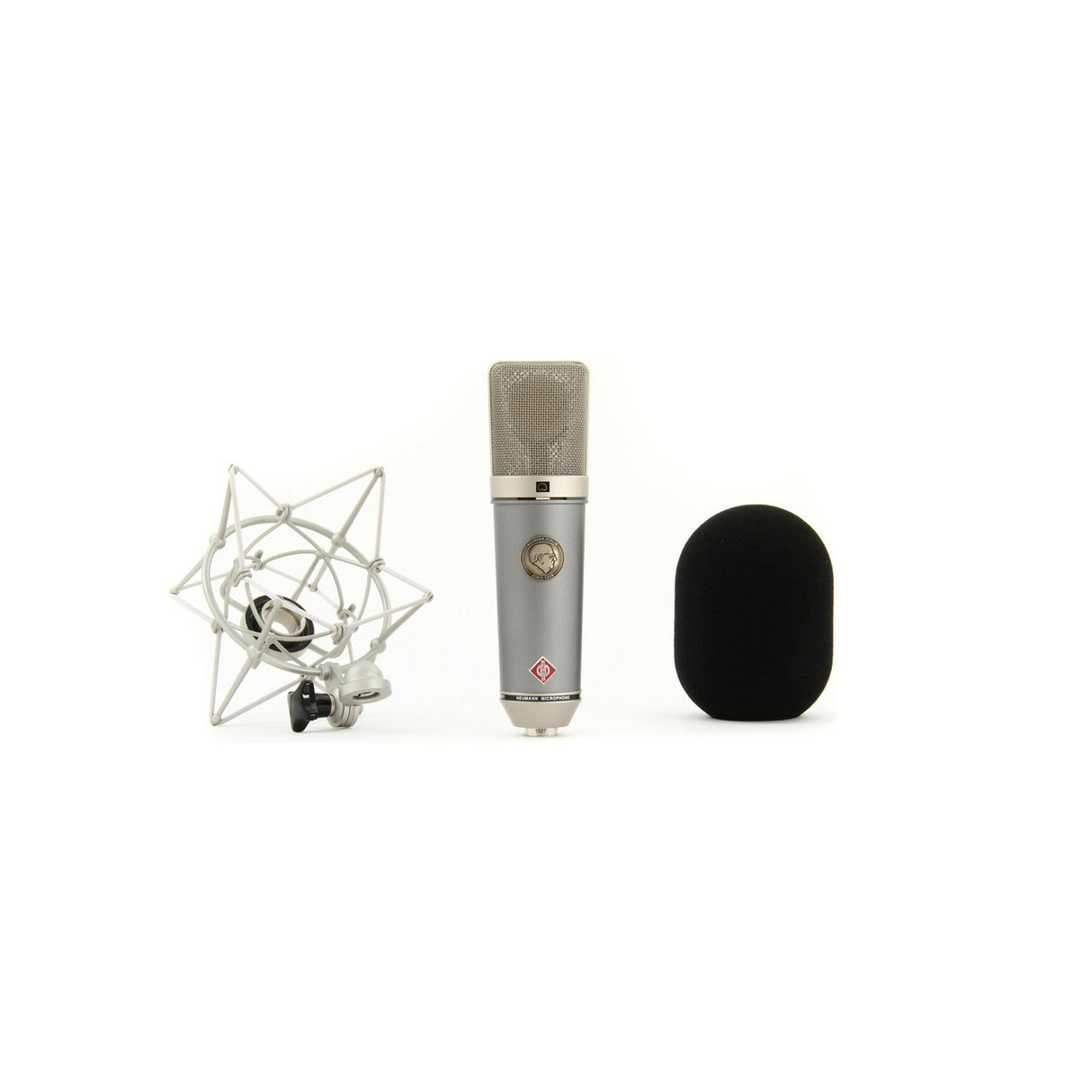

Neumann TLM 67 SET Z Multi-Pattern Mic with K67 Capsule, Omni, Cardioid and Figure 8 Patterns, Pad, and Filter

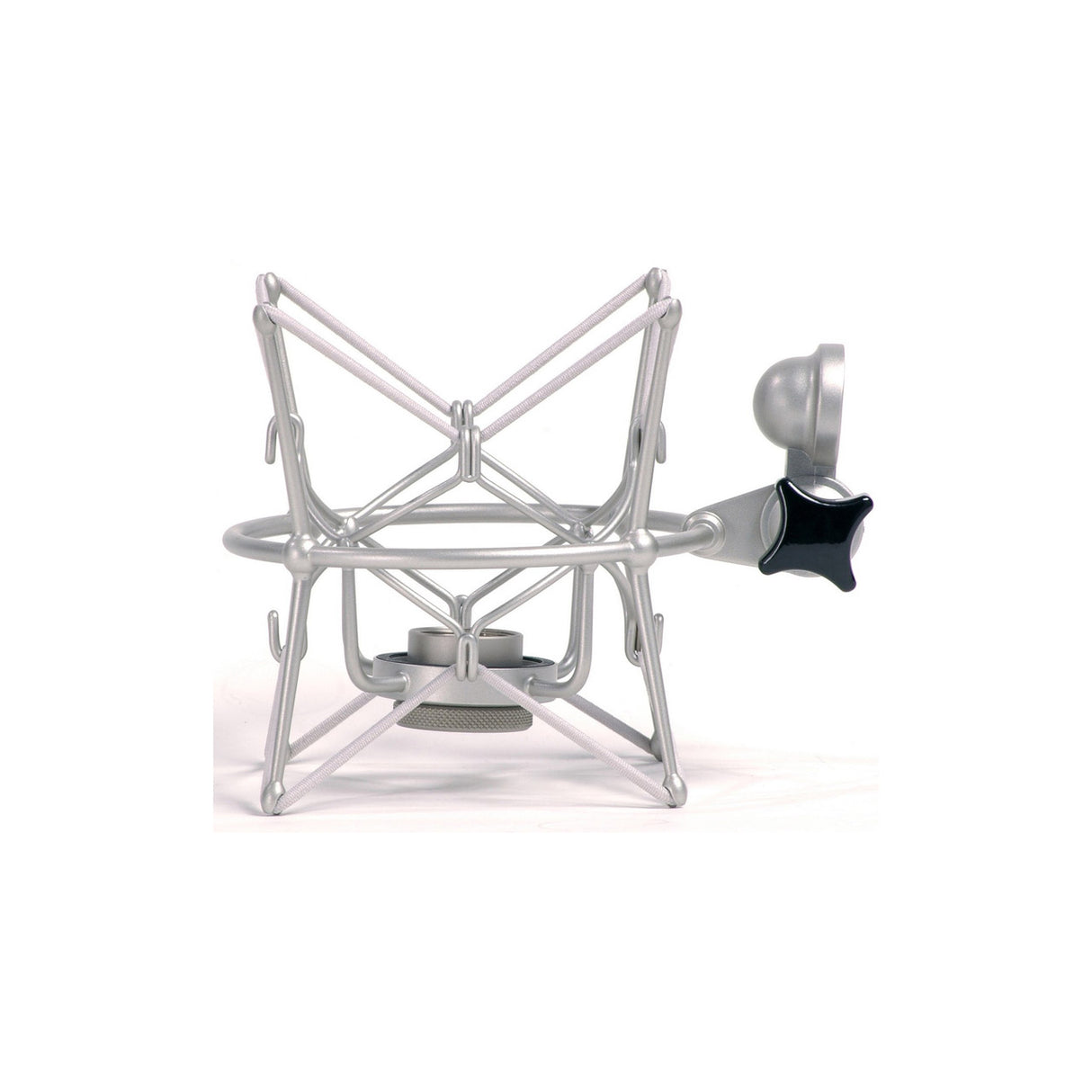

The Neumann TLM67SETZ Multi-Pattern Mic with K67 Capsule, Omni, Cardioid and Figure 8 Patterns, Pad, and Filter contains the legendary number "67" in its name for good reason. Indeed, the TLM 67 is Neumann's contemporary development of the studio classic U 67. Closely reproducing all the sound characteristics of the famous 1960s staple, the TLM 67 incorporates the same K 67 capsule as the U 67, with TLM 49 tube circuit. This particular TLM 67 "Set Z" comes with its own professional shockmount. An extremely versatile three-pattern, large-diaphgragm condenser microphone, take a piece of Neumann - and recording - history into your studio with the TLM 67. Along with the numbers "47" and "87," the number "67" resonates within studio professionals the world over. All classics in their own right, The elite Neumann U 47, U 67, and U 87 have attended some of the most legendary recording sessions in music history. Today, Neumann gives us a contemporary development of the classic U 67 in the form of the TLM 67. Using the same K 67 capsule as the U 67, the TLM 67 employs a transformerless design - the same circuitry proved extremely successful with the TLM 49.
Key Features
Sound characteristics based on the legendary U 67
Three switchable directional characteristics (omnidirectional, cardioid and figure-8)
Switchable high-pass filter and pre-attenuation
Transformerless circuit technology
New dual-color exterior design
Technical Specs
Acoustical operating principle
Pressure gradient transducer
Directional pattern
Omni/cardioid/figure-8
Frequency range
20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm
10/18/9 mV/Pa
Rated impedance
50 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR
29/24/30 dB
Equivalent noise level, A-weighted
16/11/17 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)
65/70/64 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
78/83/77 dB-A
Maximum SPL (tube characteristic) for THD < 0.5 %
110/105/111 dB
Maximum SPL (tube characteristic) for THD < 5 %
130/125/131 dB
Maximum output voltage
-1 dBu
Dyn. range of the mic. amplifier (A-weighted, 0.5 %)
94 dB
Dyn. range of the mic. amplifier (A-weighted, 5 %)
114 dB
Power supply
P48
Matching connector
XLR 3F
Weight
490 g, 1 lbs
Diameter
56 mm
Length
200 mm
