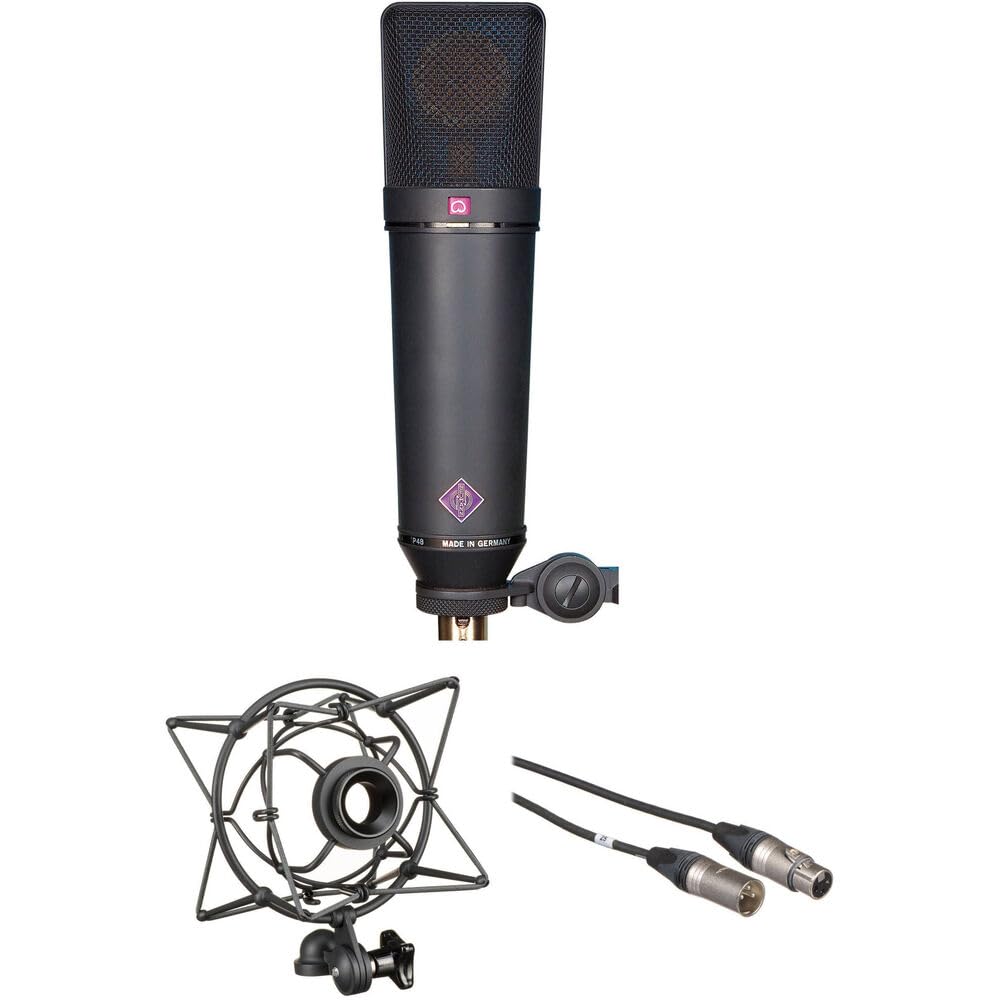

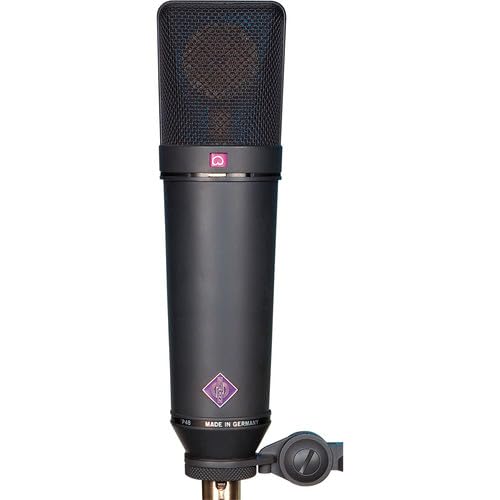

Neumann U 87 AI MT SET Z Includes U 87 AI MT, EA87MT, WS87, IC3/25 Matte Black
Neumann U 87 AI MT SET Z Includes U 87 AI MT, EA87MT, WS87, IC3/25 ...
Free Shipping
Neumann U 87 AI MT SET Z Includes U 87 AI MT, EA87MT, WS87, IC3/25 Matte Black
The Neumann U87AISETZ includes U87AI, EA87, WS87, IC3/25 | Nickel is arguably the best known and most widely used studio microphone in the world (for good reason). The U 87 Ai condenser microphone is a large diaphragm microphone with three polar patterns and a unique frequency and transient response characteristic. A distinctive design and legendary Neumann sound make this mic a must-have for pro studios. The U 87 is known for its unique frequency and transient response characteristics which deliver a smooth natural sound with a variety of source material. The U 87 Ai is used as a main microphone for orchestra recordings, as a spot mic for single instruments, and extensively as a vocal microphone for all types of music and speech. The easy-to-recognize U 87 is a classic!
Key Features
Variable large diaphragm microphone
Pressure-gradient transducer with double membrane capsule
The studio microphone classic
Three directional characteristics: omni, cardioid, figure-8
Switchable low frequency roll-off
Switchable 10dB pre-attenuation
Idial as main and as support microphone in the most differing recording situations
Technical Specs
Acoustical operating principle
Pressure gradient transducer
Directional pattern
Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency range
20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm
20/28/22 mV/Pa
Rated impedance
200 ohms
Rated load impedance
1 kohms
Equivalent noise level, CCIR
26/23/25 dB
Equivalent noise level, A-weighted
15/12/14 dB-A
Signal-to-noise ratio, CCIR (rel. 94 dB SPL)
68/71/69 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL)
79/82/80 dB-A
Maximum SPL (tube characteristic) for THD < 0.5 %
117 dB
Maximum SPL (tube characteristic) for THD < 5 %
127 dB
Maximum output voltage
390 dBu
Dyn. range of the mic. amplifier (A-weighted, 0.5 %)
105 dB
Supply voltage (P48, IEC 61938
48 V Ā± 4 V
Matching connector
XLR 3F
Weight
500 g, 1.1 lbs
Diameter
56 mm
Length
200 mm
