Neutrik NAC3MPX-TOP Receptacle End Connector PowerCON TRUE1 TOP Male Power in 1/4 Inch Flat Tab Terminals
Neutrik NAC3MPX-TOP Receptacle End Connector PowerCON TRUE1 TOP Mal...
Neutrik NAC3MPX-TOP Receptacle End Connector PowerCON TRUE1 TOP Male Power in 1/4 Inch Flat Tab Terminals

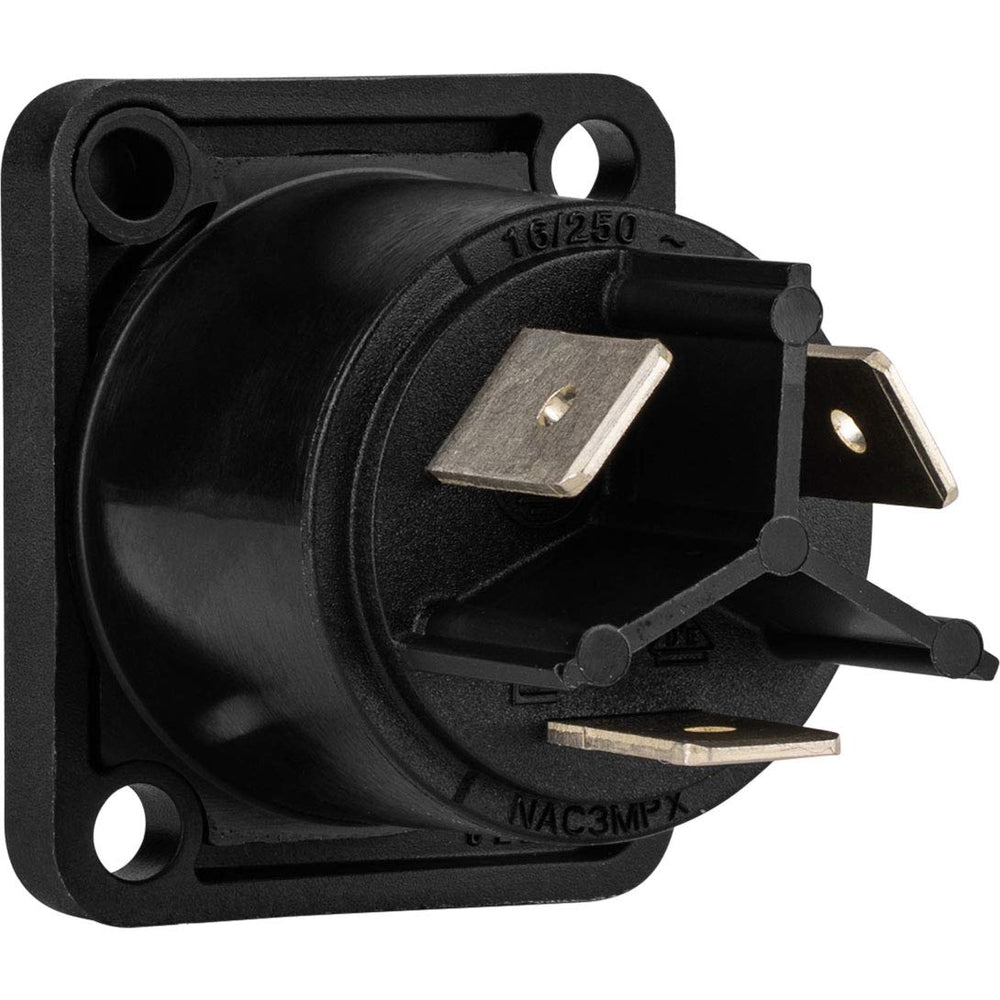

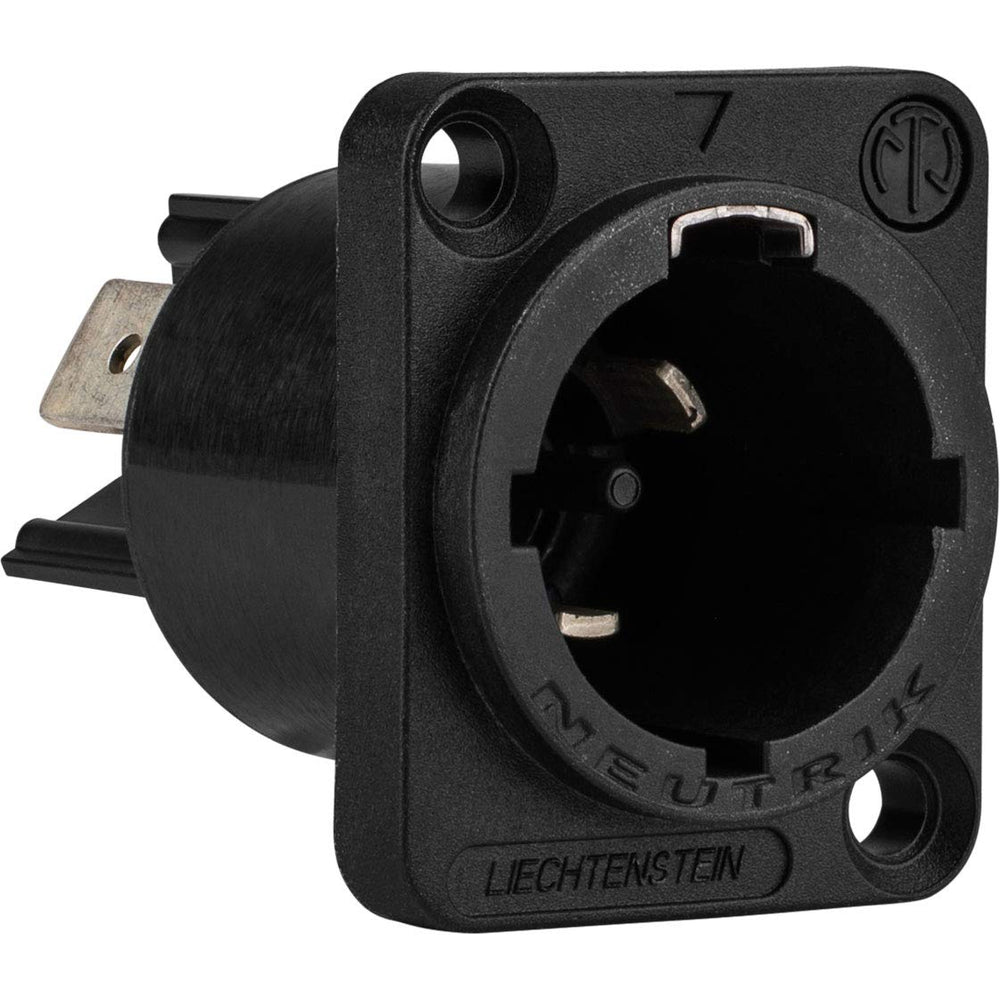

The NAC3MPX-TOP is a Male appliance inlet connector with 1/4" flat tab terminals. The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Key Features
- Heavy duty sealed power connector for harsch and demanding environment
- Uses high impact UV-resistant materials
- Lockable 16 A single phase connector (USA: 20 A)
- Extremely robust and reliable
- ENEC certified according to IEC 60320
- Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-MPX)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
- Unique Neutrik cable retention
- UL498 certified
Technical Specifications
Contact resistance
3 m?
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
> 0,1 G? (after damp heat test)
Number of electronical contacts
2 + PE
Rated current per contact
16 A rms (USA: 20 A)
Rated voltage
250 V ac
Lifetime
> 5000 mating cycles
Wiresize
2.5 mm
Wiresize
12 AWG
Contact plating
2 m Ag
Locking element
Stainless steel
Shell
Polyamide (PA 6.6 30 % GR)
Contacts
Spring Copper (CuSn0.2)
Flammability
UL 94 V-0
Protection class
IP65, UL50E enclosure type 4 (mated or in combination with SCNAC-MPX)
Temperature range
-30 C to +80 C
