Neutrik NC3FD-L-BAG-1 3-Pin Female XLR Panel/Chassis Mount Connecto...

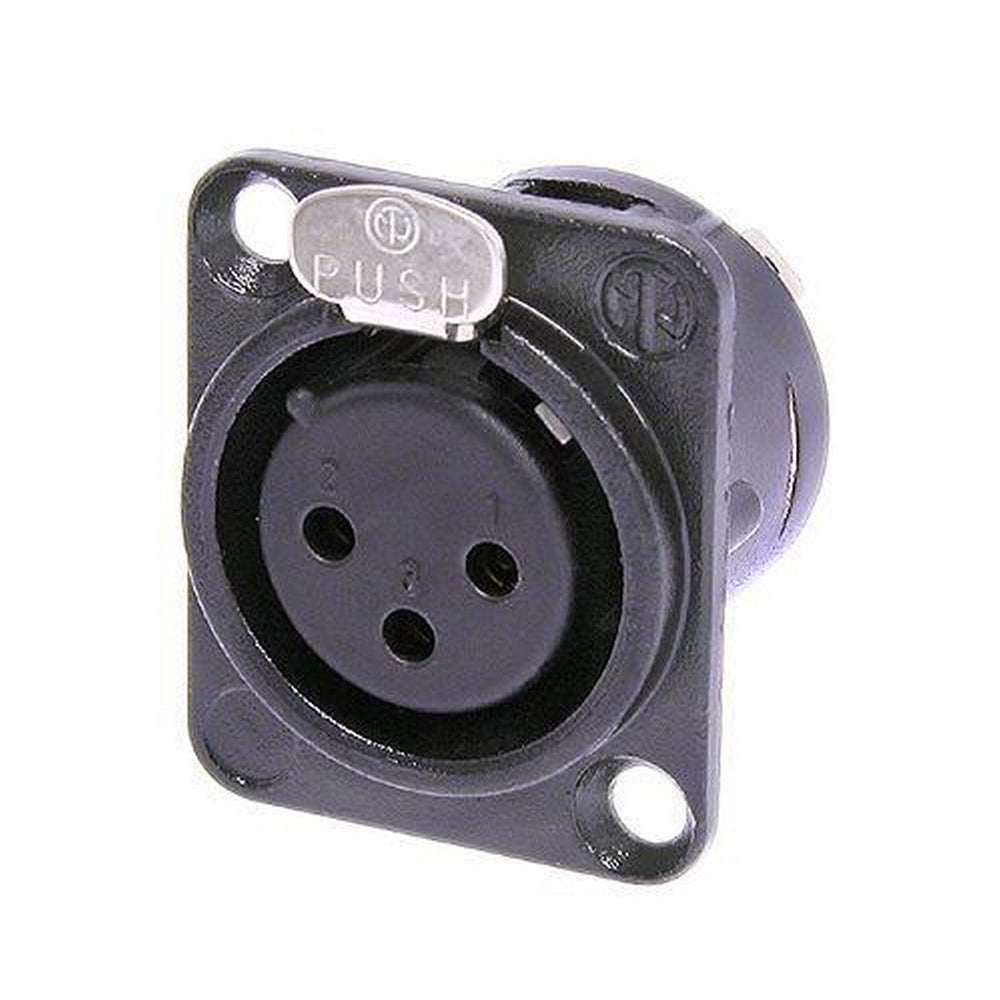

Neutrik NC3FD-L-BAG-1 3-Pin Female XLR Panel/Chassis Mount Connector, Latching
3 pole female receptacle, solder cups, black metal housing, silver contacts. Universal D-size metal body XLR panel mount series. UL recognized component.
Key Features
- Robust “D” metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
Technical Specifications
Title
NC3FD-L-BAG-1
Connection Type
XLR
Gender
Female
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Chassis shape
D
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 Degrees C to +80 Degrees C
