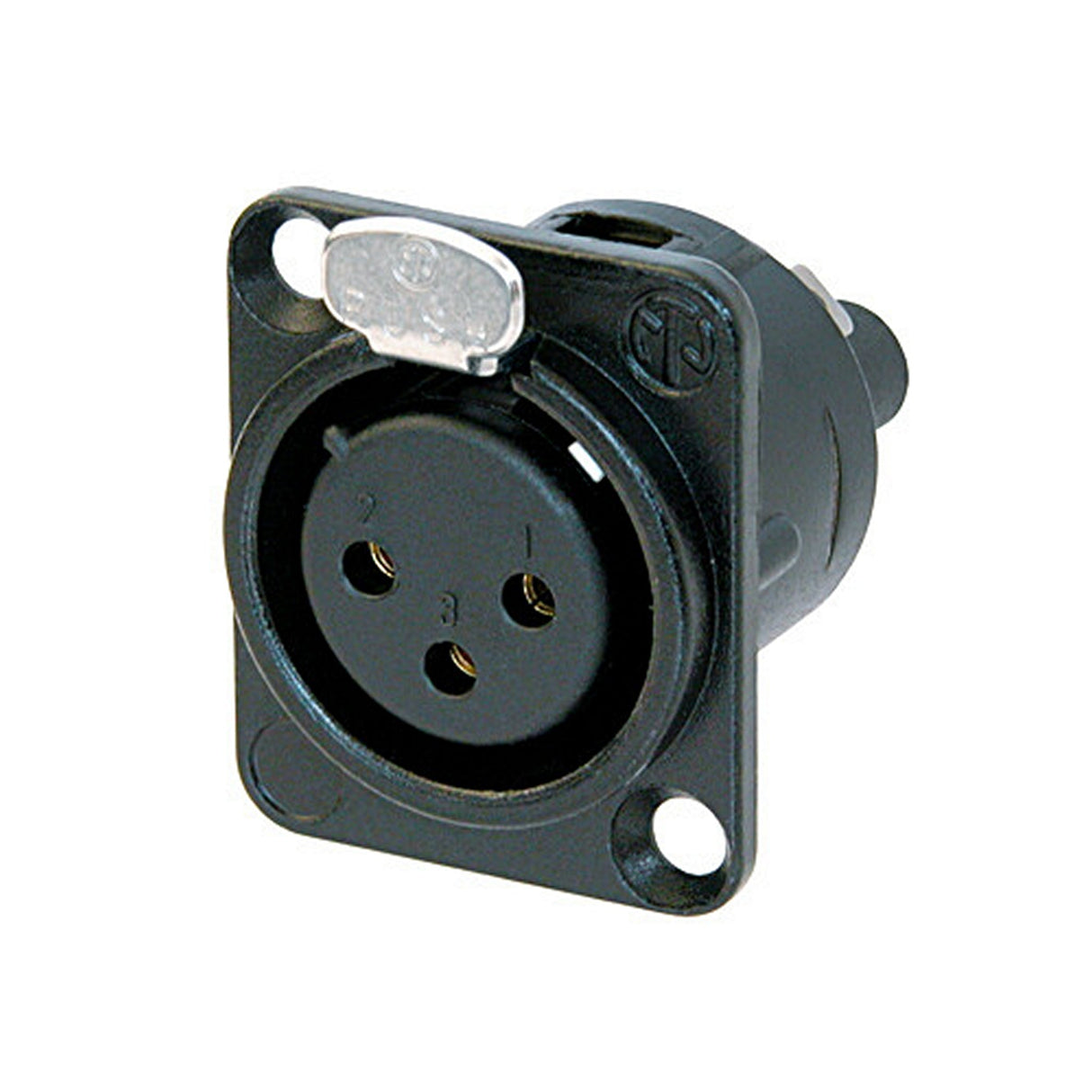

Neutrik NC3FD-S-1-B 3-Pin Female XLR Panel/Chassis Mount Connector, Screw Terminals
The Neutrik NC3FD-S-1-B is a premium 3-pin XLR female connector, engineered to meet the high demands of professional audio environments. This connector is designed with precision to ensure a secure and reliable connection, minimizing signal loss and interference. Ideal for use in live sound, broadcast, and recording applications, the NC3FD-S-1-B offers exceptional durability and performance. Its robust construction includes a metal shell for added strength, while the gold-plated contacts provide excellent conductivity and resistance to corrosion. Whether you're setting up a high-end audio system or replacing connectors in your existing setup, the Neutrik NC3FD-S-1-B delivers top-notch quality and reliability.
Built to withstand the rigors of demanding audio tasks, the NC3FD-S-1-B features a user-friendly design that simplifies installation and maintenance. The intuitive locking mechanism ensures that connections stay firmly in place, even in high-vibration environments. With its sleek and compact profile, this connector easily integrates into various audio setups without adding bulk or compromising aesthetics.
Key Features
- 3-pin XLR female connector with a secure locking mechanism
- Metal shell for enhanced durability and ruggedness
- Gold-plated contacts for superior conductivity and corrosion resistance
- Compact and sleek design for easy integration into various setups
- Ideal for professional audio applications including live sound and recording
Technical Specifications
Gender
Female
Electrical
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 5 mΩ
Dielectric strength: 1.5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 3 A
Rated voltage: < 50 V
Mechanical
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: 0.14 mm² to 0.5 mm²
Wiresize: 26 AWG - 20 AWG
Wiring: Screw terminals
Locking device: Latch lock
Mounting direction: Rear mounting
Chassis shape: D
Material
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn8)
Insert: PA66
Locking element: Steel Ck67
Shell: Zinc diecast (ZnAl4Cu1)
Shell coating: Black KTL
Environmental
Flammability: UL 94 V-0
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Temperature range: -30 °C to +80 °C
