Neutrik NC3FX-B 3-Pin Female XLR Connector Black
Neutrik NC3FX-B 3-Pin Female XLR Connector Black
Neutrik NC3FX-B 3-Pin Female XLR Connector Black

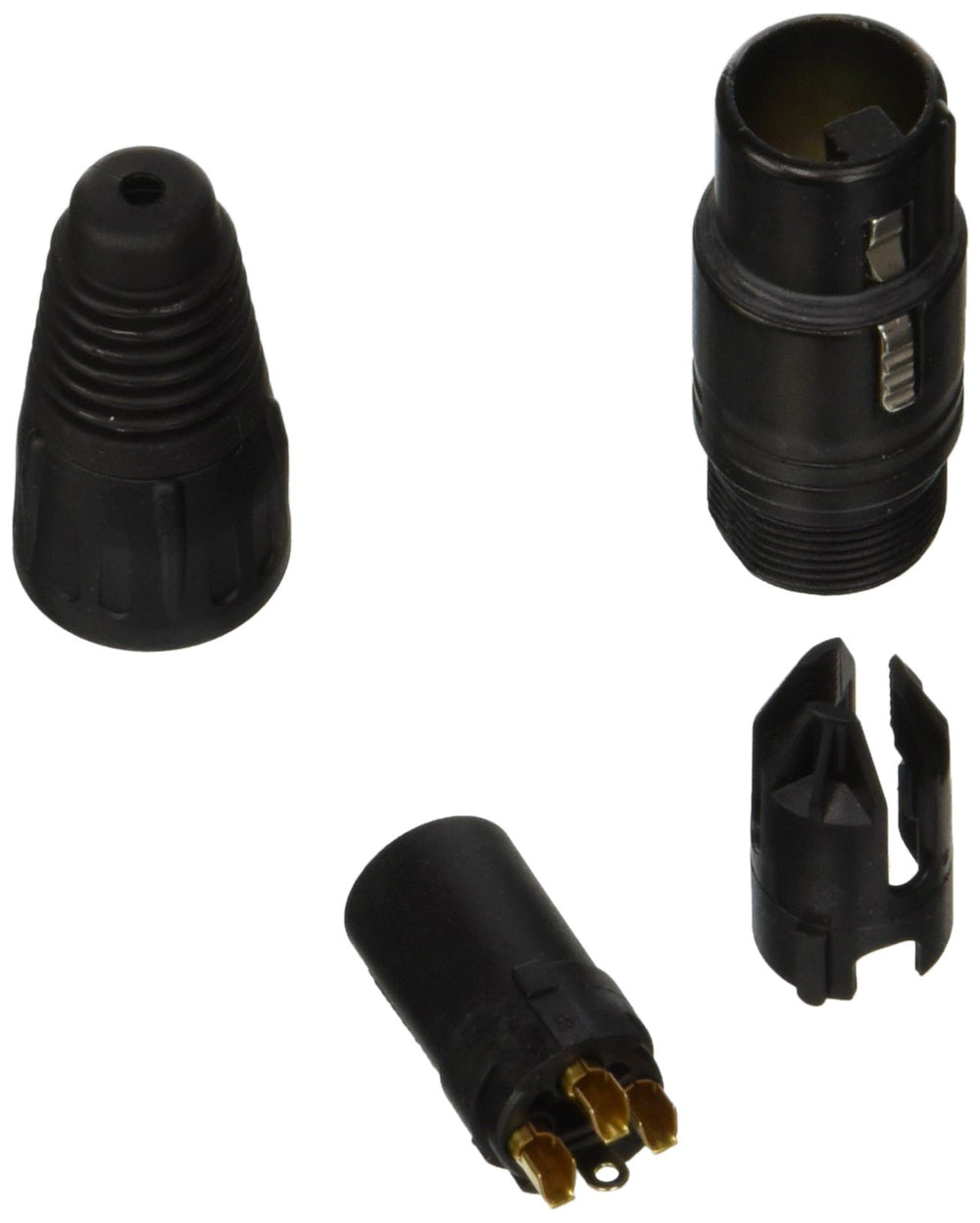

3 pole female cable connector with black metal housing and gold contacts.
Key Features
- Rugged zinc diecast shell, long lasting and durable
- Boot with rubber gland gives high protection against bending stresses
- UL recognized components
- Chuck type strain relief system for secure clamping of cables
- Coloured rings and boots available for coding and marking
Technical Specifications
Title
NC3FX-B
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
4 pF
Contact resistance
3 m
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
20 N
Withdrawal force
20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mmĀ²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
0.2 Āµm Au hard alloy over 2 Āµm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
St3K32 (latch) / Ck 67 (spring)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 Ā°C to +80 Ā°C
