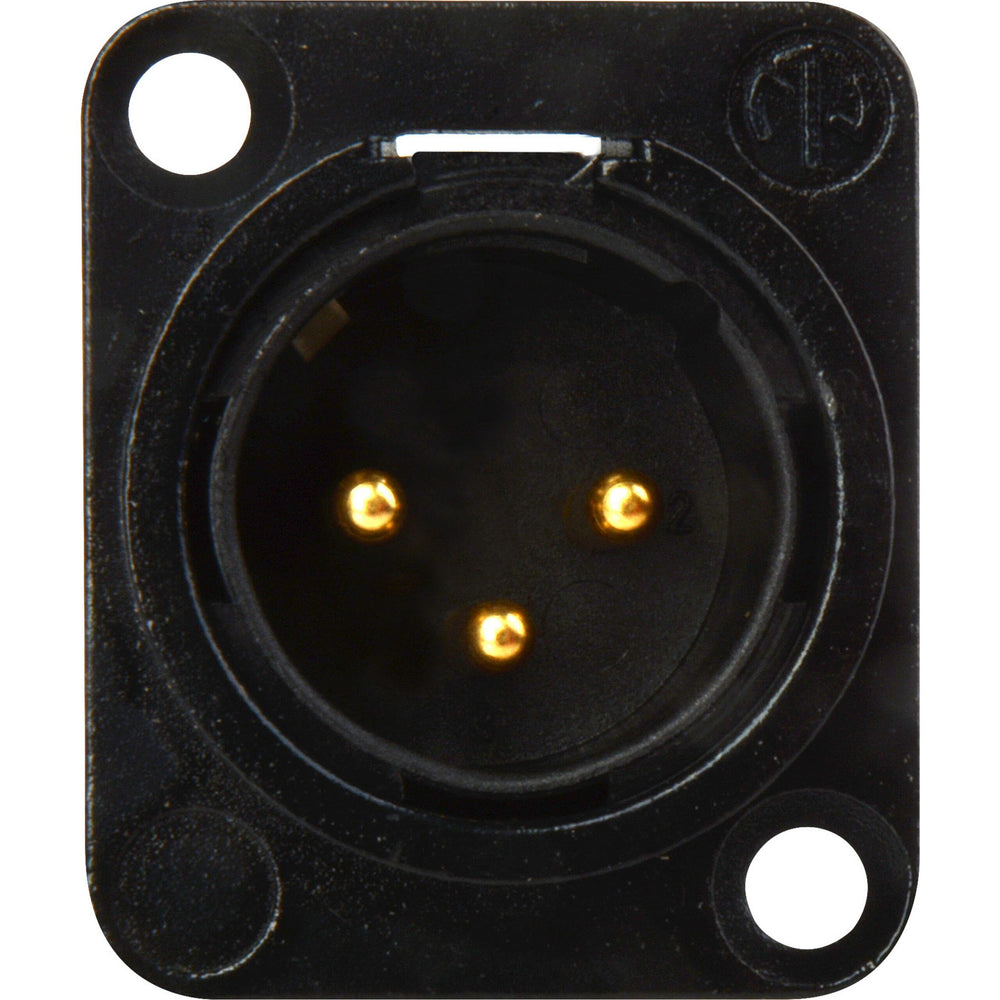

Neutrik NC3MD-L-B-1 3-Pin XLR Male Panel/Chassis Mount Connector, Solder Cups, Black/Gold
Neutrik NC3MD-L-B-1 3-Pin XLR Male Panel/Chassis Mount Connector, S...
Neutrik NC3MD-L-B-1 3-Pin XLR Male Panel/Chassis Mount Connector, Solder Cups, Black/Gold
Neutrik NC3MD-L-B-1 is a 3-pole male receptacle, solder cups, black metal housing, gold contacts
Universal D-size metal body XLR panel mount series. UL recognized component.
Key Features
- Robust “D” metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
Technical Specifications
Connection Type
XLR
Gender
Male
Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
Front mounting
Chassis shape
D
Material
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Environmental
Approvals
UL
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
