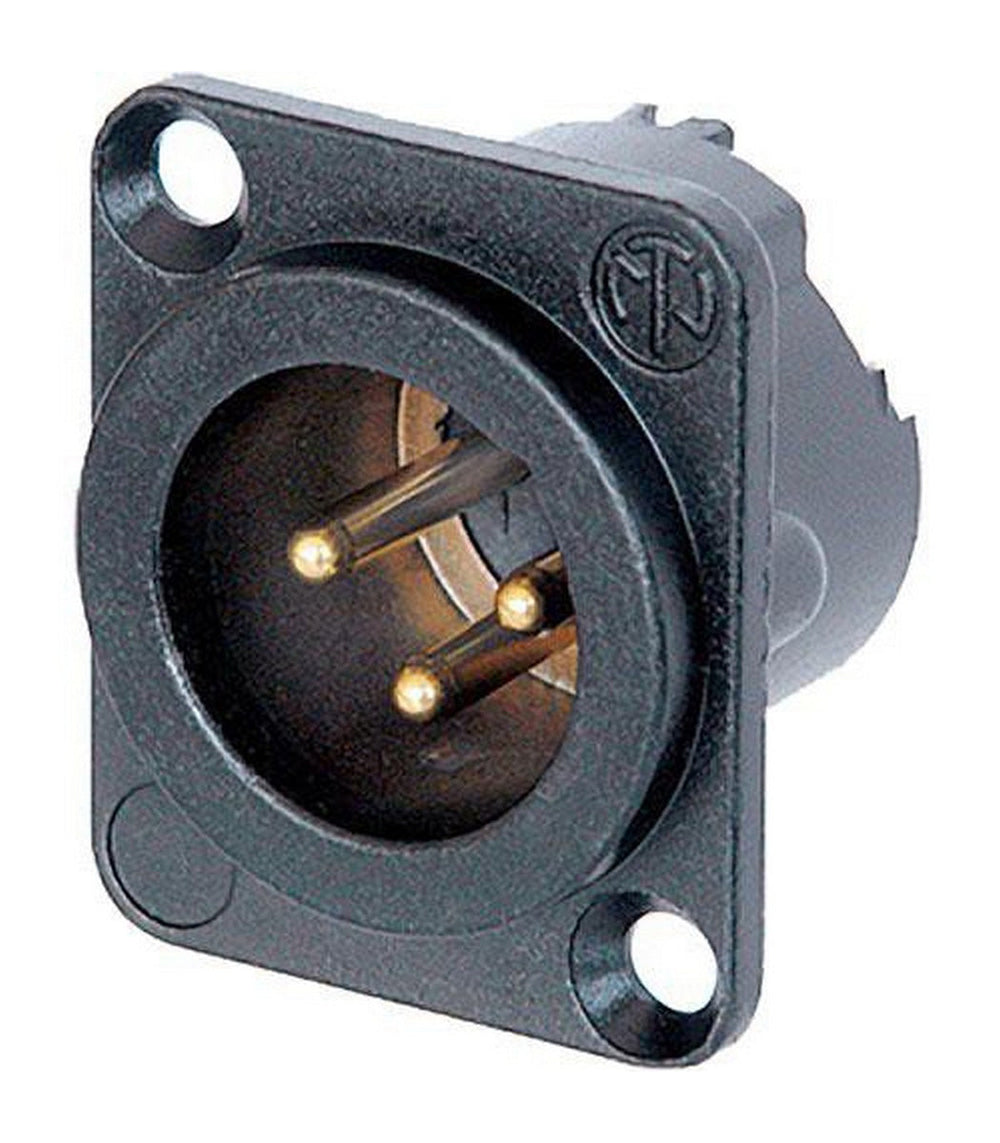

Neutrik NC3MD-LX-B, 3 Pin Male Panel Mount Receptacle - Black/Gold
Neutrik | SKU: NEU-CNNT-NC3MDLXB
Neutrik NC3MD-LX-B, 3 Pin Male Panel Mount Receptacle - Black/Gold
$1000
Unit price
/
Unavailable
Neutrik NC3MD-LX-B, 3 Pin Male Panel Mount Receptacle - Black/Gold
The Neutrik NC3MD-LX-B is a black 3-Pin XLR male receptacle for analog audio applications. The connector has RF protection and 3 shield contacts, ensuring clean signals every time. 3 pole male receptacle, solder cups, black metal housing, gold contacts
Key Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type male contact on 3 pole version increases conductivity and reduces wear on the mated female contact
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
