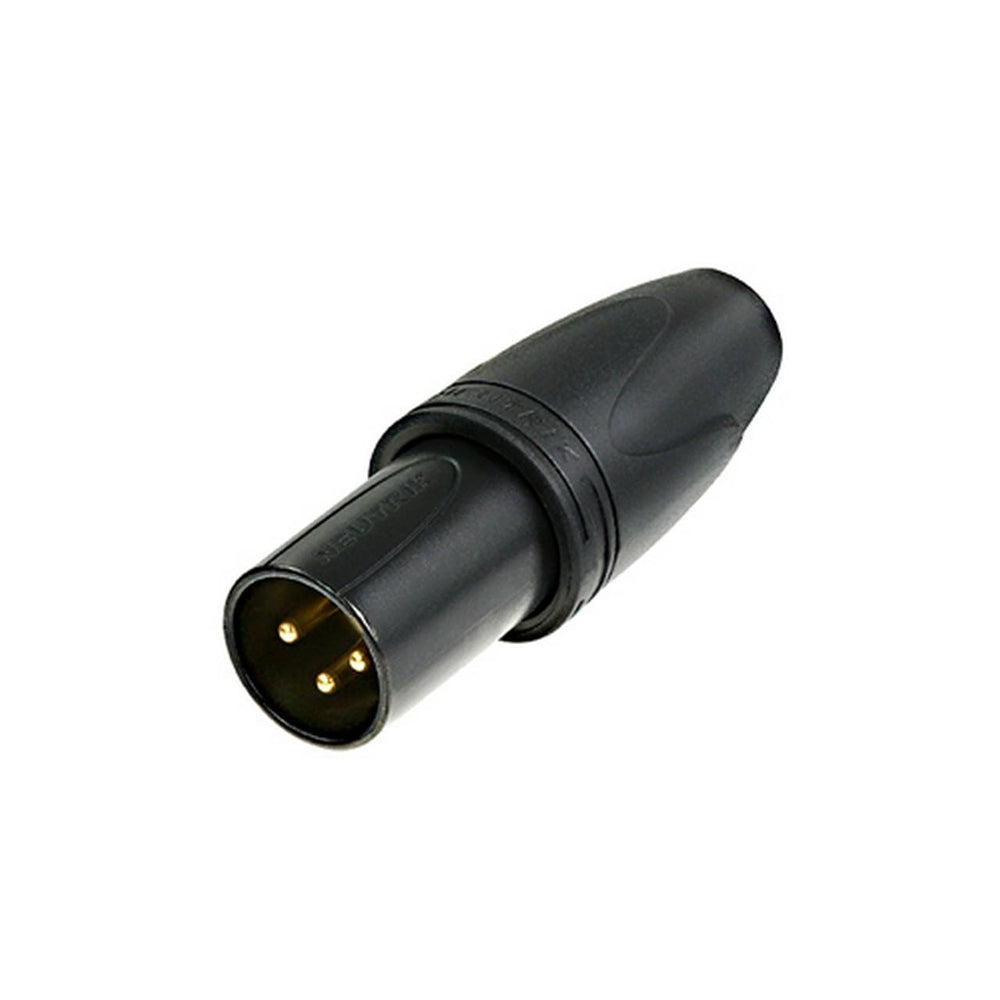

Neutrik NC3MXX-HD-B-D 3-Pin Male XLR Cable Connector Black
Neutrik NC3MXX-HD-B-D 3-Pin Male XLR Cable Connector Black
Neutrik NC3MXX-HD-B-D 3-Pin Male XLR Cable Connector Black
Heavy duty male 3 pole XLR cable connector, black housing, for outdoor use
Key Features
- Dust and water ingress sealing according to IP67 in combinition with HD cable connector NC3FXX-HD*
- Gold contacts
- Rubber sealing jacket protects against water ingress and mechanical shock
Technical Specifications
Title
NC3MXX-HD-B-D
Connection Type
XLR
Gender
Male
Electrical
Capacitance between contacts
4 pF
Contact resistance
3 m
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 G (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
6.0 - 8.0 mm
Insertion force
20 N
Withdrawal force
20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Sealing jacket
EPDM
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
