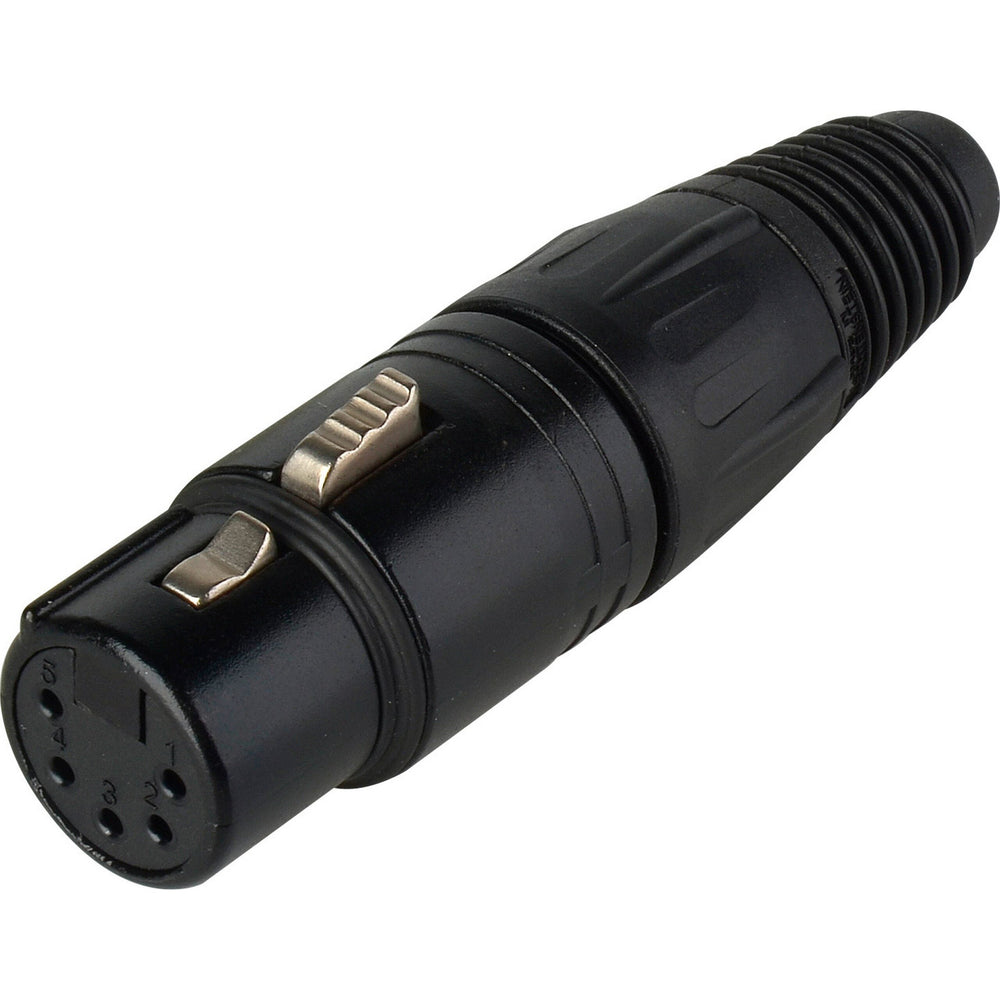

Neutrik NC5FX-B 5-Pin XLR-F Cable Jack, Black Shell/Gold Contacts
Neutrik NC5FX-B 5-Pin XLR-F Cable Jack, Black Shell/Gold Contacts
Neutrik NC5FX-B 5-Pin XLR-F Cable Jack, Black Shell/Gold Contacts
The “industry standard” XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fiberglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
Key Features
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Colored rings and boots available for coding and marking
- UL recognized components
Technical Specifications
Product
Title
NC5FX-B
Connection Type
XLR
Gender
female
Electrical
Capacitance between contacts
≤ 7 pF
Contact resistance
≤ 3 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
7,5 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.0 mm²
Wiresize
max. 18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA66)
Locking element
St3K32 (latch) / Ck 67 (spring)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Approvals
UL
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
