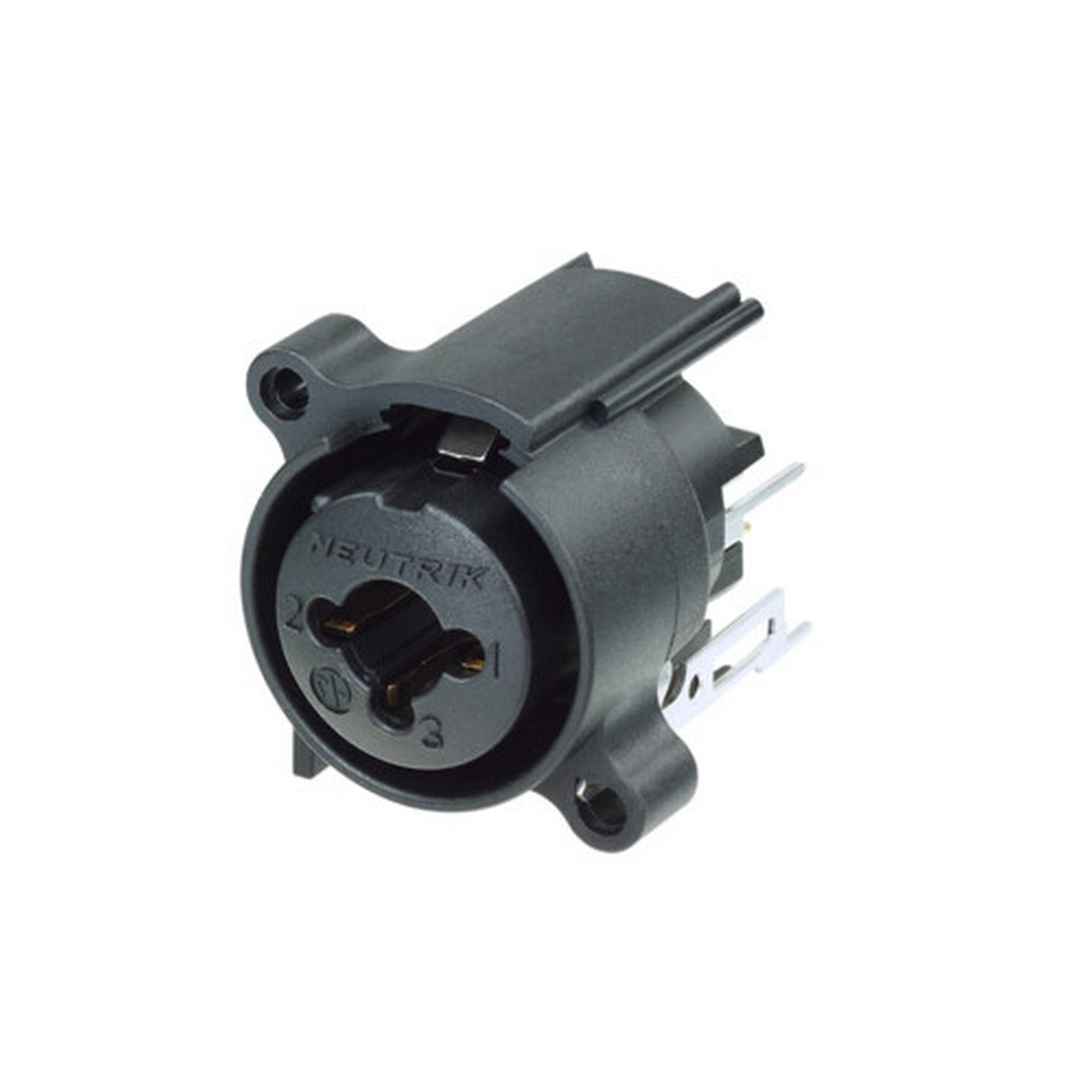

The Neutrik NCJ6FA-V-0 is a versatile hybrid chassis connector that combines a 3-pole XLR female receptacle with a 1/4" stereo jack, all within the industry's most compact XLR housing. This innovative design allows for balanced microphone and line or instrument inputs in a single connector, offering significant space savings of approximately 15% compared to previous Combo models. The integration of two connectors into one housing not only conserves space but also reduces costs, materials, and labor, making it an efficient solution for various audio applications.

Engineered for optimal performance, the NCJ6FA-V-0 features very low conductor capacitance, making it ideal for digital audio applications where signal integrity is paramount. The front panel cut-out is compatible with Neutrik's XLR A Series, ensuring seamless integration into existing setups. Each connector is branded with a unique hologram, guaranteeing that you receive a genuine and authentic Neutrik product, renowned for its reliability and durability in professional audio environments.

The connector is designed for vertical PCB mounting and includes a retention spring locking device, ensuring secure connections and longevity with over 1,000 mating cycles. It supports a maximum panel thickness of 0.12 inches (3 mm) and is rear-mounted using A-screws. The materials used in its construction, including bronze contacts with specialized plating and a polyamide insert, contribute to its robust performance across a wide temperature range of -22°F to +176°F (-30°C to +80°C). Compliance with flammability standard UL 94 V-0 and solderability per IEC 68-2-20 further attest to its high-quality design and manufacturing.

Key Features

• Combines 3-pole XLR female receptacle and 1/4" TRS phone jack in a single compact housing
• Approximately 15% space saving over previous Combo models
• Very low conductor capacitance, ideal for digital audio applications
• Front panel cut-out compatible with Neutrik XLR A Series
• Unique hologram branding ensures genuine Neutrik authenticity

Technical Specifications

Title: NCJ6FA-V-0
Connection Type: Combo
Gender: Female

Electrical
Contact Resistance: < 10 mΩ (XLR and Jack)
Dielectric Strength: 1,500 VDC
Insulation Resistance: > 10 GΩ (initial)
Rated Current per Contact: 3 A (XLR and Jack)
Rated Voltage: < 50 V

Mechanical
Insertion Force: ≤ 4.5 lbf (20 N)
Withdrawal Force: ≤ 4.5 lbf (20 N)
Lifetime: > 1,000 mating cycles
Locking Force: > 4.5 lbf (20 N) separating force
Panel Thickness: Max. 0.12 inches (3 mm)
Wiring: Vertical PCB mount
Locking Device: Retention spring
Mounting Direction: Rear mounting
Mounting Screw: A-screw

Material
Contact Plating: 0.2 µm AuCo (XLR), 0.2 µm Ag (Jack RS), Palladium, 0.1 µm Pd over 3 µm NiP
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA66)
Locking Element: Steel Ck67

Environmental
Flammability: UL 94 V-0
Solderability: Complies with IEC 68-2-20
Temperature Range: -22°F to +176°F (-30°C to +80°C)

What's Included

• NCJ6FA-V-0 Combo Connector
• Retention spring
• Mounting hardware (A-screws)
• Technical documentation
