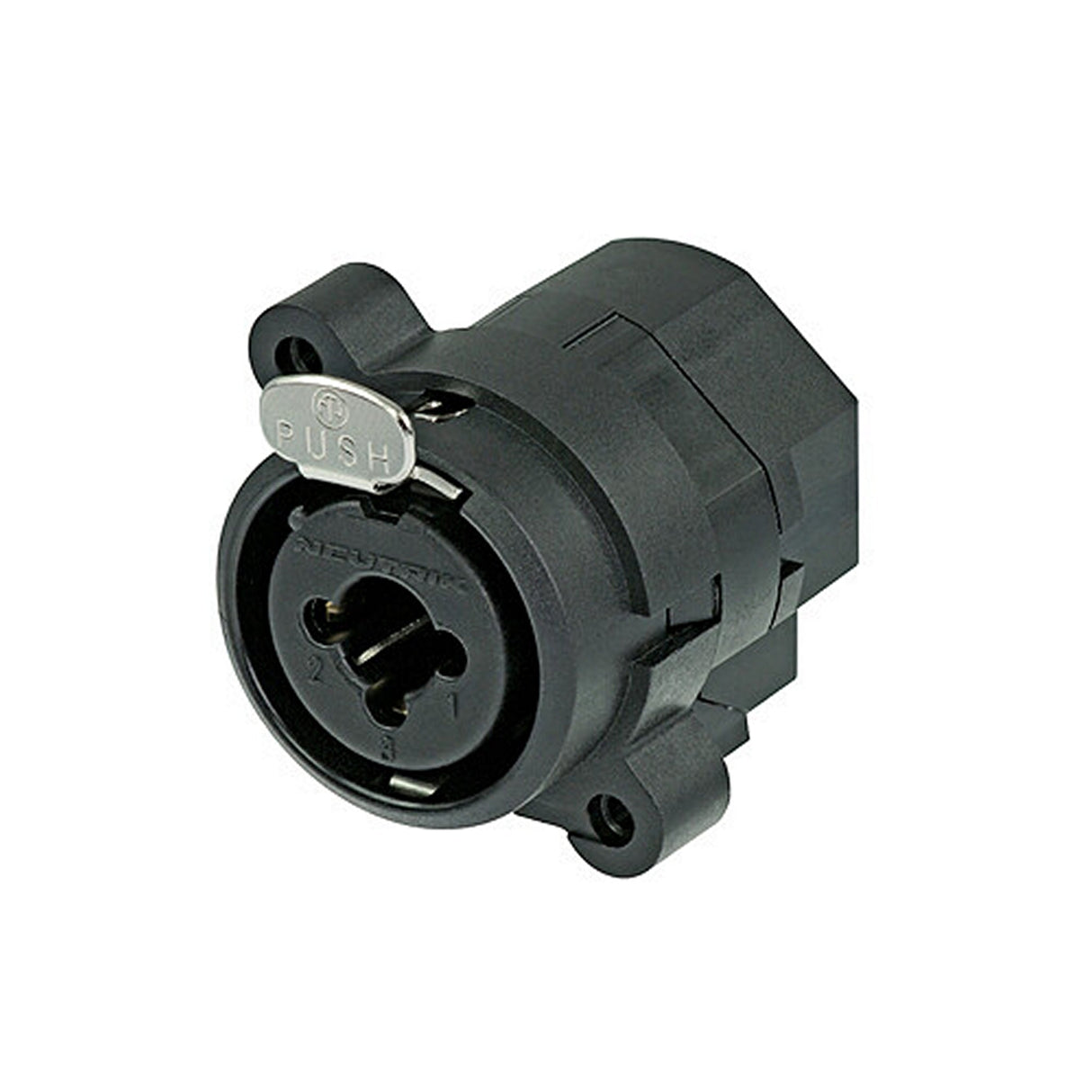

Neutrik NCJ6FI-V 3-Pole XLR Female Receptacle with 1/4-Inch Stereo Jack
Authorized Dealer
In Stock
Pick up available In-StoreEstimated Shipping Widget will be displayed here!
Condition: New
Description
3 pole XLR female receptacle with 1/4" stereo jack without switching contact, designed for vertical PCB mounting.
Hybrid chassis connector that merges a 3 pole XLR receptacle with a 1/4" jack.
Key Features
- XLR and 1/4" phone jack combined into a single receptacle
- XLR shell offers balanced or line inputs
- Efficiently saves rack space by housing 2 connectors in one
- Ideal for digital audio due to its extremely low conductor capacitance
- Provides a convenient solution for connecting various audio devices
Technical Specifications
Contact resistance
< 10 mΩ (XLR)
Contact resistance
< 20 mΩ (jack)
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
7,5 A (XLR)
Rated current per contact
7,5 A (Jack)
Rated voltage
< 50 V
Insertion force
≤ 25 N
Withdrawal force
≤ 25 N
Lifetime
> 1000 mating cycles
Panel thickness
max. 7 mm 0.27"
Mounting direction
Rear mounting
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
PA66
Locking element
Steel Ck67
Flammability
UL 94 V-0
Temperature range
-30 °C to +80 °C
Installation / Use Cases
- Install the combination XLR and 1/4-inch stereo input receptacle on a compatible vertical PCB in professional audio equipment.
- Use in mixers, interfaces, amplifiers, processors, and other compatible audio designs where either an XLR plug or 1/4-inch phone plug needs to connect through a single panel opening.
- Use the hybrid connector to conserve front-panel or rear-panel space by combining two common professional audio input formats in one chassis receptacle.
Package Contents
- Neutrik NCJ6FI-V 3-Pole XLR Female Receptacle with 1/4-Inch Stereo Jack
Frequently Asked Questions
What connectors are combined in the Neutrik NCJ6FI-V?
It combines a 3-pole female XLR receptacle and a 1/4-inch stereo phone jack in one housing.
Does the NCJ6FI-V have switching contacts?
No. This version uses a 1/4-inch stereo jack without switching contacts.
How is the NCJ6FI-V mounted?
It is designed for vertical PCB mounting with rear mounting through the equipment panel.
Why use an XLR and 1/4-inch combo connector?
It allows compatible XLR or 1/4-inch connections through a single panel position, helping conserve space in professional audio equipment.
What is the maximum specified panel thickness?
The maximum specified panel thickness is 7 mm, or approximately 0.27 inches.
What is the rated current per contact?
Both the XLR and 1/4-inch jack contacts are rated at 7.5 amps per contact.
