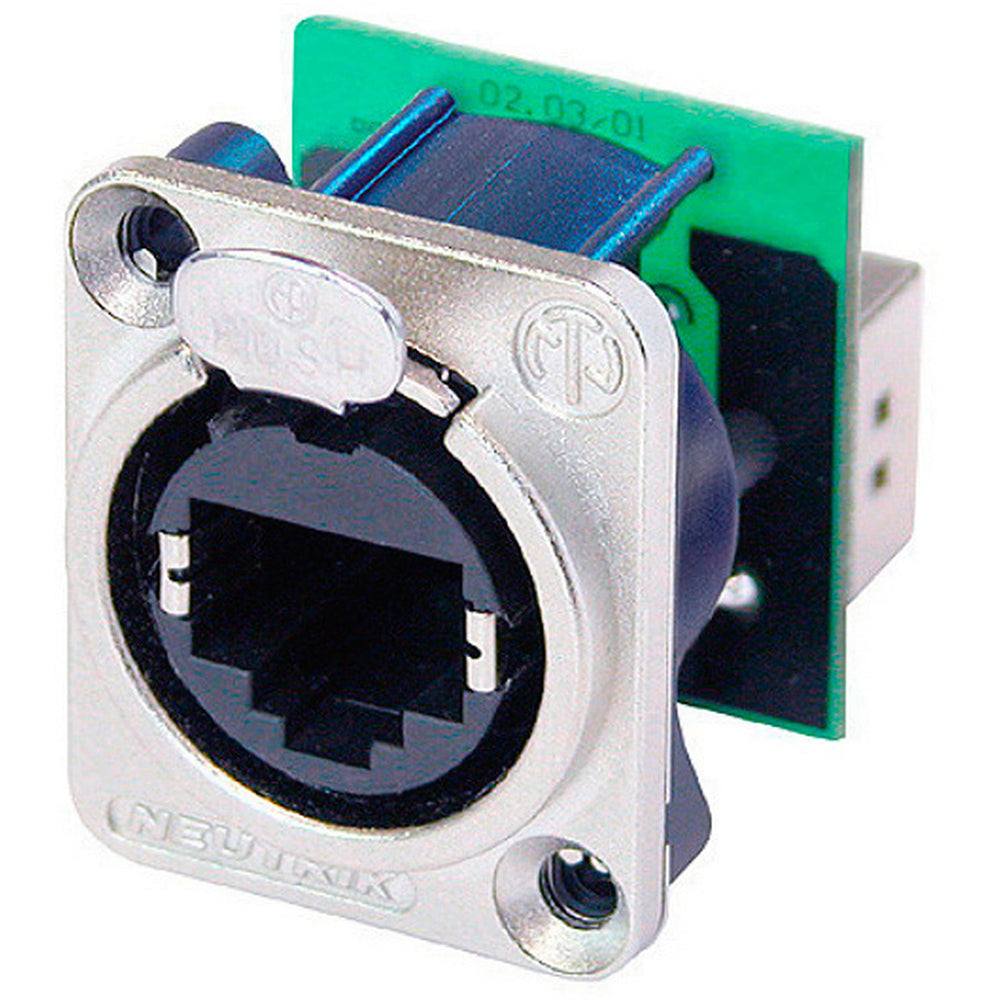

Neutrik NE8FDP-D etherCON CAT5 Receptacle, Nickel, 20 Pack/Screws Not Included
RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included
Neutrik NE8FDP etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.
Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.
Key Features
- Accommodates NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Mountable from the front or rear of the panel
- Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
Technical Specifications
Gender
Female
Electrical
Contact Resistance
< 10 m OHMS
Dielectric Strength
1 kVdc
Frequency Range
1 - 100 MHz
Insulation Resistance
> 0.5 G OHMS
Rated Current per contact
1,5 A
Rated Voltage
< 50 V
Transmission Performance
CAT 5e
Standard Compliance
TIA/EIA 586B, IEC11801
Mechanical
Insertion Force
= 20 N
Withdrawal Force
= 20 N
Lifetime
> 1000 mating cycles
Panel Thickness
Max. 4 mm 0.16'
Wiresize
Wiring
Feedthrough
Locking Device
Latch lock
Chassis Shape
D
Material
Contact Plating
0.2 µm Au over Ni plating
Contacts
Bronze (CuSn8)
Insert
PBTP 15 % GR
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Nickel
Environmental
Flammability
UL 94 V-0
Temperature Range
-30 Degrees C to +80 Degrees C
Item Includes
1x Neutrik NE8FDP-D Receptacle etherCON CAT5 D Series - Feedthrough - Nickel - 20 Pack/Screws not included
